People Counting Camera

People Counting Camera main image People Counting Camera image

People Counting IP Camera

Dual-lens 3D imaging that tells the difference between a person and a trolley, a shopping bag or a shadow — giving you accurate entry and exit counts for every door, every day, exported straight into a report you can act on.

Camera Specs How It Works Case Study FAQs
LTS People Counting IP Camera
CMIP6H22W-2 — DUAL-LENS 3D PEOPLE COUNTING LTS PLATINUM DAILY / WEEKLY / MONTHLY / ANNUAL REPORTS EXCEL EXPORT

Why Use a People Counting Camera?

From retail floors to fire-safety compliance, knowing exactly how many people moved through a door changes how a business is run.

1

Count the number of shoppers entering and leaving your store or building.

2

Gather detailed insights in easy-to-read formats — powerful tools for managing the business.

3

See which days are busier than others to manage staff efficiency.

4

Improve service on busier days and reduce staff on quiet days to save operational costs.

5

Ensure the total number of people in a building does not exceed fire safety regulations.

6

Measure ROI to help develop strategic marketing that attracts more customers, backed by real data.

The Technology

LTS's People Counting Camera uses dual lenses and precise embedded AI algorithms to achieve 3D imaging, distinguishing the difference between humans and inanimate objects. The AI continuously learns and improves itself to count more precisely over time.

People counting camera mounted above shopping mall entrance People counting camera detection overlay in supermarket entrance

Real test footage from LTS shows the camera correctly tallying entries whether one person, two people side by side, or multiple people are crossing the line at once:

Single person entry count demo

Single Person Entry

A single person enters through the sliding doors with a trolley — the camera distinguishes the person from the trolley and adds one to the entry count.

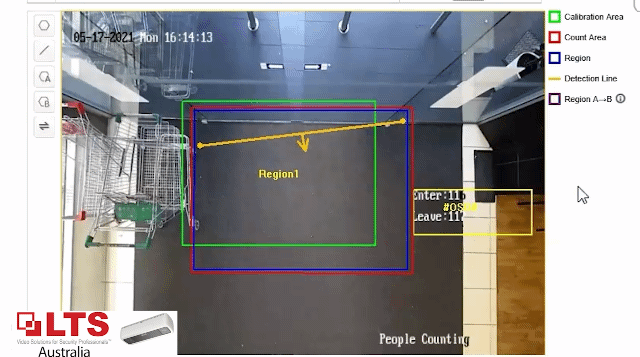

Two people entry count demo

Two People, Side by Side

Two people enter close together — even walking in close proximity, the camera correctly adds two people to the count.

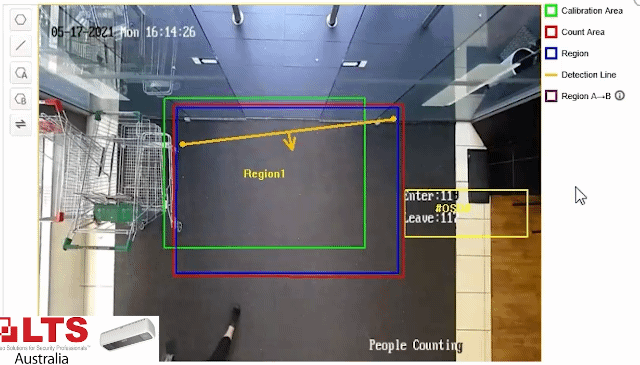

Multiple people entry count demo

Multiple, Simultaneous

Multiple people enter and leave at the same time — with correct setup, the camera tallies the count accurately.

The Camera

CMIP6H22W-2 2MP People Counting Camera
People Counting

2MP People Counting Camera (2.0mm Fixed-Lens)

SKU: CMIP6H22W-2 · LTS Platinum
  • Resolution2.1MP — 1920x1080 @30fps
  • Lens2.0mm fixed
  • FOV105°H x 71°V — 112°D
  • Min. illumination0.0176 @ F2.3 (AGC ON)
  • IR illuminationMatrix IR LED, 6m max @ 850nm
  • CompressionH.265 / H.265+ / Profile-S / G
  • Image processingDWDR, BLC, 3D DNR
  • AudioIn / Out — built-in microphone
  • Ingress ratingIP67
  • Power12VDC / 660mA, 802.3af PoE / 8.3W
View Product Page → Download Brochure (PDF) →

Case Study — Shopping Centre Rollout

Recently, LTS Security Australia supplied four CMIP6H22W-2 People Counting Cameras for a shopping centre to cover all four main entrances.

Different entry/exits presented different challenges, with some contributing far greater foot traffic than others and multiple people entering and exiting simultaneously. Working closely with the system integrator, LTS engineers assisted with configuration and commissioning to deliver accurate results to centre management.

The solution gives management full visibility of entry/exit counts, with detailed summary reports produced daily, weekly, monthly and annually, and exportable to Excel — a key input for visualising how the centre is performing and making calculated decisions.

Shopping centre entrance with people counting camera coverage Supermarket entrance people counting detection

Reports In Every Format

Daily, weekly, monthly and annual report charts give management an at-a-glance read on foot traffic, with full data exportable to Excel for deeper analysis.

Weekly people counting report chart

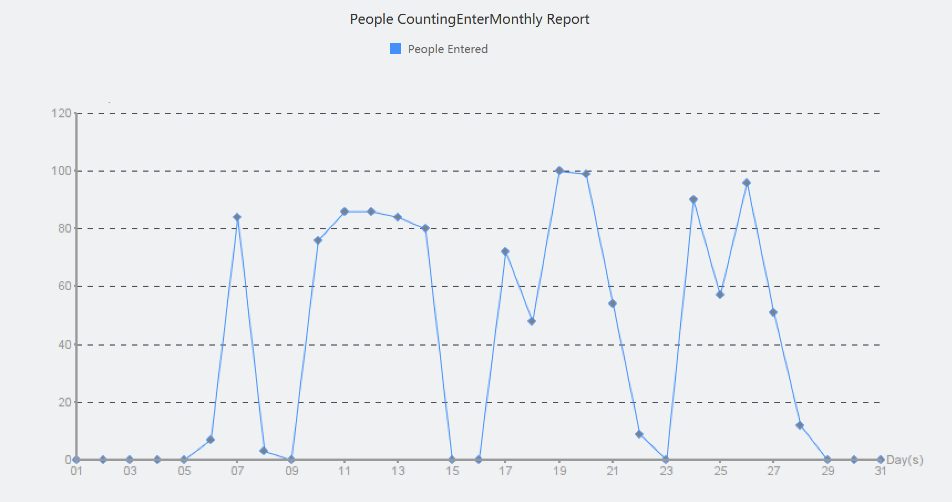

People counting analytics graph 1 People counting analytics graph 2
People counting report exported to Excel

Built For

Shopping Centres
Retail Stores
Fire Safety / Occupancy Limits
Foot-Traffic Analytics

Frequently Asked Questions

How does the camera tell people apart from trolleys or bags?▼
The CMIP6H22W-2 uses dual lenses to build a 3D image of the scene, and an embedded AI algorithm analyses that 3D data to distinguish a human shape from an inanimate object such as a trolley or bag — rather than just counting anything that moves.
Can it count multiple people crossing at the same time?▼
Yes. LTS's own test footage shows the camera correctly tallying a single person with a trolley, two people walking side by side, and multiple people entering and leaving simultaneously, when set up correctly.
What reporting formats are available?▼
Daily, weekly, monthly and annual summary report charts, with full data exportable to Excel for further analysis.
How many cameras do I need for a shopping centre with several entrances?▼
One camera per entrance/exit being monitored is the standard approach — in LTS's own case study, four CMIP6H22W-2 cameras were installed to cover all four main entrances of a shopping centre.
Is the camera weatherproof for an outdoor entrance?▼
Yes, the CMIP6H22W-2 carries an IP67 ingress protection rating and includes matrix IR LEDs (6m max, 850nm) for low-light operation.
How is the camera powered?▼
It runs on 12VDC / 660mA or standard 802.3af PoE, drawing around 8.3W.
A single real, currently listed model — CMIP6H22W-2 — using genuine LTS dual-lens 3D people counting technology, with a real shopping-centre case study and LTS's own demonstration footage.
