Colour247: True Full-Colour Video, Day and Night

No more grainy black-and-white footage after dark. Colour247 cameras use a super-wide F1.0 aperture, a high-sensitivity sensor and smart supplemental lighting to capture full, vivid colour around the clock — so you can actually identify what you're looking at.

View Colour247 Models How It Works LTS Colour247 banner
Authorised LTS Importer & Distributor
Australia-Wide Shipping
Trade & Wholesale Pricing
Local Technical Support

What Is Colour247?

Colour247 is LTS's full-colour, 24-hour imaging technology. Instead of switching to black-and-white infrared footage once the light drops, Colour247 cameras keep recording in full colour — in dim ambient light, and even in complete darkness using their built-in white-light illuminator.

That matters because colour is what actually identifies a person or vehicle on camera. A clothing colour, a car colour, a logo on a uniform — all of this disappears in standard IR-only night vision, but is preserved by Colour247.

Colour247 is built into a growing range of LTS Platinum turret and bullet cameras, from everyday 4MP models through to the flagship 8MP 4K model used across LTS's own demonstration sites — including Sydney's Vivid Festival of Light.

Colour247 full colour camera description

How Colour247 Achieves Full Colour, Day and Night

Three things work together to keep the image in full colour, whatever the lighting: a wide-aperture lens that lets in more light, a sensor tuned to make the most of that light, and a smart supplemental light that only switches on when it's genuinely needed.

Available Light Ambient / moonlight / streetlight F1.0 Super-Aperture Wide-open lens collects far more light than a standard F1.6–F2.0 lens High-Sensitivity Sensor 1/1.8″ or 1/1.2″ progressive-scan CMOS maximises every photon Full-Colour Image, 24/7 If light is still too low, the smart white-light illuminator activates automatically to hold full colour even at 0 Lux
1

Wide Aperture Lens

Colour247 cameras use an F1.0 lens — a much wider opening than the F1.6–F2.0 lenses on standard cameras — letting in significantly more available light before any electronic gain is applied.

2

High-Performance Sensor

A large progressive-scan CMOS sensor (1/1.8″ on the 4MP models, 1/1.2″ on the 8MP flagship) converts that light into a clean, low-noise colour image instead of switching to monochrome.

3

Smart Supplement Light

When ambient light drops to zero, a built-in white-light illuminator (rated up to 30m) switches on automatically — holding full colour rather than dropping back to black-and-white IR.

Detect, Observe, Recognise, Identify

Image quality at distance is measured using the DORI standard — how far away you can Detect something is there, Observe what it's doing, Recognise the type of object, and Identify a specific person or plate. Figures below are the published DORI range for the flagship 8MP Colour247 turret (CMIP3C82W-28MDA, 2.8mm lens).

Detect — 96m Observe — 38m Recognise — 19m Identify — 9m
Detect (96m): something is there and moving.
Observe (38m): general activity is visible.
Recognise (19m): you can tell the type of object — person, car, etc.
Identify (9m): enough detail to identify a specific person or vehicle.

DORI figures are sourced from the manufacturer datasheet for the 2.8mm 8MP model and will vary by lens and mounting height — always confirm against the current datasheet for the exact model and lens you're specifying.

See It In Action

Colour247 has been put to the test in real low-light and adverse-weather conditions, including LTS's own demonstration at Sydney's Vivid Festival of Light.

LTS Platinum 4K Colour247 at Sydney Vivid Festival
LTS Platinum 4K Colour247 — Sydney Vivid Festival of Light (LTS Australia)

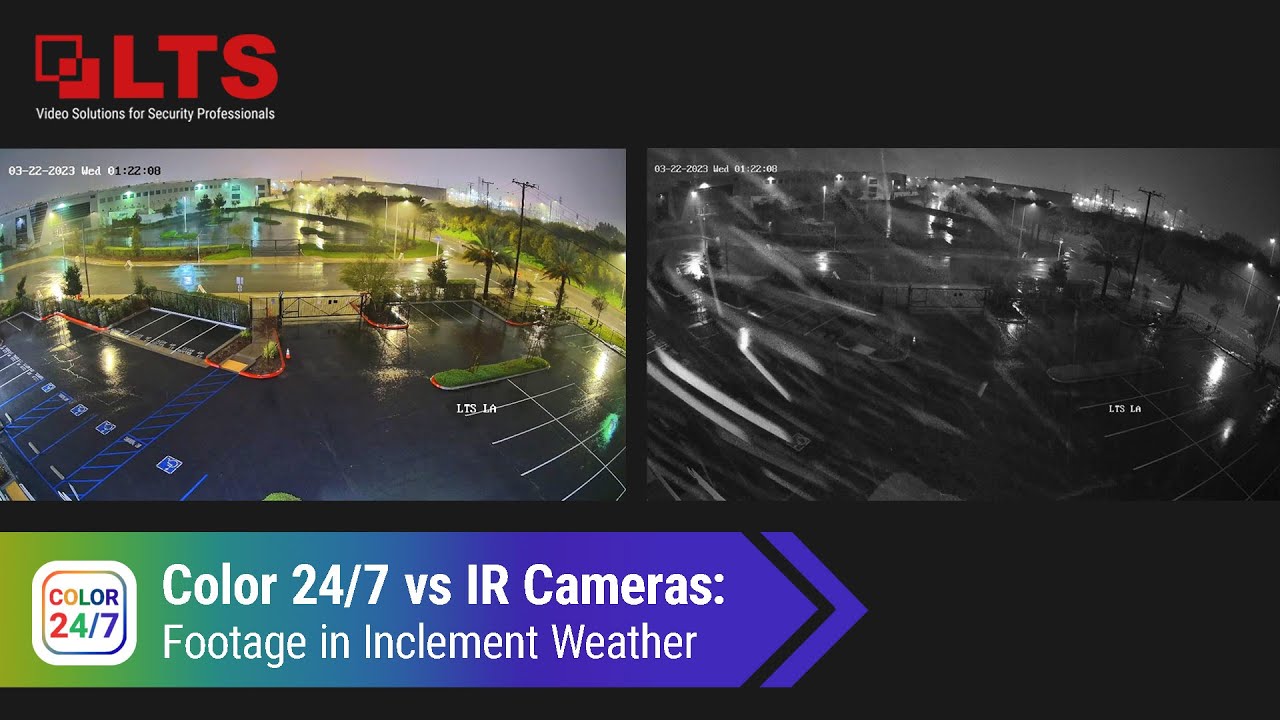

Colour247 vs IR cameras in inclement weather
Colour247 vs IR Cameras: Footage in Inclement Weather (LTS)

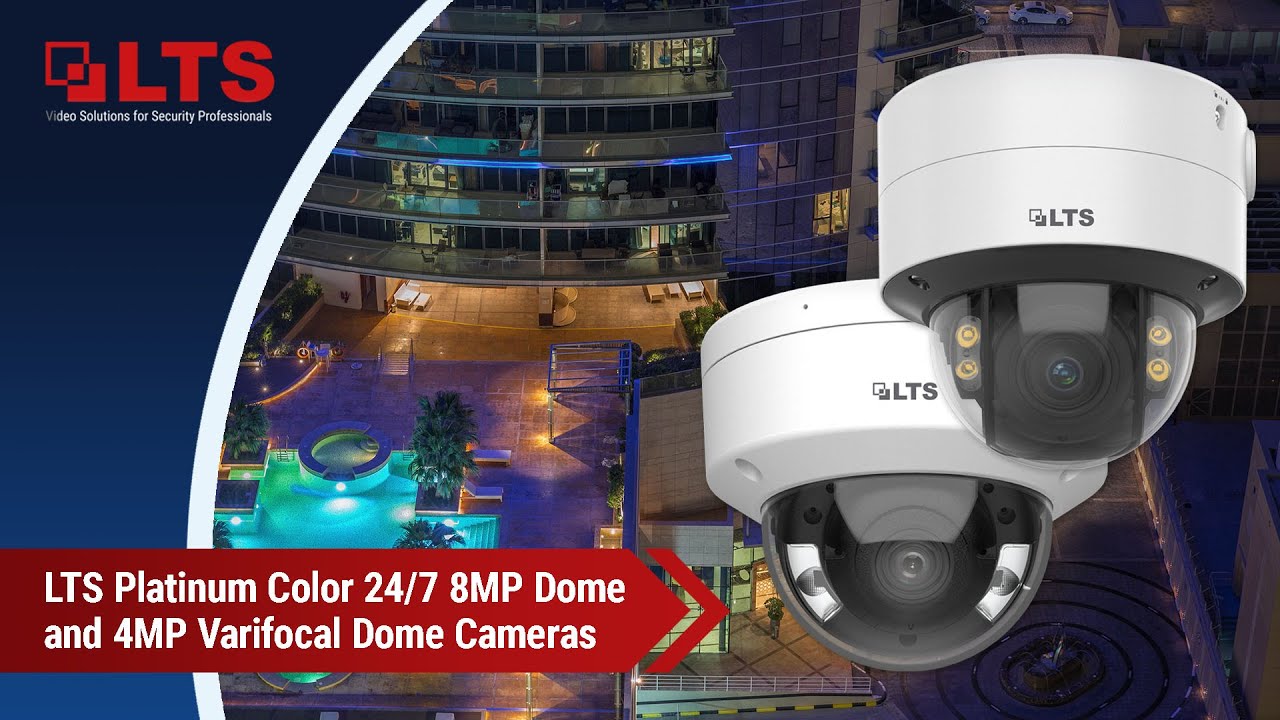

LTS Platinum Colour247 8MP and 4MP dome cameras
LTS Platinum Colour247 8MP & 4MP Varifocal Dome Cameras (LTS)

Day, Night and Side-by-Side

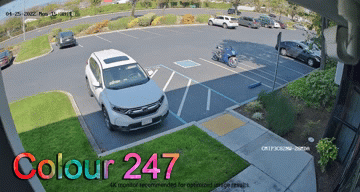

Colour247 day to night timelapse

Timelapse: Day / Night Transition

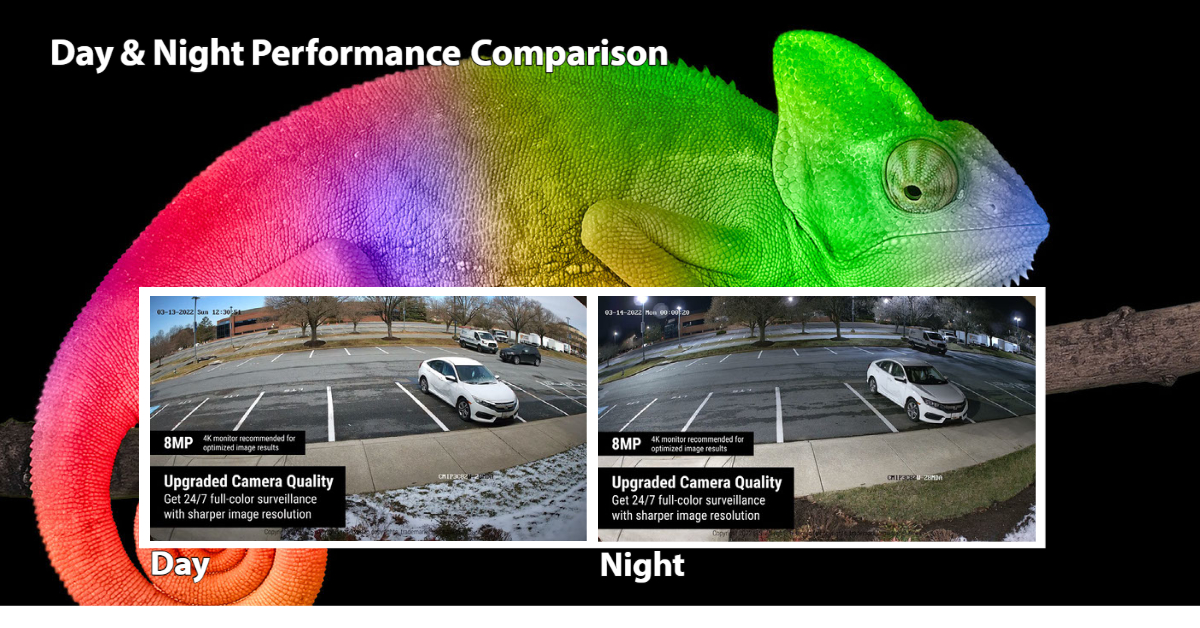

Colour247 image quality comparison

Colour247 Image Comparison

Note: while we can confirm both images are taken directly from LTS's own Colour247 materials, we can't independently verify the exact lighting conditions shown in each frame — treat them as illustrative of the technology rather than a guaranteed result in every environment.

The Colour247 Range

Ten real, currently listed Colour247 models on the LTS Australia store — standard 4MP/8MP IP turrets and bullets, the NEMA 4X anti-corrosion flagship with active deterrence, Hybrid IR combinations, dual-camera PTZ systems, and even an HD-TVI (analog) version for sites without IP infrastructure.

Standard Colour247 IP Cameras

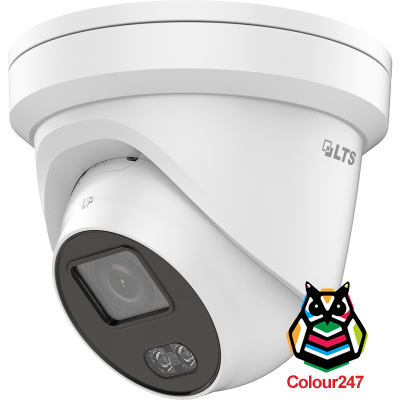

CMIP3C42W-AIM28 4MP Colour247 turret camera

CMIP3C42W-AIM28 / AIM

  • HousingTurret
  • Resolution4MP (2688x1520)
  • Lens2.8mm or 4mm
  • Sensor1/1.8″, F1.0
  • WDR130dB
  • ProtectionIP66
2.8mm Product Page Datasheet PDF

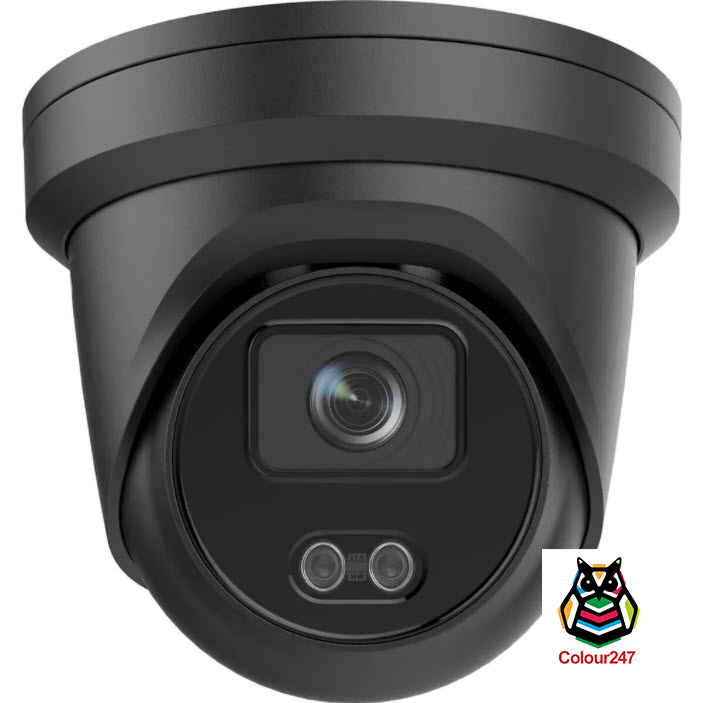

CMIP3C42WB-AIM28 4MP Colour247 jet black turret camera
Jet Black Housing

CMIP3C42WB-AIM28

  • HousingTurret
  • Resolution4MP (2688x1520)
  • Lens2.8mm
  • Sensor1/1.8″, F1.0
  • WDR130dB
  • ProtectionIP67
Product Page Datasheet PDF

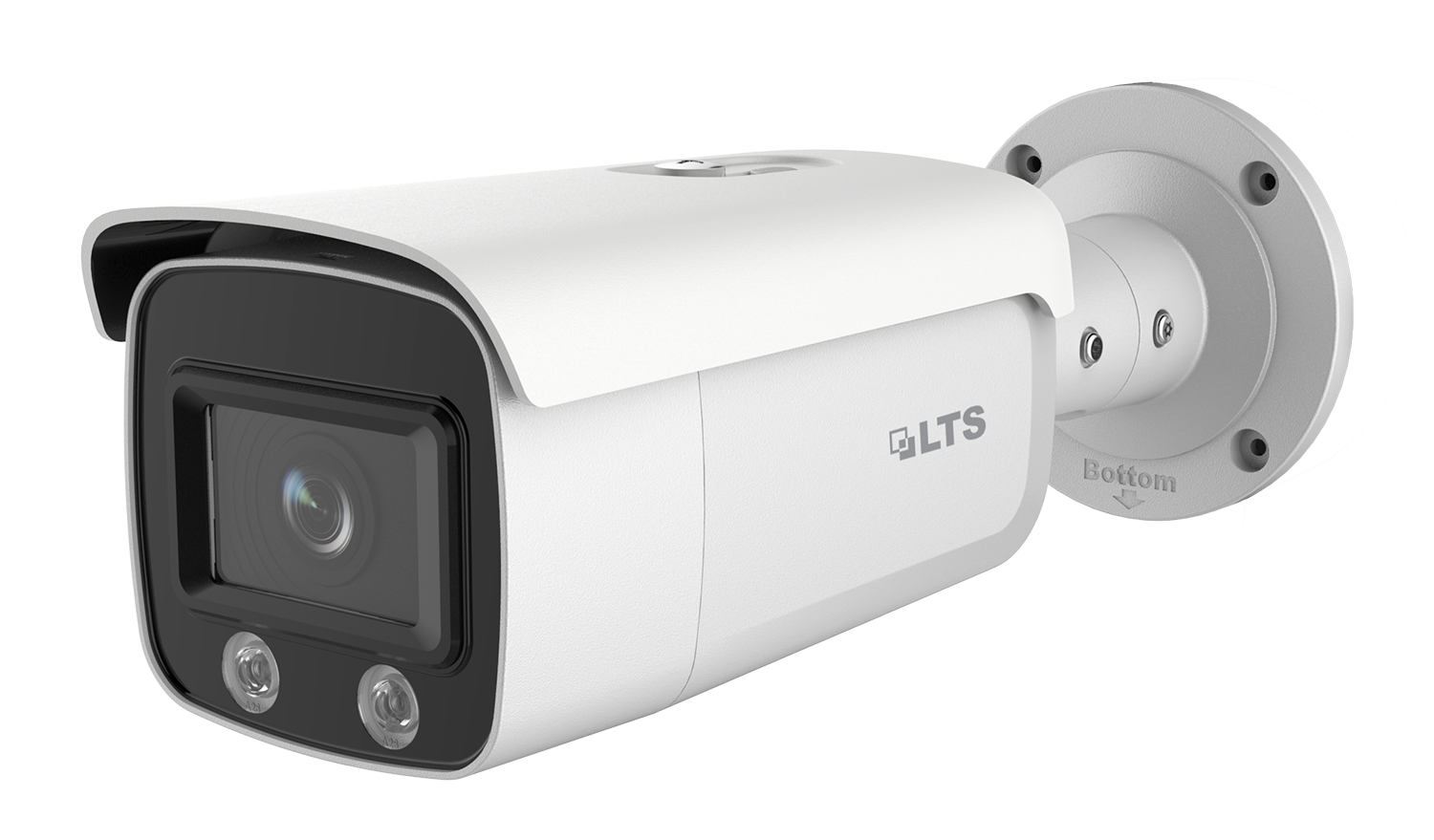

CMIP9C42NW-M 4MP Colour247 bullet camera
Bullet Housing

CMIP9C42NW-M

  • HousingBullet
  • Resolution4MP (2688x1520)
  • Lens4mm
  • Sensor1/1.8″, F1.0
  • WDR120dB
  • ProtectionIP67
Product Page Datasheet PDF

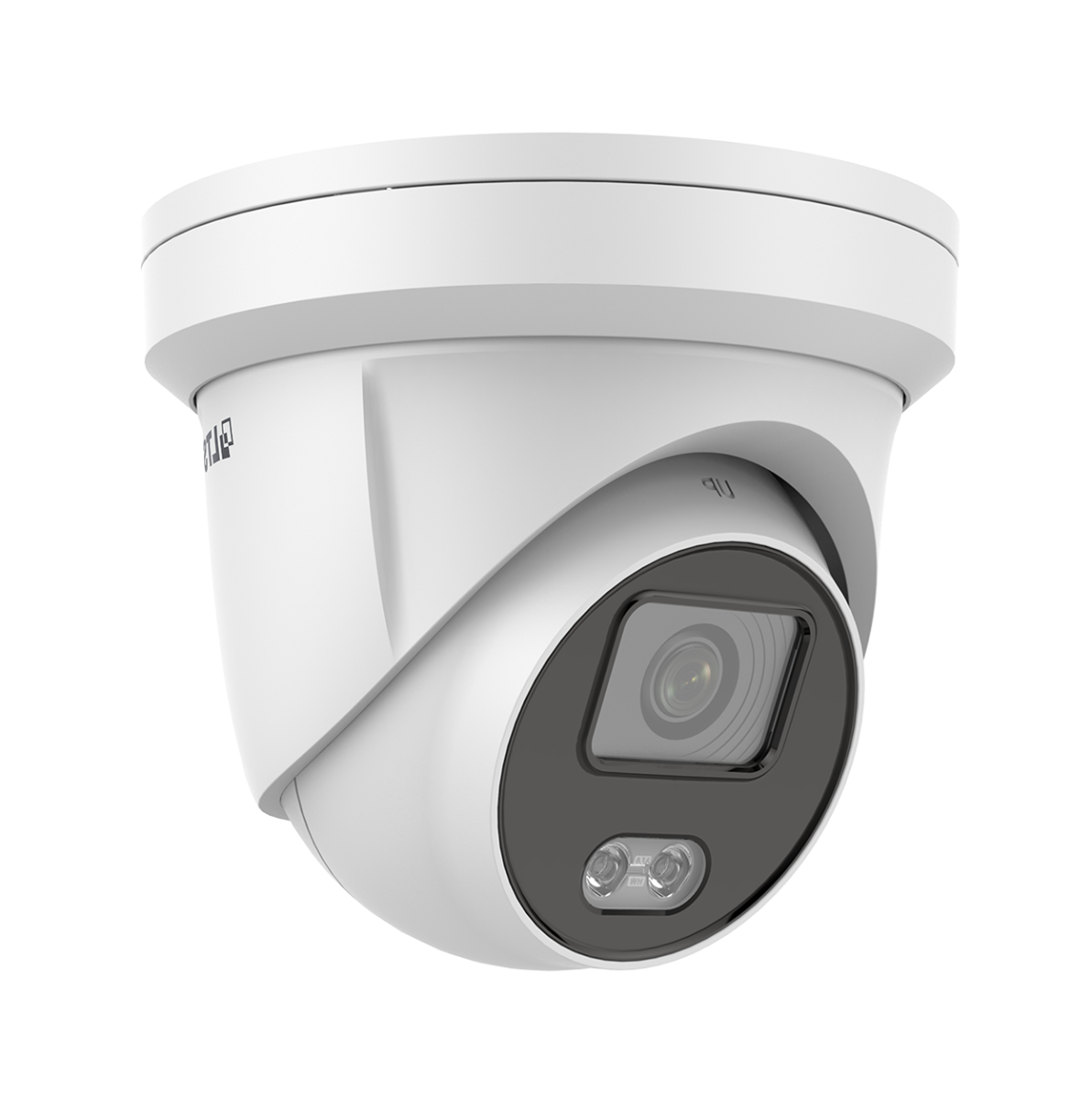

CMIP3C82W-28MDA 8MP Colour247 camera
NEW — 8MP Flagship

CMIP3C82W-28MDA

  • HousingTurret
  • Resolution8MP / 4K (3840x2160)
  • Lens2.8mm
  • Sensor1/1.2″, F1.0
  • WDR130dB
  • DORI (D/O/R/I)96/38/19/9m
  • AIHuman & vehicle classification
  • ProtectionIP67
Product Page Datasheet PDF
CMIP3CD82WI-28LAISP 8MP AI Colour 24/7 with Active Deterrence flagship camera
Ultimate Flagship

CMIP3CD82WI-28LAISP

8MP AI Colour 24/7 with Active Deterrence

  • HousingTurret
  • Resolution8MP / 4K (3840x2160)
  • Lens2.8mm
  • Sensor1/1.8″, F1.0
  • WDR130dB
  • DORI (D/O/R/I)89/35/17/8m
  • LightingSmart Hybrid Light — White + IR
  • AIPerson & vehicle classification, face capture
  • DeterrenceWhite strobe + red/blue flashing light + audio alarm
  • AudioArrayed dual-mic + built-in speaker
  • Housing ratingNEMA 4X anti-corrosion (moderate level), IP67
Product Page Datasheet PDF

CMIP3CD82WI-28LAISP is the top-of-range Colour247 model — it combines full-colour imaging with active deterrence (strobe, flashing light and audio alarm), NEMA 4X anti-corrosion housing for coastal/harsh sites, and dual-mic/speaker audio in one camera.

Colour247 + Active Deterrence / Hybrid IR

CMIP3C42W-28SDL 4MP Active-247 turret camera with strobe light and audible warning
Strobe + Audio Alarm

CMIP3C42W-28SDL

Active-247 Turret

  • HousingTurret
  • Resolution4.1MP (2688x1520)
  • Lens2.8mm
  • IlluminatorWhite LED, 30m
  • WDR130dB
  • DeterrenceStrobe light + audible alarm
Product Page
CMIP3C42WI-28MDA 4MP Colour247 hybrid IR turret camera
Hybrid Illumination

CMIP3C42WI-28MDA

Colour247 Hybrid IR

  • HousingTurret
  • Resolution4MP
  • Lens2.8mm
  • WDR120dB
  • AIMD 2.0 human & vehicle detection
  • IlluminationColour247 white light + IR (hybrid)
Product Page

Colour247 Dual-Cam & PTZ Combos

These pair a fixed Colour247 wide-angle camera with a separate motorised zoom PTZ camera on one mount — giving a full-colour overview plus the ability to zoom in on a person or vehicle of interest.

PTZIP4C44W-X25IR 4MP dual-camera Colour247 plus 25x PTZ
Dual-Cam

PTZIP4C44W-X25IR

4MP Dual-Cam (2.8mm Colour247) + 25x PTZ

  • Fixed cam4MP, 2.8mm Colour247 (0.0005 lux @F1.0)
  • PTZ cam4MP, 4.8–120mm, 25x motorised zoom
  • PTZ IRMatrix IR, 150m max
  • WDR120dB
  • Storage256GB max micro SD
  • ProtectionIP66
Product Page
PTZIP4C64W-X25IR Pano Dual-Cam 6MP fixed plus 4MP PTZ
Pano Dual-Cam

PTZIP4C64W-X25IR

Pano Dual-Cam 6MP Fix + 4MP PTZ

  • Fixed cam6MP panorama, Colour247-style white light (30m)
  • PTZ cam4MP, 4.8–120mm, 25x motorised zoom
  • PTZ IR100m max
  • PowerPoE+
  • Storage256GB max micro SD
  • ProtectionIP66
Product Page

Colour247 in HD-TVI (Analog)

For sites still running coax-based HD-TVI/AHD/CVI/CVBS DVRs rather than an IP/NVR system, the same full-colour technology is available without needing to re-cable the site.

CMHT1752W-28CF 5MP HD-TVI Colour247 turret camera
HD-TVI / AHD / CVI / CVBS

CMHT1752W-28CF

5MP HD-TVI Colour247 Turret

  • HousingTurret
  • Resolution5MP (2560x1944 @20fps)
  • Lens2.8mm
  • Sensor0.0005 lux @F1.0
  • IlluminatorWhite LED, 20m
  • WDR130dB
  • ProtectionIP67
Product Page

Specifications above are taken directly from each model's published LTS Australia product page or datasheet. The flagship CMIP3C82W-28MDA also runs deep-learning target classification — see our Human & Vehicle AI Detection page for how that filters out false alarms from wind, animals and shadows.

Built for Every Application

Anywhere identifying colour and detail matters after dark.

Schools
Storefronts
Office Buildings
Banks & ATMs
Parking Areas
Hospitality

Colour247 vs Standard IR Night Vision

Standard IR Camera

Switches to black-and-white once light falls below a threshold. Clothing colour, vehicle colour and other identifying detail are lost. IR illumination can also wash out detail at close range and create reflective glare on number plates and shiny surfaces.

LTS Colour247 Camera

Holds full colour using ambient light wherever possible, and brings in a smart white-light illuminator only when needed. Colour detail — clothing, vehicles, signage — remains visible in the footage that actually matters for identification.

Frequently Asked Questions

Does Colour247 use infrared at all?+
No. Colour247 cameras are designed to stay in full colour rather than switch to monochrome IR. In very low or zero light, they use a built-in white-light illuminator instead of an IR illuminator, which is what allows colour to be preserved at night.
Will the white light disturb neighbours or wildlife?+
The supplement light is a smart illuminator rated up to roughly 30 metres and is designed to activate only when ambient light is genuinely too low to maintain colour. Mounting height, angle and surrounding light sources will all affect how noticeable it is, so it's worth discussing placement with your installer for sensitive sites.
What's the difference between the 4MP and 8MP models?+
The 4MP models (CMIP3C42W-AIM28/AIM, CMIP3C42WB-AIM28, CMIP9C42NW-M) cover everyday turret and bullet installs at 1/1.8" sensor size. The flagship 8MP CMIP3C82W-28MDA steps up to a larger 1/1.2" sensor, full 4K resolution, and adds deep-learning human and vehicle classification on top of standard Colour247 imaging.
Can Colour247 cameras still record at night if there's a power-only or no IR mode?+
Yes — Colour247 cameras don't rely on IR cut-in at all. They simply use the lens, sensor and (if needed) the built-in white-light illuminator to keep recording in colour, regardless of whether the site has any other lighting installed.
Do I need a special NVR to use Colour247 cameras?+
No special NVR is required — Colour247 cameras are standard ONVIF-compatible IP cameras and will record on any compatible LTS NVR or third-party NVMS. If you want to use the deep-learning human/vehicle classification on the 8MP model for smarter alerts and search, an NVR that supports that metadata will get the most out of it.
Are these cameras suitable for jet-black or discreet installs?+
Yes — the CMIP3C42WB-AIM28 is the jet-black housing variant of the standard 4MP 2.8mm Colour247 turret, offering identical imaging specs in a low-visibility finish for sites where a white camera body would stand out.

Full colour, every hour of the day. That's Colour247.
