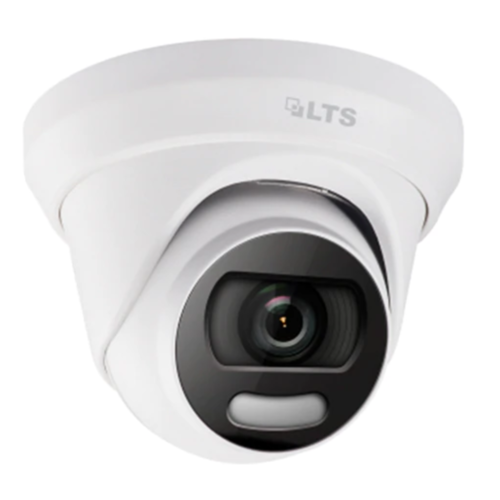

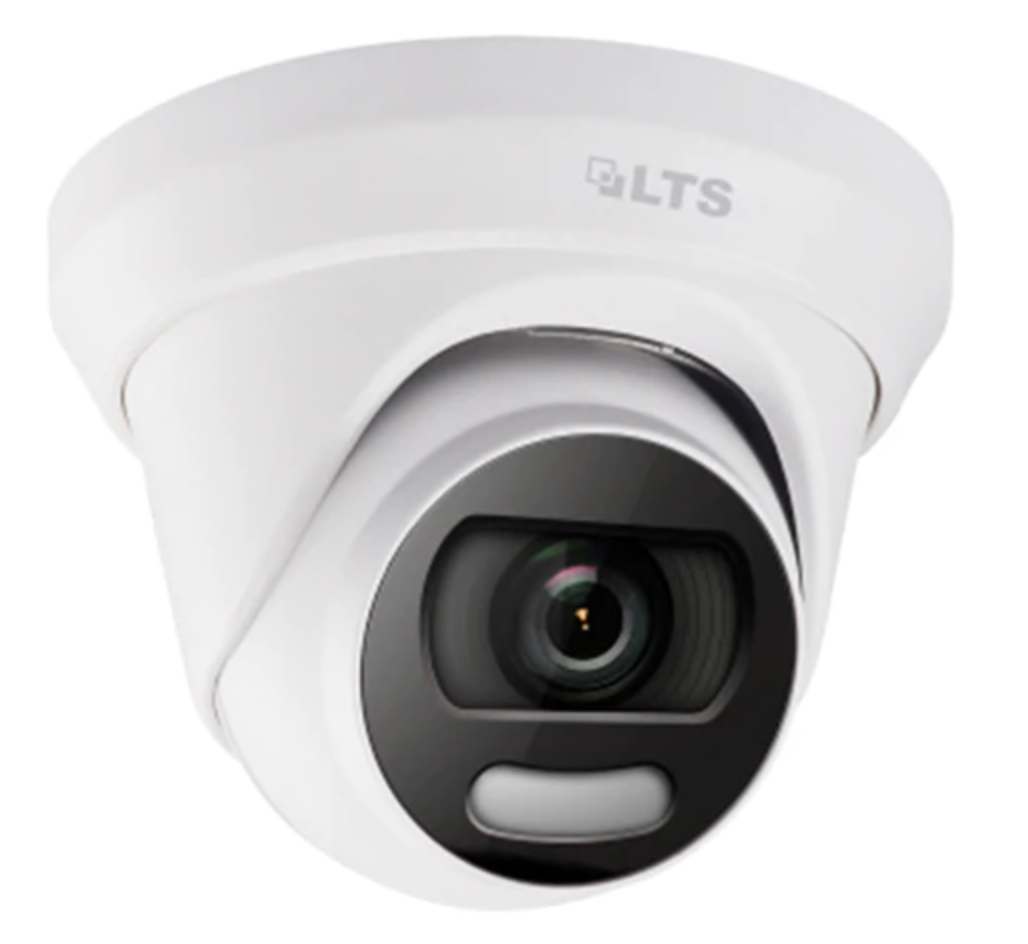

5MP TVI Colour 247

CMHT1752W-28CF

Please login or register to view pricing.


Calculate Shipping



Free pick-up from store - $0.00
Free Pickup from Unit 25 / 17 Lorraine Street Peakhurst NSW 2210 (9am-5pm)

5MP, 2560 × 1944 resolution, 24-hour color image, 2.8 mm fixed lens, Up to 66ft(20 m) white light distance, 3D DNR, true WDR, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS), IP67, OSD menu via UTC technology with Platinum DVR

  • 5MP, 2560 × 1944 resolution
  • 24-hour color image
  • 2.8 mm fixed lens
  • 0.0005Lux@F1.0
  • Up to 66ft(20 m) white light distance
  • 3D DNR, true WDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67
  • OSD menu via UTC technology with Platinum DVR



Camera Series Platinum Series
Camera Resolution 5.0MP
Camera Technology HD-TVI
Camera Housing Turret
Featured Product No
Specifications







Camera

Image Sensor

5 MP CMOS

Resolution

2560 (H) × 1944 (V)



Frame Rate

5MP@20fps

Min. illumination

0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Slow Shutter

Max. 16 times

Lens

2.8 mm fixed lens

Field of View

2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°

Lens Mount

M16

Day & Night

Color

WDR (Wide Dynamic Range)

120 dB

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Menu

Image Mode

STD/HIGH SAT

AGC

Yes

White Balance

Auto/Manual

HLC

Yes

BLC (Backlight Compensation)

Yes

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable areas

WDR

Yes

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)



Power Supply

12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 3 W

Protection Level

IP67



Material

Main Body: Metal Mounting Base: Plastic

White Light

Up to 66ft(20 m)

Dimensions

Ø 109.82 mm × 85.56 mm ( Ø 4.32" × 3.37")

Weight

Approx. 336 g (0.74 lb.)





(CMHT1752W-28CF)

SKU CMHT1752W-28CF
Brand LTS
Shipping Weight 0.6190kg
Shipping Width 0.134m
Shipping Height 0.134m
Shipping Length 0.108m
Shipping Cubic 0.001939000m3
