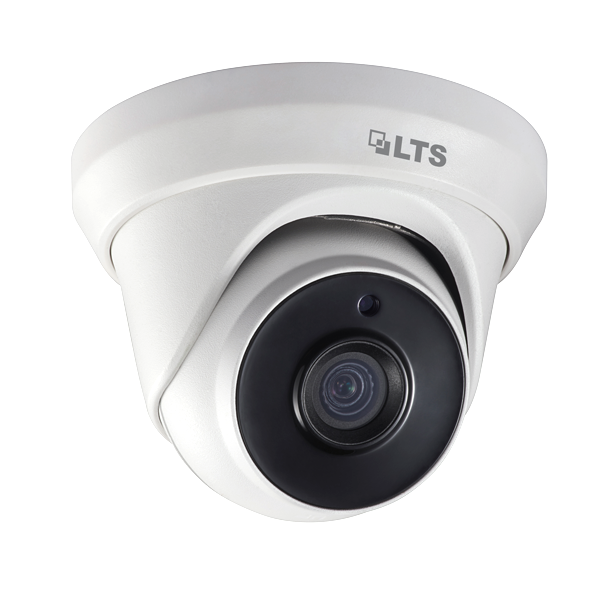

LTS Platinum CMHT1722-28F 2MP HD-TVI Turret Camera, 2.8mm Lens

LTS Platinum CMHT1722-28F 2.1MP HD-TVI Turret Security Camera

The CMHT1722-28F is a compact turret-style analog HD camera from the LTS Platinum range, built for reliable day-and-night surveillance around homes, retail stores, warehouses and small commercial sites. It delivers a sharp 1080p image over standard coaxial cable and pairs seamlessly with LTS Platinum TVI DVRs, making it an easy plug-and-play upgrade for existing analog CCTV installations. This model has reached end of life and has been superseded by the 5MP CMHT1752N-28F, which offers a higher-resolution sensor while keeping the same rugged turret housing and coaxial wiring approach.

Key Features

• 2.1 Megapixel Resolution: Captures 1920 x 1080p video at up to 30fps for clear, detailed footage.
• Fixed 2.8mm Lens: Provides a wide field of view suited to entrances, driveways and general area monitoring.
• Matrix IR 2.0 Night Vision: Two IR LED arrays extend visibility up to 131ft (40m) in total darkness.
• 4-in-1 Switchable Output: Compatible with TVI, AHD, CVI and 960H formats, giving flexibility to match existing DVR systems.
• Wide Dynamic Range (WDR): Balances bright and shadowed areas in the same scene for more usable footage.
• OSD Menu via UTC: Camera settings can be adjusted remotely through the coaxial cable when paired with a compatible Platinum TVI DVR, no extra cabling required.
• IP66 Weatherproof Housing: Rated for outdoor use in rain, dust and harsh weather conditions.
• Compact Turret Design: Low-profile housing suits discreet mounting on walls, eaves or ceilings.
• Wide Operating Range: Functions reliably from -40°C to 60°C, suitable for most Australian climates.

Typical Applications

This turret camera is well suited to small business premises, driveways, loading docks, side entries and perimeter points where clear, well-lit footage is needed both day and night. Its coax-based 4-in-1 output makes it a straightforward addition to an existing analog HD security system without needing network cabling or a full NVR upgrade.

What's in the Box

• CMHT1722-28F HD-TVI turret camera
• Mounting bracket and screws
• Waterproof cable connectors
• Quick installation guide

Frequently Asked Questions

Is this camera still available for purchase?
The CMHT1722-28F has been discontinued and replaced by the LTS CMHT1752N-28F, a 5MP turret camera with the same coaxial connectivity and IR performance.

What DVR does this camera need?
It works with any HD-TVI, AHD, HD-CVI or analog (960H) DVR, and pairs particularly well with LTS Platinum series TVI DVRs for full OSD control.

Can it be used outdoors?
Yes, the IP66-rated housing and wide temperature tolerance make it suitable for both indoor and outdoor installation.

Product Images & Diagrams
