LTS Platinum 5MP HD-TVI Turret Camera with 2.7-13.5mm Motorized Lens

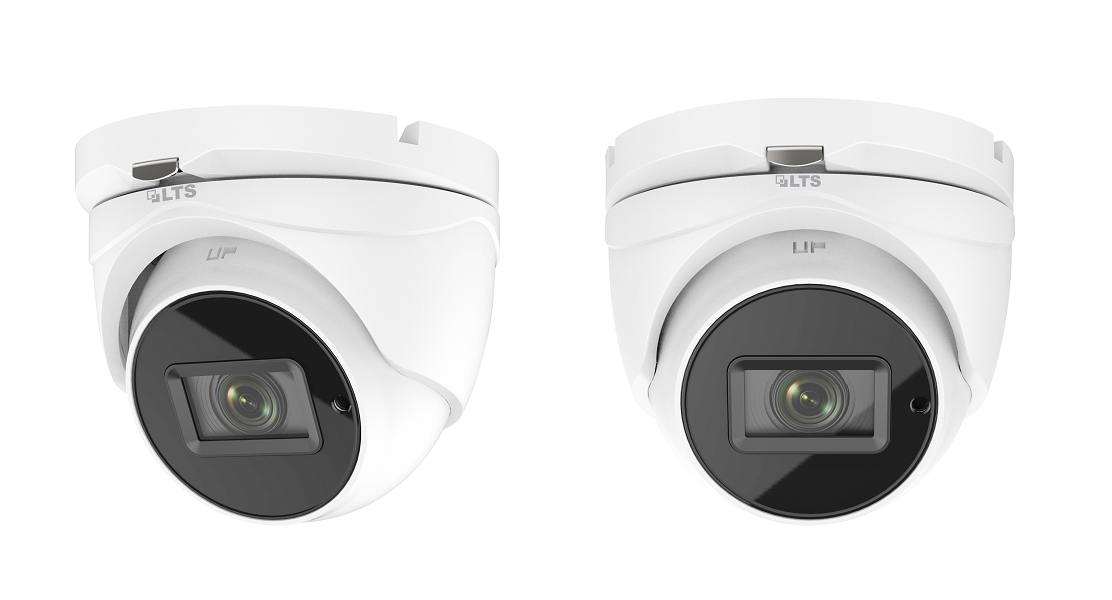

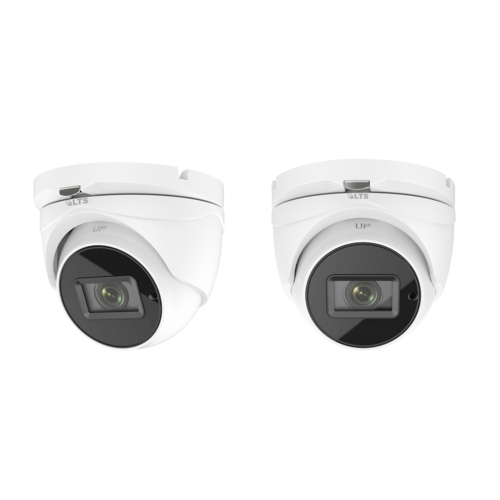

LTS Platinum CMHT1953N-ZF 5MP HD-TVI Motorized Turret Camera

The LTS Platinum CMHT1953N-ZF is a 5-megapixel turret-style security camera built for installers who need flexible framing and reliable night-time performance without stepping up to IP. Its motorised 2.7~13.5mm varifocal lens lets technicians remotely zoom and focus on-site or from a compatible Platinum DVR, saving time on ladder adjustments. Paired with a 4-in-1 video engine, this camera slots into existing analog-style installations while delivering true 5MP HD-TVI clarity.

Key Features

• 5MP high-resolution sensor capturing 2560x1944 images at up to 20fps for sharp, detailed footage.
• Motorized 2.7-13.5mm varifocal lens with a wide field of view range from roughly 29° to 96°, adjustable remotely for precise scene framing.
• Matrix IR illumination delivering night-vision range up to 40m (131ft) for clear low-light monitoring.
• Low-light sensitivity rated at 0.01 Lux with AGC on, supported by DWDR and BLC for balanced exposure in high-contrast scenes.
• Switchable 4-in-1 video output (TVI/AHD/CVI/CVBS) for compatibility with a wide range of existing analog DVR systems.
• IP67-rated weatherproof housing built for reliable outdoor use in rain, dust, and temperature extremes.
• UTC-based OSD menu control, allowing camera settings to be adjusted directly from a Platinum-series DVR without opening the housing.
• 2D digital noise reduction for cleaner video in low-light and high-motion conditions.
• Compact turret design with a smart IR system to reduce overexposure of close objects at night.

Reliable Coverage for Homes and Businesses

The CMHT1953N-ZF suits driveways, storefront entrances, loading docks, and perimeter fence lines where the ability to zoom in on a licence plate or doorway matters. Its motorized lens makes it a strong fit for upgrade projects where camera positions are fixed and remote lens adjustment avoids repeat site visits, while the 4-in-1 output keeps it compatible with legacy HD-TVI, AHD, CVI, or CVBS recorders already deployed on-site.

What's in the Box

• CMHT1953N-ZF 5MP HD-TVI Turret Camera
• Mounting bracket and screws
• Waterproof video/power connector
• Quick installation guide

Frequently Asked Questions

Does this camera work with standard analog DVRs?
Yes. The camera outputs four switchable signal formats (TVI/AHD/CVI/CVBS), so it can be matched to most existing analog-style recorders, not just TVI systems.

Can the lens be adjusted after installation?
Yes. The 2.7-13.5mm lens is motorized, so zoom and focus can typically be adjusted remotely through a compatible Platinum DVR's OSD menu rather than manually at the camera.

Is this camera suitable for outdoor use?
Yes, it carries an IP67 weatherproof rating, making it suitable for exposed outdoor mounting positions.
