LTS LTB301-CU Universal Wall Mount Bracket for 130-140mm Dome Cameras

LTS LTB301-CU Universal Wall Mount Bracket (130-140mm Camera Base)

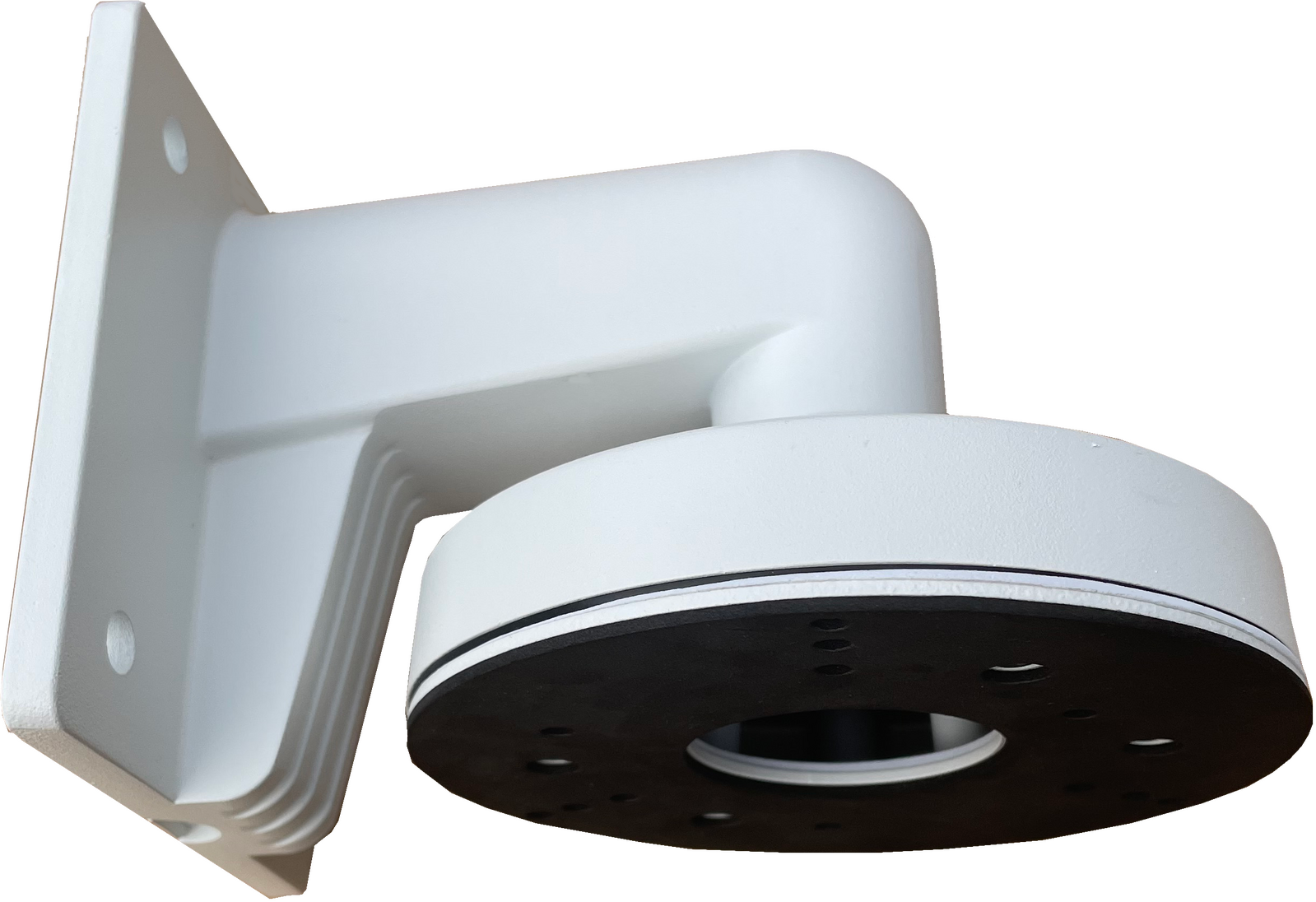

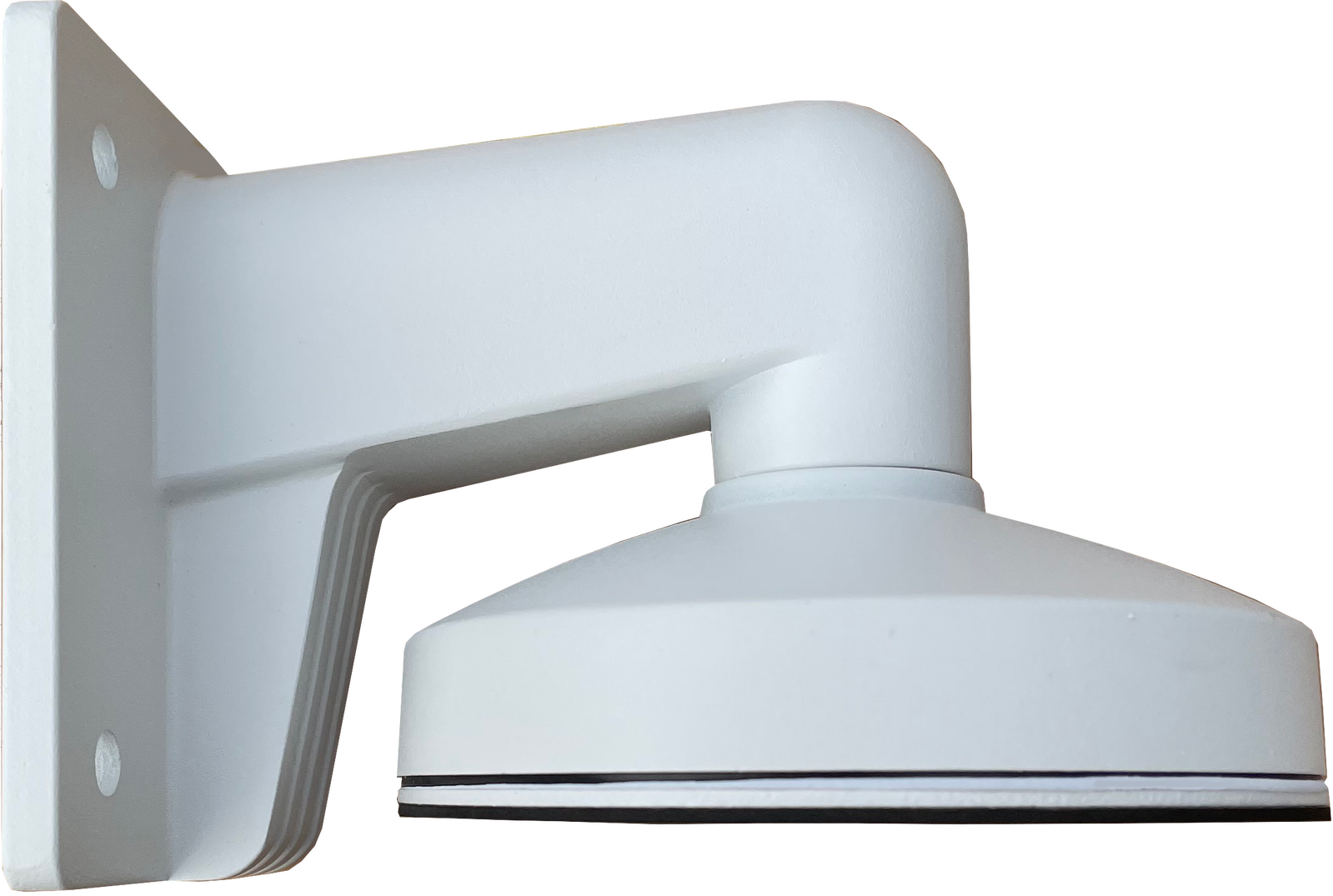

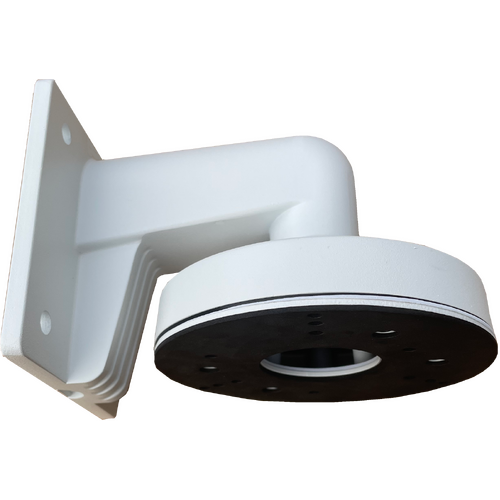

The LTS LTB301-CU is an aluminium alloy wall mounting bracket engineered for dome and turret style security cameras with a 130-140mm base diameter. Designed with a discrete, concealed cable entry point, this bracket keeps power and data cabling hidden from view for a cleaner, more tamper-resistant installation. It is part of the LTS Platinum camera bracket range and is built to suit a wide selection of LTS IP and HD-TVI dome cameras, making it a practical stocking item for installers working across multiple LTS camera series.

Key Features

• Universal fit for dome/turret cameras with a 130-140mm mounting base

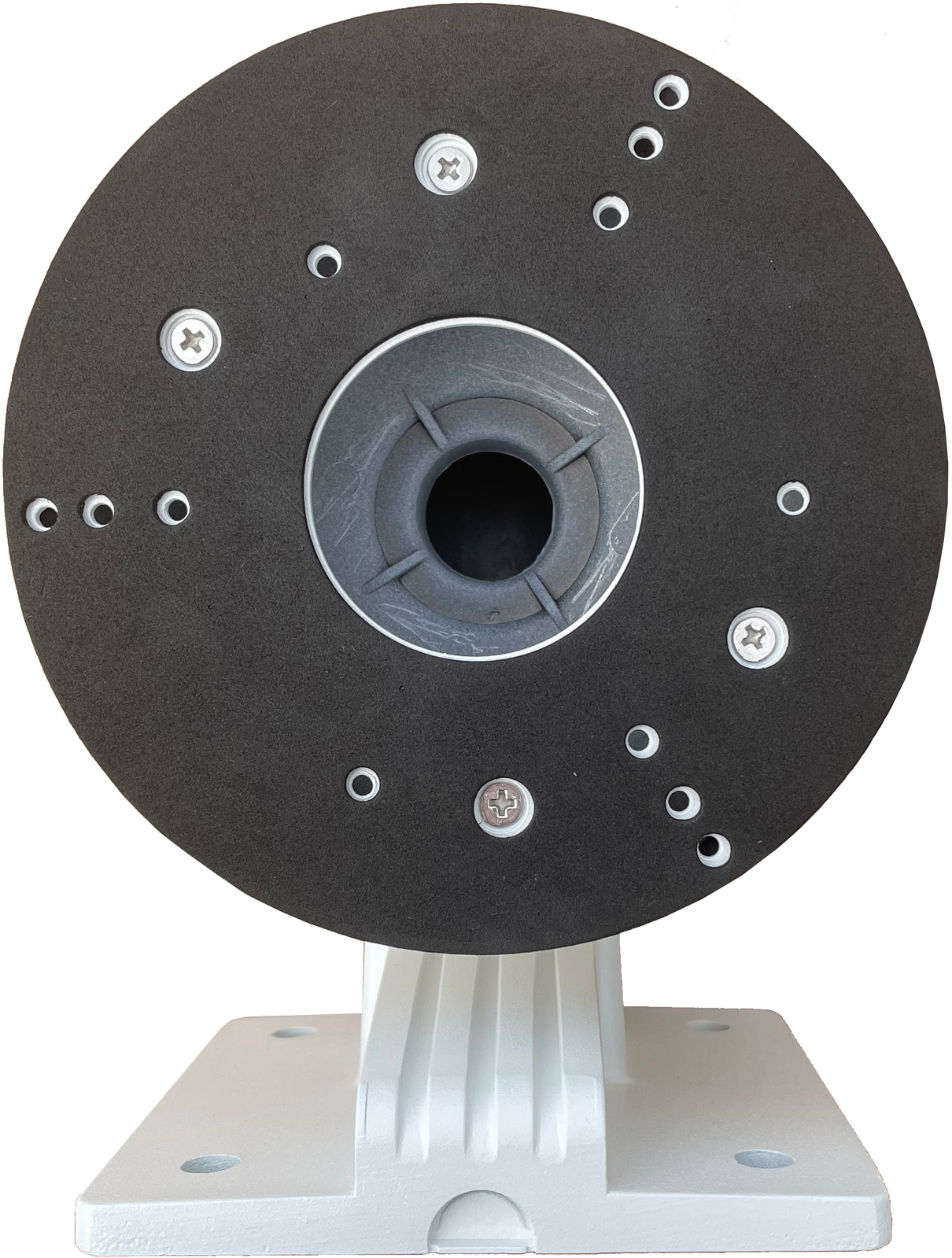

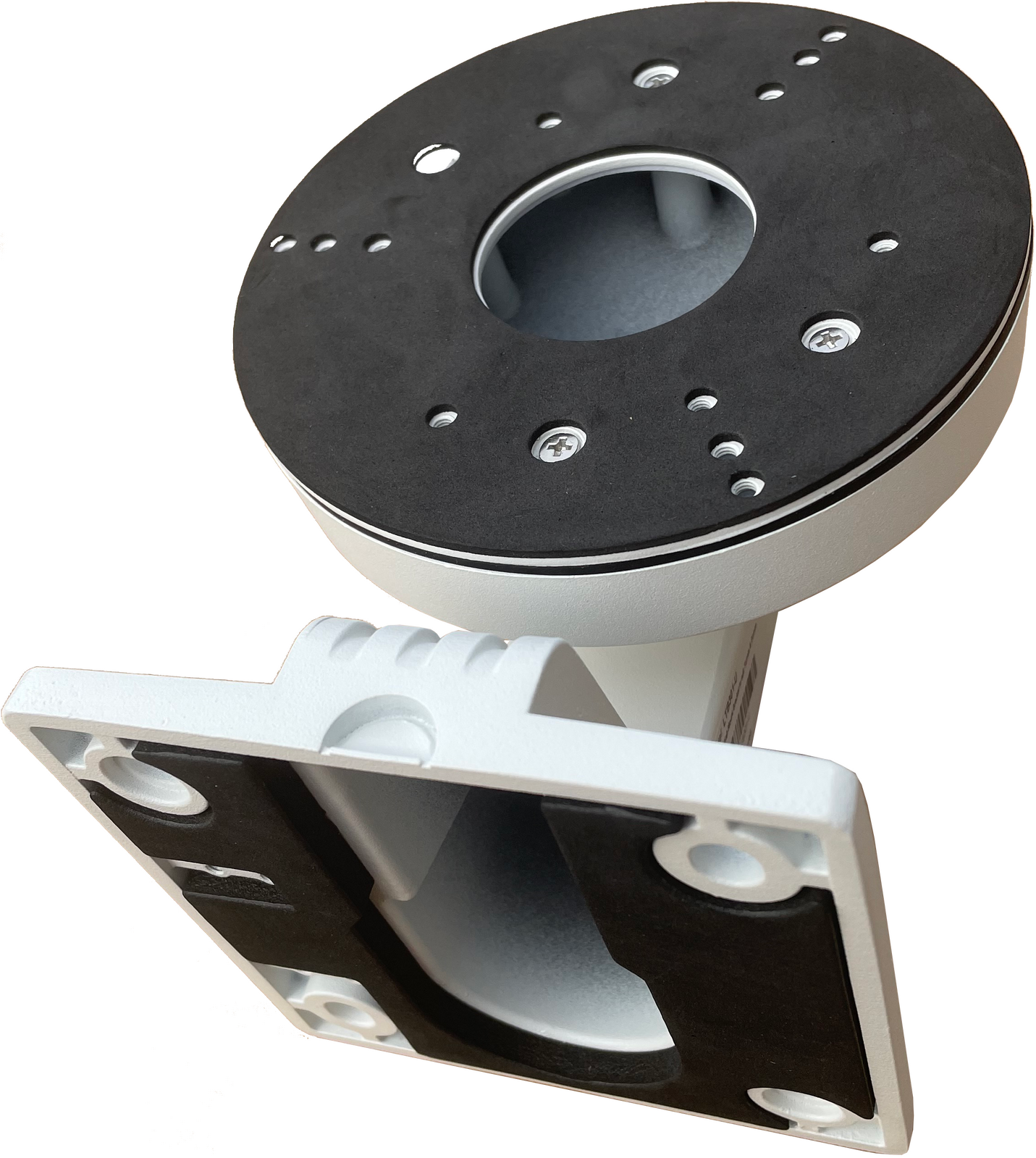

• Discrete cable entry conceals wiring behind the wall plate for a tidy finish
• Durable aluminium alloy construction resists corrosion for long-term indoor or outdoor use
• Compact footprint with total dimensions of approximately 182(L) x 140(W) x 120mm(H)
• Base dimensions of roughly 140mm diameter x 70mm(H) to suit standard camera adapter plates
• Broad compatibility across LTS CMIP 10, 30, 32, 33, 3C, 3D and 3T series IP cameras
• Also compatible with CMHT 17, 18 and 19 series HD-TVI dome cameras
• Pairs with the optional LTB-110-BB back-box for fully concealed, weatherproof cable runs
• Straightforward wall-fixing design suitable for professional CCTV installation teams

Typical Applications

This bracket is best suited to professional and residential CCTV installations where a compatible LTS dome or turret camera needs to be securely and neatly mounted to a wall. Because it accepts a wide range of camera bases within the 130-140mm size range, it is a useful universal replacement or upgrade bracket for installers servicing multiple LTS Platinum camera models without needing to stock a separate bracket for every SKU. The discrete cable entry design makes it particularly popular for retail, office, and residential exterior walls where cable tidiness and vandal resistance are a priority.

What's in the Box

• 1 x LTB301-CU aluminium wall mount bracket
• 1 x Adapter/mounting base plate
• Wall fixing screws and anchors
• Installation instructions

Frequently Asked Questions

Q: Which LTS cameras fit the LTB301-CU bracket?
A: It is designed for LTS dome and turret cameras with a 130-140mm base, including the CMIP 10, 30, 32, 33, 3C, 3D and 3T series IP cameras and the CMHT 17, 18 and 19 series HD-TVI cameras.

Q: Can cables be hidden inside the bracket?
A: Yes, the LTB301-CU features a discrete cable entry point so wiring can be routed through the wall or an optional back-box rather than running externally.

Q: Is this bracket suitable for outdoor use?
A: Yes, the aluminium alloy construction is suitable for both indoor and outdoor wall-mounted camera installations.
