LTS LTB751 Aluminium Pendant Drop Mount Bracket for Platinum PTZ Cameras

LTS LTB751 Aluminium Pendant Drop Mount Bracket for Platinum PTZ Cameras

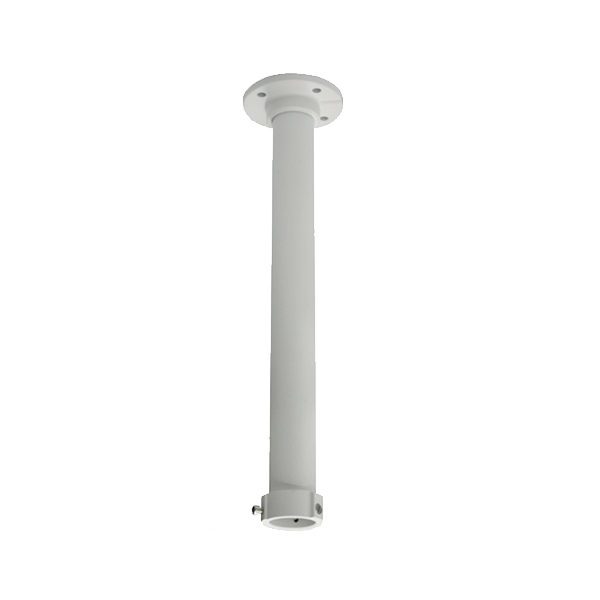

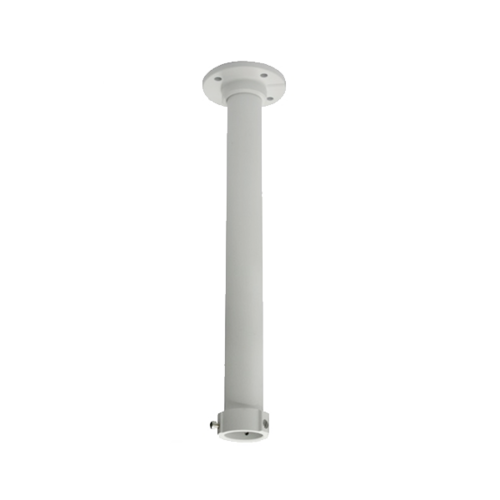

The LTS LTB751 is a purpose-built aluminium pendant (ceiling drop) mount bracket engineered for LTS Platinum series PTZ speed dome cameras. It allows a PTZ camera to be suspended below a ceiling, eave, gantry, or mounting arm rather than fixed flush to a surface, giving installers extra clearance, a wider unobstructed field of view, and a cleaner cable-management path. Built from durable aluminium and rated for both indoor and outdoor use, the LTB751 measures approximately 117mm in diameter and 500mm in height, making it suited to commercial, industrial, and perimeter surveillance projects where PTZ cameras need to hang clear of walls, beams, or structural obstructions.

Key Features

• Heavy-duty aluminium construction designed to safely support the weight of Platinum PTZ speed dome cameras
• Pendant/ceiling drop-mount design that lowers the camera away from the mounting surface for an improved viewing angle
• Indoor and outdoor rated for flexible deployment across car parks, warehouses, loading docks, and building exteriors
• 500mm (19.6”) drop length with a 117mm diameter housing, giving generous standoff and internal space for cable routing
• Listed in the LTS Camera Brackets Summary Chart, making it easy to cross-check compatibility against the wider Platinum PTZ camera range
• Compatible with popular LTS Platinum PTZ/speed dome models, including PTZIP752X20 and PTZIP762X20IR series cameras
• Concealed internal cabling path for a tidy, tamper-resistant installation
• Corrosion-resistant finish suited to long-term outdoor exposure
• Straightforward installation using standard fixings; can be paired with junction boxes or extension brackets for taller drops

Built for Elevated PTZ Camera Deployments

The LTB751 is ideal wherever a PTZ camera needs to be lowered from a high ceiling, awning, or overhead structure to achieve a clear, unobstructed 360° sweep. Typical applications include warehouse and distribution centre ceilings, undercover car parks, shopping centre walkways, transport hubs, and building perimeters where wall-mount or straight pole options are impractical. By dropping the camera down on a rigid aluminium pendant, installers gain better sightlines over vehicles, shelving, or pedestrian traffic while keeping cabling hidden and protected.

What's in the Box

• 1 x LTB751 aluminium pendant drop mount bracket
• Mounting screws and fixing hardware
• Installation guide

Note: PTZ camera, adapter plate, and junction box are sold separately unless specified as part of a bundle.

Frequently Asked Questions

Which LTS cameras is the LTB751 compatible with?
It is designed for LTS Platinum PTZ speed dome cameras such as the PTZIP752X20 and PTZIP762X20IR series. Always check the LTS Camera Brackets Summary Chart to confirm compatibility with your specific camera model.

Can the LTB751 be installed outdoors?
Yes, the bracket is rated for both indoor and outdoor use thanks to its aluminium construction and weather-resistant finish.

How far does the camera drop below the ceiling?
The LTB751 has an overall drop length of approximately 500mm (19.6 inches), with a 117mm diameter housing.

Additional Resources

• LTS Camera Brackets Summary Chart
