LTS LTH-M201-3F 3-Module Flush Mount Frame for IP/2-Wire Intercom

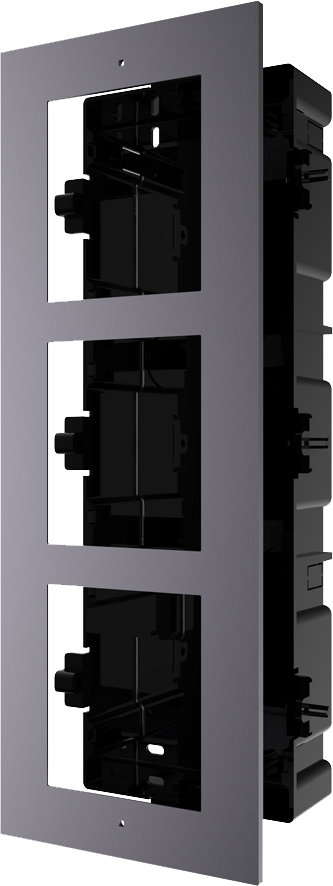

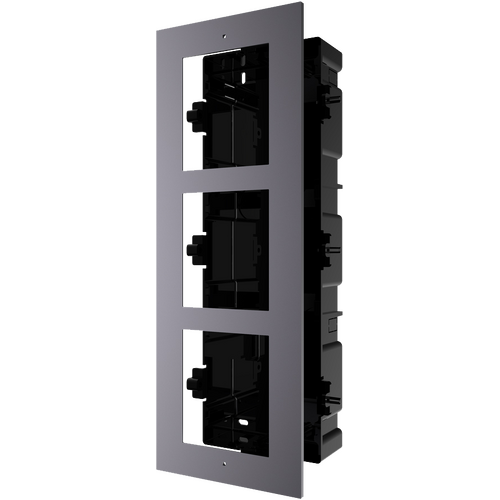

LTS LTH-M201-3F 3-Module Flush Mount Frame

The LTS LTH-M201-3F is a recessed installation frame designed to house up to three intercom modules from the LTS IP and 2-Wire video intercom ranges. Built for installers who want a clean, in-wall finish, this aviation-grade aluminium frame provides the structural backbone for combining camera modules, keypads, displays, and call buttons into a single, professional-looking outdoor station.

Key Features

• Three-Module Capacity: Accommodates any combination of up to three compatible LTS intercom modules (camera, keypad, display, or button modules) in one unified faceplate.
• Flush/Recessed Mounting: Installs directly into a cavity in the wall for a slim, near-invisible finish rather than protruding from the surface.
• Aviation-Grade Aluminium Construction: The cover and frame are machined from aircraft-grade aluminium for long-term structural rigidity and corrosion resistance.
• Wide Environmental Tolerance: Rated to operate reliably from -40°C to +60°C with humidity tolerance of 10% to 95%, suitable for most Australian outdoor climates.
• Complete Mounting Hardware: Ships with the back box, frame, cover, mounting screws, and internal connecting lines needed for a full installation.
• Dual Platform Compatibility: Works with both LTS IP-based and 2-Wire intercom module lines, giving installers flexibility across different system types.
• Modular Configuration: Individual modules can be arranged and serviced independently within the shared frame, simplifying future upgrades or repairs.
• Professional Finish: Suited to multi-tenant buildings, offices, and residential entries where a discreet, integrated intercom panel is preferred.

Typical Applications

This frame is intended for installers building out a door entry station where more than one intercom function is required at a single access point, such as a video camera module paired with a keypad or an additional call button module. It is commonly specified for apartment building entries, gated communities, offices, and commercial premises where a recessed, flush-mounted intercom panel is preferred over a surface-mounted alternative for aesthetic or space reasons.

What's in the Box

• Recessed back box
• 3-module mounting frame
• Cover plate
• Mounting screws
• Internal connecting lines/wiring accessories

Frequently Asked Questions

Q: Does this frame include the intercom modules themselves?
A: No, the LTH-M201-3F is a mounting frame and back box only; camera, keypad, or display modules are purchased separately and fitted into the frame.

Q: Is this suitable for both IP and 2-Wire LTS intercom systems?
A: Yes, the frame is compatible with modules from both the LTS IP and 2-Wire intercom product lines.

Q: Can it be installed outdoors?
A: Yes, its aviation-grade aluminium construction and wide operating temperature and humidity range make it suitable for outdoor entry points.

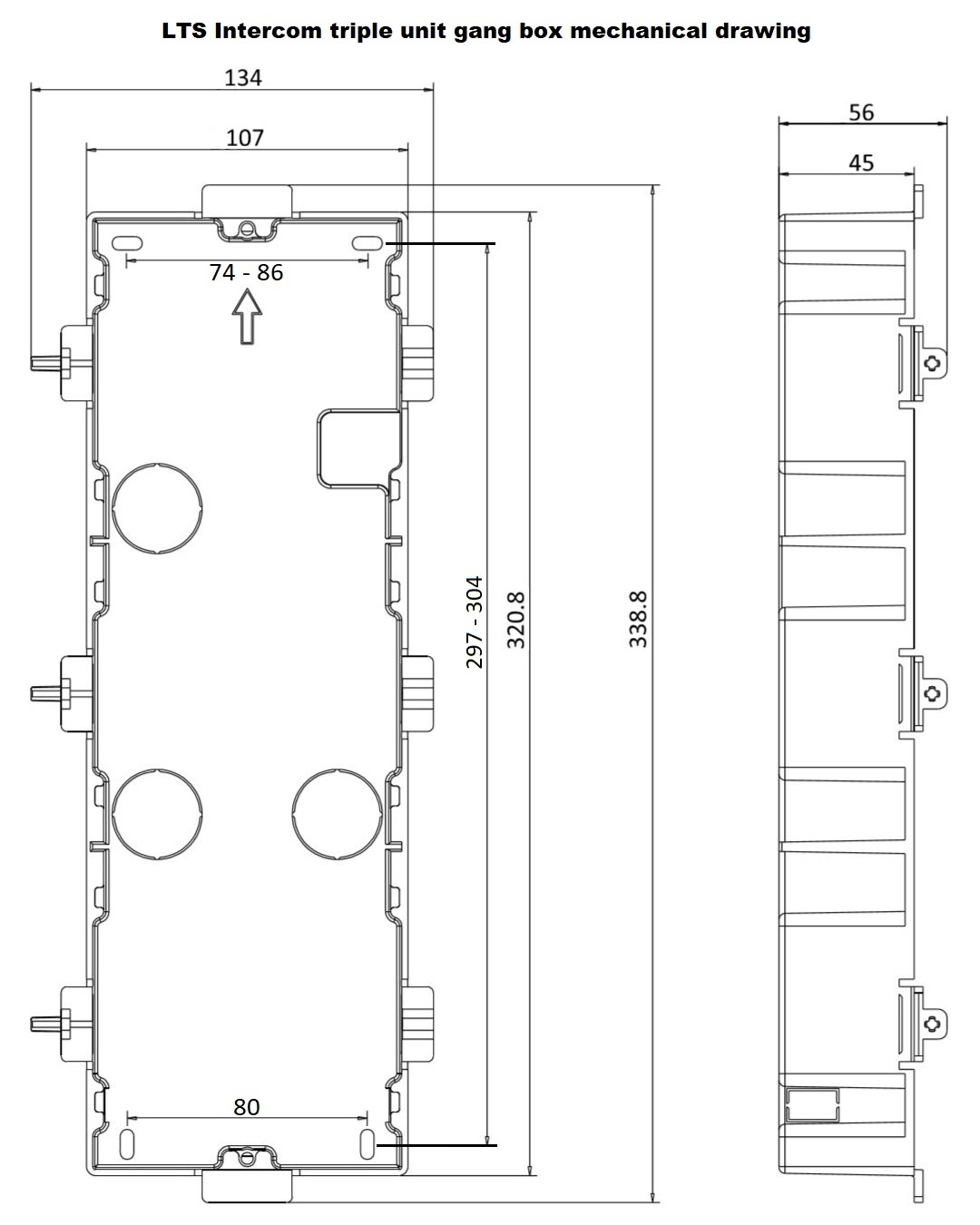

Product Images & Diagrams
