Thermal Cameras — Fire Detection & Perimeter Tracking

LTS thermal cameras see heat, not light — spotting an overheating motor before it ignites or a person crossing a fence line in total darkness, fog or glare, where an ordinary camera sees nothing at all.

Fire Detection Perimeter Tracking The Range FAQs

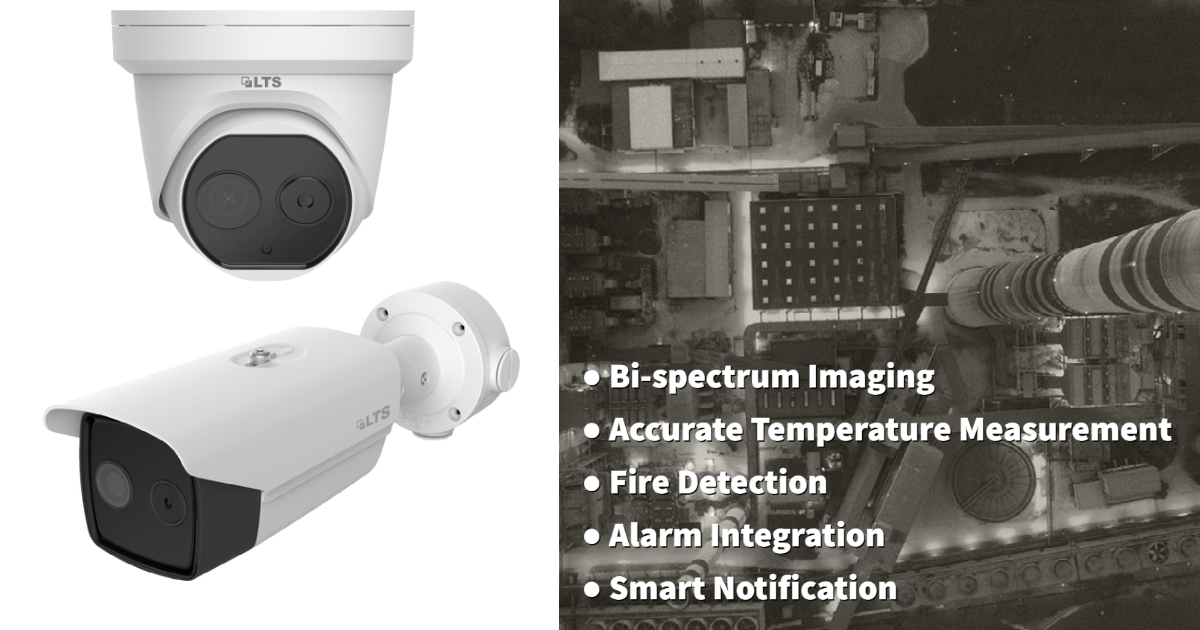

LTS Thermal cameras for fire detection and perimeter tracking
VANADIUM OXIDE UNCOOLED THERMAL SENSORS -20°C TO 550°C DETECTION RANGE LTS PLATINUM WORKS WITH LTS FLAMEGUARD

Two Ways Thermal Protects Your Site

A thermal sensor reads surface temperature, not visible light, so it keeps working in total darkness, smoke, fog and glare. LTS builds that into two real use cases: catching a fire risk before it becomes a fire, and detecting and tracking intruders along a perimeter.

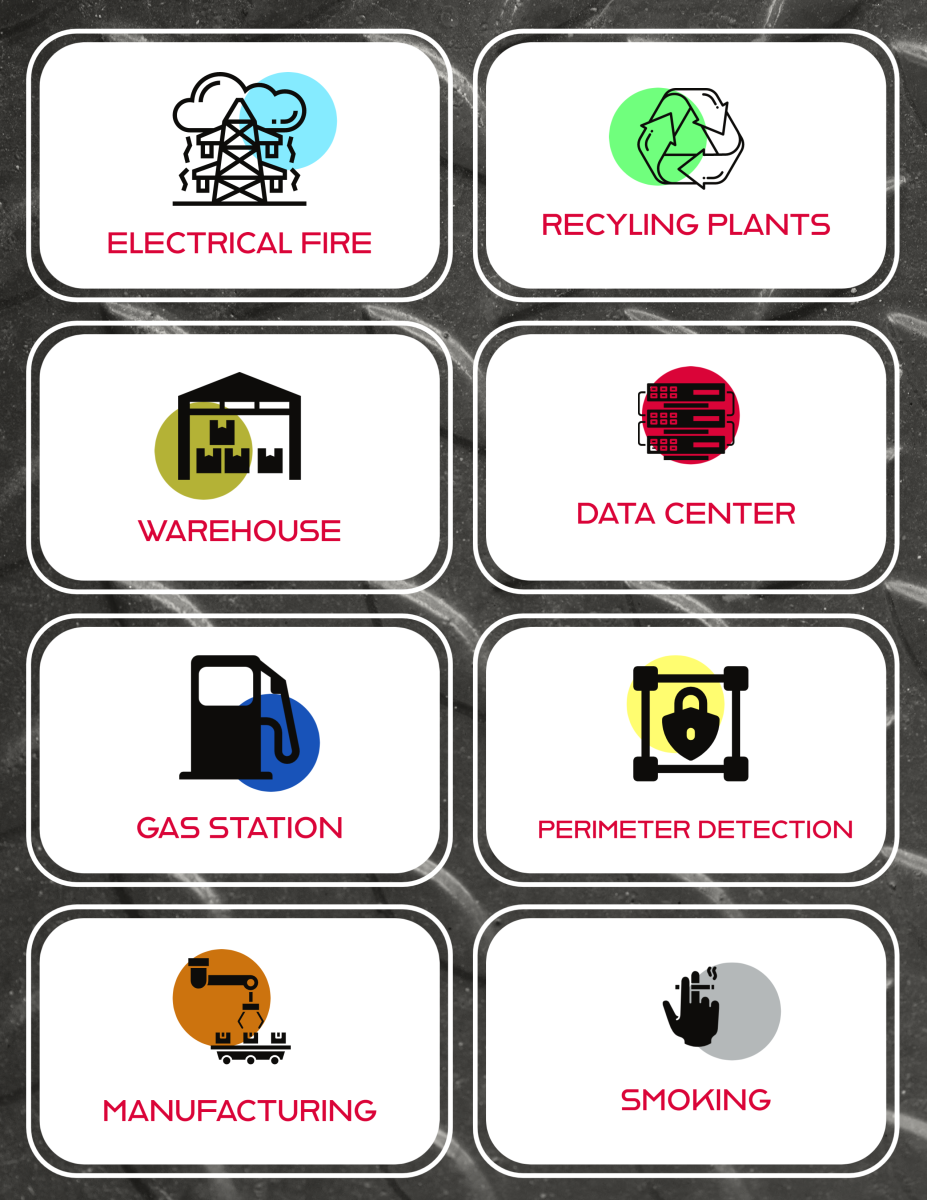

LTS Thermal camera use cases overview
Thermal camera fire detection and prevention

Fire Detection / Prevention

Protect key infrastructure such as industrial machinery, refrigerators and conveyor belts — early detection saves your business and your customers before the event. Protect recycling plants from combustible materials, and activate alarms when fire is detected to trigger water sprinklers.

Work with LTS certified installers to design a custom solution with LTS Flameguard.

Explore LTS Flameguard →

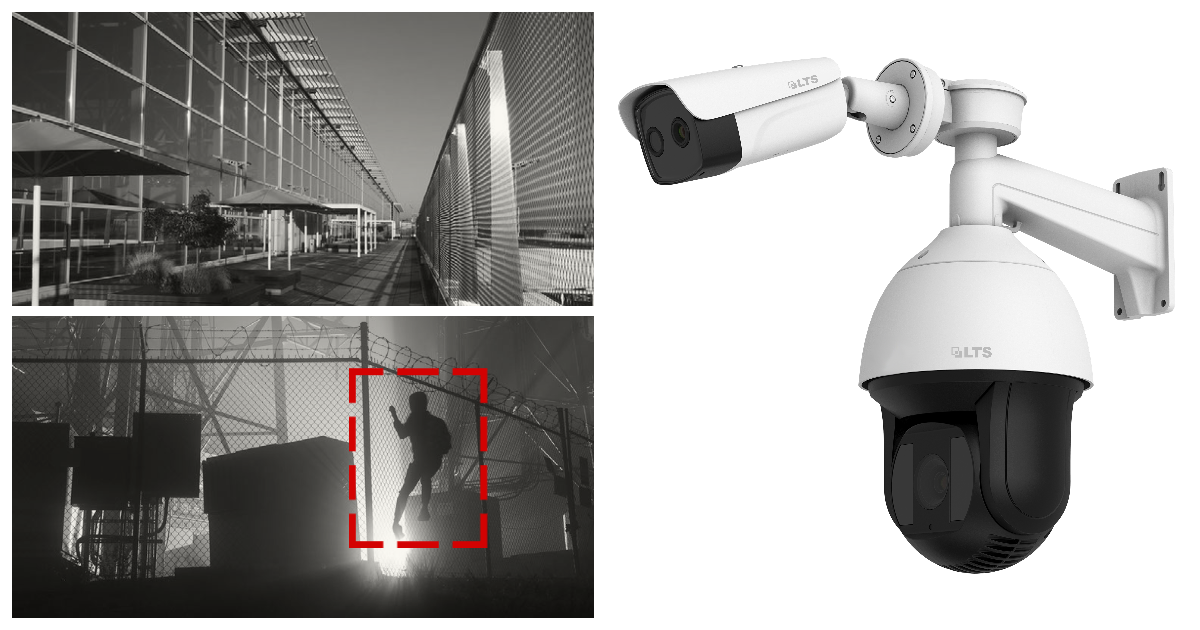

Thermal camera perimeter tracking

Perimeter Tracking

LTS Active Perimeter Detection — a high-speed, long-range auto-tracking PTZ with thermal detection (IP-PTZ-ComboT4842) combines a Vanadium Oxide uncooled image sensor with integrated Human/Vehicle AI to detect people, vehicles and objects. It works in conjunction with a commercial-grade PTZ camera with 42x optical zoom, instantly zooming into the detection area and following the subject, day and night.

If tracking isn't required, LTS also offers a fixed option — the Bi-Spectrum Thermal Bullet, available in multiple lens options for varying applications.

View the Tracking Combo →

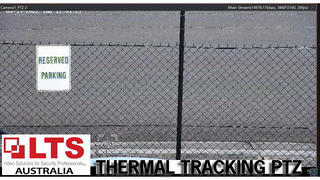

LTS thermal perimeter auto-tracking demo
LTS Active Perimeter Detection — thermal detection handing off to PTZ auto-tracking

The Range

Five real, currently listed LTS thermal models — from the flagship tracking combo through to fixed bi-spectrum bullets and turrets for fire prevention.

IP-PTZ-ComboT4842 Thermal IP plus 4K PTZ Tracking Combo
Flagship — Perimeter Tracking

Thermal IP + 4K PTZ Tracking Combo

SKU: IP-PTZ-ComboT4842 · CMIP796TD + PTZIP788X42

LTS 8MP / 4K long-distance, fast-tracking combo camera using thermal perimeter detection with intelligent matrix linkage. The thermal camera works with the PTZ to protect infrastructure and/or quickly and accurately track people or vehicles from short to long distances.

  • Thermal sensorVanadium Oxide uncooled
  • AIIntegrated Human / Vehicle detection
  • PTZ optical zoom42x
  • OperationDay & Night, auto hand-off tracking
View Product Page →
CMIP793TD Thermal Bullet Bi-Spec Perimeter
Fixed — Perimeter

Thermal Bullet — Bi-Spec (Perimeter)

SKU: CMIP793TD Series · 7mm / 15mm / 25mm / 35mm lens options
  • Thermal sensor384x288, 1.75mrad
  • Optical sensor1/2.7" CMOS, 2688x1520
  • OpticsF1.0, bi-spectrum image fusion
  • Wide dynamic range120dB
  • Temperature range-20°C to 550°C
  • Power / ratingPoE, IP66
View Product Page →
CMIP3T42W 4MP Thermal Bi-Spectrum Turret
Turret — Fire Prevention

4MP + Thermal Bi-Spectrum Turret

SKU: CMIP3T42W · 2.8mm / 3.6mm lens options
  • Thermal sensor256x192, 12µm VOx UFPA
  • Optical sensor4MP, 2688x1520
  • Min. illumination0.0089 Lux @F1.6
  • NETD<40mK (25°C, F1.0)
  • AlarmTemperature exception alarm, -20°C to 550°C
  • Ingress ratingIP67
View Product Page →
CMIP9T221-3M Thermal and Optical IP Bullet
Bullet — Indoor Fire Prevention

2.1MP IP Thermal & Optical Bullet (4.0mm)

SKU: CMIP9T221-3M · Built-in GPU, behaviour analysis

Built-in GPU for high-precision VCA detection and real-time alarm. Designed for indoor fire-prevention applications — engine rooms, ATMs, conference rooms, warehouses, museums, train stations and power stations.

  • Thermal sensor160x120 @25fps, 1.8mm lens
  • Optical sensor2.1MP, 1920x1080 @30fps, 4.0mm lens
  • FOV (optical)87°H x 46.2°V
  • IR illuminationMatrix IR LED, 40m max @ 850nm
  • Behaviour analysisLine crossing, intrusion, region entrance/exit
  • Ingress ratingIP66
View Product Page →
CMIP3T22W1-2M Thermal and Optical IP Turret

2.1MP IP Thermal & Optical Turret (2.1mm Fixed-Lens)

SKU: CMIP3T22W1-2M — the turret-format sibling to the bullet above, same thermal + optical bi-spectrum approach in a turret housing.

View Product Page →

Spec Snapshot

Model Format Thermal Sensor Optical Sensor Best For
IP-PTZ-ComboT4842 Thermal + PTZ combo VOx uncooled, AI detect 4K PTZ, 42x zoom Long-range auto-tracking perimeter
CMIP793TD-7/15/25/35 Bullet, bi-spectrum 384x288, 1.75mrad 2688x1520, F1.0 Fixed perimeter detection
CMIP3T42W Turret, bi-spectrum 256x192, VOx UFPA 4MP, 2688x1520 Fire prevention, outdoor IP67
CMIP9T221-3M Bullet, bi-spectrum 160x120 @25fps 2.1MP, 1920x1080 Indoor fire prevention, VCA
CMIP3T22W1-2M Turret, bi-spectrum — 2.1MP Indoor/outdoor turret alternative

Built For

Fire Detection
Perimeter Fence Lines
Industrial Plant & Machinery
Recycling & Warehousing

Frequently Asked Questions

How is a thermal camera different from a normal IR camera?â–¼
An IR camera uses infrared LEDs to illuminate a scene so a normal image sensor can still see in the dark. A thermal camera has no illumination at all — its sensor reads surface heat directly, so it works in total darkness, smoke, fog and glare, and can flag a temperature exception (such as overheating machinery) that a normal camera simply cannot see.
What temperature range can LTS thermal cameras detect?â–¼
LTS's bi-spectrum thermal models (CMIP793TD series and CMIP3T42W) are rated for a temperature exception alarm range of -20°C to 550°C, suited to fire-prevention applications on machinery, conveyors and electrical infrastructure.
Do I need the PTZ tracking combo, or is a fixed thermal camera enough?â–¼
If you need the system to automatically zoom in and follow a detected person or vehicle along a long perimeter, the IP-PTZ-ComboT4842 tracking combo is built for that. If you just need reliable fixed-position detection on a boundary or fence line, the Bi-Spectrum Thermal Bullet (CMIP793TD series, available in 7mm/15mm/25mm/35mm) is the simpler, fixed alternative.
Can a thermal camera trigger an alarm or sprinkler automatically?â–¼
Yes — LTS thermal cameras can activate alarms when a fire or temperature exception is detected, which can be used to trigger water sprinklers as part of a custom solution designed with LTS certified installers via LTS Flameguard.
Are the indoor bullet/turret models only for fire prevention?â–¼
The CMIP9T221-3M and CMIP3T22W1-2M thermal-and-optical bullet/turret models are aimed at indoor fire-prevention use — engine rooms, ATMs, conference rooms, warehouses, museums, train stations and power stations — using built-in behaviour analysis (line crossing, intrusion, region entrance/exit) alongside the temperature exception alarm.
Five real, currently listed thermal models — IP-PTZ-ComboT4842, CMIP793TD Series, CMIP3T42W, CMIP9T221-3M and CMIP3T22W1-2M — covering fire detection and long-range perimeter tracking, sourced directly from LTS Security Australia's own product pages.
