LTS Platinum CMIP3T42W 4MP Thermal Bi-Spectrum Turret Camera

LTS Platinum CMIP3T42W – 4MP Thermal Bi-Spectrum Turret Camera

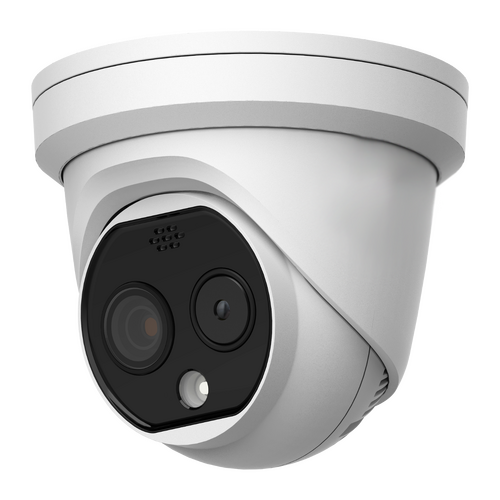

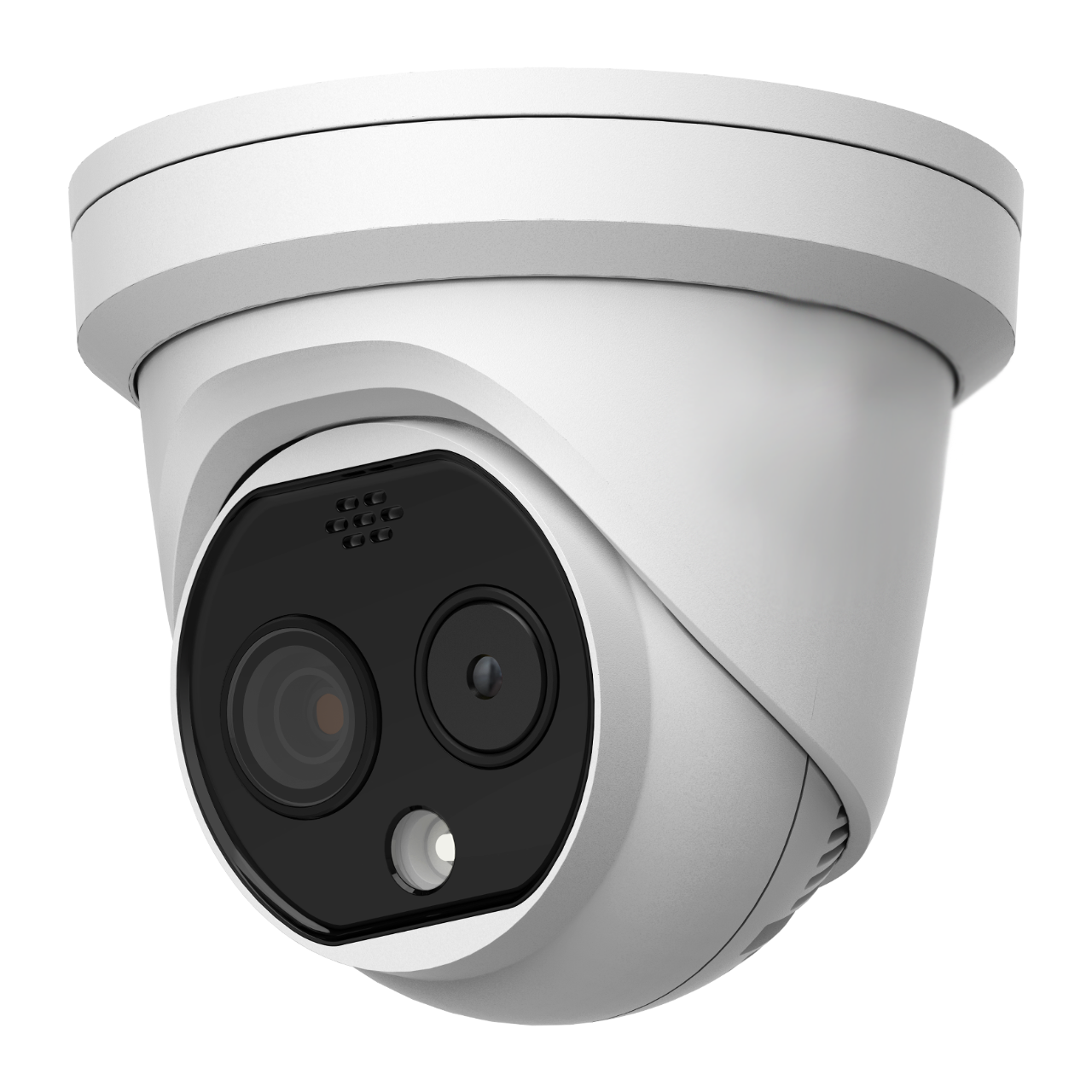

The CMIP3T42W pairs a 4MP optical imaging channel with a dedicated thermal imaging core in a single weatherproof turret housing, giving security and safety teams the ability to see a scene in full colour detail while simultaneously monitoring for abnormal heat signatures. Built on the LTS Platinum thermal/fire-prevention platform, this dual-sensor design is purpose-built for early fire detection and round-the-clock perimeter or asset monitoring in demanding industrial and commercial environments.

Key Features

• Dual-sensor bi-spectrum design: 4MP optical channel (2688 x 1520) combined with a 256 x 192 thermal imaging channel, with image fusion and picture-in-picture viewing for simultaneous visual and thermal context.
• High-sensitivity thermal core: 12 μm VOx uncooled microbolometer with NETD below 40 mK (25°C, F1.0), delivering sharp, low-noise heat-signature imaging even in complete darkness or through smoke and haze.
• Wide temperature exception alarm range: Automated fire-prevention alerting from -20°C to 550°C, helping trigger warnings before a hot spot develops into a full fire event.
• Low-light optical performance: Optical sensor rated to 0.0089 Lux at F1.6 for usable colour/monochrome imagery in dim conditions.
• Flexible lens options: Available with 2.8mm or 3.6mm optical lenses to match different coverage areas and mounting distances.
• Onboard intelligent video analytics: a built-in GPU supports intelligent behavior analysis, enabling high-precision detection such as line crossing, intrusion, and region entrance/exit alarms.
• Bi-spectrum fusion display: bi-spectrum image fusion with picture-in-picture preview overlays thermal detail onto the optical view for clearer situational awareness.
• Rugged IP67 housing: Sealed turret design rated for continuous outdoor and indoor industrial exposure to dust and moisture.

Built for Early Fire Detection & Critical Asset Monitoring

Because it can flag abnormal temperatures long before smoke or flame become visible to a standard camera, the CMIP3T42W is well suited to environments where early warning prevents costly downtime or loss. Typical deployments include engine rooms, ATMs, conference rooms, warehouses, museums, train stations, and power stations, as well as switchrooms, cable trays, waste facilities, and other sites where a single hot component can escalate quickly. The pre-alarm system is designed to help operators discover unexpected events immediately and reduce the risk of property loss.

What's in the Box

• CMIP3T42W thermal bi-spectrum turret camera
• Mounting bracket and drilling template
• Mounting screws and wall anchors
• Waterproof cable gland/connector kit
• Quick start guide

Frequently Asked Questions

Does the CMIP3T42W replace a building's fire alarm system?
No. It is designed as an early-warning and monitoring tool that complements existing fire and life-safety systems by flagging abnormal temperatures visually and via alarm outputs, not as a certified fire suppression or life-safety alarm replacement.

What is the difference between the thermal and optical images?
The optical channel captures standard 4MP colour/monochrome video for identification and general surveillance, while the thermal channel measures surface heat and can trigger alarms based on defined temperature thresholds.

Is the camera powered over PoE?
LTS Platinum turret cameras in this thermal series are typically powered via PoE or 12V DC; check the specific power requirements on your quote or datasheet before installation.
