LTS Platinum CMIP7562NF-SE 6.3MP IP Fisheye Camera with Built-In Mic & Speaker

LTS Platinum CMIP7562NF-SE 6.3MP IP Fisheye Camera

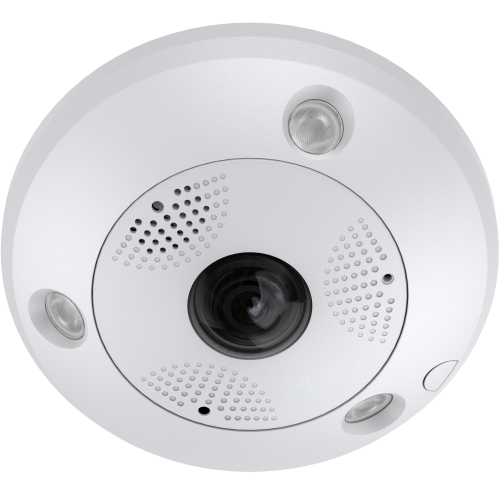

The LTS Platinum CMIP7562NF-SE is a 6.3-megapixel network fisheye camera built to capture an entire room or open area from a single ceiling, wall, or table-mounted position. Using a 1/1.8-inch progressive scan CMOS sensor paired with a fixed 1.27mm lens, it streams sharp 3072 x 2048 imagery at up to 30fps while covering a full 360-degree field when ceiling or table mounted, or a 180-degree view in wall-mount configurations. It suits retail stores, lobbies, warehouses, and open-plan offices where a single fisheye unit can replace several fixed cameras.

Key Features

• 6.3MP Resolution: Delivers 3072 x 2048 imaging at up to 30fps for crisp panoramic detail.
• 1.27mm Fixed Fisheye Lens: Provides a 180° field of view on wall mounts and a full 360° view on ceiling or table mounts.
• Up to 18 Live View Display Modes: Switch between fisheye, panorama, quad, and virtual PTZ views to suit the monitoring task.
• Matrix IR Illumination: Three independently controlled 850nm IR LEDs extend night vision up to roughly 15m (50ft).
• Built-In Microphone and Speaker: Enables two-way audio and audio-based exception detection without extra hardware.
• Wide Dynamic Range and Noise Reduction: Digital WDR, BLC, and 3D DNR help maintain clear footage in mixed or low light.
• Smart Analytics: Onboard behavior analysis covers line crossing, intrusion, region entry/exit, unattended object, and object removal detection.
• Rugged IP67 / IK10 Housing: Weatherproof and impact-resistant, suitable for demanding indoor or outdoor installations.
• Flexible Power and Compression: Runs on 12VDC or 802.3af PoE and supports H.265/H.265+ compression with ONVIF Profile S/G compatibility.

Wide-Area Coverage for Retail, Offices, and Open Spaces

Because a single CMIP7562NF-SE can visually cover an entire room from one mounting point, it is a practical choice anywhere floor space needs monitoring without dead zones-convenience stores, bank lobbies, warehouse aisles, and parking structures are common deployments. The multiple viewing modes let operators de-warp the fisheye feed into panoramic or quad views on an NVR or VMS, so a single camera can effectively function as several virtual PTZ channels while still recording the full scene for later review.

What's in the Box

• CMIP7562NF-SE Fisheye IP Camera
• Mounting bracket and screws
• Waterproof cable gland/connector kit
• Quick start guide

Frequently Asked Questions

Does this camera work with any NVR? It supports ONVIF Profile S and G, so it is compatible with most third-party NVR and VMS platforms in addition to LTS Platinum series recorders.

Can it be powered without a PoE switch? Yes, it can run on a standard 12VDC power supply or via 802.3af PoE, giving installers flexibility depending on existing cabling.

Is local storage supported if the network goes down? Yes, the camera includes a microSD card slot supporting cards up to 256GB for onboard failover recording.
