LTS 2-Wire Video Intercom Kit with Black 7" Monitor (Surface-Mount)

LTS 2-Wire Video Intercom Kit with 7" Monitor (Black) – Surface Mount

This complete LTS 2-wire intercom kit gives homes and small multi-tenant buildings a simple way to add video-verified door entry without running new network cabling. The bundle pairs a weatherproof fisheye door station module with a 7-inch touchscreen indoor monitor, a surface-mount frame, and a 6-channel audio/video distributor, so installers can wire the whole system over just two conductors while still supporting Wi-Fi connectivity and NVR integration.

Key Features

• Two-wire design that carries both power and audio/video signal over a single cable pair, cutting installation time and cost compared with traditional IP wiring.
• 2.0MP fisheye door camera delivering 1920 x 1080 video at up to 30fps with a 180° horizontal field of view for wide-angle entry monitoring.
• Auto day/night switching with IR illumination for clear identification of visitors in low-light or nighttime conditions.
• Built-in omnidirectional microphone and loudspeaker with echo cancellation for natural two-way conversation at the door.
• IP65-rated, aviation-grade aluminium surface-mount frame that withstands outdoor exposure and includes all mounting hardware.
• 7-inch capacitive touchscreen indoor monitor in a Black trim, offering handsfree calling, a built-in microphone/speaker, and an intuitive user interface.
• Wi-Fi 802.11b/g/n and 10/100Mbps network support on the monitor, plus a microSD slot (up to 32GB) for storing call logs and captured images.
• 6-channel 2-wire audio/video distributor that lets a single door station module feed and be managed alongside additional indoor stations, with a 24V DC power adaptor included.
• Tamper alarm and BLC/DNR/WDR image processing for reliable performance and added security awareness.

Ideal for Homes, Townhouses, and Small Apartment Entries

Because the whole system runs on just two wires, this kit is particularly well suited to renovations or older buildings where pulling new structured cabling is impractical. A single door station module can be shared across multiple indoor monitors via the distributor, making it a practical option for a house with several entry points to monitor, or a small residential block wanting an affordable, video-verified door entry upgrade without a full IP intercom install.

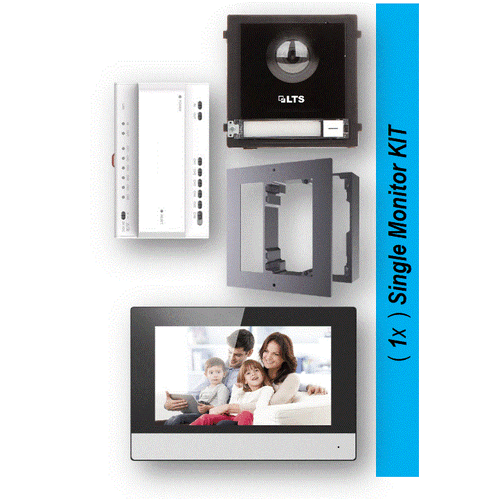

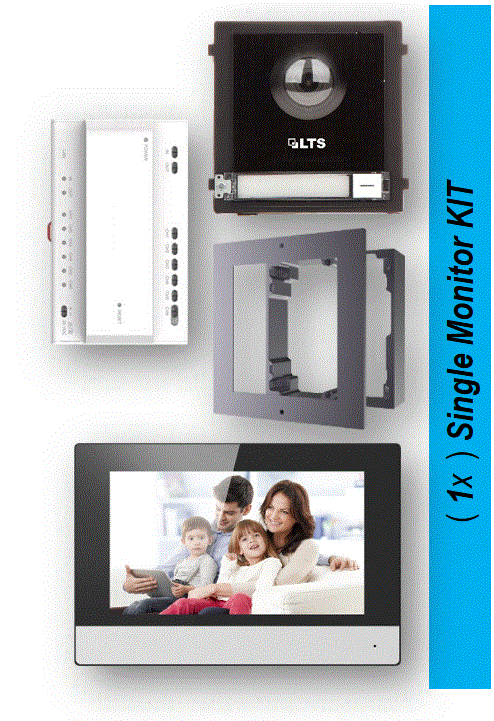

What's in the Box

• 1x LTH-M201-C-2 – 2-Wire audio/video door station camera module with fisheye lens and auto day/night IR
• 1x LTH-M201-1S – Single-module surface-mount frame in aviation-grade aluminium, including fixing hardware
• 1x LTH-D301GY-WIFI-2 – 7" touchscreen 2-wire indoor monitor (Black trim) with Wi-Fi and microSD support
• 1x LTH-MD06-2 – 6-channel 2-wire audio/video distributor with 10/100Mbps port and 24V DC power adaptor

Frequently Asked Questions

Does this kit require an existing network connection?
No. The core door station-to-monitor link runs over two wires; the monitor's Wi-Fi/Ethernet is only needed if you want mobile app access or NVR integration.

Can I add more monitors later?
Yes. The included 6-channel distributor allows additional 2-wire indoor monitors to be connected to the same door station module.

Is the door station suitable for outdoor installation?
Yes, the camera module carries an IP65 weatherproof rating and an operating range suited to outdoor entry points.
