LTS 2-Wire Video Intercom Kit with White 7" Touchscreen Monitor - Surface Mount

LTS 2-Wire Video Intercom Kit with White 7" Touchscreen Monitor (Surface Mount)

This LTS 2-Wire intercom kit bundles everything needed to add a video door entry system to a home or small business using a simple two-conductor cable run, avoiding the cost and complexity of a full network installation. The package pairs a fisheye-lens outdoor door station with a 7-inch touchscreen indoor monitor finished in white, a surface-mount frame, and a dedicated 2-wire power/video distributor, making it a straightforward single-door, single-monitor solution.

Key Features

• 2.0MP fisheye door camera capturing 1920 x 1080 video at up to 30fps with a wide 180° horizontal field of view for full coverage of visitors at the door.
• Auto day/night switching with IR illumination for clear identification of visitors in low-light or night-time conditions.
• Built-in omnidirectional microphone and loudspeaker on the door station for clear two-way audio communication.
• 7" touchscreen indoor monitor finished in white, offering handsfree operation via an integrated microphone and speaker.
• Wi-Fi enabled monitor (802.11b/g/n) for remote notifications and app-based access alongside the physical touchscreen.
• Micro SD card support (up to 32GB) on the indoor monitor for local recording of visitor snapshots or video clips.
• Aviation-grade aluminium surface-mount frame for the door station, supplied complete with all fixing hardware for a fast, tidy installation.
• 6-channel 2-Wire distributor with a 10/100Mbps network port, allowing future expansion and simplified cabling between the door station and monitor.
• Simple 2-core cable installation that reduces cabling costs compared to standard IP intercom systems.

Typical Applications

This kit suits homeowners, property managers, or small offices wanting a reliable single-door video intercom without running structured network cabling. The surface-mount door station frame is well suited to retrofits where a flush, in-wall installation is impractical, while the white monitor trim complements light-coloured interior fittings. It is a good fit for single-entry residential properties, granny flats, small retail premises, or standalone offices needing basic visitor screening and remote entry management.

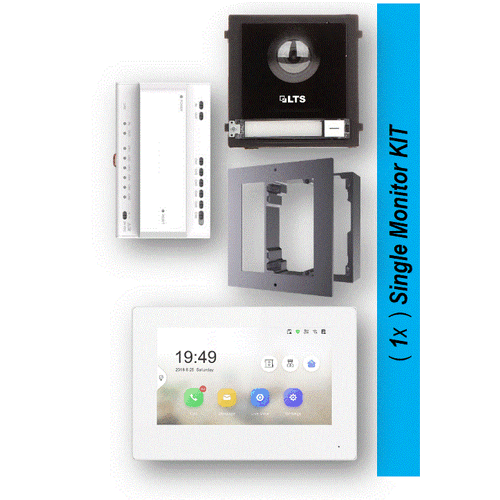

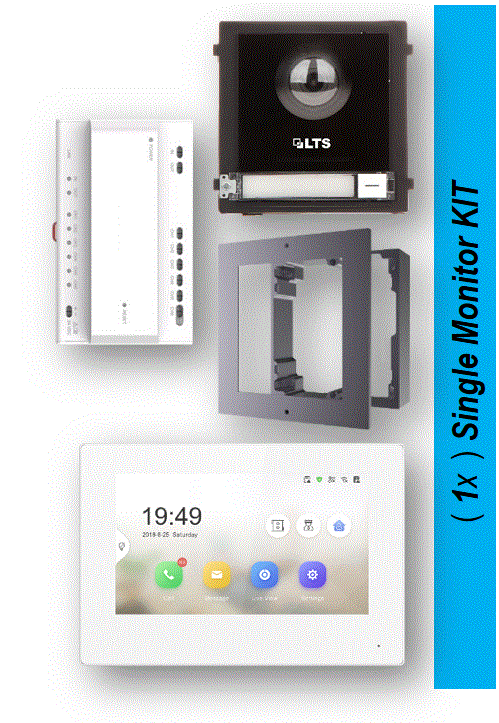

What's in the Box

• 1x LTH-M201-C-2 – 2-Wire Audio/Video Door Station Module with fisheye camera
• 1x LTH-M201-1S – Single-Module Surface-Mount Frame (aluminium, with fixing hardware)
• 1x LTH-D301GY-WIFI-2W – 7" Touchscreen 2-Wire Indoor Monitor (White trim, Wi-Fi enabled)
• 1x LTH-MD06-2 – 2-Wire 6-Channel Audio/Video Distributor with power adaptor

Frequently Asked Questions

Does this kit require a network connection to operate?
No. The core intercom functions run over the 2-wire cabling between the door station, distributor, and monitor. The distributor's network port and the monitor's Wi-Fi are optional extras for remote app access and notifications.

Can I add more monitors or door stations later?
The included 6-channel distributor supports expansion, so additional compatible 2-Wire monitors or modules can be added to the system as your needs grow.

Is this door station suitable for outdoor installation?
Yes, the door station module is rated IP65 and built to withstand a wide operating temperature range, making it appropriate for exposed outdoor mounting.

Additional Resources

• Cabling Guide - Link
