LTS IP Video Door Intercom Kit with White 7" Touchscreen Monitor

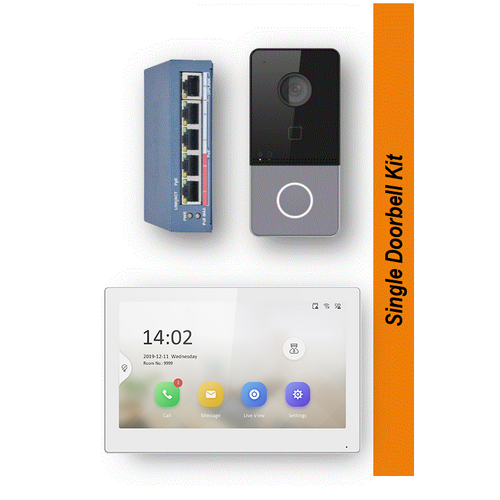

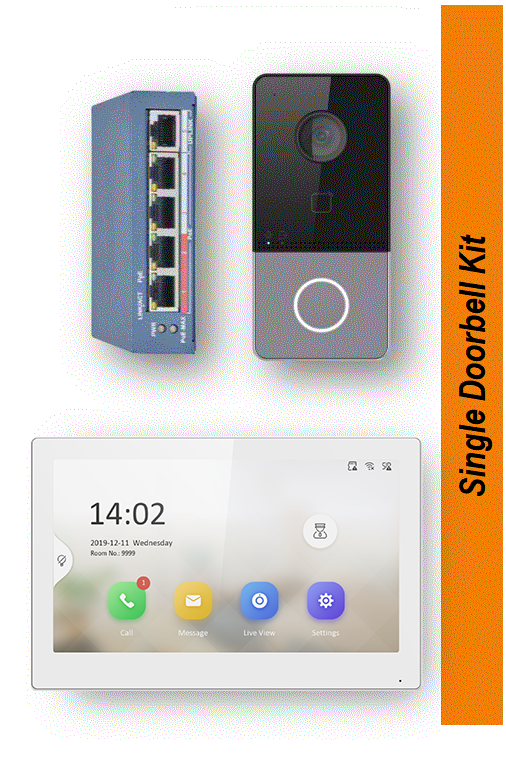

LTS LTH-KIT-W IP Video Door Intercom Kit with White 7" Touchscreen Monitor

The LTS LTH-KIT-W is a complete two-way video intercom system designed for houses, townhouses and small offices that want a modern, PoE-powered entry solution without complex wiring. The kit pairs a weatherproof outdoor door station with built-in access control, a 7-inch touchscreen indoor monitor finished in white, and a dedicated PoE switch to power both units from a single network run. Everything is IP-based, so the system can be expanded later with extra monitors, cameras or mobile app access.

Key Features

• 2.0MP outdoor door station capturing 1920 x 1080 video at up to 30fps for clear visitor identification
• Built-in Mifare card reader on the door station for tap-and-enter access control alongside the intercom function
• Dual connectivity via PoE or 2.4GHz Wi-Fi, giving installers flexibility on sites where running extra cable is difficult
• 7-inch touchscreen indoor monitor in white with an easy-to-navigate interface for answering calls, viewing live video and managing settings
• Hands-free audio thanks to the monitor's built-in microphone and speaker
• Local recording via the monitor's Micro SD card slot, supporting cards up to 32GB for storing snapshots and messages
• 4-port PoE switch included, supplying up to 60W across four 10/100Mbps PoE ports plus a Gigabit uplink port
• Remote monitoring and unlocking supported through compatible LTS client software and mobile apps
• Weather-resistant door station housing suitable for covered outdoor entry points

Ideal Applications

This kit suits single-entry residential properties, villa-style homes, granny flats and small commercial premises that need a straightforward, self-contained video intercom without integrating into a larger access control platform. Because the door station and monitor communicate over the network with PoE power, installation is typically faster and tidier than analogue or two-wire intercom systems, and the included switch means no separate power supplies are needed for either device.

What's in the Box

• 1x LTH-303M-WIFI outdoor IP video door station with Mifare reader
• 1x LTH-D311GY-WIFI-W 7-inch touchscreen indoor monitor (White trim)
• 1x 4-port PoE network switch with power adapter

Frequently Asked Questions

Can this kit run over Wi-Fi instead of a network cable?
Yes. Both the door station and the indoor monitor support 2.4GHz Wi-Fi as an alternative to a wired PoE connection, which is useful where cabling to the door is impractical.

Do I need a separate power supply for the monitor?
No. The included 4-port PoE switch powers both the door station and the monitor over the network cable, and the monitor can also run on 12V DC if preferred.

Can I add more monitors to this system later?
Additional compatible LTS IP indoor monitors can typically be added to extend the intercom to other rooms, subject to the door station's supported extension count.
