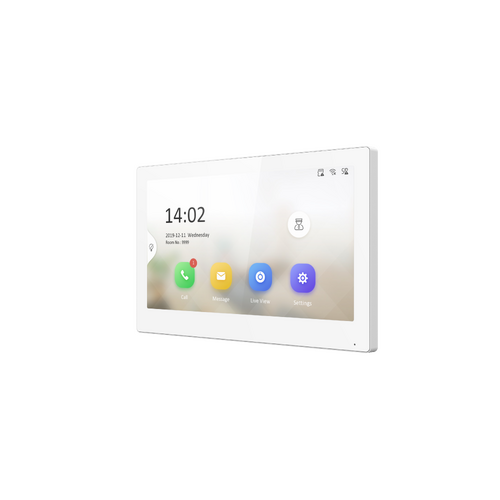

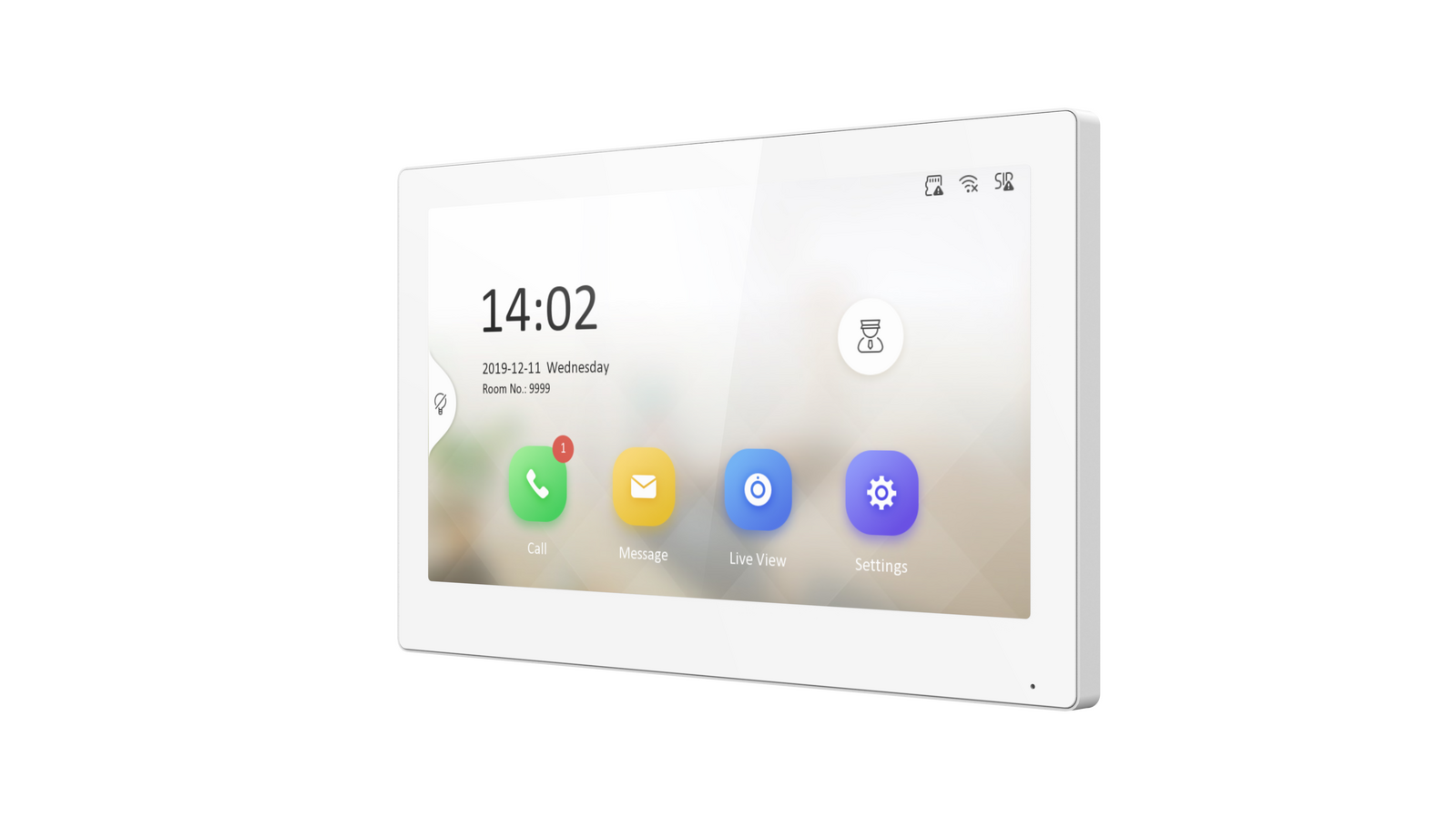

LTS Platinum 7" IP Video Intercom Indoor Touch Station - White

LTS Platinum 7" IP Video Intercom Indoor Touch Station (White)

The LTS Platinum LTH-D311GY-WIFI-W is a network-based indoor monitor built for modern video intercom and access control systems. Featuring a crisp 7-inch touchscreen and a clean white finish, it acts as the central communication hub for a home or small business, letting occupants see, hear, and remotely unlock for visitors at the front door. Running on an embedded Linux platform with a redesigned, user-friendly interface, it connects via either wired Ethernet or built-in Wi-Fi, giving installers flexibility when a data cable isn't practical.

Key Features

• 7-inch color touchscreen with a sharp 1024 x 600 resolution for clear video calls and menu navigation.
• Embedded Linux operating system running an updated, intuitive UI for day-to-day use.
• Built-in microphone and speaker for full handsfree two-way audio during intercom calls.
• Dual connectivity via 10/100 Ethernet or Wi-Fi 802.11b/g/n for flexible installation.
• Standard PoE (802.3af / 8W) power option alongside DC power input, reducing cabling requirements.
• MicroSD (TF) card support for local storage of call logs, messages, and captured snapshots.
• 8-channel alarm inputs for connecting external sensors such as door contacts or panic buttons.
• Remote unlocking and live view of linked door stations and cameras via client software or a mobile app.
• Multi-station capability, supporting up to 16 extension indoor stations for larger properties.

Reliable Communication for Homes and Businesses

Designed for both residential and light commercial installations, this indoor station pairs with compatible LTS door stations to form a complete video intercom system. Its wide operating temperature range and PoE support make it suitable for a variety of indoor environments, while the white trim allows it to blend neatly into modern interiors. It's an ideal upgrade for multi-tenant buildings, offices, or homes wanting a networked alternative to traditional analog intercoms, with the added convenience of remote monitoring and door release from a smartphone.

What's in the Box

• LTH-D311GY-WIFI-W Indoor Touch Station (White)
• Mounting bracket and wall-mounting hardware
• Power and terminal connectors
• Quick start guide

Frequently Asked Questions

Can this monitor be powered without a PoE switch?
Yes, it supports both standard PoE (802.3af) and a DC power input, so it can be powered locally if a PoE switch is not part of the installation.

Does it work with Wi-Fi only, or does it need an Ethernet cable?
It supports both. You can run it over a wired Ethernet connection for the most stable performance, or connect via built-in Wi-Fi 802.11b/g/n where cabling isn't available.

How many indoor stations can be linked in one system?
This model supports intercom systems with up to 16 extension indoor stations, making it suitable for larger homes or multi-room setups.
