LTS 7" IP PoE Wi-Fi Video Intercom Indoor Monitor - White

LTS 7" IP PoE Wi-Fi Video Intercom Indoor Monitor (White)

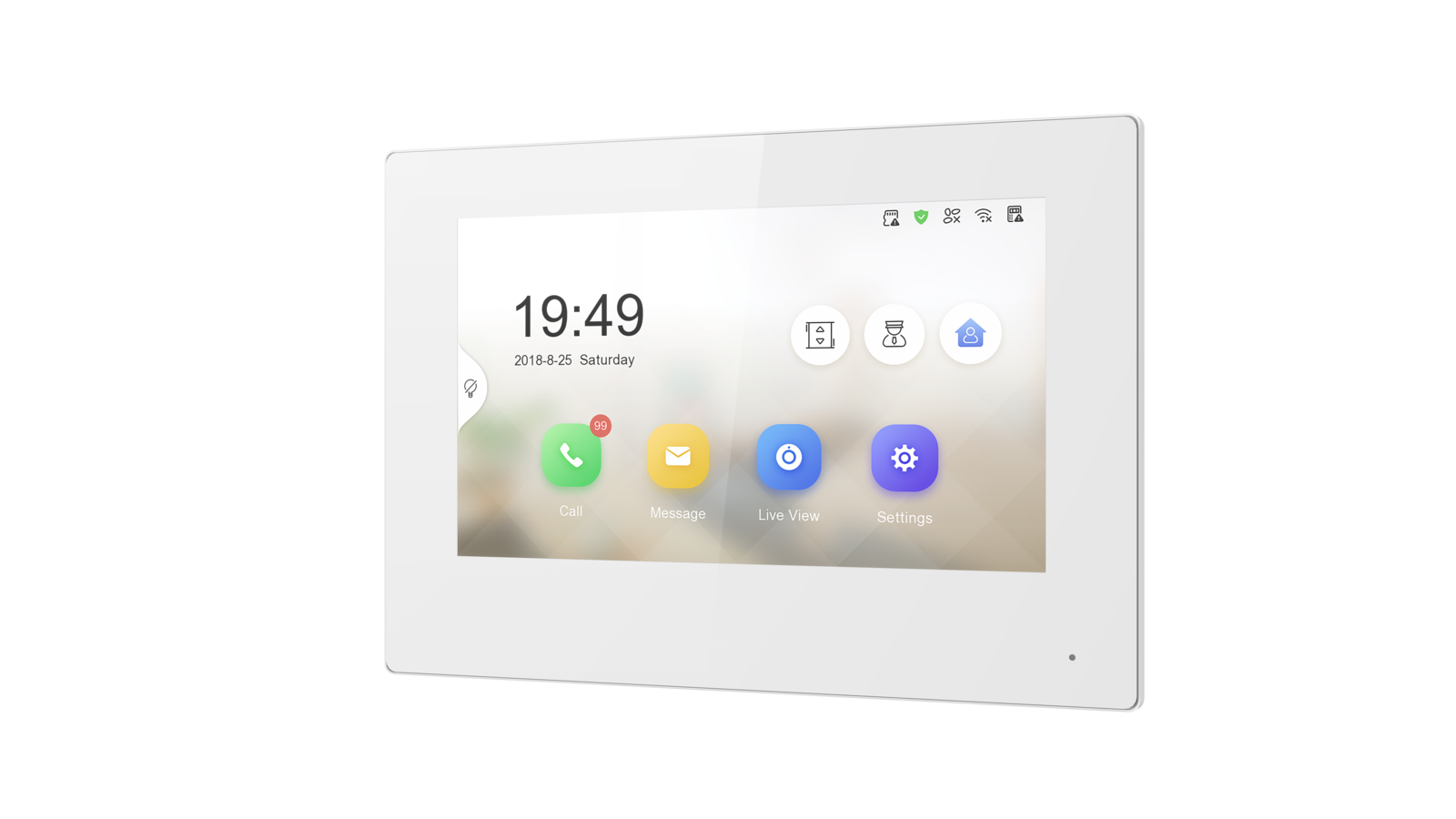

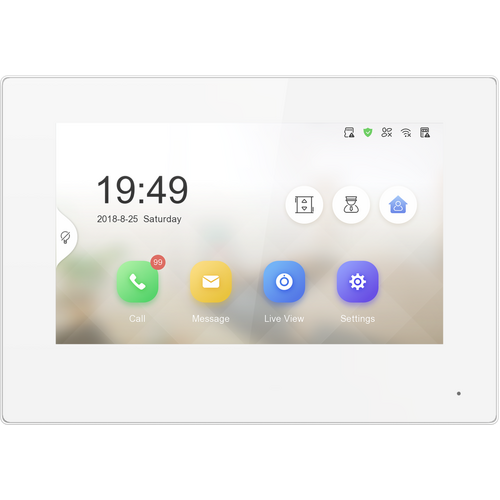

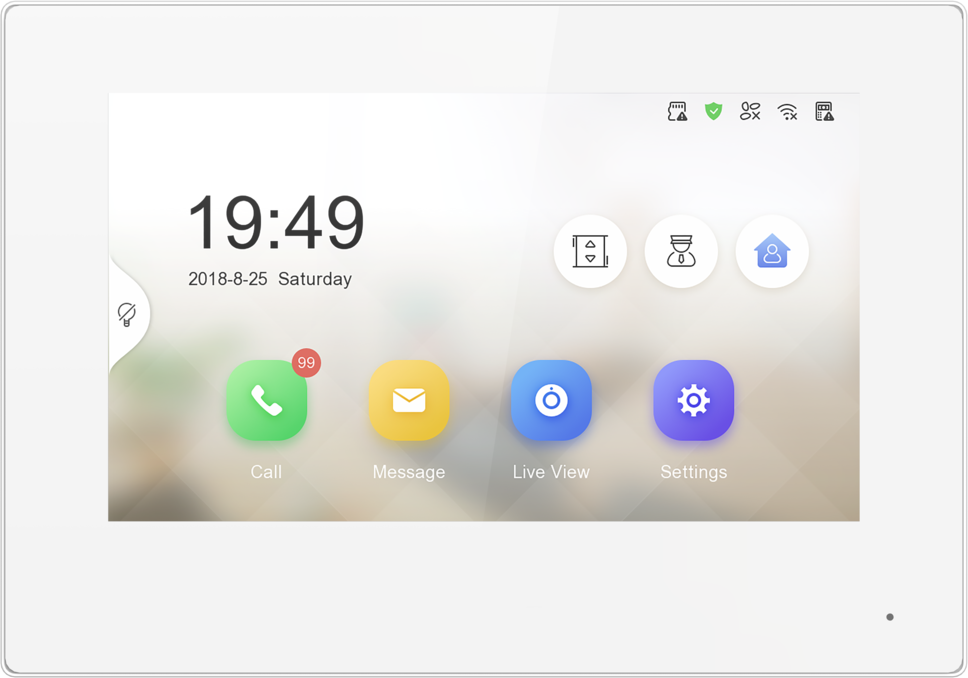

The LTS LTH-D301GY-WIFI-W is a network-based indoor intercom monitor designed to give homes, apartments and small offices a modern way to see and speak with visitors at the door. Built around a bright 7-inch touchscreen and running on an embedded operating system, this white-trim monitor pairs with compatible IP door stations to deliver two-way audio, live video viewing and remote unlocking from a single wall-mounted panel. Because it connects over standard Ethernet or Wi-Fi and can be powered by PoE, installation is straightforward for both new builds and retrofits.

Key Features

• 7-inch capacitive touchscreen display for intuitive tap-based navigation and menu control
• Built-in microphone and speaker enable clear, handsfree two-way conversations with visitors
• Supports Wi-Fi 802.11b/g/n as well as a wired 10/100M Ethernet connection for flexible network setup
• Powered via PoE (802.3af, approximately 6W) or a 12VDC/500mA adapter, reducing cabling requirements
• Micro SD card slot (up to 32GB) allows local storage of call logs and captured snapshots
• Remote door release lets residents unlock connected door stations directly from the monitor or a linked mobile app
• Can view live feeds from paired IP door stations and select network cameras on the same system
• Rated for operation across a wide temperature range, suiting varied indoor installation environments
• Compact, low-profile design (approximately 200 x 140 x 15.1mm) with a clean white finish to blend with interior decor

Ideal Applications

This monitor suits single residences, townhouses and small multi-tenant buildings where a simple, screen-based intercom is preferred over a phone-only app solution. Because a single system can typically be configured to work with multiple indoor monitors per apartment, it is well suited to households that want a handset in more than one room, such as an entryway and a main living area. It also integrates into broader LTS IP video security setups, letting a property view connected cameras and manage access from one convenient touchscreen.

What's in the Box

• LTH-D301GY-WIFI-W indoor monitor unit
• Wall mounting bracket and fixing screws
• Quick start guide
• Power/network cabling accessories as required for the chosen installation method

Frequently Asked Questions

Does this monitor need a separate power supply?
No, in most installations it can be powered directly over a standard PoE network switch or injector, though a 12VDC adapter option is also supported.

Can I use this monitor without Wi-Fi?
Yes, the unit has a wired 10/100M Ethernet port, so Wi-Fi is optional rather than required for network connectivity.

Will this work with any door station?
It is designed to pair with compatible LTS IP video door stations and related access control equipment, so compatibility should be confirmed with your LTS system components before purchase.

Additional Resources

• Quick Start Guide
