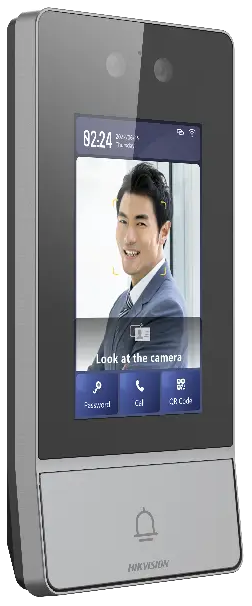

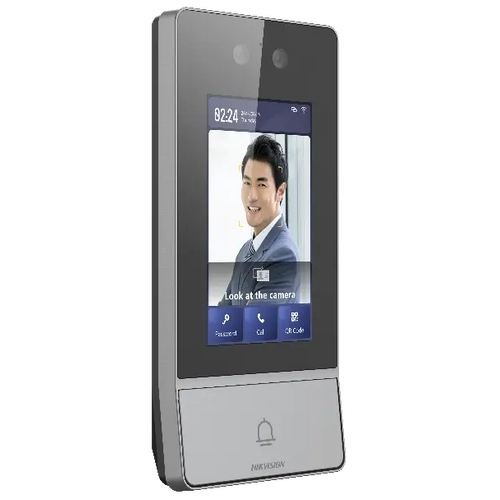

LTS LTH-401M-WIFI Face Recognition Vandal-Proof IP Door Station

LTS LTH-401M-WIFI Face Recognition Vandal-Proof IP Door Station

The LTS LTH-401M-WIFI is a rugged, network-based video intercom and access control door station built for apartment blocks, offices, and commercial entries that need fast, touch-free visitor authentication. Combining a dual 2MP camera system with on-device face recognition, MIFARE card reading, and a contact-list calling function, it lets visitors reach the right resident or staff member while giving administrators multiple secure ways to grant entry. Housed in an IP65 and IK08-rated vandal-resistant enclosure, it is designed to keep working reliably in exposed outdoor locations and in the face of tampering attempts.

Key Features

• Dual 2MP HD Cameras with a wide field of view for clear facial capture and visitor identification in varying light, backed by auto day/night switching.
• 1:N Face Recognition & MIFARE Card Reader supporting large-scale credential storage, giving residents and staff a fast, contactless way to unlock the door.
• 4.3-inch IPS Touchscreen with an 800x480 display for intuitive on-screen navigation, PIN entry, and contact-list based calling to indoor stations.
• IP65 & IK08 Rated Housing engineered to resist water ingress and physical impact, suited to unsheltered outdoor door and gate positions.
• Flexible Network Connectivity via wired TCP/IP or built-in Wi-Fi, plus standard PoE or 12VDC power input for straightforward installation.
• Independent Control of Two Door Locks using dual relay outputs, useful for gated entries with separate pedestrian and vehicle access.
• Built-in Omnidirectional Microphone & Loudspeaker with echo cancellation for clear two-way audio during intercom calls.
• Wide Operating Temperature Range, rated from -40°C to 60°C for demanding outdoor Australian climates.
• Web-Based Configuration for remote setup, user management, and integration with compatible LTS intercom and access control platforms.

Ideal for Multi-Tenant and Commercial Entry Points

This door station suits strata properties, small-to-medium office buildings, warehouses, and gated communities that want to modernise a single entry point with biometric access rather than relying solely on keys or fobs. Its combination of face recognition, card credentials, and intercom calling means it can operate as a stand-alone access controller or as part of a larger networked video intercom system, giving front-desk staff or residents visual and audio confirmation before releasing a lock.

What's in the Box

• LTH-401M-WIFI Face Recognition Door Station
• Mounting bracket and installation hardware
• Wiring terminals for relay and power connections
• Quick start installation guide

Frequently Asked Questions

Does the LTH-401M-WIFI need a separate power supply if I'm using PoE? No. The unit accepts standard PoE over its network cable, or it can be powered locally via a 12VDC supply where PoE is not available.

Can it control more than one door or gate? Yes. It includes two independent door release relays, so it can trigger two separate locks or barriers from the one unit.

Is it suitable for outdoor installation without extra protection? Yes, its IP65 and IK08 ratings mean it is built to handle rain, dust, and vandalism attempts typical of exposed outdoor entry points, though an optional protective shield accessory is also available for extra coverage.
