LTS 2MP IP Vandal-Resistant Door Station with PoE & Proximity Reader

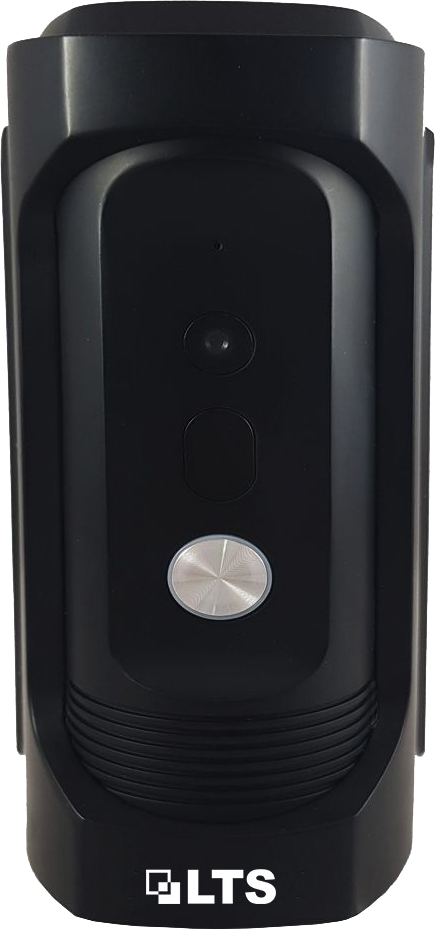

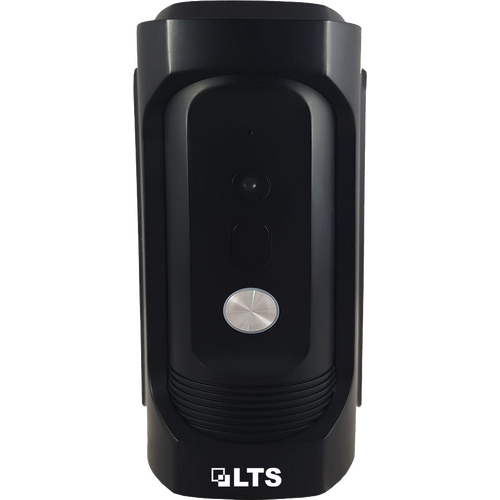

LTS 2MP IP Vandal-Resistant Video Intercom Door Station (LTH-M001AU)

The LTS LTH-M001AU is a rugged, PoE-powered IP video door station built for entryways that demand both clear communication and physical durability. Combining 2MP video, two-way audio, and a built-in proximity card reader, it integrates with compatible LTS indoor monitors, NVRs, and access control setups to give installers a single, vandal-rated unit for video intercom and door entry management.

Key Features

• 2MP video at 1920x1080 resolution and 30fps for sharp identification of visitors at the door
• Pinhole lens with an 80-degree horizontal field of view for a discreet, wide-angle view of the entry point
• Auto day/night switching with up to 5m IR illumination for reliable performance in low light
• H.264 video compression paired with BLC, DNR, and WDR processing to balance exposure in high-contrast doorway lighting
• Built-in omnidirectional microphone and loudspeaker with echo cancellation for clear two-way conversations
• IP66-rated weatherproofing and IK9 vandal-resistant housing for tough outdoor and high-traffic installations
• Built-in proximity card reader to support card-based access alongside remote unlock and video verification
• Tamper alarm to alert on attempted removal or forced access
• PoE (802.3af, 12W) or 12VDC / 1000mA power options for flexible installation, though a separate power source is required for the electric door lock

Typical Applications

This door station suits commercial entries, apartment and multi-tenant buildings, gated facilities, and any exterior door where standard intercoms are prone to weather exposure or tampering. Its combination of PoE simplicity, vandal-rated construction, and proximity card access makes it a practical fit for property managers and integrators upgrading a basic buzzer system to a networked video intercom with access control.

What's in the Box

• IP Vandal-Resistant Door Station (LTH-M001AU)
• Wall mounting plate and mounting hardware
• Terminal connectors for lock, door magnetic contact, exit button, and alarm wiring
• Quick start guide

Frequently Asked Questions

Does the LTH-M001AU power an electric door lock directly?
No. The unit does not provide a 12V output for locks, so the electric lock must be powered from a separate, independent power source.

Can this door station be powered over the network cable?
Yes. It supports 802.3af PoE (12W) as well as a standalone 12VDC / 1000mA power supply, giving installers flexibility depending on existing cabling.

Is the LTH-M001AU suitable for outdoor use in harsh climates?
Yes. With an IP66 ingress rating, IK9 impact resistance, and an operating range of -30°C to 50°C, it is designed to withstand exposure and physical abuse at exterior entry points.
