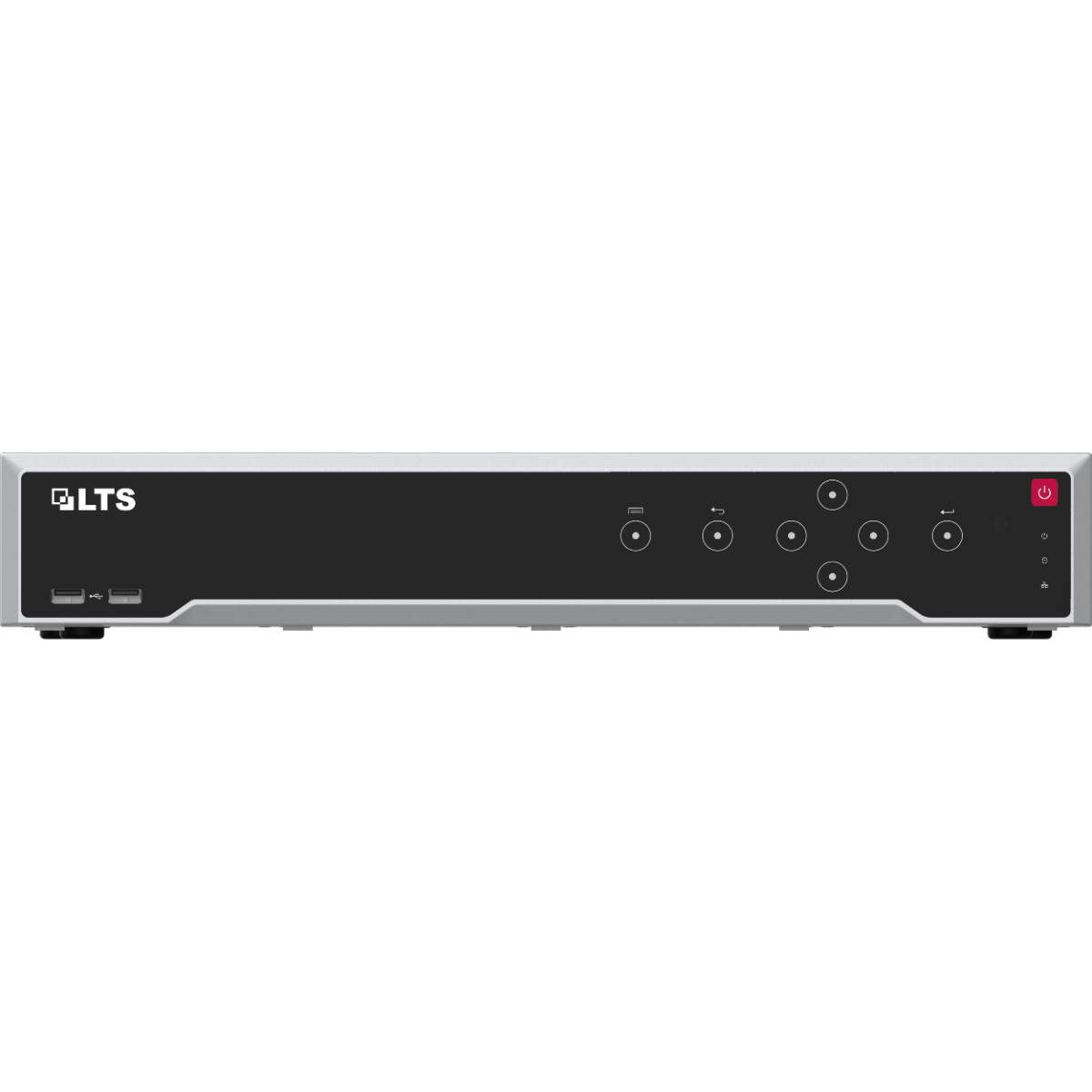

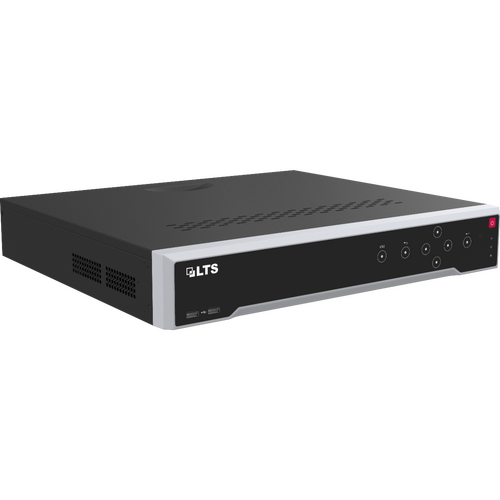

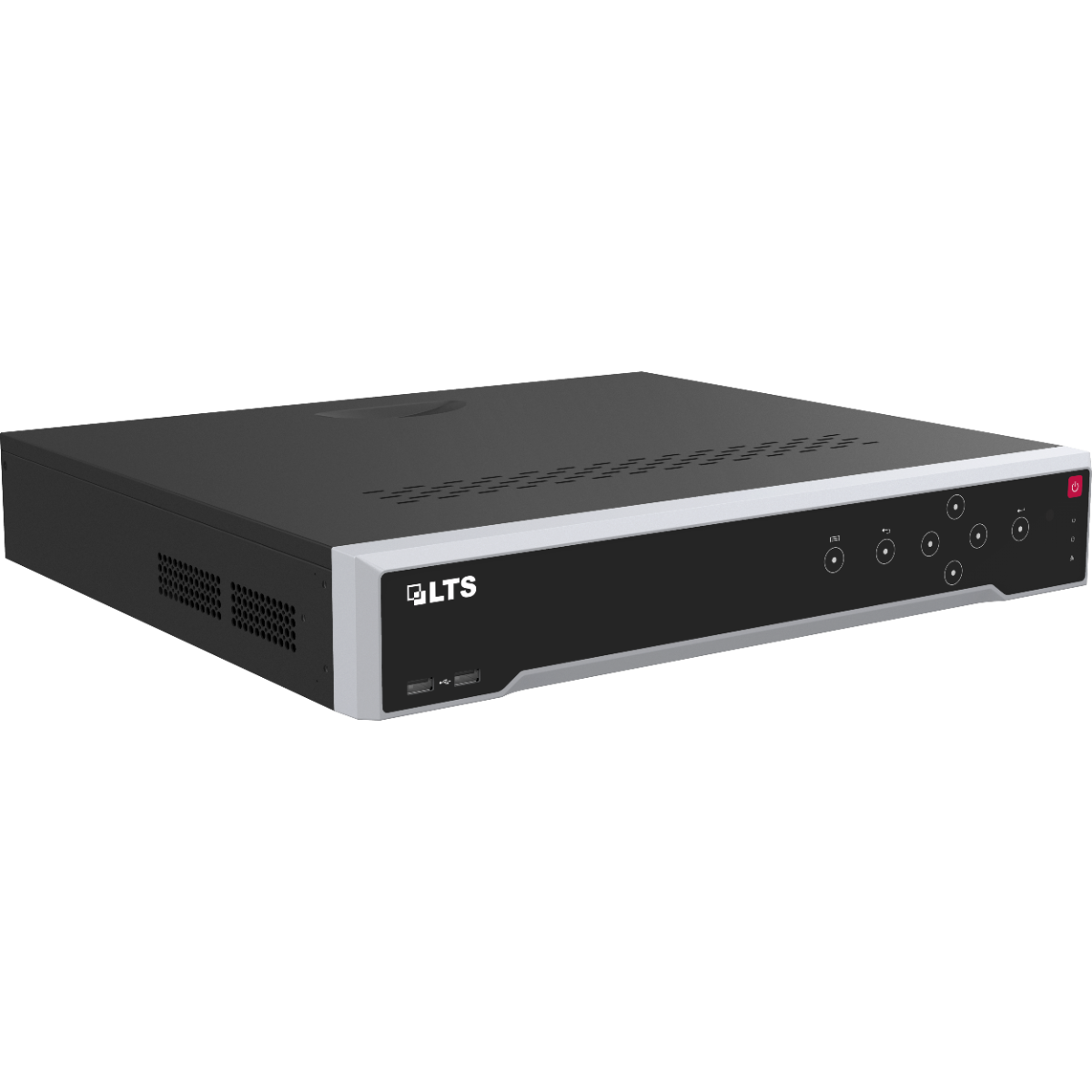

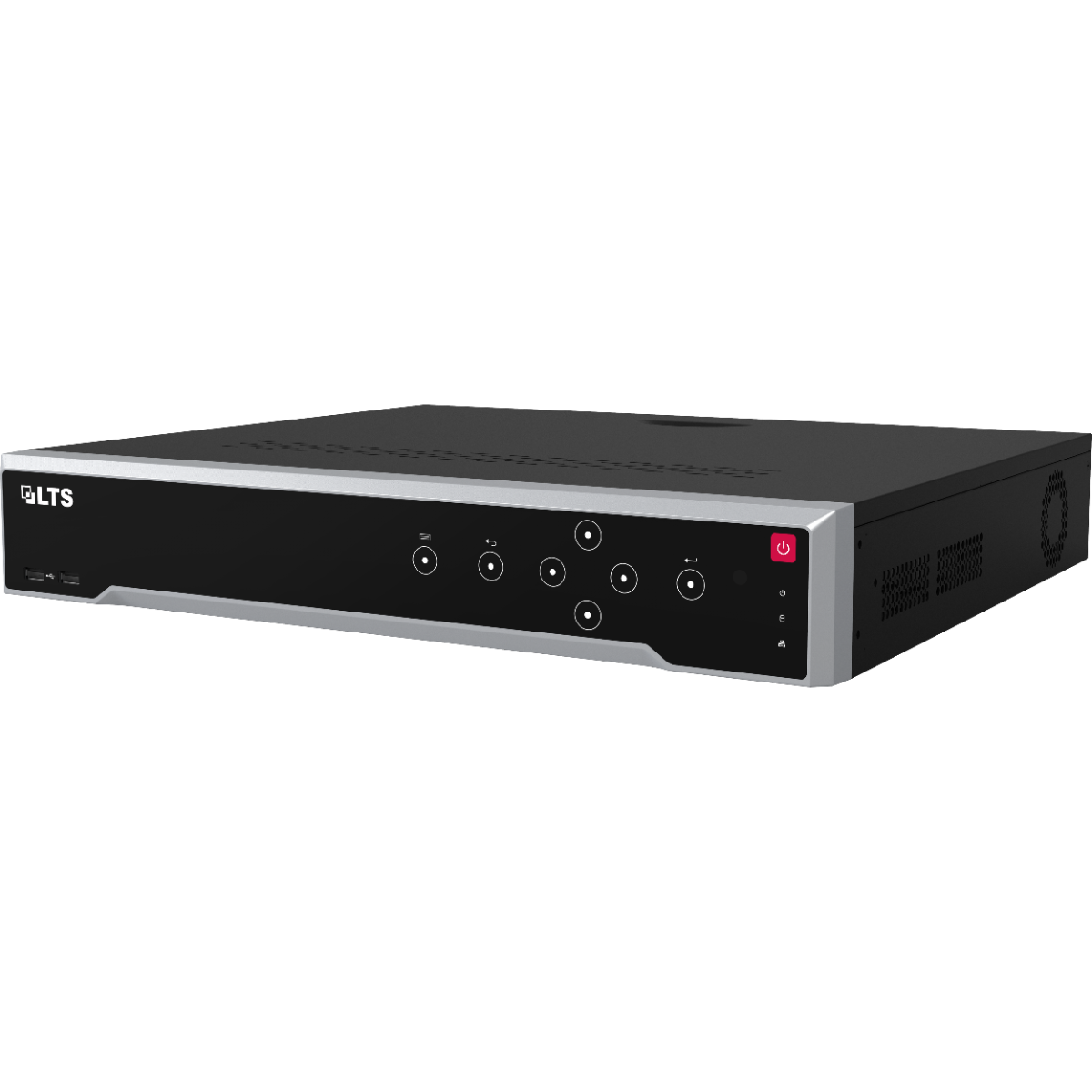

LTS Platinum LTN8932DV-P16 32-Channel 4K DeepVision AI NVR

LTS Platinum LTN8932DV-P16 – 32-Channel 4K DeepVision AI NVR

The LTS Platinum LTN8932DV-P16 scales the DeepVision AI platform up to 32 channels, built for larger commercial, warehouse, and enterprise sites that need both extensive camera coverage and genuine investigative AI tools. With 16 built-in PoE ports, dual AI engines handling facial recognition and semantic search, and up to 80TB of local storage across four drive bays, it's designed to be the central recording and analytics hub for sites running well beyond a handful of cameras.

Key Features

• 32-channel DeepVision AI search – locate footage using natural-language descriptions of people, vehicles, clothing, and activity across all 32 channels simultaneously.
• 16 built-in PoE ports (200W budget) – single-cable deployment for up to 16 directly connected cameras, with additional channels supported over the network.
• Up to 32MP recording support – connect high-resolution IP cameras across the full 32-channel array.
• Dual AI engines – dedicated processing for facial recognition and DeepVision search running in parallel, supporting up to 8-channel facial recognition with capacity for 50,000 face records across 16 libraries.
• ANPR across all channels – automatic number plate recognition with vehicle attribute recognition, suited to sites needing vehicle-level tracking and access logging.
• People counting & perimeter protection – built-in analytics for occupancy tracking and intrusion detection along defined boundaries.
• Video structuralisation – converts raw footage into searchable, structured data for faster large-scale investigation.
• Direct Search – quickly find similar people and vehicles across recorded footage without manual review.
• H.265+ compression – reduces storage requirements by up to 75% compared to standard H.264.
• Four SATA bays, up to 20TB each – up to 80TB of total local storage for extended retention across a large camera count.
• 4K HDMI and VGA outputs – independent video outputs for local monitoring.
• LTS Connect & DDNS – secure remote access and monitoring from anywhere.

Built to Scale

The LTN8932DV-P16 is the step up for sites that have outgrown a 16-channel recorder – large retail premises, warehouses, multi-building facilities, or any site where camera count and AI-assisted investigation both matter. Its dual AI engines mean facial recognition and DeepVision search run without competing for the same processing resources, keeping the system responsive even under heavier analytic workloads. With ANPR, people counting, and perimeter protection built in, it doubles as an analytics platform, not just a recorder.

What's in the Box

• LTS Platinum LTN8932DV-P16 NVR (no HDD included)
• Power adapter/cable
• Mouse
• Mounting hardware
• Quick start guide

Technical Specifications

• Channels: 32-channel IP camera input, 16 built-in PoE ports
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Max Recording Resolution: Up to 32MP
• Facial Recognition: Up to 8 channels, 50,000 faces across 16 libraries
• Storage: 4 x SATA, up to 20TB each (80TB max)
• Video Output: HDMI (4K), VGA
• PoE Budget: 200W total (16 built-in ports)
• Analytics: DeepVision search, Direct Search, ANPR, people counting, perimeter protection, video structuralisation

Frequently Asked Questions

Does the LTN8932DV-P16 include hard drives?
No, it ships without HDDs – drives are selected and installed separately based on required storage capacity.

What's the difference between this and the LTN8616DV-P16?
The LTN8932DV-P16 supports double the channel count (32 vs 16) and storage bays (4 vs 2, up to 80TB vs 40TB), and adds ANPR, people counting, and perimeter protection analytics not listed on the 16-channel model.

Is this suitable for large multi-site or warehouse installations?
Yes – the combination of 32-channel support, dual AI engines, and up to 80TB of storage is built specifically for larger-scale commercial and enterprise deployments.

Can it recognise vehicle number plates?
Yes, ANPR with vehicle attribute recognition is supported across all channels.

LTS Platinum LTN8932DV-P16 is available from LTS Security Australia. For bulk or trade pricing, register for a trade account.
