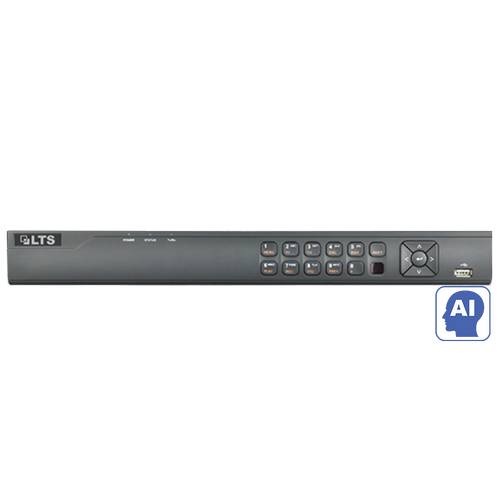

LTS Platinum LTD8516M-STN 16-Channel 4K Hybrid TVI DVR with MD2.0

LTS Platinum LTD8516M-STN 16-Channel 4K Hybrid TVI DVR with MD2.0

The LTS Platinum LTD8516M-STN is a 16-channel hybrid digital video recorder built for installers who need flexibility across multiple camera technologies. It accepts HD-TVI, AHD, CVI and standard analog CVBS cameras on its 16 analog inputs, while also supporting additional IP cameras for a true hybrid deployment. With recording resolutions up to 8MP (4K) and onboard deep-learning motion analytics, this 1U recorder is designed for retail, warehouse, office and residential surveillance projects that demand clear footage and smarter alerts without the cost of a full IP-only system.

Key Features

• Hybrid Camera Support: Connect up to 16 HD-TVI, AHD, CVI or analog cameras, plus up to 16 additional IP channels for mixed analog/IP setups.
• Up to 8MP Recording: Capture ultra-detailed 4K-class footage at 8fps per channel, with 5MP at 12fps and 2MP at 30fps per channel for flexible frame-rate planning.
• MD2.0 Deep Learning Analytics: Built-in human and vehicle classification on up to 4 channels helps reduce false alarms triggered by leaves, shadows or lighting changes.
• Perimeter Protection: Line-crossing and intrusion detection add an extra layer of proactive monitoring for boundary security.
• H.265+ Compression: Advanced encoding reduces file sizes and storage costs while maintaining image quality across all recorded channels.
• 4K HDMI Output: Native 4K HDMI plus VGA and CVBS outputs give installers flexibility when connecting monitors or display walls.
• Large Storage Capacity: Two SATA bays support drives up to 20TB combined, suitable for extended retention periods.
• Remote & Cloud Access: LTS-Connect and DDNS support enable simple remote viewing, while compatibility with third-party cloud storage adds an extra backup option.
• Flexible Backup Options: USB 2.0 and USB 3.0 ports allow quick footage export for evidence or archiving.

Built for Mixed Camera Environments

This recorder suits businesses transitioning from analog to IP without wanting to replace an entire camera fleet at once. Retailers, small offices, warehouses and residential properties benefit from the ability to mix existing HD-TVI or AHD cameras with newer IP cameras on a single recorder, while still gaining access to smart analytics like human/vehicle detection and perimeter alerts that were traditionally reserved for higher-end IP systems.

What's in the Box

• LTD8516M-STN 16-Channel Hybrid DVR (Barebone - no HDD included)
• Power adapter and cable
• USB mouse
• Mounting screws
• Quick start guide

Frequently Asked Questions

Does this DVR include a hard drive?
No, the LTD8516M-STN ships as a barebone unit. You will need to add a compatible SATA hard drive, with support for up to 20TB across the two available bays.

Can I use IP cameras with this DVR?
Yes, in addition to its 16 analog inputs, the unit supports additional IP camera channels for hybrid analog/IP installations, up to 8MP per IP channel depending on configuration.

What does MD2.0 mean?
MD2.0 refers to the DVR's second-generation deep learning motion detection, which can distinguish between humans and vehicles to cut down on false alerts from environmental movement.

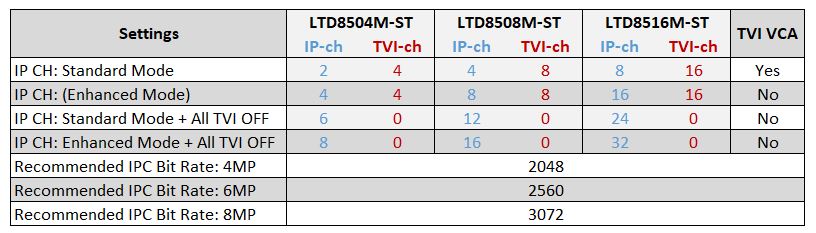

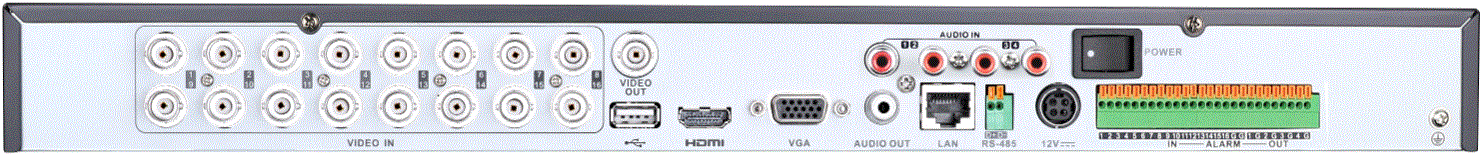

Product Images & Diagrams
