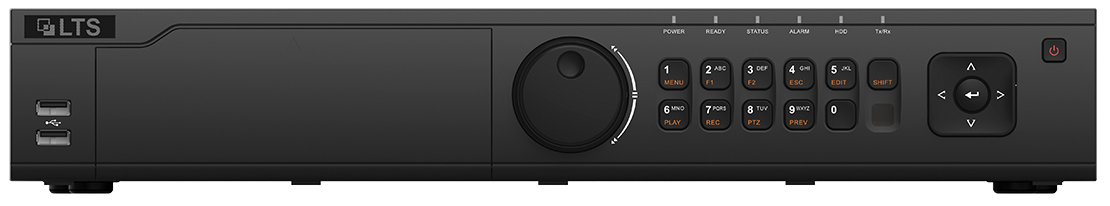

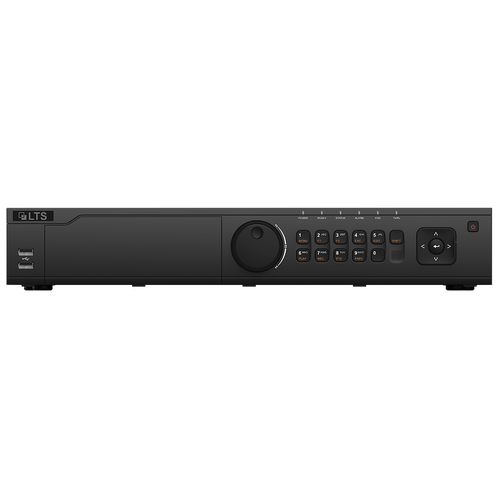

LTS Platinum LTD8432M-ST 32-Channel 8MP HD-TVI DVR with RAID

LTS Platinum LTD8432M-ST 32-Channel 8MP HD-TVI DVR with RAID

The LTS Platinum LTD8432M-ST is an enterprise-grade 32-channel hybrid digital video recorder built for large commercial and industrial surveillance deployments. It combines high-resolution HD-TVI analog recording with IP camera support and RAID-protected storage, giving integrators a flexible, future-proof recording platform for sites that need dense camera coverage and reliable long-term footage retention.

Key Features

• 32-channel analog input supporting HD-TVI, AHD, CVI and standard analog cameras at resolutions up to 8MP.
• Hybrid IP support for additional IP cameras, giving installers the flexibility to mix analog and network cameras on one recorder.
• H.265 Pro+ compression that improves encoding efficiency and reduces long-term storage costs compared with older codecs.
• RAID-protected storage across 4 SATA HDD bays (plus an eSATA interface), with support for RAID 0, 1, 5, 6 and 10 configurations for data redundancy.
• Massive storage capacity, accepting drives up to 12TB each for a maximum of roughly 48TB of onboard storage.
• Dual HDMI and VGA outputs for flexible monitor wall or control room configurations.
• 16-channel alarm input / 4-channel alarm output plus 4-channel audio input and 1-channel audio output for integrated alarm and audio monitoring.
• Dual Gigabit Ethernet ports (2x RJ45, 10/100/1000M) supporting remote access for up to 128 users via LTS Connect, DDNS and ONVIF.
• 1.5U rackmount, UL-listed chassis designed for professional server room or equipment rack installation.

Built for Large-Scale, Mission-Critical Surveillance

This recorder is best suited to large retail chains, warehouses, transportation hubs, educational campuses and other sites running dozens of analog cameras that need dependable, redundant storage. The combination of high channel count, RAID support and hybrid IP compatibility makes it a practical upgrade path for sites migrating from analog-only systems while protecting recorded footage against single drive failure.

What's in the Box

• LTS Platinum LTD8432M-ST DVR unit (1.5U barebone, no HDD pre-installed)
• Power cable
• Mouse
• Mounting screws and rack ears
• Quick start guide

Frequently Asked Questions

Does the LTD8432M-ST include hard drives?
No, this is a barebone unit and ships without pre-installed HDDs, allowing installers to select their own storage capacity and RAID configuration.

Can I mix analog and IP cameras on this DVR?
Yes, the LTD8432M-ST is a hybrid recorder that supports both HD-TVI/AHD/CVI analog cameras and additional IP camera channels on the same unit.

What RAID levels does this DVR support?
It supports RAID 0, 1, 5, 6 and 10 across its four SATA bays, giving installers a choice between maximum capacity and drive-failure redundancy depending on site requirements.
