LTS LTAH-103C POS RS232 to Ethernet Converter for CCTV Integration

LTS LTAH-103C POS RS232 to Ethernet Converter

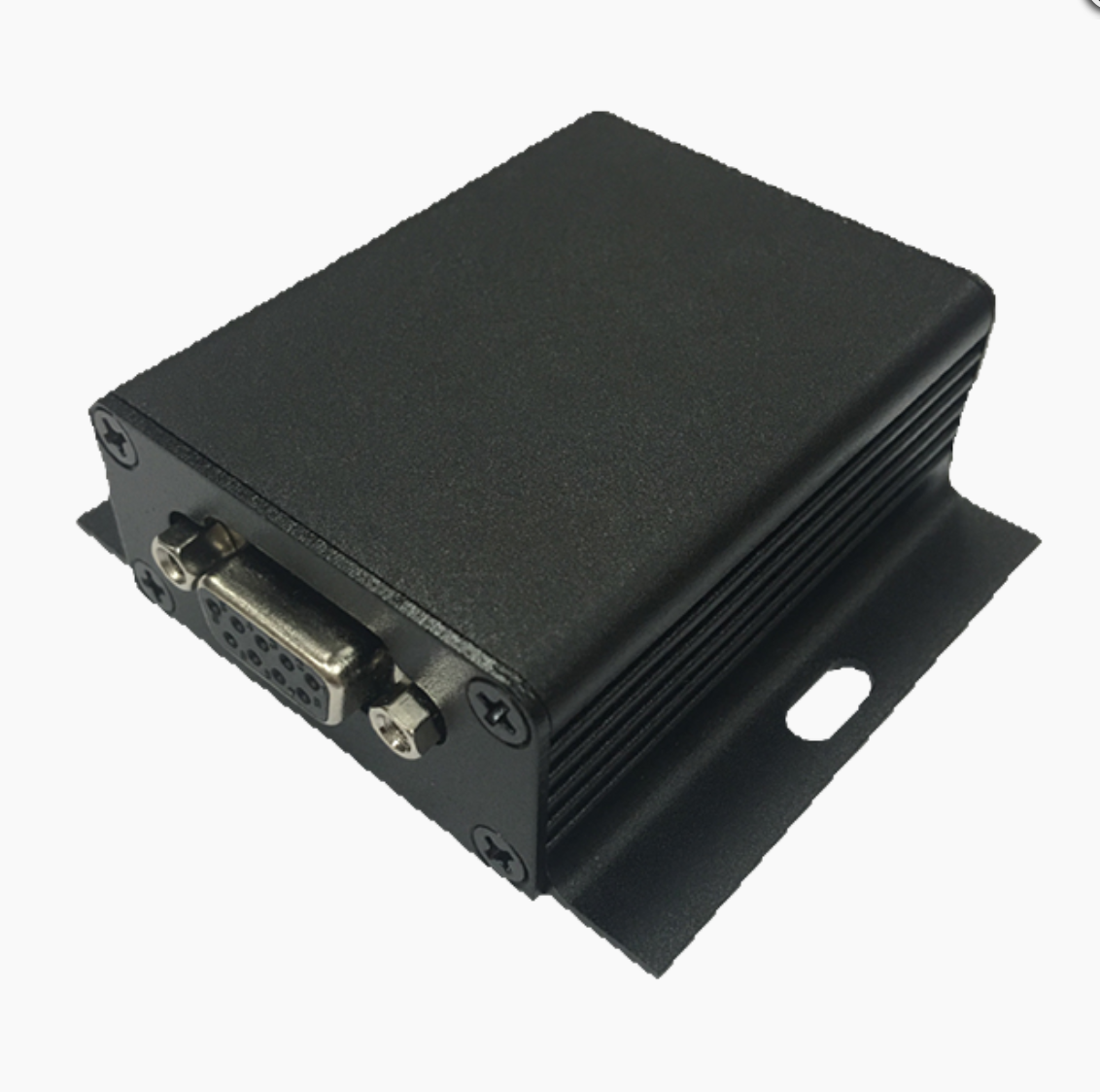

The LTS LTAH-103C is a compact serial-to-network converter designed to bridge Point of Sale (POS) terminals, cash registers and other RS232 serial devices with an Ethernet-based CCTV recording system. It transforms serial transaction data into TCP/IP packets so that till receipts and register activity can be transmitted to a compatible LTS DVR or NVR for overlay recording, giving retailers a searchable video record that is linked to sales transactions. Built for straightforward installation, the unit works over local networks or across routed/internet connections, making it a practical accessory for retail, hospitality and warehouse security setups.

Key Features

• Adjustable RS232 baud rate from 300 up to 256,000 bps to suit a wide range of POS and serial equipment.
• 100M high-speed Ethernet interface with 10/100M auto-detect for reliable network performance.
• Auto MDI/MDIX support, allowing either straight-through or crossover cabling without manual configuration.
• Multiple working modes including TCP Server, TCP Client, UDP and UDP Server for flexible network architectures.
• Virtual serial port support so connected software can treat the network link as a standard COM port.
• Capable of communicating across gateways, switches and routers, and functioning on both LAN and internet (WAN) connections.
• User-configurable working port and destination IP/port settings for straightforward network setup.
• Automatic reconnection logic helps maintain a stable TCP connection if the link is interrupted.
• Compact enclosure measuring approximately 90(W) x 83(D) x 25mm(H), suitable for discreet mounting near a POS terminal.

Typical Use Case

The LTAH-103C is most commonly installed at the point of sale in retail stores, service counters and hospitality venues where operators want to correlate cash register transactions with recorded video footage. By connecting the RS232 output of a POS terminal to this converter and then onto the network, transaction text can be sent to a compatible LTS NVR or DVR, which overlays or logs the data alongside the corresponding camera view. This helps loss-prevention and management teams quickly review suspicious transactions, refunds, voids or drawer openings against the matching video clip, rather than manually cross-referencing separate systems.

What's in the Box

• 1 x LTS LTAH-103C POS-to-Ethernet converter unit
• 1 x DC power adapter (5V / 500mA)
• Mounting/installation hardware (where supplied)
• Quick installation reference guide

Frequently Asked Questions

Does the LTAH-103C work with any brand of POS terminal?
It is designed to pass through plain RS232 text data, so it works best with POS systems that output straightforward, unformatted transaction text rather than heavily formatted receipt printer commands.

What is the maximum cable distance supported?
The RS232 side supports runs up to roughly 45 feet, while the Ethernet side supports around 600 feet on standard cable; when routed through network switches or the internet, there is effectively no practical distance limit.

Can the converter be used outside a local network?
Yes, in addition to LAN operation it can be configured to communicate across gateways and routers, allowing POS data to be sent to a recorder over a wider network or the internet.
