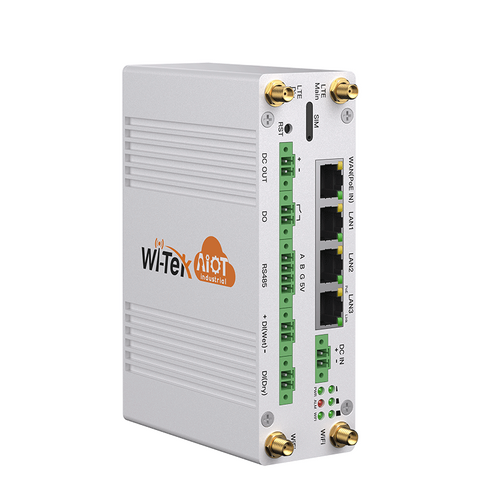

WI-TEK Industrial Gateway

WI-TEK INDUSTRIAL GATEWAY

Wi-Tek Industrial 4G IoT Gateway is an industrial-grade device designed for IoT scenarios across smart manufacturing, automation, remote monitoring, and transportation. It provides stable connectivity in tough industrial environments, featuring 4G LTE, 4 Ethernet ports, Wi-Fi, DI/DO, RS485, Modbus support, and flexible DIN-Rail mounting. With robust management, it enables one-time deployment without extra equipment, perfectly meeting IoT connectivity needs.

Dual 4G LTE

The ideal 4G LTE Gateway with Cat4 supports dual 4G SIM cards and features failover capability, providing up to 150Mbps download speed and 50Mbps upload speed while being backward compatible with 3G networks.

IEEE 802.3af/at PoE Out

Multiple PoE Out Ports allow direct connection of cameras via a network cable, transmitting data and power to the cameras simultaneously. This greatly facilitates network solutions and application scenarios for monitoring.

Abundant IoT Connector

With an RS485 interface, it connects with Wi-Tek solar powered switch to upload data to the Wi-Tek cloud—enabling real-time monitoring of solar power and battery status and receiving alerts on battery capacity, charging status, etc.—thereby ensuring seamless energy monitoring and boosting the operational efficiency and reliability of smart energy management. Additionally, I/O linkage events can be flexibly configured through the WEB management page, enabling better monitoring and adjustment of the environment. Note: It can work with Wi-Tek cloud managed solar power switch with RS485, such as WI-PS306GF-UPS (V4), WI-PS306GF-UPS-15A (V2).

OpenVPN

This gateway supports OpenVPN, enabling employees to connect remotely to their main office as securely as they do in the office.

SD-LAN

SD-LAN(Software-defined local area network), used to quickly set up a dedicated encrypted tunnel on the public network, realizing the interconnection between each branch nodes in different regions, which enables visual management, easy deployment, high reliability and security and lower project costs.

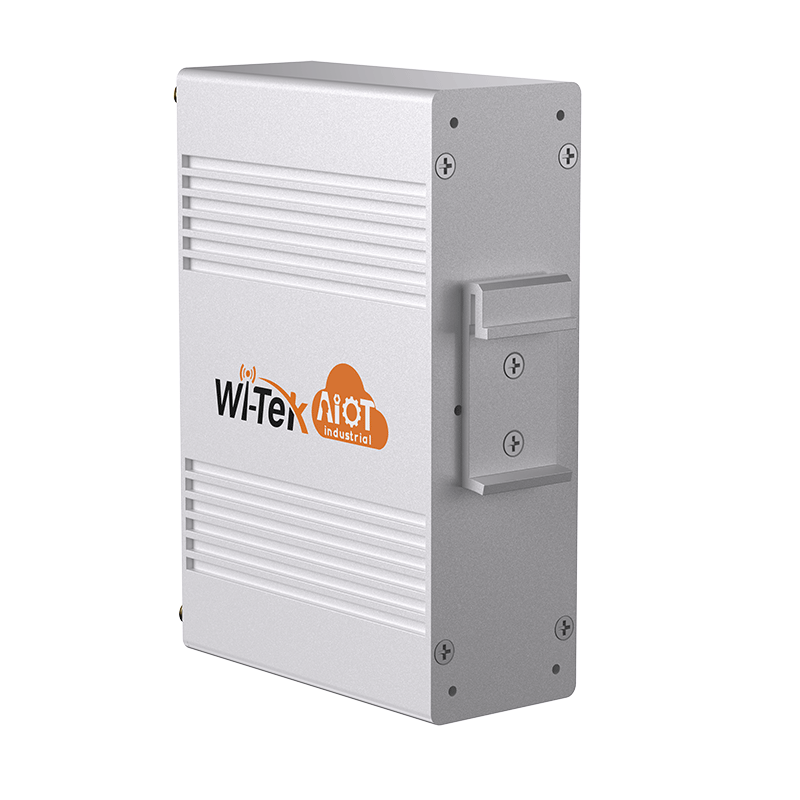

Din-rail Mounting

WI-IOT110 features a flexible installation mode, can be installed in complex environments, and meets project requirements.

Cloud Management

Wi-Tek Cloud's quick installation and configuration provide reliable performance, visual management and remote access, which is easy to operate and maintain.

Specifications

Products	WI-IOT110
Hardware Version	V2
Memory	128MB RAM
Interface	16MB Flash 1*10/100Mbps RJ45 WAN Port 3*10/100Mbps RJ45 LAN Ports 1*DO 2-PIN Phoenix Type Connector 1*DI(Wet) 2-PIN Phoenix Type Connector 1*DI(Dry) 2-PIN Phoenix Type Connector 1*12V/1.5A DC Output Phoenix Type Connector 1*12~55V DC Input Phoenix Type Connector 1*Dual-Nano SIM Card Slot
Serial Port	1*RS-485 4-PIN 2.54mm phoenix type connector, signal: A, B, GND, 5V
Antenna Connector type	2*4G LTE antenna connectors: SMA-K (screw threads outside and a hole inside) 2*2.4G Wi-Fi antenna connectors: RP-SMA-K (screw threads outside and a pin inside)
Button	1*Reset Button
Power Supply	12~55V DC IN, 802.3bt 90W PoE IN
PoE Out	IEEE 802.3af/at PoE
DC Out	*There is no PoE out when the DC input is lower than 48V 12V/ 1.5A *There is no DC out when the DC input is lower than 15V
Power Consumption	<12W(Without PoE Out)
3G/4G MODEMS
LTE Category	CAT.4 (150Mbps Downlink, 50Mbps Uplink)
Products	WI-IOT110 EU: LTE FDD: B1/ B3/ B5/ B7/ B8/ B20/ B28 LTE TDD: B34/ B40/ B41 WCDMA: B1/ B5/ B8 GSM: B3/ B8 CN: LTE FDD: B1/ B3/ B5/ B8
Surface Treatment	LTE TDD: B34/ B38/ B39/ B40/ B41 WCDMA: B1/ B5/ B8 GSM: B3/ B8 LA: LTE FDD: B1/ B2/ B3/ B4/ B5/ B7/ B8/ B28/ B66 LTE TDD: B40 WCDMA: B1/ B2/ B4/ B5/ B8 GSM: B2/ B3/ B5/ B8 NA: LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 GSM: B2/ B3/ B5/ B8
Antenna Gain	5dBi Magnetic Antenna
Wi-Fi Standards	IEEE 802.11b/g/n
Data Rates	300Mbps
MIMO	2x2
Antenna Gain	5dBi Magnetic Antenna
Frequency	2.4GHz
Channel Width	20MHz, 40MHz
Max. TX Power	20dBm
WAN	PPPoE, DHCP client, Static IP, WAN/LAN mode switchover
Cellular	IPv6, APN, PIN Code
Link Failover	Ethernet-4G link priority, Heartbeat data setting
LAN	DHCP server setting
Firewall	WEB access control, ACL, Port mapping, DMZ, MAC binding
Wireless	Wireless enable/disable, SSID, Wireless Security, WMM, Hide SSID, Radio setting
Products	WI-IOT110
Industrial	DI/DO mode and action setting, Transparent DTU/ Modbus DTU/ TCP server DTU/ UDP server DTU/ MQTT DTU/ Modbus master/ Modbus slave serial mode
VPN	OpenVPN server, OpenVPN client
System	Firmware upgrade, configuration backup/upload, reboot, restore to factory default
Management	WEB management, Wi-Tek cloud, SD-LAN
Advance	Ping watchdog, scheduled reboot, NTP, Ping, Traceroute Operating Temperature: -40℃ to 75℃(-40℉ to 167℉)(Without PoE and DC Output)
Environment	Storage Temperature: -40℃ to 85℃(-40℉ to 185℉)
Others	Operating Humidity: 5%~95%(non-condensation) Storage Humidity: 5%~95%(non-condensation)
Certification	CE, FCC, RoHS, UKCA, RCM
Product Dimensions (L×W×H)	145*104*45mm
Packet Dimensions (L×W×H)	300*140*80mm
Product Weight	0.52kg
Packet Weight	0.99kg

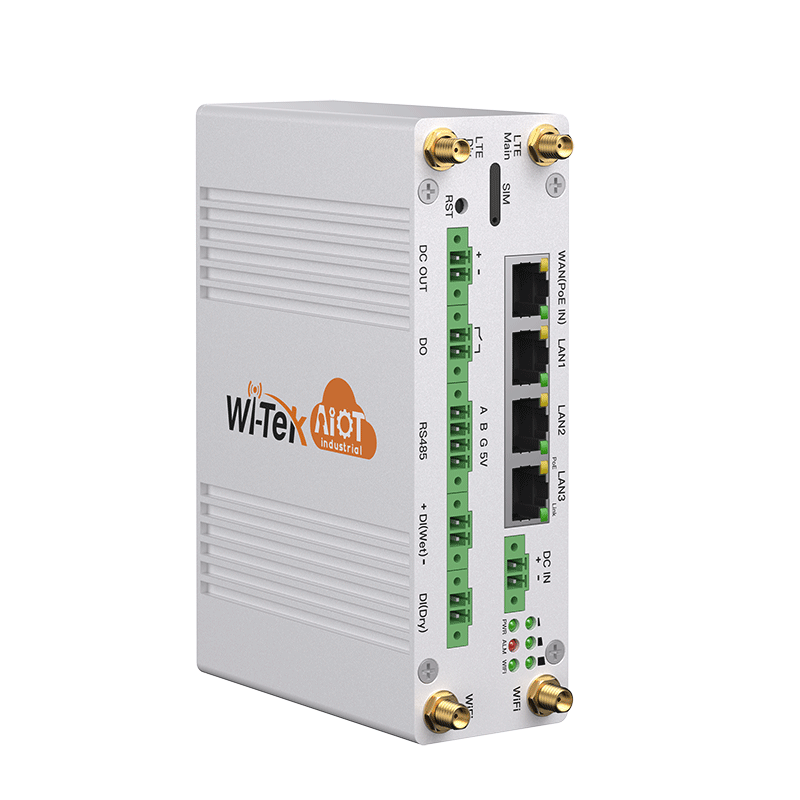

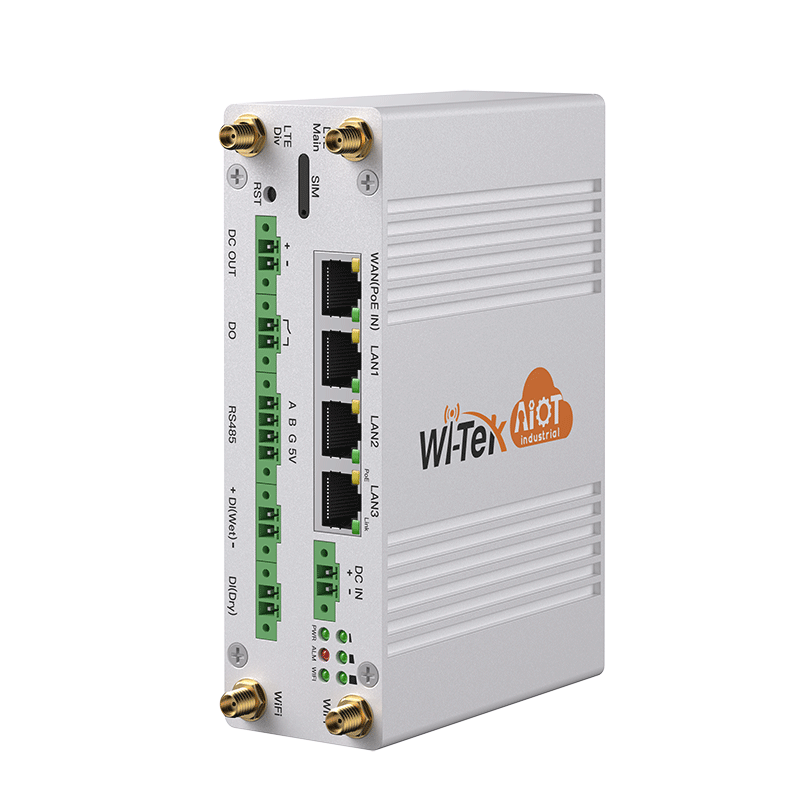

Appearances and Dimensions
WI-IOT110
Dimensions

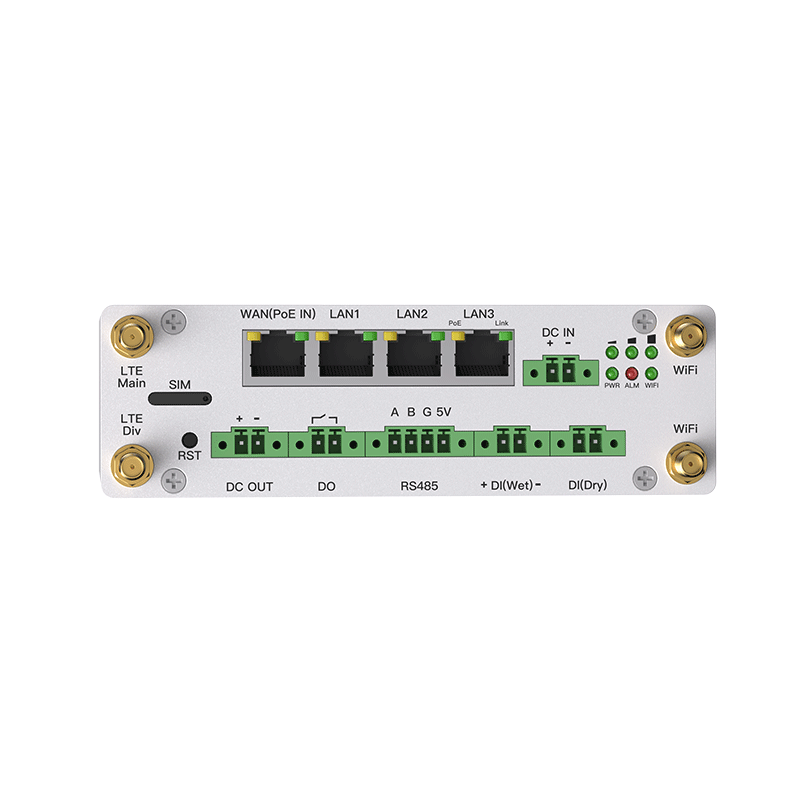

Front PaneI	145mm 104mm 45mm LAN/PoE Out WAN/PoE In
Dual SIM Holder	12-55V DC IN 4G Antenna
Connector	Wi-Fi Antenna Connector
Reset	DO DI(DRY)
12V DC Out	DI(WET) Serial Port RS-485

Install tips

• Power Supply: 12~55V DC IN, 802.3bt 90W PoE IN
• PoE Out: IEEE 802.3af/at PoE

FAQ

How is it powered?

12~55V DC IN, 802.3bt 90W PoE IN

Which ports does the datasheet list?

16MB Flash 1*10/100Mbps RJ45 WAN Port 3*10/100Mbps RJ45 LAN Ports 1*DO 2-PIN Phoenix Type Connector 1*DI(Wet) 2-PIN Phoenix Type Connector 1*DI(Dry) 2-PIN Phoenix Type Connector 1*12V/1.5A DC Output Phoenix Type Connector 1*12~55V DC Input Phoenix Type Connector 1*Dual-Nano SIM Card Slot
