Slimline Wall Mount — Vertical Rack & Cabinet

Designed and manufactured in Australia, the LTS slimline wall mount range holds your DVR, NVR or rack-compatible network switch flat against the wall — no floor-standing rack required. Four configurations, from an open bracket to a fully enclosed, lockable cabinet with an integrated monitor mount.

View the Four Models Compare Specs FAQs
LTS slimline wall mount vertical rack and cabinet
DESIGNED & MANUFACTURED IN AUSTRALIA 4 MODELS — BRACKET & ENCLOSED BOX LTS PLATINUM FREE PICKUP — PEAKHURST NSW

What Is a Slimline Wall Mount Rack?

Most DVRs, NVRs and rack-compatible network switches are designed to sit in a 19" server rack or cabinet — not always practical in a server room, comms cupboard or under-stairs space with no floor-standing rack available. The LTS slimline wall mount range solves this with a 3RU vertical bracket that holds the equipment flat against the wall, taking up a fraction of the floor space of a standard rack.

The range comes in four configurations across two simple choices: an open bracket or a fully enclosed, lockable cabinet, and with or without an integrated monitor mount for a wall-mounted screen alongside the recorder.

Choose Your Configuration

All four models share the same core 3RU DVR/NVR vertical wall-mounting bracket. From there, pick whether you need it enclosed and locked, and whether you need a monitor mounted alongside it.


DVR / NVR Only
DVR / NVR + Monitor
Open Bracket
R-WM-13RU Wall Bracket
R-WM-2Wall Bracket + VESA Monitor Mount
Enclosed Box
R-WM-3Lockable Enclosure
R-WM-4Lockable Enclosure + VESA Monitor Mount

The Range — Four Real Models

All four models are designed and manufactured in Australia and are not compatible with 4-channel DVR/NVR units. Each has its own real LTS Australia installation video.

Open Bracket R-WM-1 3RU DVR/NVR Wall Bracket

R-WM-1 — 3RU DVR/NVR Wall Bracket

SKU: R-WM-1 · Made in Australia
  • UseDVR / NVR / rack-compatible switch
  • Mount type3RU vertical wall bracket
  • CompatibilityNot for 4-channel DVR/NVR
  • Weight750g
  • Dimensions598(H) x 173(D) x 50mm(W)

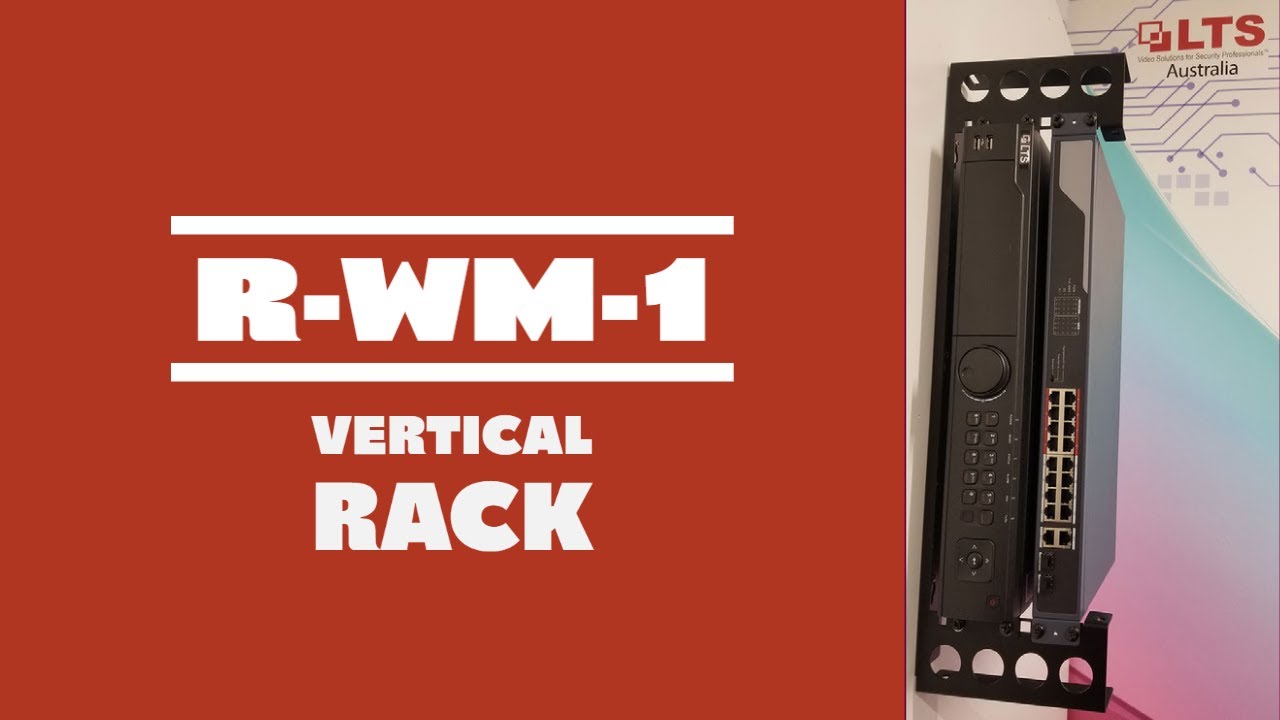

R-WM-1 installation video
R-WM-1 — Vertical Rack Installation (LTS Australia)
Open Bracket + Monitor R-WM-2 DVR/NVR & Monitor Brackets

R-WM-2 — DVR/NVR & Monitor Brackets

SKU: R-WM-2 · Made in Australia
  • UseDVR / NVR / switch + monitor (max 24")
  • Mount type3RU vertical wall bracket
  • Monitor mountAdjustable VESA 50x50/75x75/100x100
  • CompatibilityNot for 4-channel DVR/NVR
  • Weight2kg

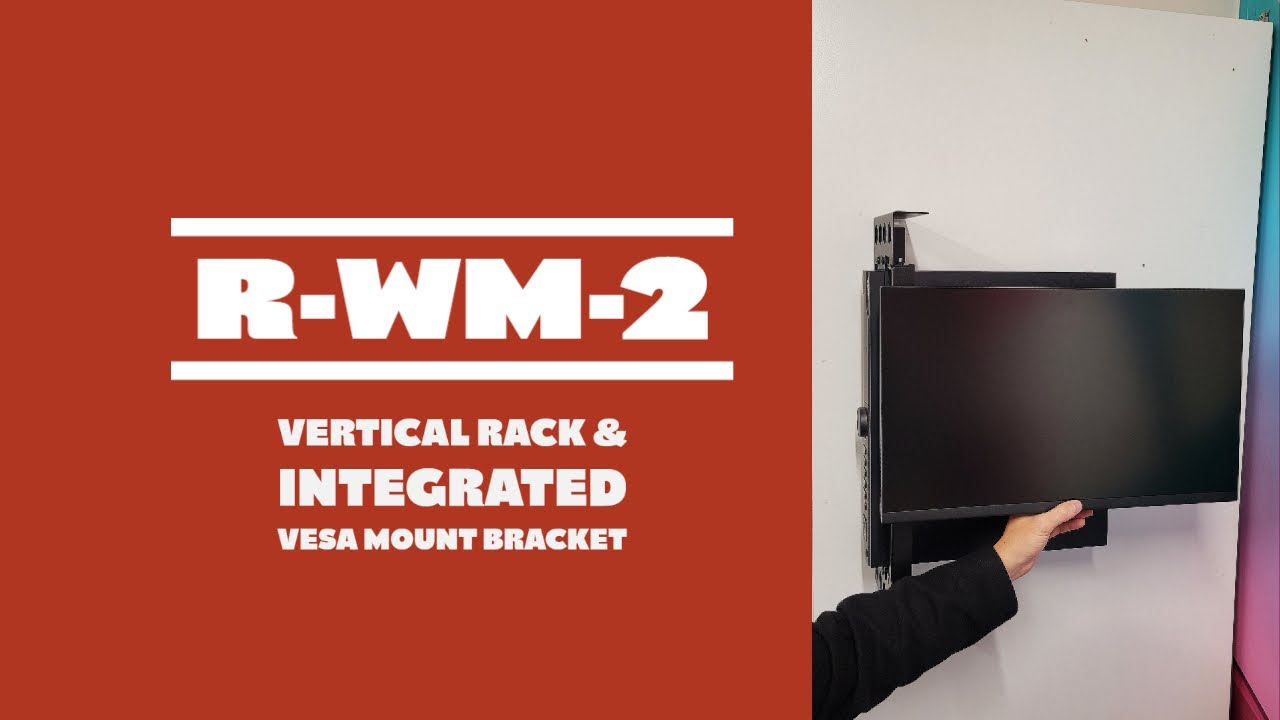

R-WM-2 installation video
R-WM-2 — Vertical Rack & Integrated VESA Mount Bracket (LTS Australia)
Enclosed Cabinet R-WM-3 DVR/NVR Enclosure Box

R-WM-3 — DVR/NVR Enclosure (Box)

SKU: R-WM-3 · Made in Australia
  • UseDVR / NVR / rack-compatible switch
  • Mount type2x 3RU vertical wall brackets inside enclosure
  • DoorReversible (L/R), cam lock & key
  • Cable entry25mm conduit + 25x50/50x50mm duct knockouts
  • Weight11.4kg
  • Dimensions600(H) x 250(D) x 690mm(W)

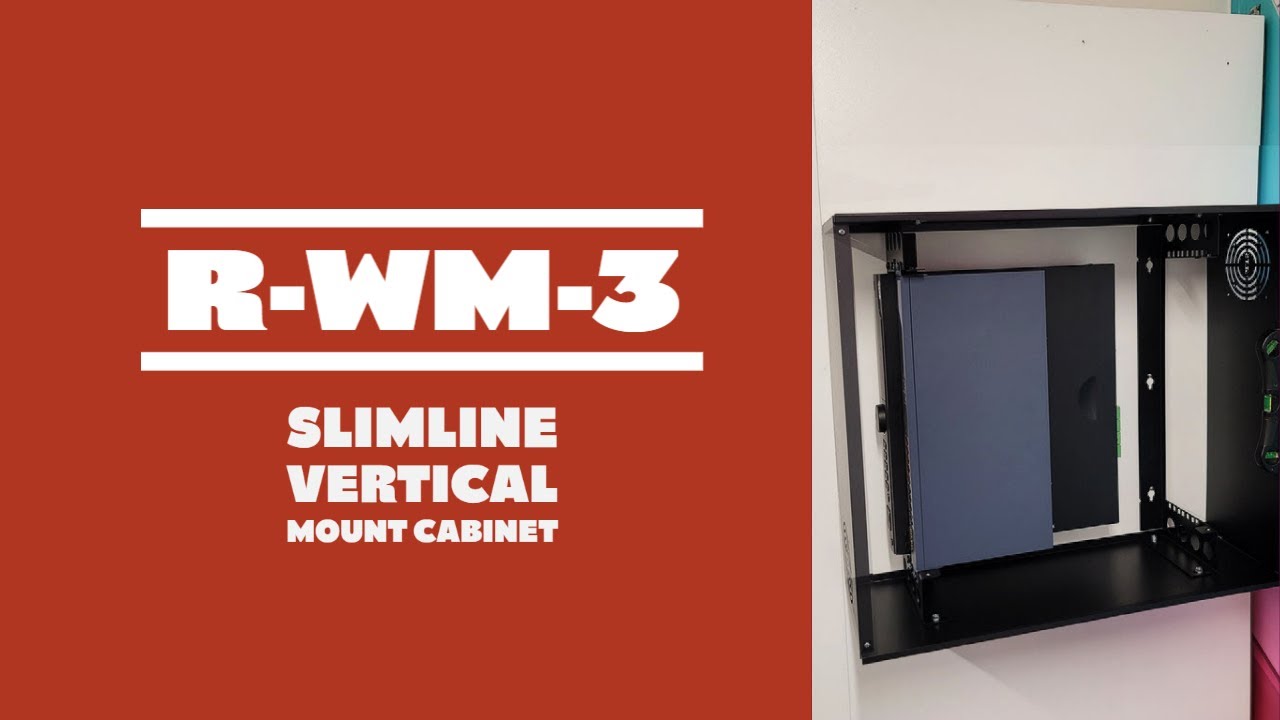

R-WM-3 installation video
R-WM-3 — Slimline Vertical Mount Cabinet Installation (LTS Australia)
Enclosed Cabinet + Monitor R-WM-4 DVR/NVR & Monitor Box

R-WM-4 — DVR/NVR & Monitor (Box)

SKU: R-WM-4 · Made in Australia
  • UseDVR / NVR / switch + monitor (max 24")
  • Mount type2x 3RU vertical wall brackets inside enclosure
  • Monitor mountAdjustable VESA 50x50/75x75/100x100
  • DoorReversible (L/R), cam lock & key
  • Cable entry25mm conduit + 25x50/50x50mm duct knockouts
  • Weight12.7kg

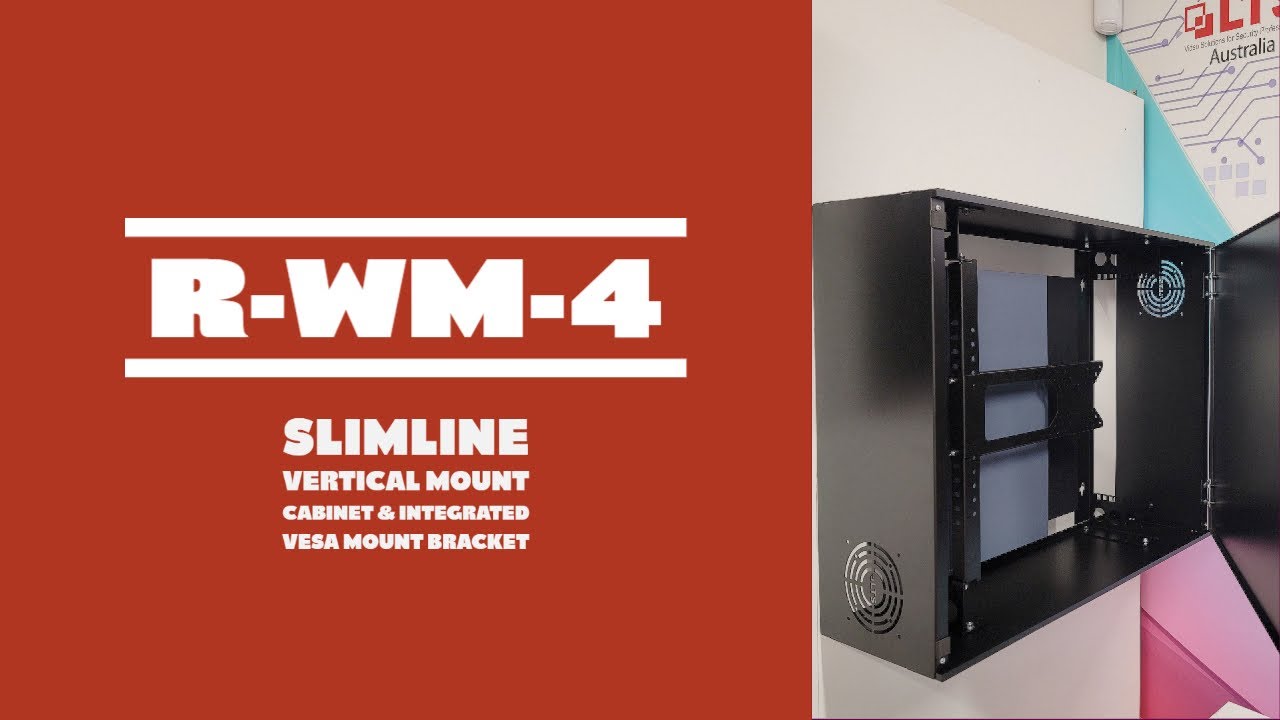

R-WM-4 installation video
R-WM-4 — Slimline Vertical Mount Cabinet & Integrated VESA Mount Bracket (LTS Australia)

Installed & In Use

Real photos of the LTS slimline wall mount range, including the bracket's rotation feature for easier cable access during installation.

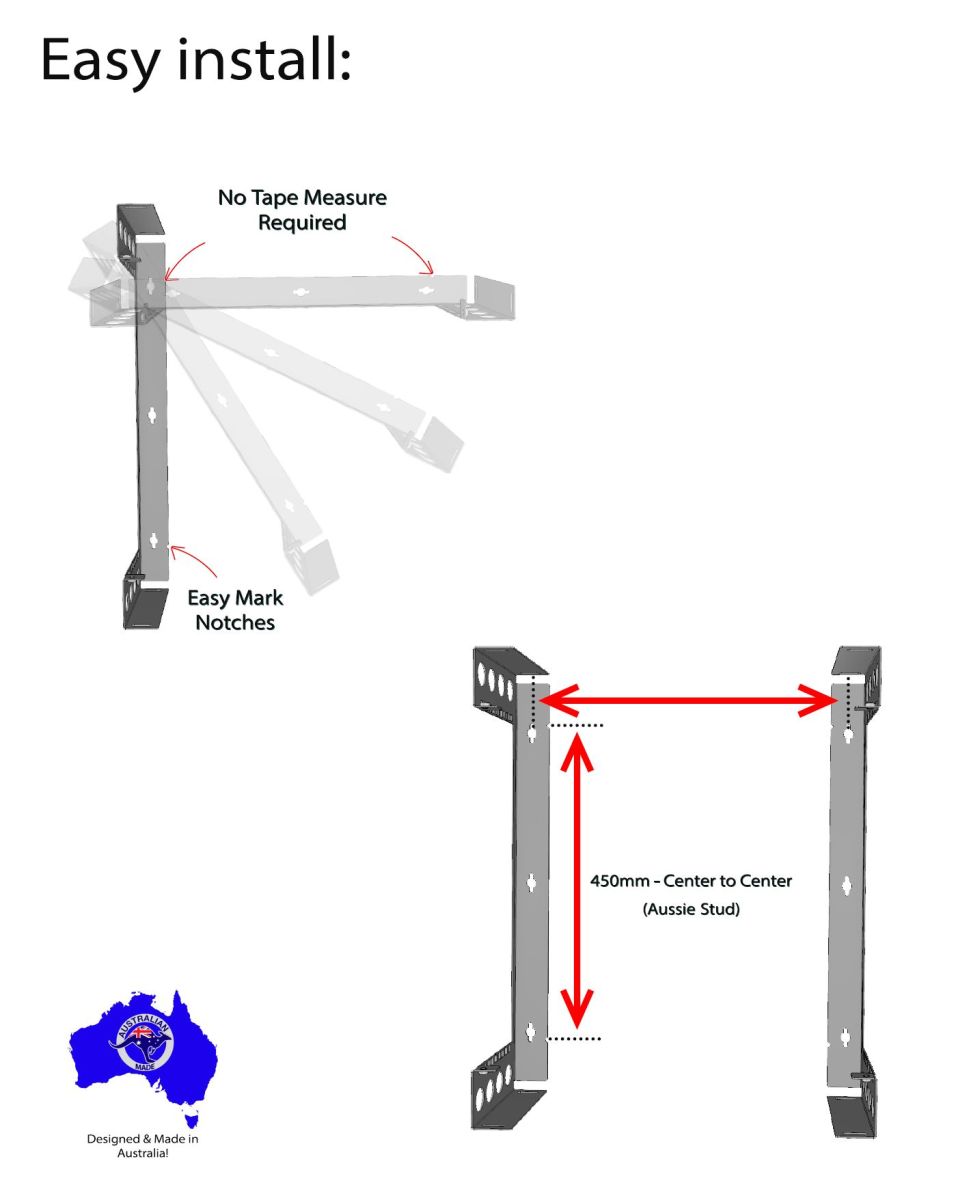

Slimline wall mount rack installed
Wall-mounted bracket installed

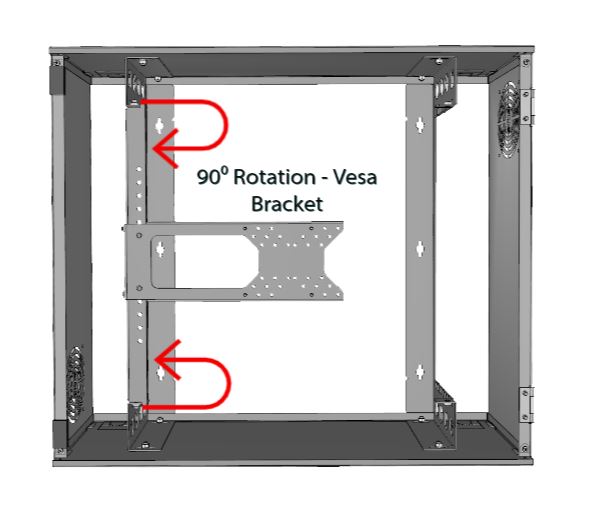

90 degree bracket rotation for cable access
90° bracket rotation for cable access

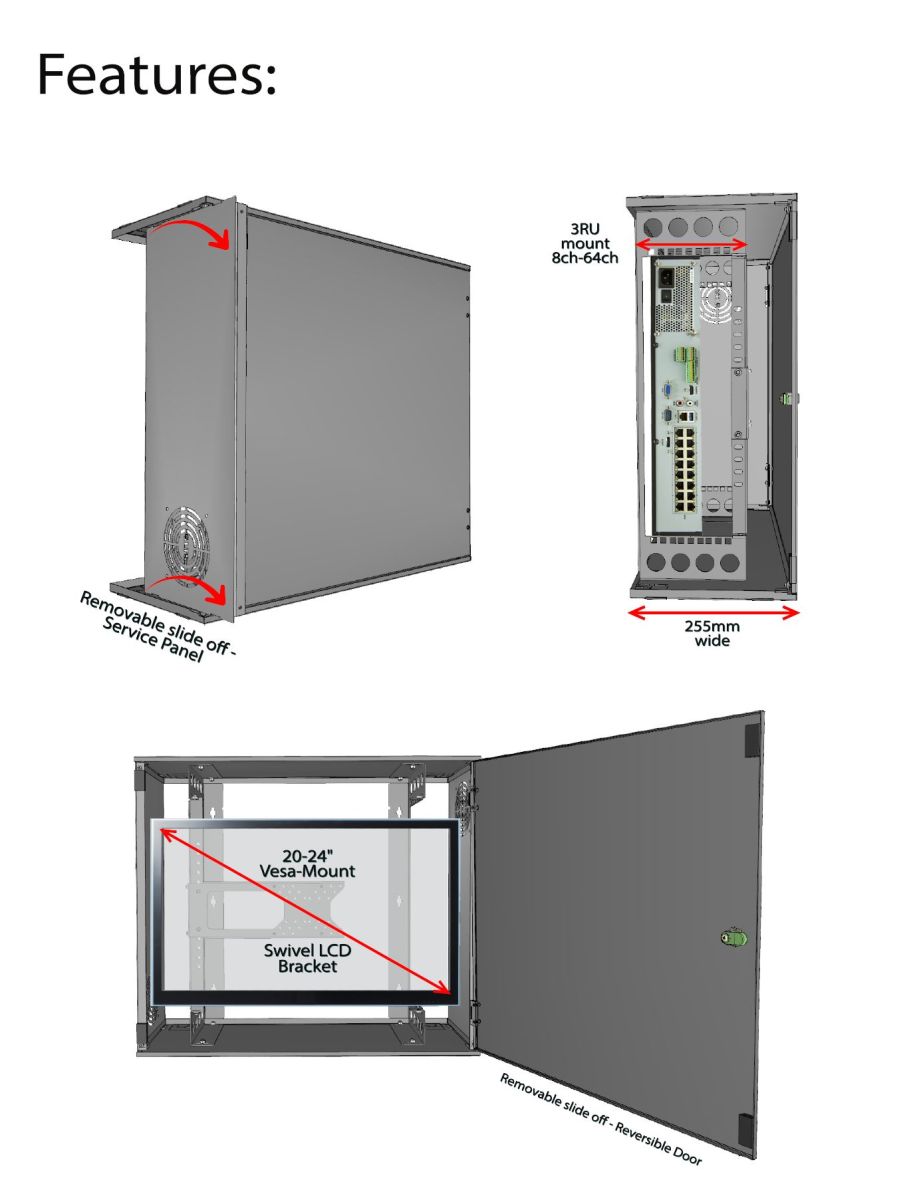

Slimline wall mount cabinet enclosure
Enclosed cabinet variant
Slimline wall mount with monitor
Cabinet with monitor mount

Full Spec Comparison

Model R-WM-1 R-WM-2 R-WM-3 R-WM-4
Style Open bracket Open bracket Enclosed box Enclosed box
Monitor mount — VESA, max 24" — VESA, max 24"
Bracket capacity 1x 3RU DVR/NVR 1x 3RU DVR/NVR 2x 3RU DVR/NVR 2x 3RU DVR/NVR
4-channel DVR/NVR Not compatible Not compatible Not compatible Not compatible
Door / lock — — Reversible, cam lock & key Reversible, cam lock & key
Conduit knockouts — — 25mm + 25x50/50x50mm 25mm + 25x50/50x50mm
Weight 750g 2kg 11.4kg 12.7kg
Dimensions 598x173x50mm — 600x250x690mm 600x250x690mm
Made in Australia Yes Yes Yes Yes

Accessories

Round out an install with LTS's real accessories built for the slimline range.

Complete Fan Kit for DVR/NVR Box

Complete Fan Kit

SKU: FAN-KIT · for R-WM-3 / R-WM-4

1x 120mm 12VDC fan, 1x 12VDC 1A plug pack, 1x female DC-jack, 1x finger-guard & filter — added cooling for the enclosed cabinet models.

View Product →
1RU Power Rail

1RU Power Rail

SKU: Power61RU

6x GPO outlets, illuminated power switch, 10A reset fuse button, spike/surge protection, 10A thermal breaker, 1-metre cable.

View Product →
Aten 18.5 inch LCD KVM

Aten 18.5" LCD KVM

SKU: ATCL3700NW

Rack-mountable LCD KVM console — pairs with the monitor-mount models (R-WM-2 / R-WM-4) for a self-contained local monitoring station.

View Product →

Built For

Comms Cupboards
Retail & Offices
Reception Monitoring
Under-Stairs / Tight Spaces

Frequently Asked Questions

Should I choose an open bracket or an enclosed box?▼
The open brackets (R-WM-1 / R-WM-2) are lighter, cheaper and faster to install. The enclosed cabinets (R-WM-3 / R-WM-4) add a lockable, reversible-opening door with cam lock and key, plus conduit knockouts for tidy cable entry — better where physical security or a clean cable run matters.
Will my 4-channel DVR or NVR fit?▼
No. All four models are specified as not compatible with 4-channel DVR/NVR units.
Can I mount a monitor on R-WM-1 or R-WM-3?▼
The adjustable VESA monitor mount (50x50 / 75x75 / 100x100, monitors up to 24") is built into R-WM-2 and R-WM-4 only. If you need a monitor mounted alongside the recorder, choose one of those two models.
Does the enclosed cabinet include cooling?▼
Not by default. LTS sells a separate Complete Fan Kit (FAN-KIT) built for the R-WM-3 / R-WM-4 enclosures, comprising a 120mm 12VDC fan, plug pack, DC-jack and finger-guard/filter.
How do cables enter the enclosed cabinet?▼

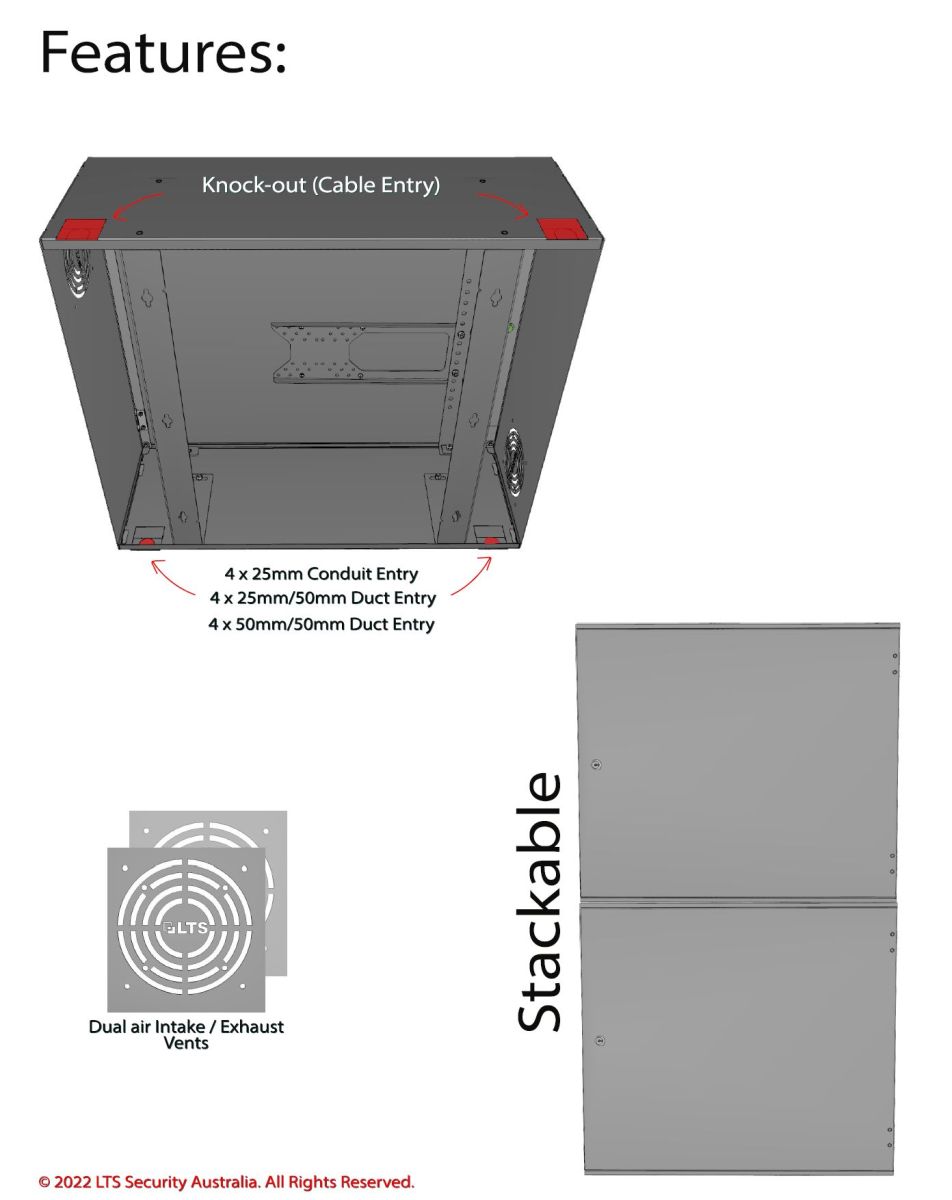

R-WM-3 and R-WM-4 have a 25mm conduit knockout plus 25x50mm and 50x50mm duct knockouts, with removable side access panels for running cable in cleanly.
Is the range made in Australia?▼
Yes — all four models (R-WM-1 through R-WM-4) are designed and manufactured in Australia.
Four real, currently listed configurations — R-WM-1, R-WM-2, R-WM-3 and R-WM-4 — covering open brackets through to fully enclosed, lockable cabinets, each with its own genuine LTS Australia installation video.
