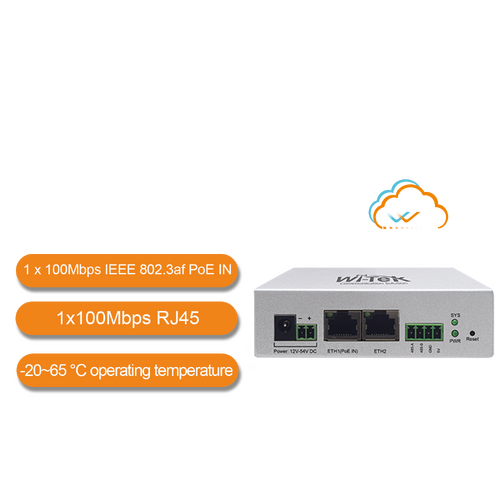

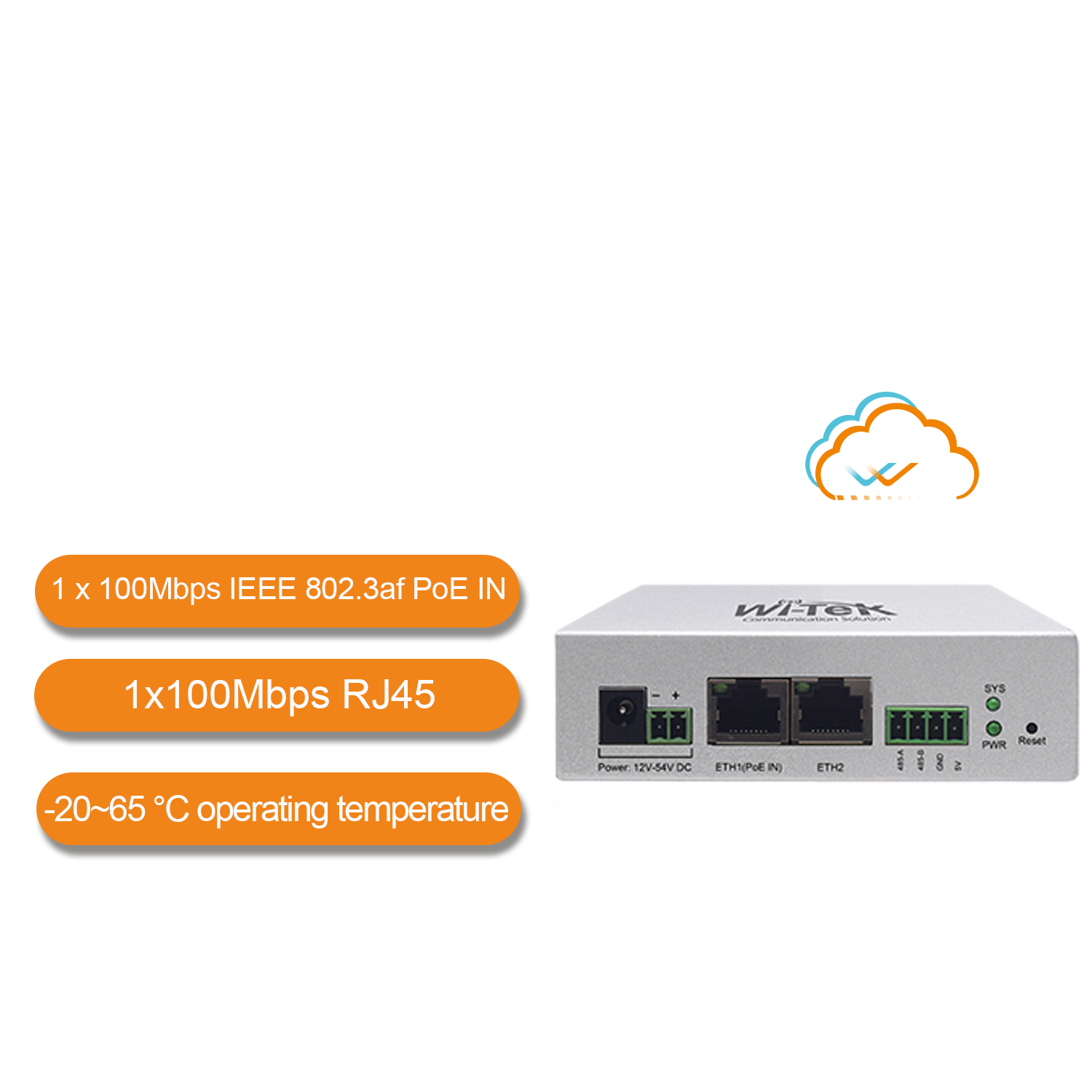

WI-TEK CLOUD CONTROLLER FOR SOLAR UPS POE SWITCH
The cloud IoT controller is designed for solar power PoE solution, provides Ethernet and RS-485 interface, the photovoltaic power and battery status and data of Wi-Tek solar power PoE switch can be visually managed in the Wi-Tek cloud with it. It supports IEEE 802.3af PoE in and 12~54V wide DC power supply, can be powered by PoE in solar power PoE solution to build a zero-carbon communication system, develop clean and digitalized energy for a brighter, greener future.
A datasheet with a different hardware version was found and was not used for the table below: WI-IOT100 V2-Datasheet.pdf.
Multiple Power Supply Modes
Support IEEE 802.3af PoE in and 12~54V DC power supply, which can be flexibly selected according to the application scenarios.
Extremely Low Power Consumption
The maximum power consumption of controller is only 1.8W(without VCC out), effective power saving.
Easy and Intelligent Photovoltaic Power and Battery Status Monitoring
The dashboard in Wi-Tek cloud makes it easy to monitor real-time solar power and battery status, receive battery capacity and charge status alarm, track power generation, power consumption, and battery data.
Wi-Tek Cloud Management
The photovoltaic power and battery status and data of Wi-Tek solar power PoE switch can be quick configuration, visual management, and remote access in the Wi-Tek through WI-IOT100, which is easy operation and maintenance.
Specifications
| Products | WI-IOT100 |
|---|---|
| Hardware Version | V1 |
| Interface | 1*10/100Mbps PoE IN RJ45 port |
| Serial Port | 1*10/100Mbps RJ45 port 1*RS-485 port Signal: 485-A, 485-B, GND, VCC(5V) Baud Rate: 300-230400 bps Data bits: 8bits, 7bits Stop bit: 1 bit, 2bits Check bit: None, Even, Odd Support software flow control |
| Flash | 8MB |
| DDR2 | 64MB |
| LED Indicator | 1*PWR, Power indicator, 1*SYS, System indicator |
| Reset Button | Short press 1~3 seconds: Reboot the device. |
| Power Supply | Long press over 5 seconds: Restore the factory default configuration. IEEE 802.3af PoE IN 12~54V DC (The two DC power supplies cannot be connected at the same time) |
| Power Consumption | <1.8W(without RS-485 VCC output) |
| Dimensions | 105*74*30mm |
| Weight | 0.21kg |
| Package Dimensions | 182*133*36mm |
| Package Weight | 0.3kg |
| Installation | DIN-rail/Desktop mounted |
| Fan Quantity | Fan-less |
| Material | Metal shell |
| Color | Silver |
| Products | WI-IOT100 |
| ESD Protection | Contact Discharge: ±6kV, Air Discharge: ±8kV |
| Surge Immunity | Common mode: 2kV, Differential mode: 1kV |
| Operating Environment | -20°C to 65°C, 5%~95% (non-condensation) |
| Storage Environment | -40°C to 70°C, 5%~95% (non-condensation) |
| Network | Static IP, Dynamic IP |
| Serial Mode | DTU, Modbus Master, Modbus Slave, Solar |
| Advanced | Ping Watchdog, Scheduled Reboot, NTP Server, Diagnosis: PING, TRACERT Local WEB Management, Cloud Management: The photovoltaic power and battery status |
| Management | and data of Wi-Tek solar power PoE switch can be quick configuration, visual management, and remote access in the Wi-Tek through WI-IOT100(Solar serial mode). |
| Appearances and Dimensions | |
| WI-IOT100 | |
| Dimensions | SYS 30mm |
| PWR | Reset 485-B 485-A GND |
| POWER:12V-54V DC | ETH1(PoE IN) ETH2 5V 74mm 105mm |
| Front Panel | Side Pane System indicator Reset Button SYS |
| PWR | Reset 485-B 485-A GND |
| POWER:12V-54V DC | ETH1(PoE IN) ETH2 5V |
| 2*DC Power Input | Power indicator 2*100Mbps RJ45 |
| RS-485 | Grounding |
Install tips
- Power Supply: Long press over 5 seconds: Restore the factory default configuration. IEEE 802.3af PoE IN 12~54V DC (The two DC power supplies cannot be connected at the same time)
- Installation: DIN-rail/Desktop mounted
- Operating Environment: -20°C to 65°C, 5%~95% (non-condensation)
FAQ
How is it powered?
Long press over 5 seconds: Restore the factory default configuration. IEEE 802.3af PoE IN 12~54V DC (The two DC power supplies cannot be connected at the same time)
What operating environment is stated?
-20°C to 65°C, 5%~95% (non-condensation)
Which ports does the datasheet list?
1*10/100Mbps PoE IN RJ45 port
(WI-IOT100)
| SKU | WI-IOT100 |
| Brand | WI-TEK |
| Shipping Weight | 0.2100kg |
| Shipping Width | 0.074m |
| Shipping Height | 0.030m |
| Shipping Length | 0.105m |
| Shipping Cubic | 0.000233100m3 |
