LTS PRO-X 12MP Smart Dome IP Camera with Hybrid Illumination (LXIP7C122WI-28MDA)

LTS PRO-X 12MP Smart Dome IP Camera – LXIP7C122WI-28MDA

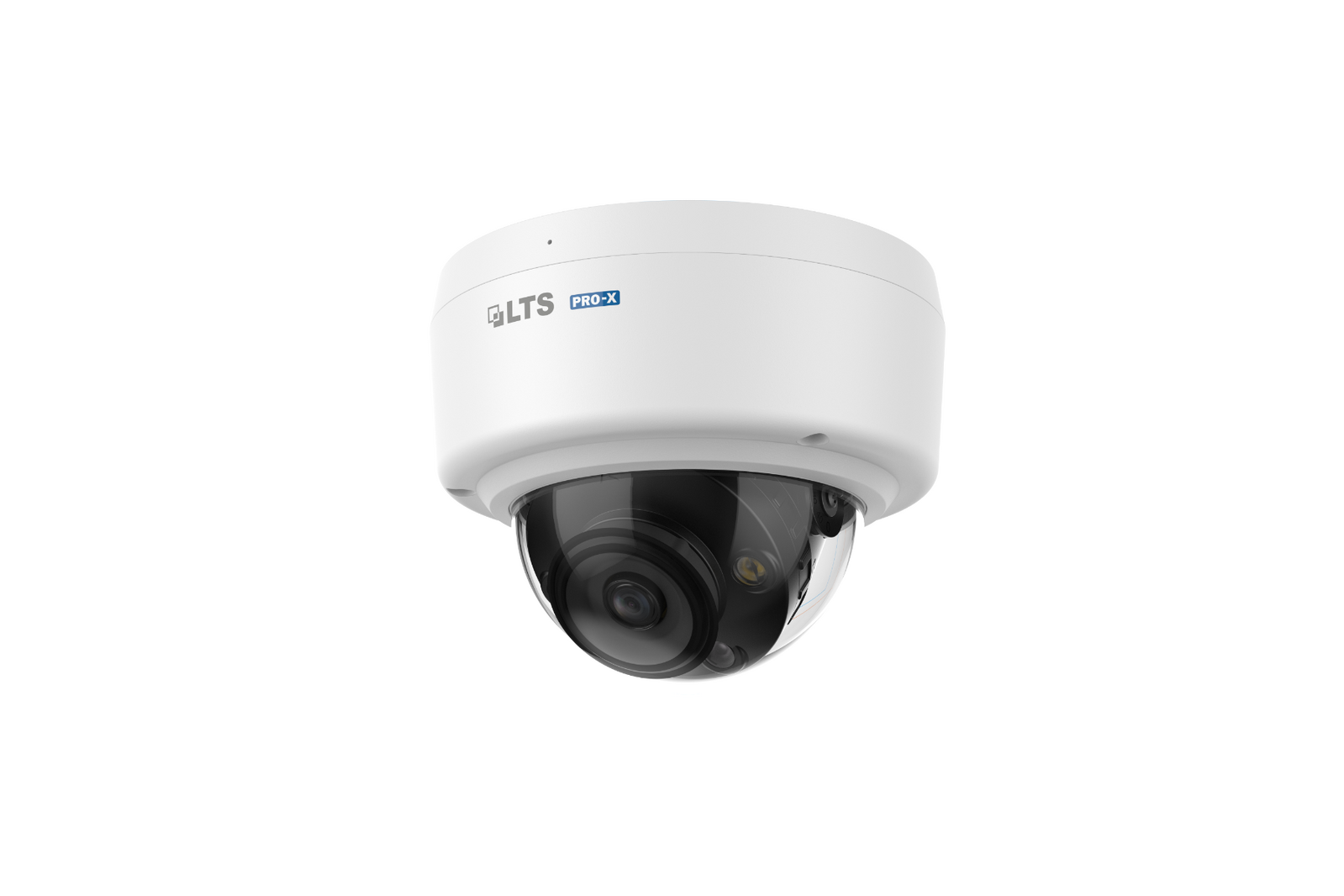

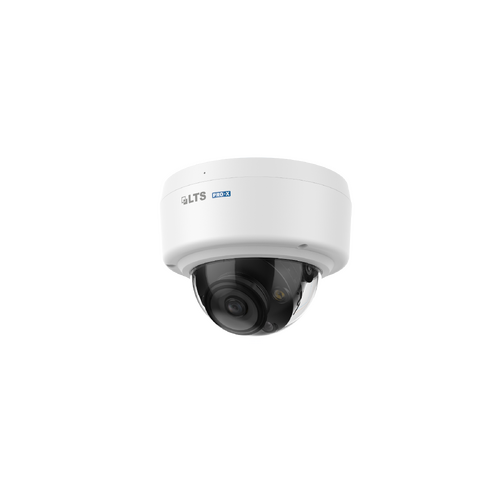

The LTS PRO-X LXIP7C122WI-28MDA is a 12MP / 5K resolution dome network camera built for installers who need exceptional image detail alongside smart, AI-driven analytics. Fitted with a 2.8mm fixed lens and a 1/2.5" CMOS sensor, this vandal-resistant dome combines hybrid illumination (infrared plus warm white LED) with advanced video analytics, making it a strong fit for high-security commercial, retail, and NDAA-compliant government installations across Australia.

Key Features

• 12MP / 5K Resolution: Captures ultra-sharp 4512 x 2512 footage at up to 15 fps for maximum evidentiary detail.
• Hybrid Illumination: Built-in IR and warm-light LEDs automatically switch between modes, extending clear night-time coverage to roughly 98.43 ft (30m).
• Low-Light Performance: Rated to as low as 0.0005 Lux at f/1.6, delivering usable colour or IR imaging in near-total darkness.
• Smart AI Analytics: MD 2.0 human and vehicle detection reduces false alarms, supported by broader VCA tools including face detection and people counting.
• X-Search Technology: Metadata-driven search tools speed up locating specific footage, with X-Search 2.0 trajectory and attribute search available when paired with a compatible PRO-X 9 Series NVR.
• Wide Dynamic Range: HDR, 3D DNR, HLC, and BLC combine to balance exposure in high-contrast and challenging lighting scenes.
• Rugged IP67 / IK10 Build: Weatherproof and impact-resistant housing suits both indoor and outdoor mounting.
• Flexible Connectivity: Supports 12V DC or PoE (X-PoE) power, built-in microphone, one alarm I/O, one audio I/O, and microSD storage up to 512GB.
• NDAA Compliant: Meets NDAA sourcing requirements, suiting government, education, and other compliance-sensitive projects.

Ideal Applications

This dome camera suits sites that demand crisp, high-resolution footage combined with intelligent detection, such as retail entries, carparks, warehouses, school perimeters, and government facilities. Its hybrid illumination and low-light rating make it particularly useful for 24-hour monitoring where colour identification at night is important, while its NDAA-compliant status makes it a practical choice for public-sector and compliance-driven tenders.

What's in the Box

• LXIP7C122WI-28MDA PRO-X 12MP Smart Dome Camera
• Mounting template and screws
• Waterproof cable connector
• Quick Start Guide

Frequently Asked Questions

Does this camera require a special NVR to work?
It operates with most standard ONVIF-compatible NVRs, but advanced features like X-Search 2.0 trajectory and attribute search require a compatible PRO-X 9 Series NVR with current firmware.

Can it be powered without PoE?
Yes, the camera supports both 12V DC and PoE (X-PoE) power options, giving installers flexibility depending on existing cabling.

Is this camera suitable for outdoor use?
Yes, it carries IP67 weatherproofing and IK10 impact resistance, making it suitable for exposed outdoor mounting locations.
