LTS 60W Gigabit PoE Injector Midspan - LAS60-57CN

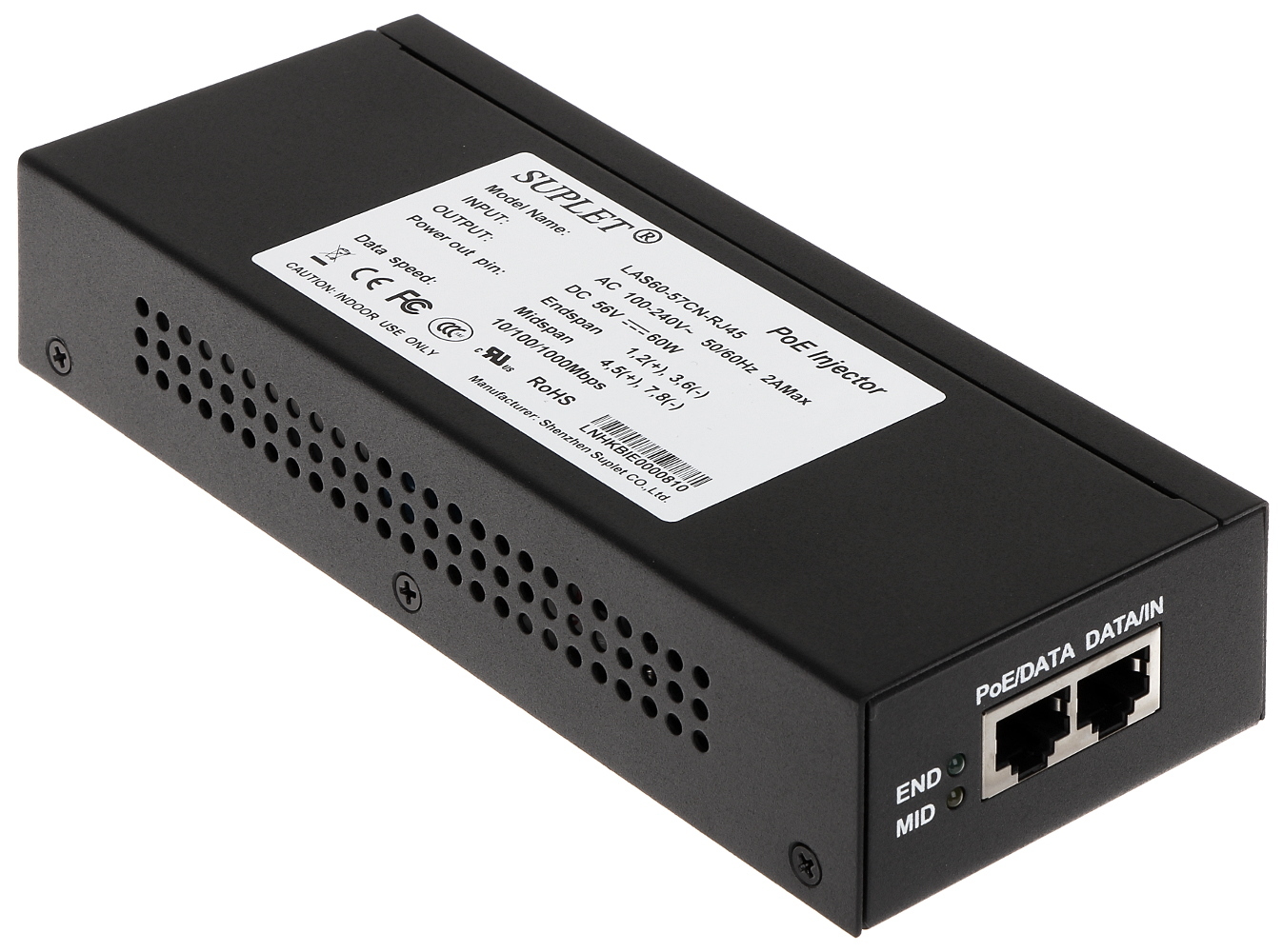

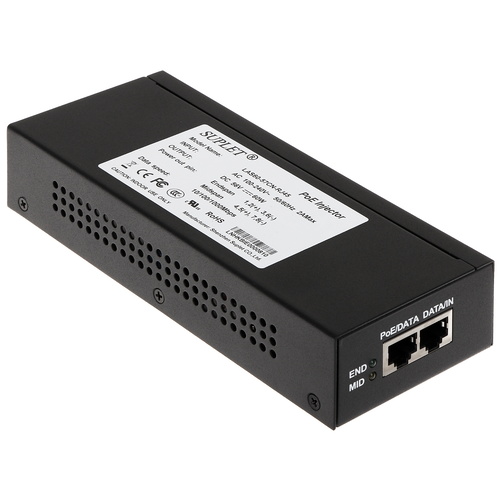

LTS 60W Gigabit PoE Injector (LAS60-57CN)

The LTS 60W PoE Injector is a single-port midspan power supply designed to add high-power Power over Ethernet capability to any standard network link. It takes an existing 10/100/1000M Ethernet data connection and injects up to 60 watts of DC power onto the cable, allowing you to run demanding PoE devices such as PTZ speed dome cameras, heated camera housings, and enterprise access points without running a separate power cable. Built for continuous 24/7 operation, it is a practical accessory for professional CCTV and networking installations where the switch or NVR's own PoE budget cannot supply enough wattage to a single port.

Key Features

• High Power Output: Delivers up to 60W at 54-57V DC, well above standard 802.3af/at limits, suited to high-draw PTZ and outdoor cameras.
• Dual Gigabit RJ45 Ports: Two 10/100/1000Mbps adaptive ports - one Data-In and one combined PoE/Data-Out - keep full gigabit throughput while power is injected.
• Broad Device Compatibility: Works with legacy pre-802.3af devices as well as IEEE 802.3af and 802.3at powered equipment.
• Wide AC Input Range: Accepts 100-240V AC input, making it suitable for use across different regional mains supplies.
• Built-In Protection Circuitry: Includes over-current, short-circuit, and surge protection to guard connected equipment and the injector itself.
• Rugged Temperature Tolerance: Rated to operate across a wide temperature range, supporting installation in plant rooms, roof spaces, and other non-climate-controlled areas.
• Compact Metal Enclosure: Slim 185 x 70.8 x 37mm housing suited to rack, cabinet, or wall-mounted network enclosures.
• Long Service Life: Engineered for a high mean time between failures, supporting long-term unattended operation in security infrastructure.

Typical Applications

This injector is commonly paired with high-power PTZ dome cameras, long-range bullet cameras with built-in heaters or fans, and wireless access points that exceed the power budget of a standard PoE switch port. It is also useful as a backup or upgrade path when an existing NVR or switch only provides standard PoE and a specific camera on the network requires the extra headroom that 60W high-PoE delivers, without needing to replace the whole switch.

What's in the Box

• 1 x LTS 60W PoE Injector (LAS60-57CN)
• Quick installation/reference guide

Note: An IEC power cable is required for operation and is sold separately.

Frequently Asked Questions

Q: Can this injector power a standard 802.3af or 802.3at camera?
A: Yes. It is backward compatible with legacy, 802.3af, and 802.3at powered devices in addition to supplying up to 60W for higher-power equipment.

Q: Do I need a special cable to connect this injector?
A: You will need a standard Ethernet patch cable between the injector and your PoE device, plus a separate IEC mains power cable, which is not included.

Q: Will this injector reduce my network speed?
A: No. Both RJ45 ports support full 10/100/1000Mbps gigabit throughput, so data speed is unaffected while power is injected onto the line.
