Ajax KeyPad Plus Black Wireless Touch Keypad with Contactless Card Support

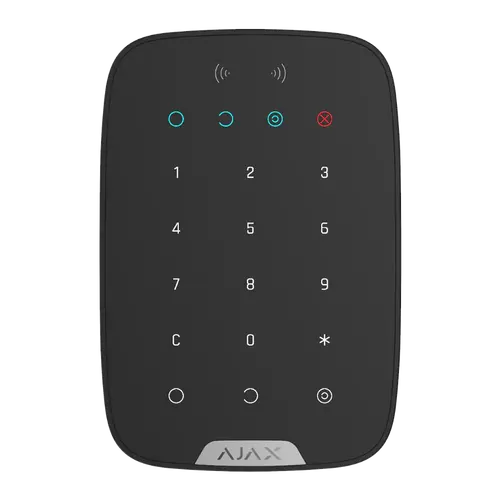

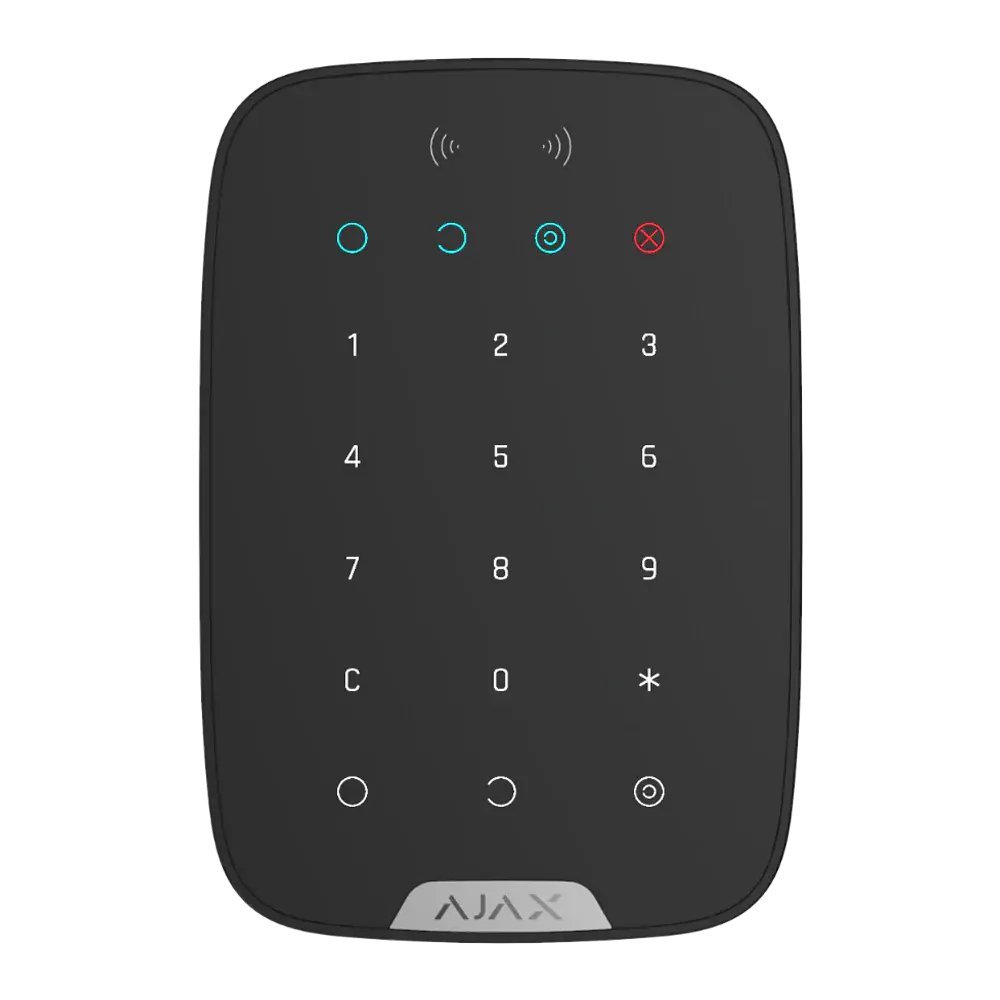

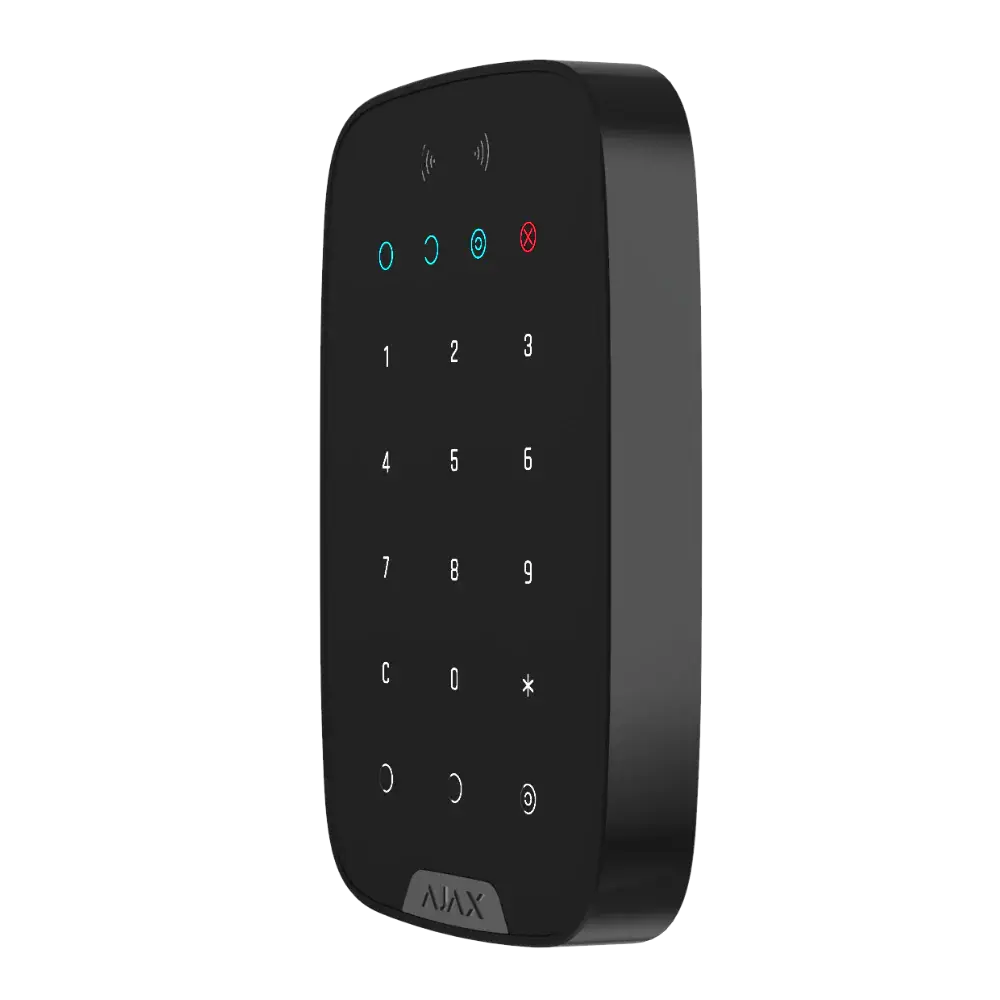

Ajax KeyPad Plus Black - Wireless Touch Keypad

The Ajax KeyPad Plus is a wireless touch-sensitive keypad designed to arm, disarm, and manage an Ajax security system using PIN codes, contactless cards, or key fobs. Finished in durable black plastic, it mounts near an entrance for fast, convenient access and communicates with a compatible Ajax hub over the encrypted Jeweller radio protocol, making it a practical control point for homes, offices, retail stores, and other commercial premises protected by an Ajax alarm system.

Key Features

• Encrypted contactless authentication - reads Ajax Pass cards and Tag key fobs built on DESFire technology with 128-bit encryption for virtually unhackable identification.
• Long-range wireless connection - communicates with the hub over the two-way Jeweller protocol at a range of up to roughly 1,700 metres (5,600 ft) in open space.
• Flexible code options - supports personal, common, and temporary access codes of 4 to 6 digits, useful for staff, cleaners, or visitors who don't need a full app account.
• Duress code / silent alarm - entering a hidden duress code disarms the system normally while quietly alerting the monitoring station and other users.
• Built-in panic button - lets a user trigger an emergency alarm directly from the keypad at any time.
• Anti-tamper and anti-guessing protection - the keypad locks itself after repeated incorrect code entries and reports any attempt to pry it off its mounting bracket.
• LED status indication - a clear light shows current arm/disarm status, detector faults, or loss of communication with the hub.
• Long battery life - runs on standard AAA batteries for up to 3.5 years (up to 4.5 years with the card reader disabled), so there's minimal maintenance.
• Quick QR-code pairing - sets up in seconds via the Ajax app without opening the enclosure or fitting batteries first.

Reliable Access Control for Everyday Security

KeyPad Plus is ideal wherever a household or business needs a fast, code-free (or code-based) way to control their Ajax system without pulling out a phone. It suits family homes where different household members carry a Tag or Pass, as well as small offices, shops, and warehouses that need to issue temporary access codes to staff or contractors. Because it is designed for indoor use only, it works best mounted just inside an entry point where users can quickly disarm the system on arrival.

What's in the Box

• Ajax KeyPad Plus keypad (Black)
• SmartBracket mounting panel
• Mounting/installation kit
• Batteries (pre-installed)
• Quick start guide

Frequently Asked Questions

Which hubs is KeyPad Plus compatible with? It works with Ajax Hub 2, Hub Plus, Hub 2 Plus, Hub (4G), and Superior Hub Hybrid running an up-to-date OS Malevich firmware; it does not connect to the original Hub (2G) or older integration modules.

Can KeyPad Plus be used outdoors? No, it is designed for indoor installation only; Ajax offers a separate KeyPad Outdoor model for exterior use.

How long does the battery last? Typical battery life is up to 3.5 years, extending to about 4.5 years if the contactless card reader is switched off.
