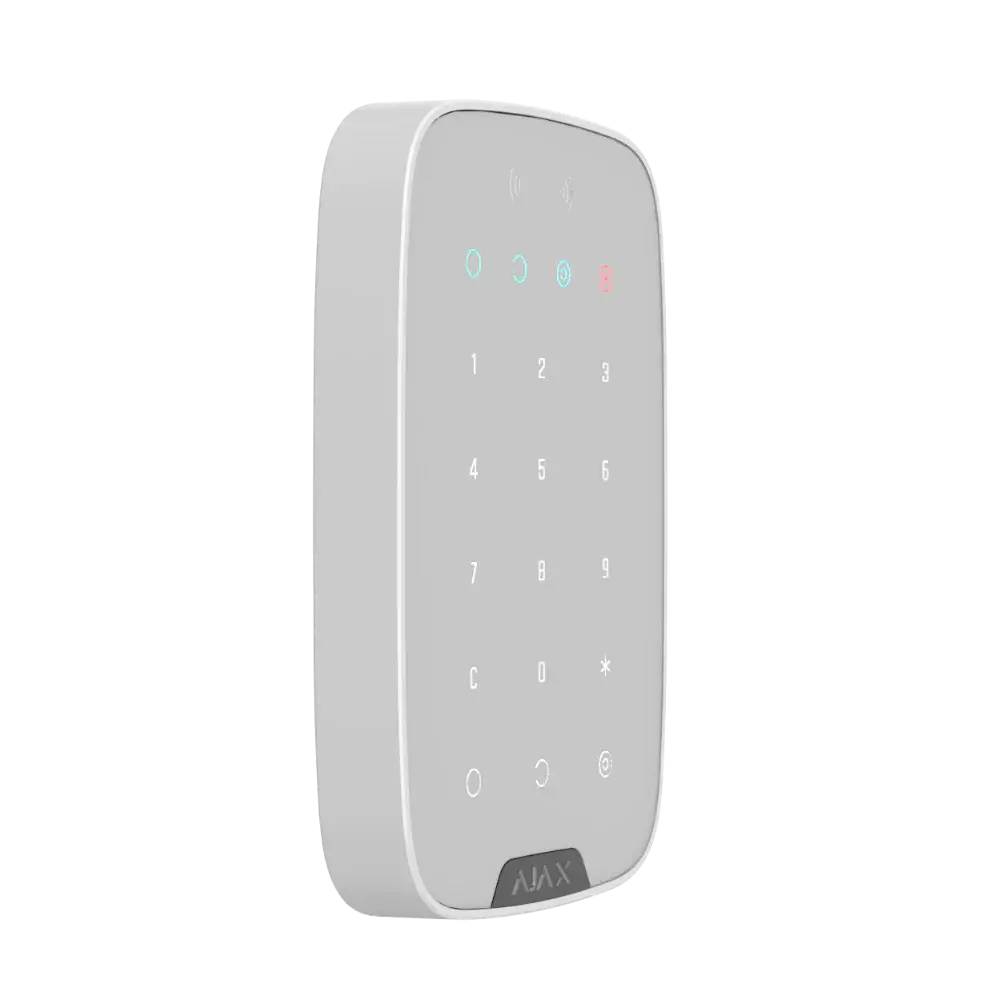

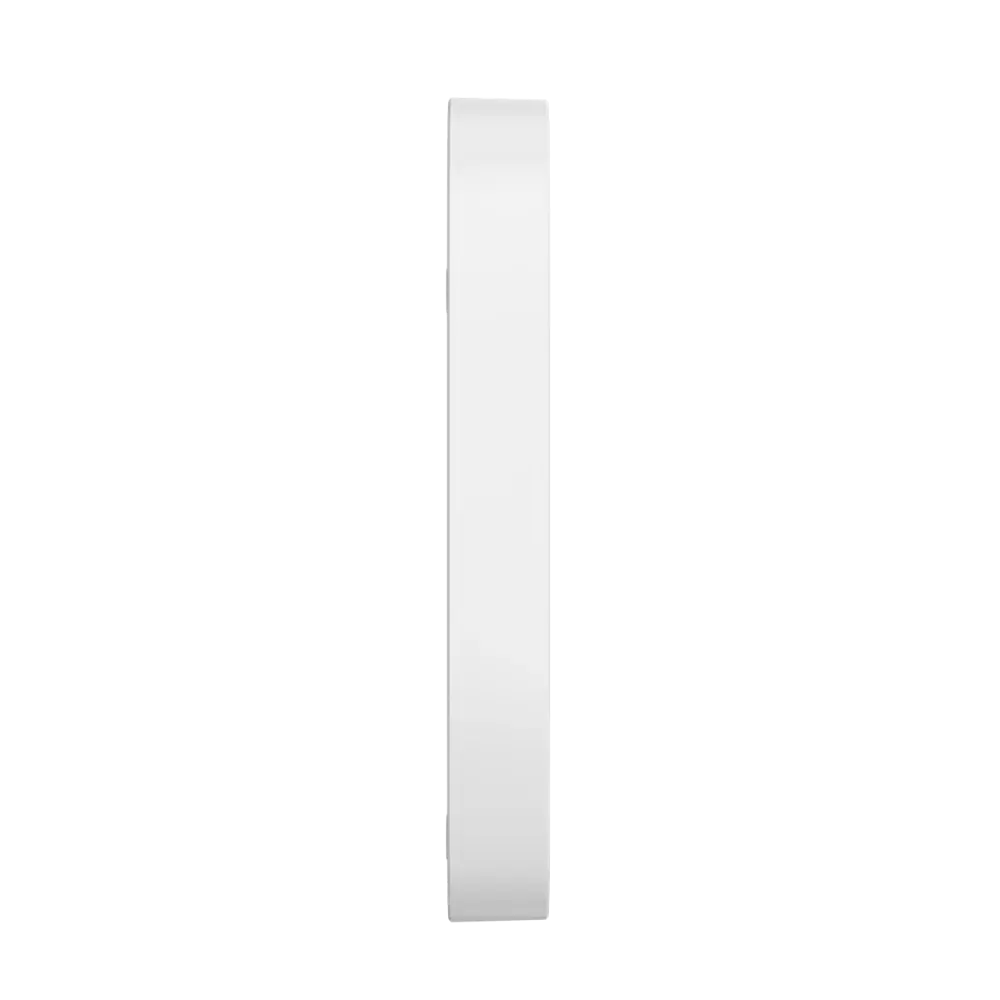

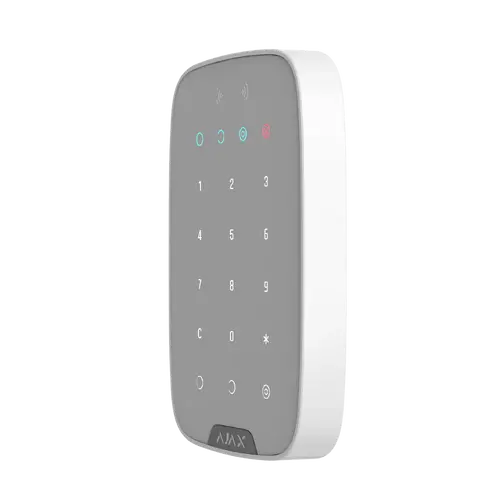

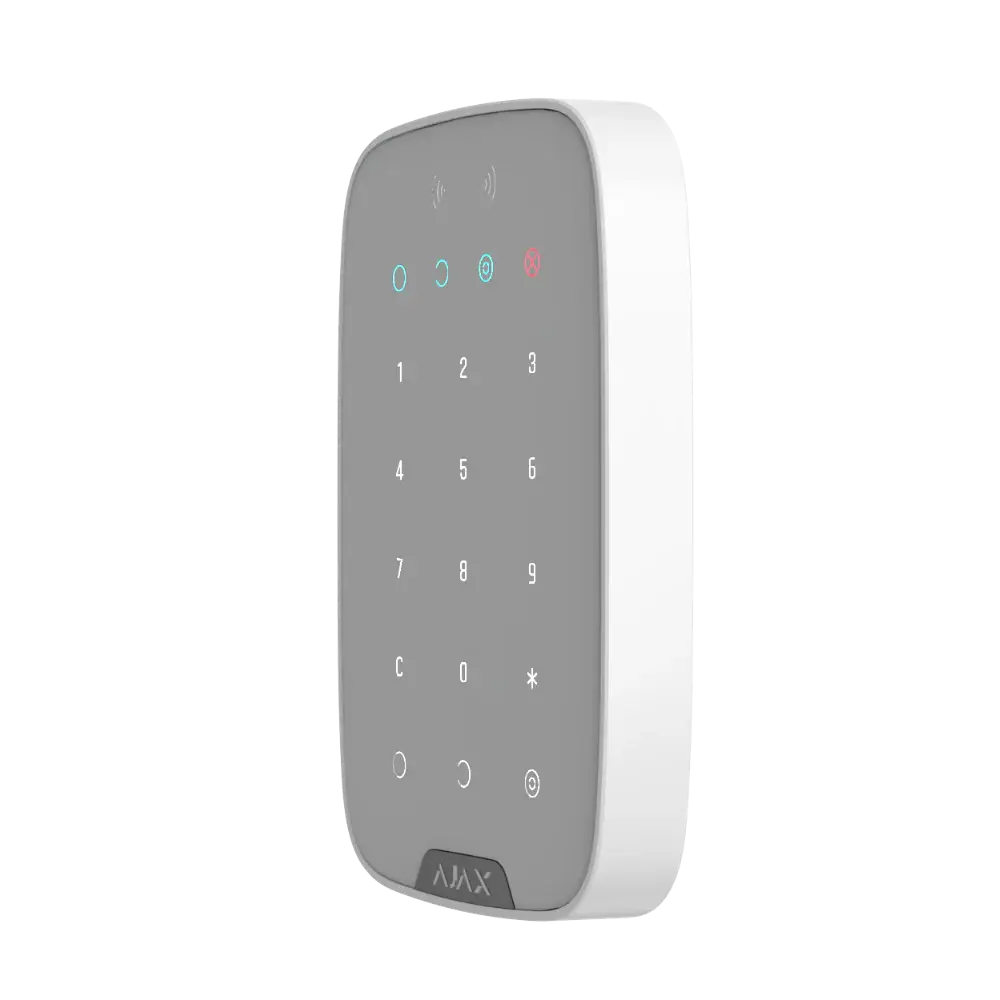

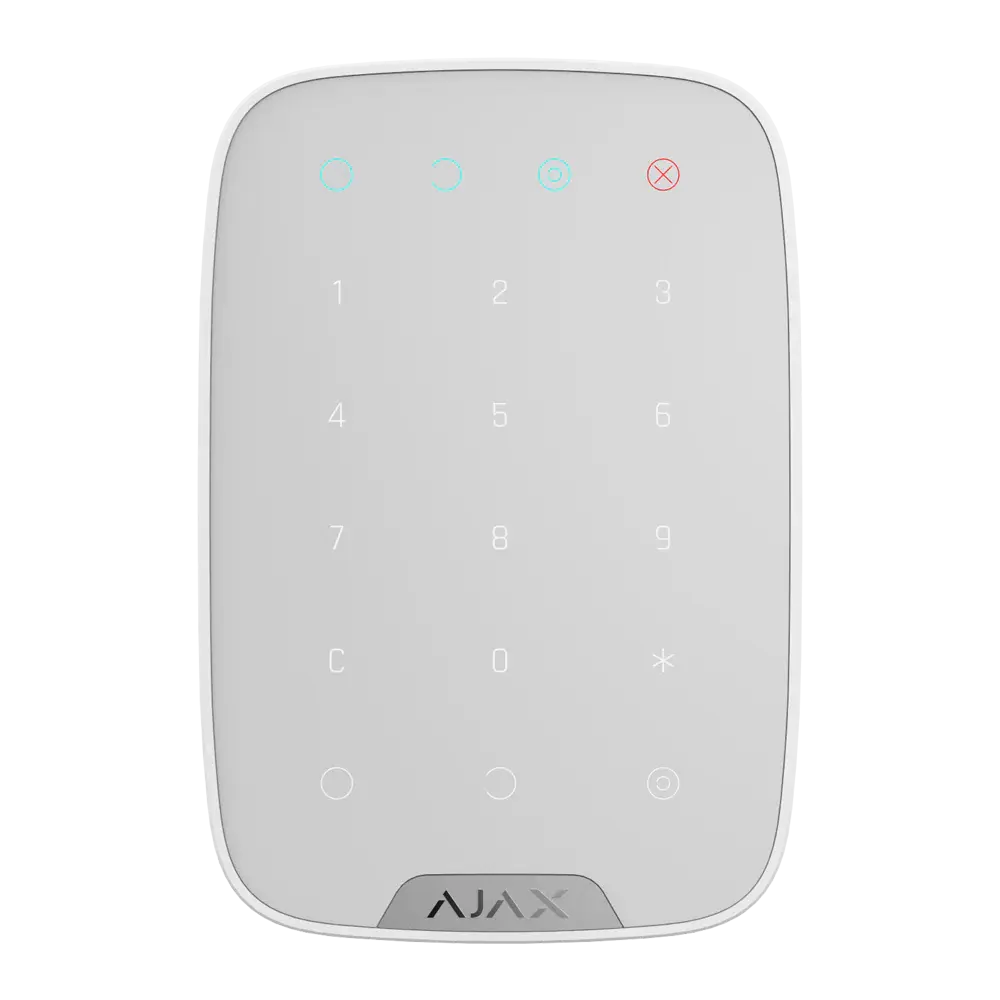

Ajax KeyPad Jeweller White Two-Way Wireless Alarm Keypad

Ajax KeyPad Jeweller White - Two-Way Wireless Alarm Keypad

The Ajax KeyPad Jeweller is a compact, code-operated wireless keypad designed to arm, disarm, and monitor the status of an Ajax security system without needing a smartphone or access card. Built on Ajax's proprietary Jeweller radio protocol, it delivers reliable two-way communication with the hub, clear LED status indication, and a range of anti-tamper and duress features that make it a practical front-line control point for homes, offices, and small commercial sites.

Key Features

• Two-way Jeweller radio communication with an open-space range of up to 1,700 metres between the keypad and hub or range extender.
• Personal and general passcodes - supports up to 200 user codes, with the exact number depending on the connected hub model.
• Duress code function that lets a user disarm the system under coercion while silently alerting the monitoring station and other users.
• Anti-guessing lockout that automatically locks the keypad for 3-180 minutes after three incorrect code entries in a row.
• Configurable function/panic button that can trigger an alarm or mute interconnected Ajax fire detector sirens.

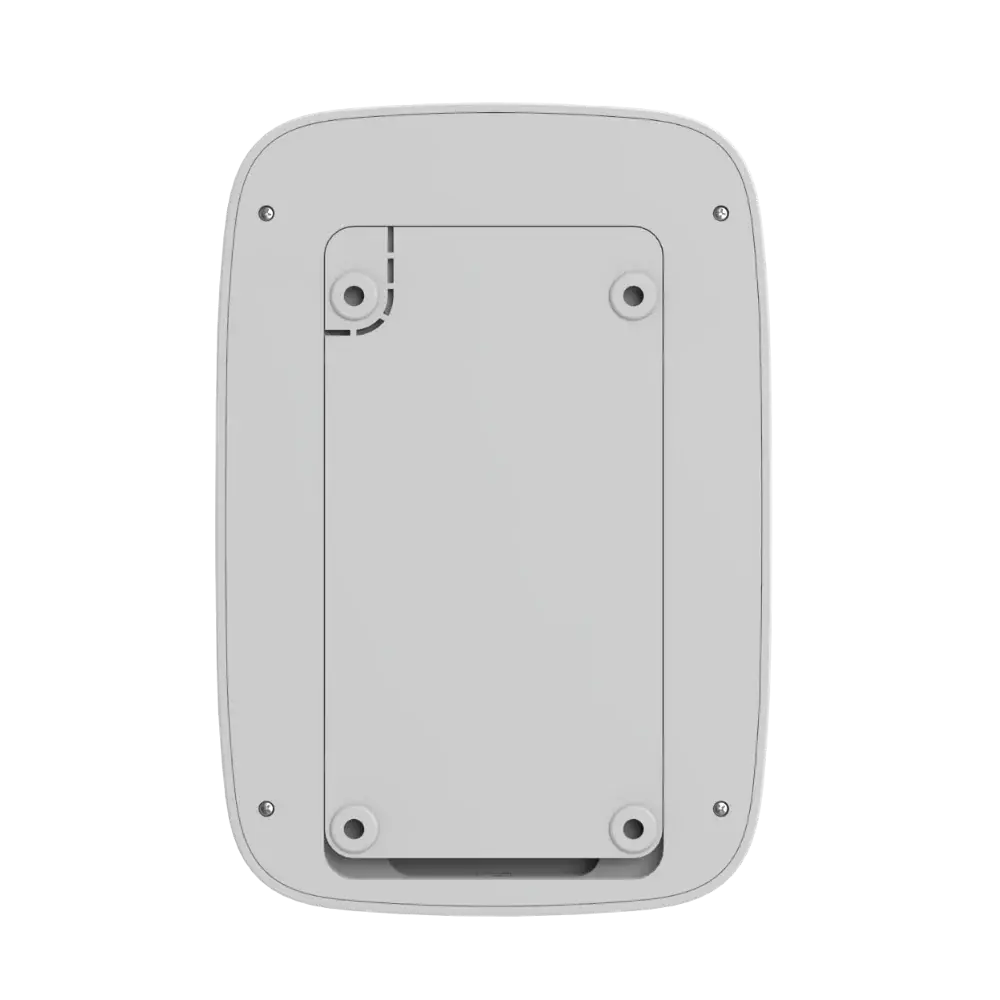

• Tamper protection that raises an alert if the keypad is removed from its SmartBracket mounting plate or pried from the wall.
• LED status indication showing arm/disarm state, detector faults, or loss of hub connection at a glance.
• Long-life battery operation using 4 x pre-installed AAA batteries, rated for up to two years of use.
• Quick, tool-light installation via SmartBracket and QR-code pairing straight into the Ajax app.

Where It Fits in an Ajax System

This keypad is typically mounted near a main entrance, hallway, or staff access point where a fast, reliable way to arm and disarm the system is needed without relying on a phone. Because it only requires an Ajax hub to operate, it suits residential entryways, retail counters, small offices, and warehouse doors where multiple staff or family members need simple, code-based access to security controls. It pairs well with an Ajax Hub, Hub Plus, or Hub 2 and can sit alongside other Jeweller-protocol devices such as motion detectors, door contacts, and sirens in the same system.

What's in the Box

• Ajax KeyPad Jeweller (White)
• SmartBracket mounting panel
• 4 x AAA batteries (pre-installed)
• Mounting screws and anchors
• Quick start guide

Frequently Asked Questions

Does the KeyPad Jeweller support access cards or key fobs?
No. This is the standard code-only KeyPad model; for card, tag, or Bluetooth-based authentication, the Ajax KeyPad Plus or KeyPad Outdoor variants are the better fit.

What hub is required?
The keypad needs an Ajax hub (such as Hub, Hub Plus, or Hub 2 Jeweller) to function, since it communicates exclusively over the Jeweller radio protocol.

Can it be used outdoors?
No, the KeyPad Jeweller is designed for indoor use only; for outdoor installations, look at the dedicated KeyPad Outdoor Jeweller model.
