Ajax KeyPad TouchScreen Black Wireless Touch Keypad

Ajax KeyPad TouchScreen Black Wireless Touch Keypad

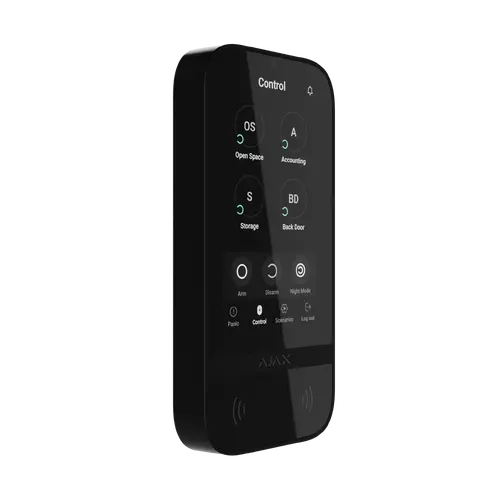

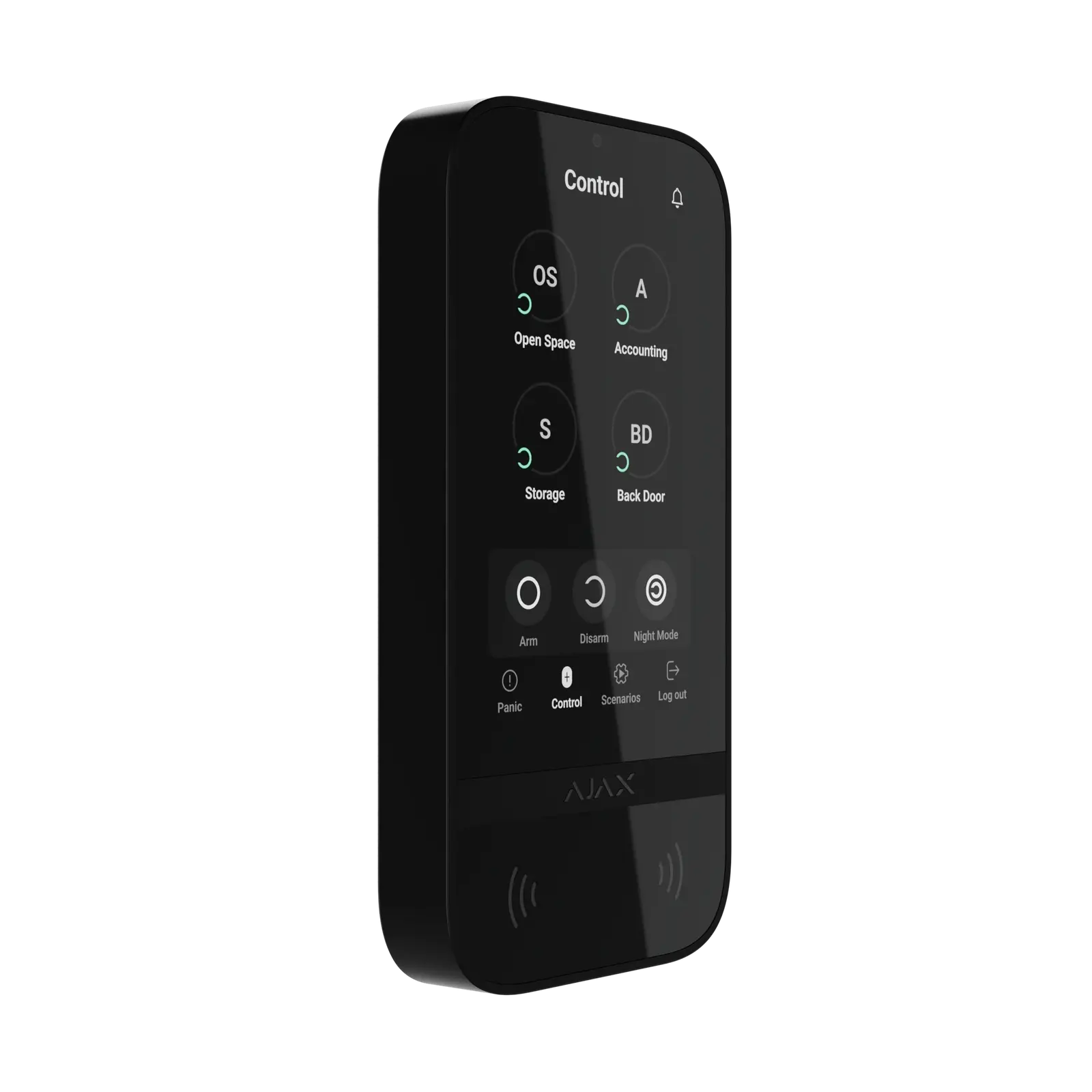

The Ajax KeyPad TouchScreen is a wireless control panel that lets homeowners and businesses arm, disarm, and monitor an Ajax security system through a large, full-colour touch display rather than physical buttons. Styled to match the rest of the Ajax Jeweller range, this black unit blends into modern interiors while giving users an app-like interface for managing security groups, automation scenes, and connected smart devices from a single wall-mounted panel.

Key Features

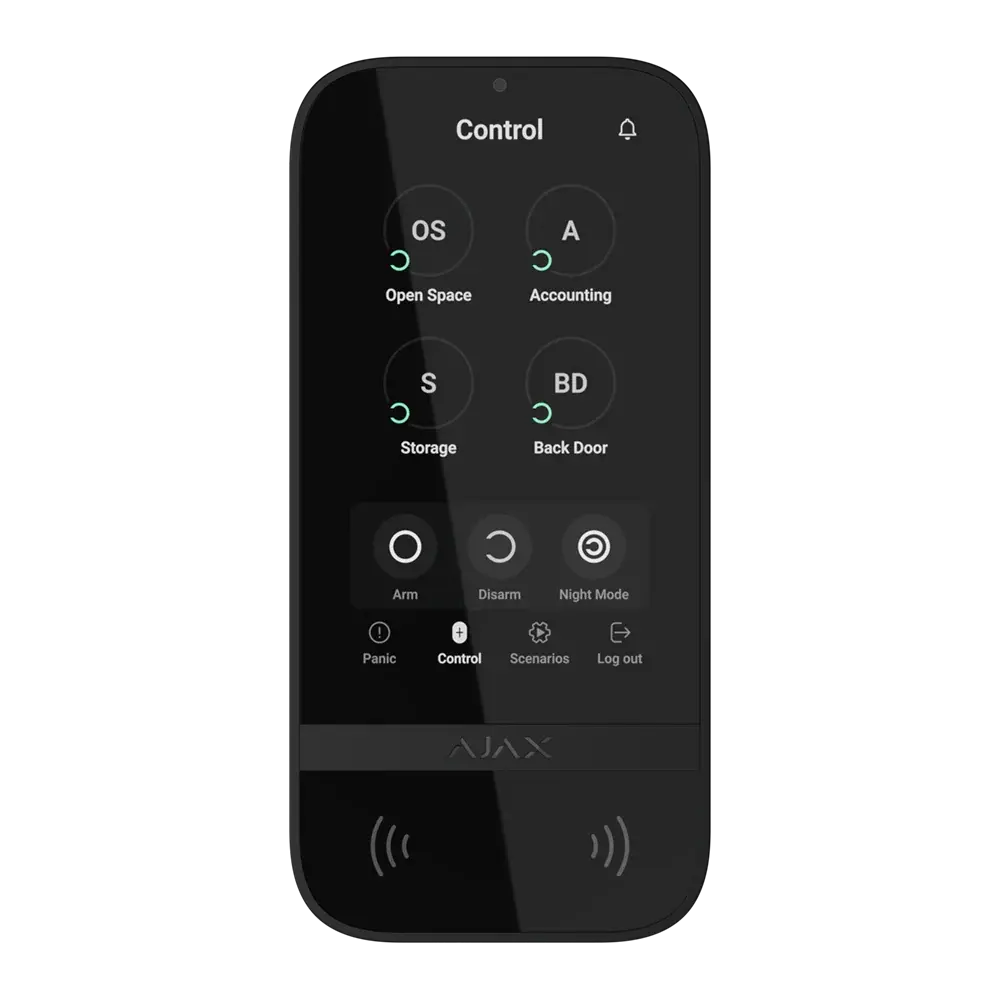

• 5-inch IPS touch display with an interface modelled on the Ajax mobile app, available in light and dark themes.
• Multiple authentication methods, including DESFire contactless cards and key fobs, Bluetooth Low Energy smartphone pairing, and PIN codes.
• Multi-group control, allowing separate zones of a property to be armed or disarmed independently from one screen.
• Duress code function that silently signals an emergency to the monitoring station while appearing to disarm normally.
• Tamper and anti-guessing protection, including automatic lockout after repeated failed code attempts and encrypted data transfer.
• Automation shortcuts for lights, thermostats, and compatible smart locks alongside standard security controls.
• Ambient light sensor that automatically adjusts screen brightness and wakes the display on approach.
• Long-range wireless connection to the Ajax hub using the Jeweller and Wings radio protocols, avoiding the need for cabling.
• Battery or auxiliary power operation, giving flexibility for installation in areas without easy mains access.

Typical Use Cases

This keypad suits homes, offices, retail premises, and multi-zone properties where a quick, intuitive way to manage the alarm system is needed near an entry point. Because it supports several security groups, it works well in larger residences or commercial sites where different areas need to be armed on separate schedules, such as a shop floor versus a stockroom, or a main house versus a granny flat. The card, tag, and smartphone authentication options also make it practical for households or businesses with several regular users, cleaners, or staff who each need their own access method without sharing a single code.

What's in the Box

• Ajax KeyPad TouchScreen Jeweller unit (black)

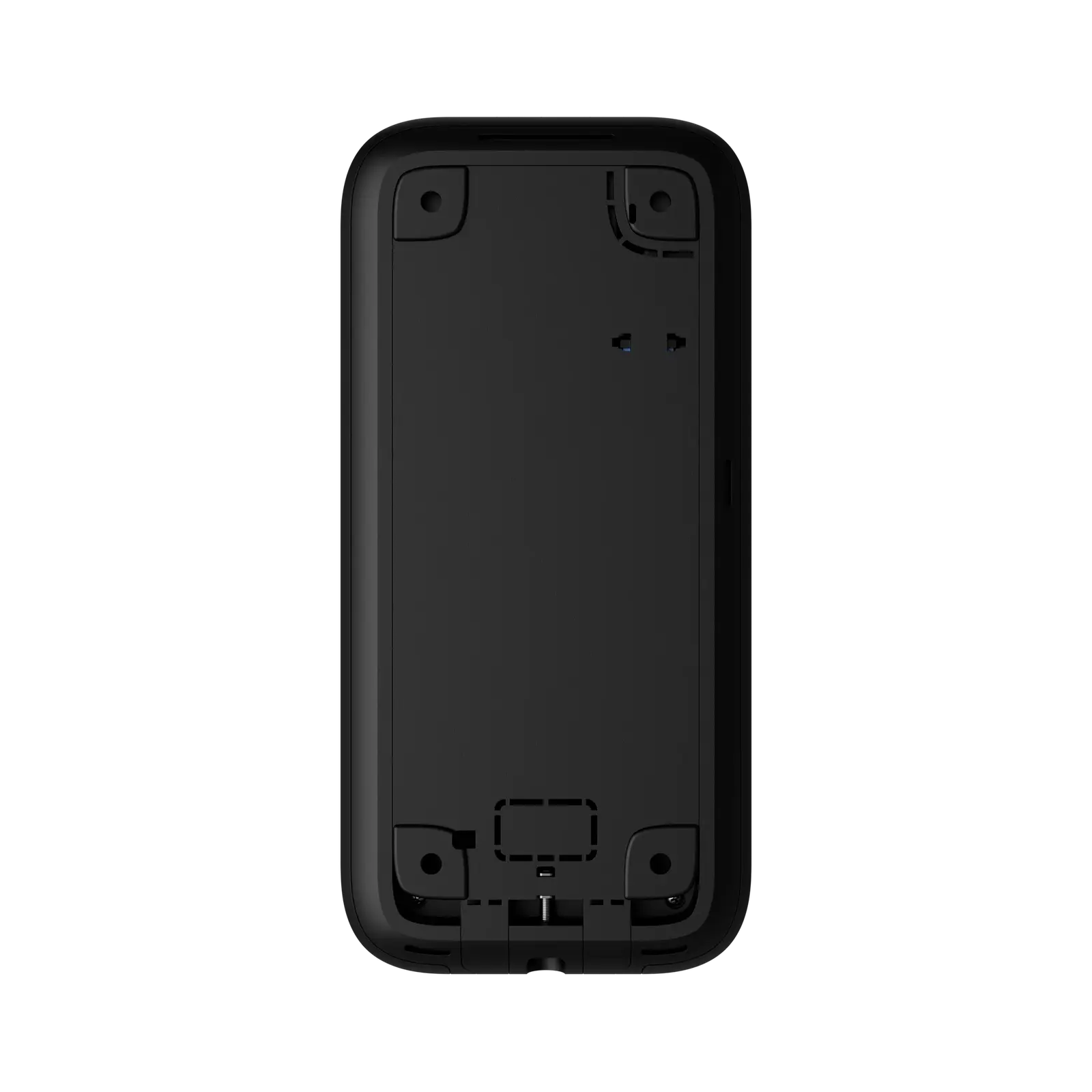

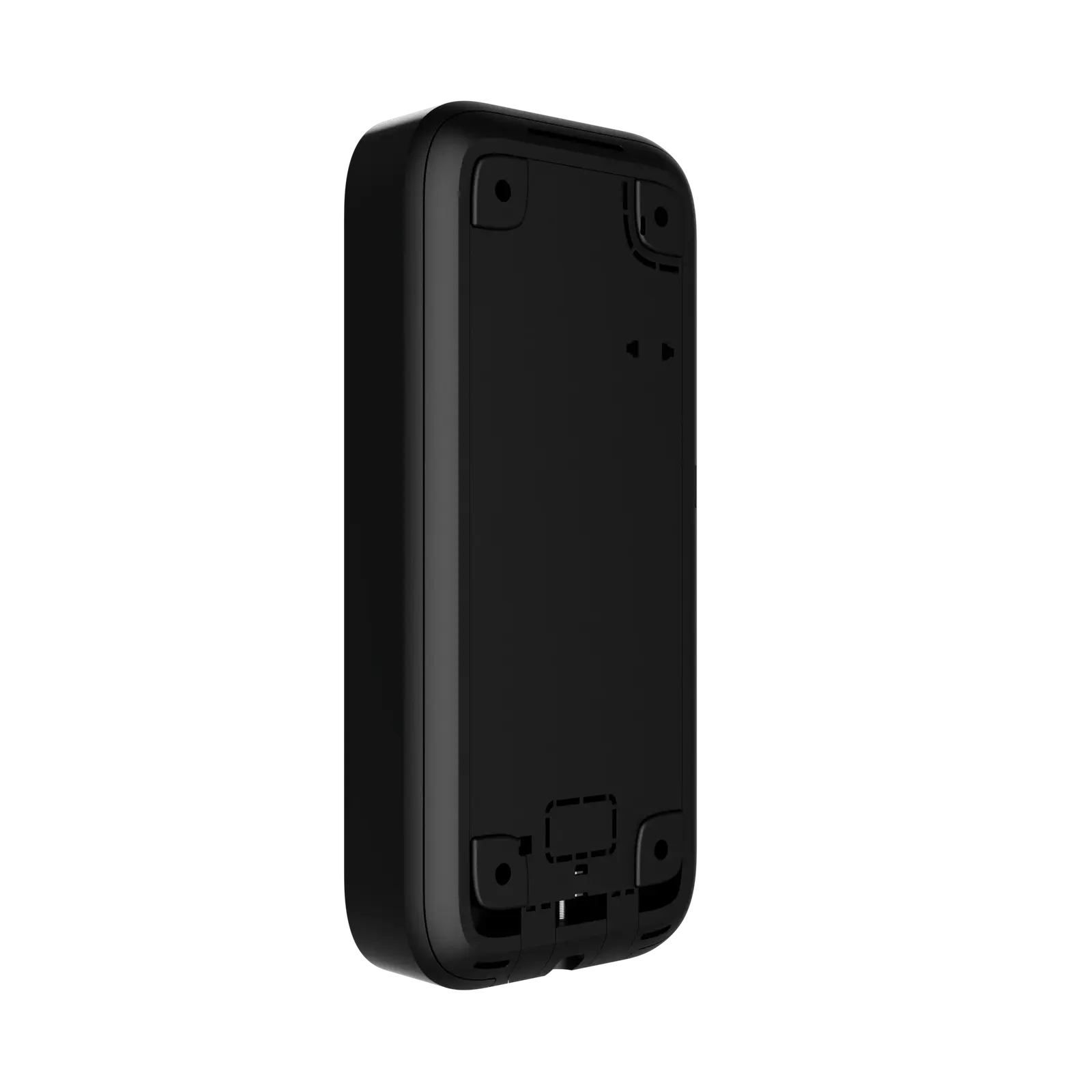

• SmartBracket mounting panel
• Mounting screws and fixings
• Quick start guide

Frequently Asked Questions

Does the keypad need a hub to work?
Yes, the KeyPad TouchScreen connects wirelessly to a compatible Ajax hub over the Jeweller and Wings radio protocols and cannot operate as a stand-alone device.

Is this keypad suitable for outdoor installation?
No, the unit is designed for indoor use only and should be mounted near an entrance inside the protected property.

Can different users have their own access codes or cards?
Yes, the system supports personal codes, general keypad codes, and DESFire cards or tags, so each user or visitor can be given their own credential.
