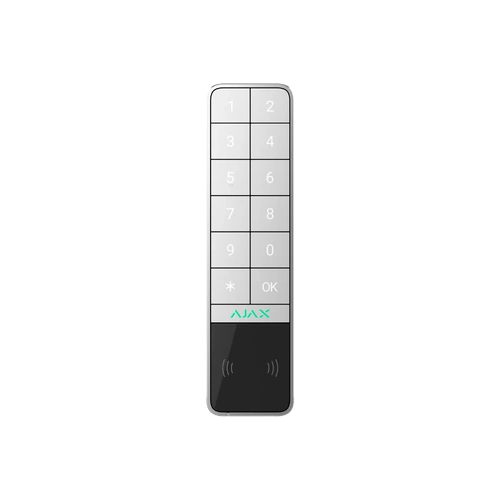

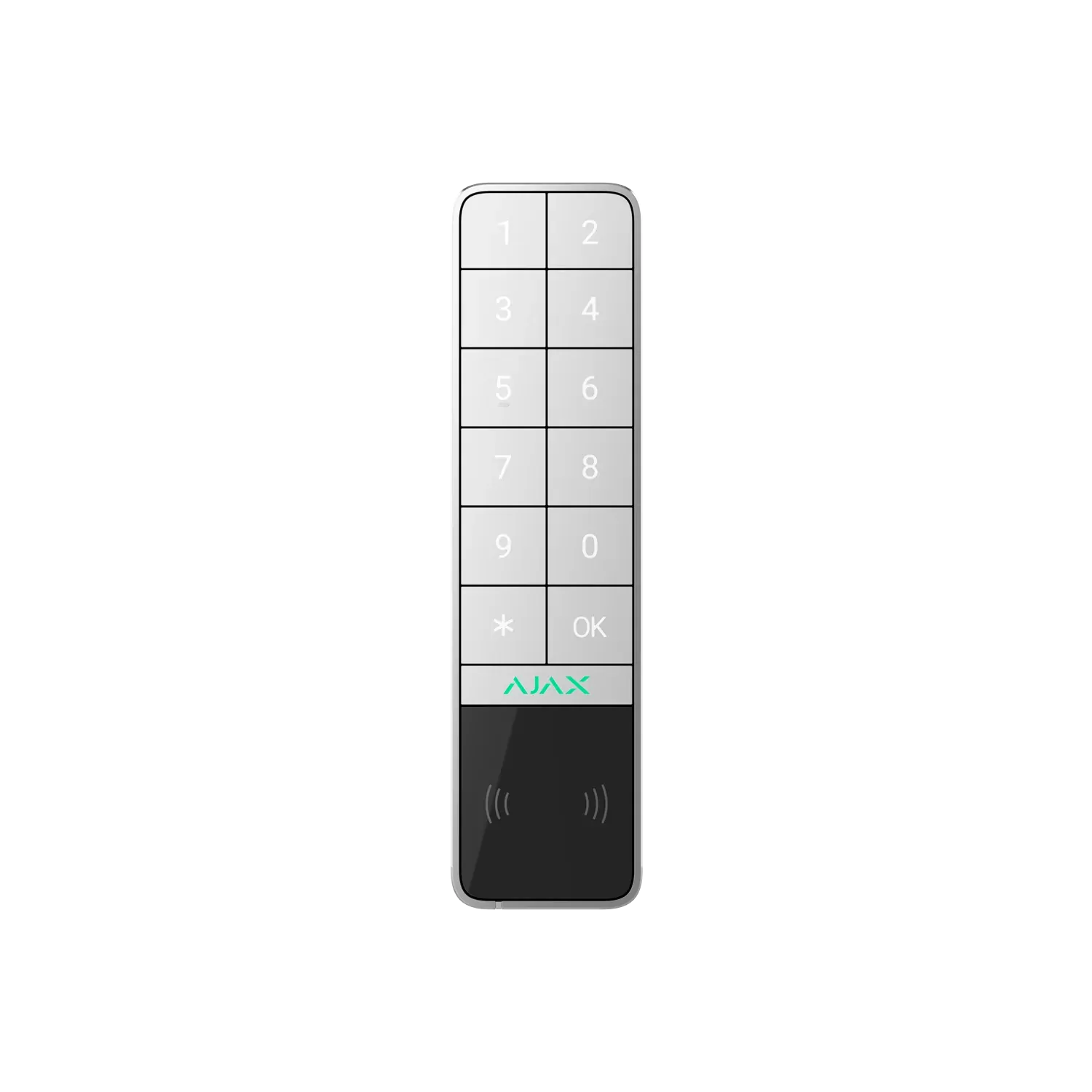

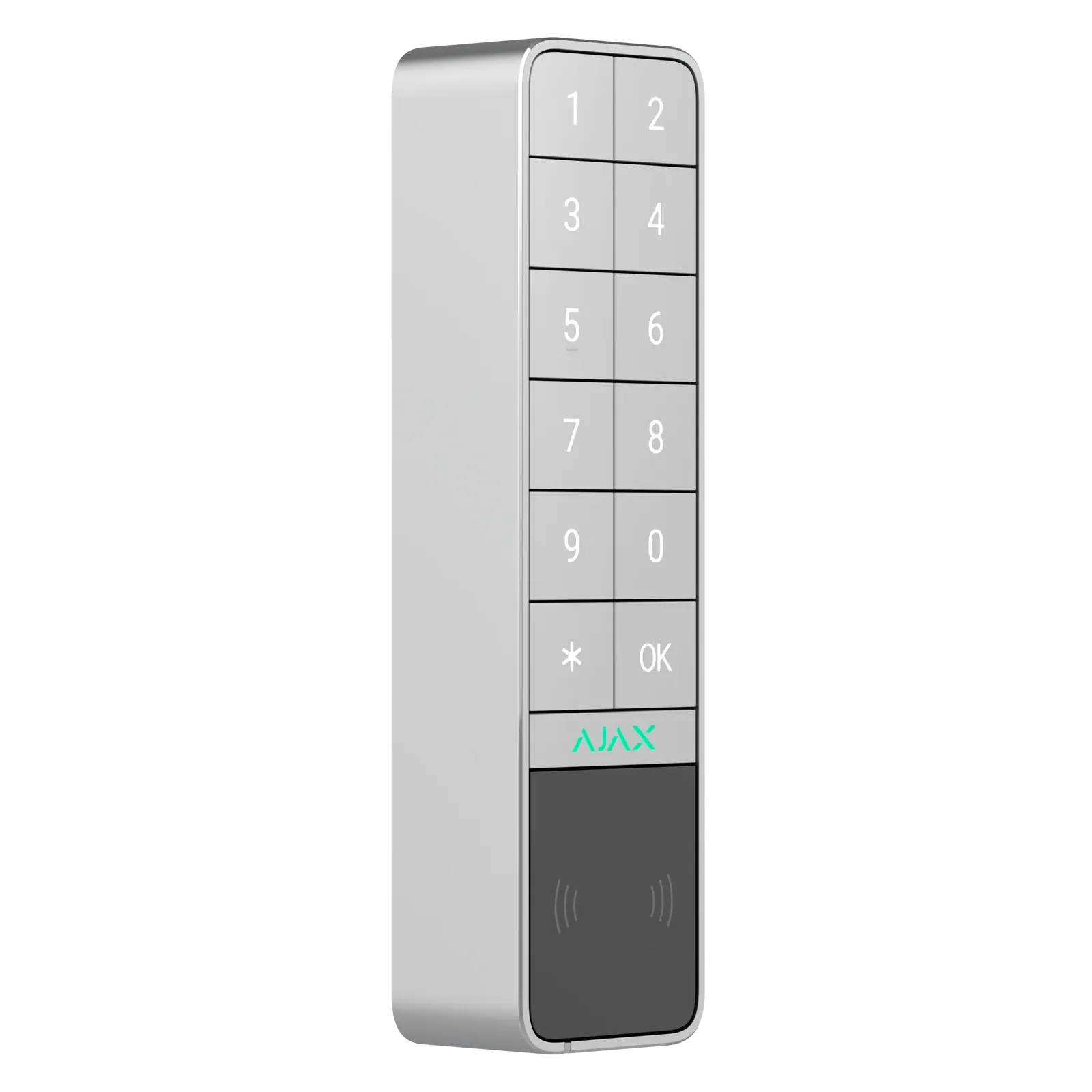

Ajax KeyPad Outdoor Jeweller White Wireless Weatherproof Keypad

Ajax KeyPad Outdoor Jeweller White - Wireless Weatherproof Keypad

The Ajax KeyPad Outdoor Jeweller is a wireless, weatherproof keypad built to give installers and end users full control of an Ajax security system from outside a building. Finished in white, it combines rugged, all-weather construction with the same multi-method authentication found on Ajax's indoor keypads, letting users arm, disarm, and manage automation using a code, an Ajax Tag or Pass, or a paired smartphone. It communicates with the Ajax hub over the encrypted Jeweller radio protocol, making it a practical option for gates, garages, warehouses, and any entrance where running cables is impractical.

Key Features

• Multiple authentication methods: unlock or arm the system using a PIN code, a contactless Tag or Pass, or Bluetooth Low Energy smartphone authentication.
• Built for the outdoors: a durable, sealed enclosure rated IP66 and IK08 protects against dust, water ingress, and impact or vandalism attempts.
• Wide operating range: engineered to function reliably in extreme temperatures, from well below freezing through to hot summer conditions.
• Large mechanical buttons: glove-friendly keys with tactile feedback remain easy to use in rain, cold, or low light.
• Wireless Jeweller connection: encrypted two-way communication with the Ajax hub, plus jamming detection and dynamic-key encryption.
• Configurable Function button: can be set up as a panic button that triggers an alarm and notifies the monitoring station and users.
• Duress code support: lets a user disarm under coercion while silently alerting the monitoring station.
• Automation control: operate connected relays, switches, sockets, and shut-off valves, such as garage doors or outdoor lighting, directly from the keypad.
• Long battery life: runs on pre-installed, factory-tested batteries with automatic self-diagnosis reported back to the hub.

Reliable Access Control for Outdoor Entrances

The KeyPad Outdoor Jeweller is designed for installation near gates, garages, perimeter entrances, and other exterior access points where an indoor keypad would not survive the elements. It suits private homes, construction sites, warehouses, logistics facilities, and commercial premises that need dependable, wireless arming and disarming without running cable to the entry point. Its anti-tamper design and passcode-guessing protection, which locks the keypad after repeated invalid attempts, make it a solid choice for sites with higher security or vandalism risk.

What's in the Box

• Ajax KeyPad Outdoor Jeweller (White)
• SmartBracket mounting panel
• Pre-installed batteries
• Mounting screws and installation kit
• Quick start guide

Frequently Asked Questions

Can this keypad be used indoors as well as outdoors?
Yes, despite its weatherproof design, the KeyPad Outdoor Jeweller is rated for both outdoor and indoor installation.

Does it require a wired connection to the hub?
No, it communicates wirelessly with a compatible Ajax hub using the encrypted Jeweller radio protocol.

What happens if someone enters the wrong code repeatedly?
The keypad has built-in protection that blocks further attempts after a set number of incorrect entries and reports the event to the system.
