Ajax KeyPad TouchScreen White Wireless Keypad with 5-Inch Touch Display

Ajax KeyPad TouchScreen White Wireless Keypad

The Ajax KeyPad TouchScreen is a sleek, wall-mounted control panel that lets homeowners and business operators arm, disarm and monitor an Ajax security system using a bright five-inch touch display instead of physical buttons. Finished in white to blend into most interiors, this Jeweller-protocol keypad communicates wirelessly with compatible Ajax hubs and doubles as a hub for smart-home automation scenes, not just intrusion detection.

Key Features

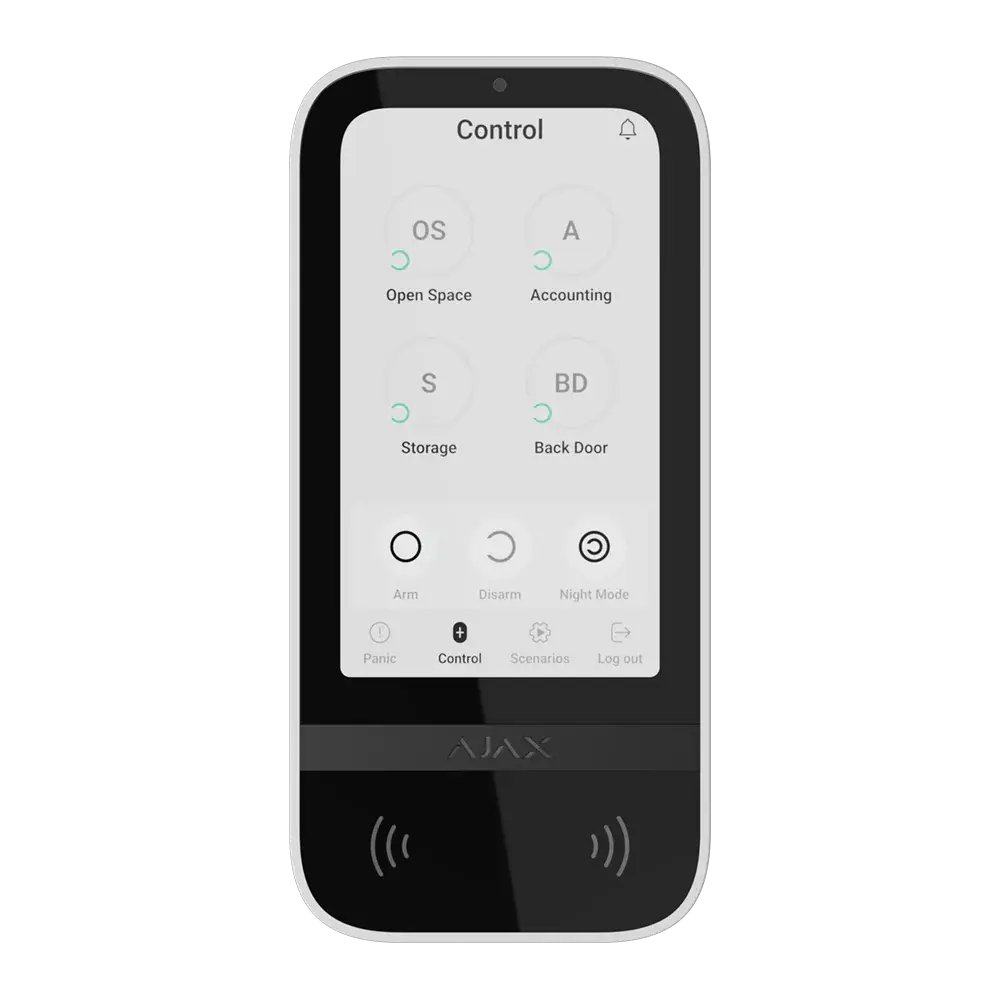

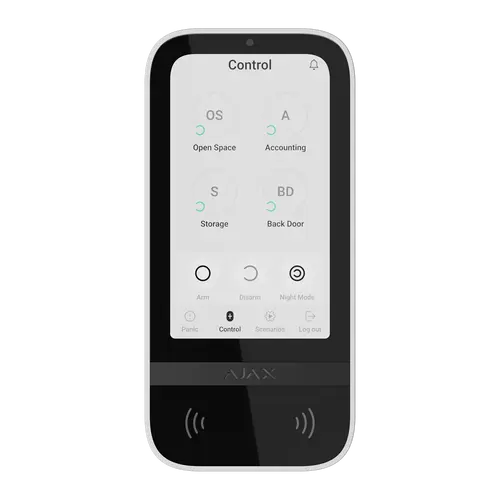

• Five-inch capacitive IPS touchscreen with a high-resolution display that mirrors the layout of the Ajax mobile app for intuitive, code-free navigation.
• Multiple authentication methods including personal PIN codes, contactless DESFire Pass cards, Tag key fobs and Bluetooth Low Energy smartphone verification.
• Long wireless range using Ajax's proprietary Jeweller radio protocol, rated for up to 1700 metres of line-of-sight communication to the hub or a Rex range extender.
• Group and multi-zone control so users can arm or disarm individual areas, whole sites, or switch to Night Mode with a single tap.
• Automation scenario shortcuts, allowing up to six customisable scenes to trigger lighting, sockets, relays or other connected Ajax accessories directly from the keypad.
• Configurable panic buttons for silent alarm, fire and medical emergency notifications, plus a duress code option that fakes disarming while quietly alerting the monitoring station.
• Anti-tamper and encrypted communication, with dynamic-key block encryption and frequency-hopping to resist jamming and interception.
• Flexible power options, running on six AA batteries or an optional 12V DC supply, with batteries providing backup during mains outages.

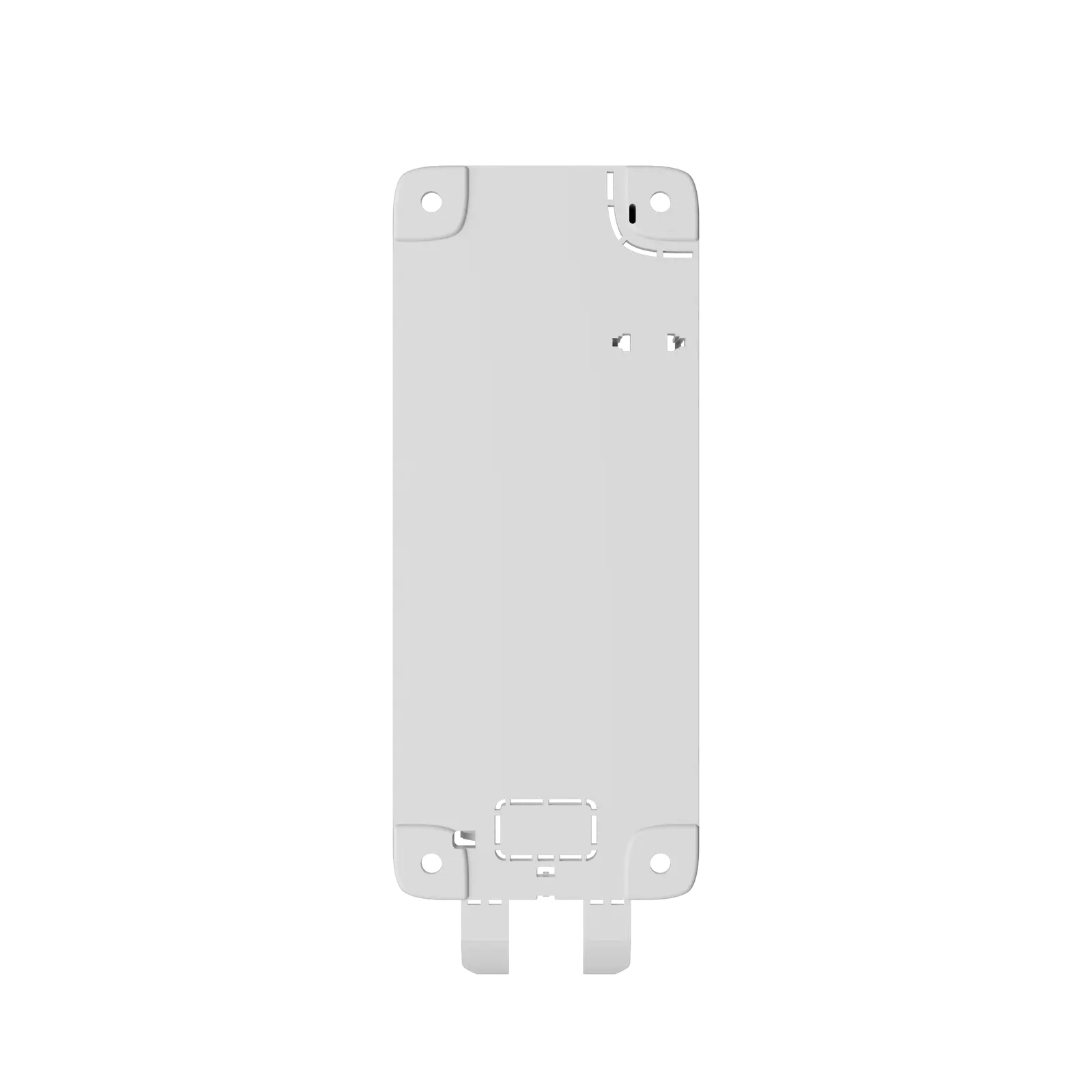

• Simple SmartBracket mounting that clips onto the wall plate without needing to disassemble the keypad body.

Where It Fits

This keypad suits homes, offices, retail premises or multi-tenant buildings where a visual, easy-to-use control point is preferred over a smartphone app alone. Because it supports card, tag, code and Bluetooth access, it works well at entry points used by cleaners, staff or family members who each need their own access method, while installers can update or revoke individual codes remotely through the Ajax app rather than visiting site.

What's in the Box

• Ajax KeyPad TouchScreen (white)
• SmartBracket mounting panel
• 6 x AA batteries (pre-installed)
• Mounting and installation hardware
• Quick start guide

Frequently Asked Questions

Which Ajax hubs does this keypad work with?
It pairs with Hub 2 (2G/4G), Hub 2 Plus and Hub Hybrid (2G/4G), as well as extending its range through a Rex 2 repeater.

Can it be used outdoors?
No, the keypad is designed for indoor installation only.

How long do the batteries last?
Typical battery life runs well over a year under normal use, and the keypad can also be wired to a 12V power supply for continuous operation with batteries as backup.
