LTS 30W Gigabit PoE+ Injector - Single-Port 802.3at/af Midspan

LTS 30W Gigabit PoE+ Injector

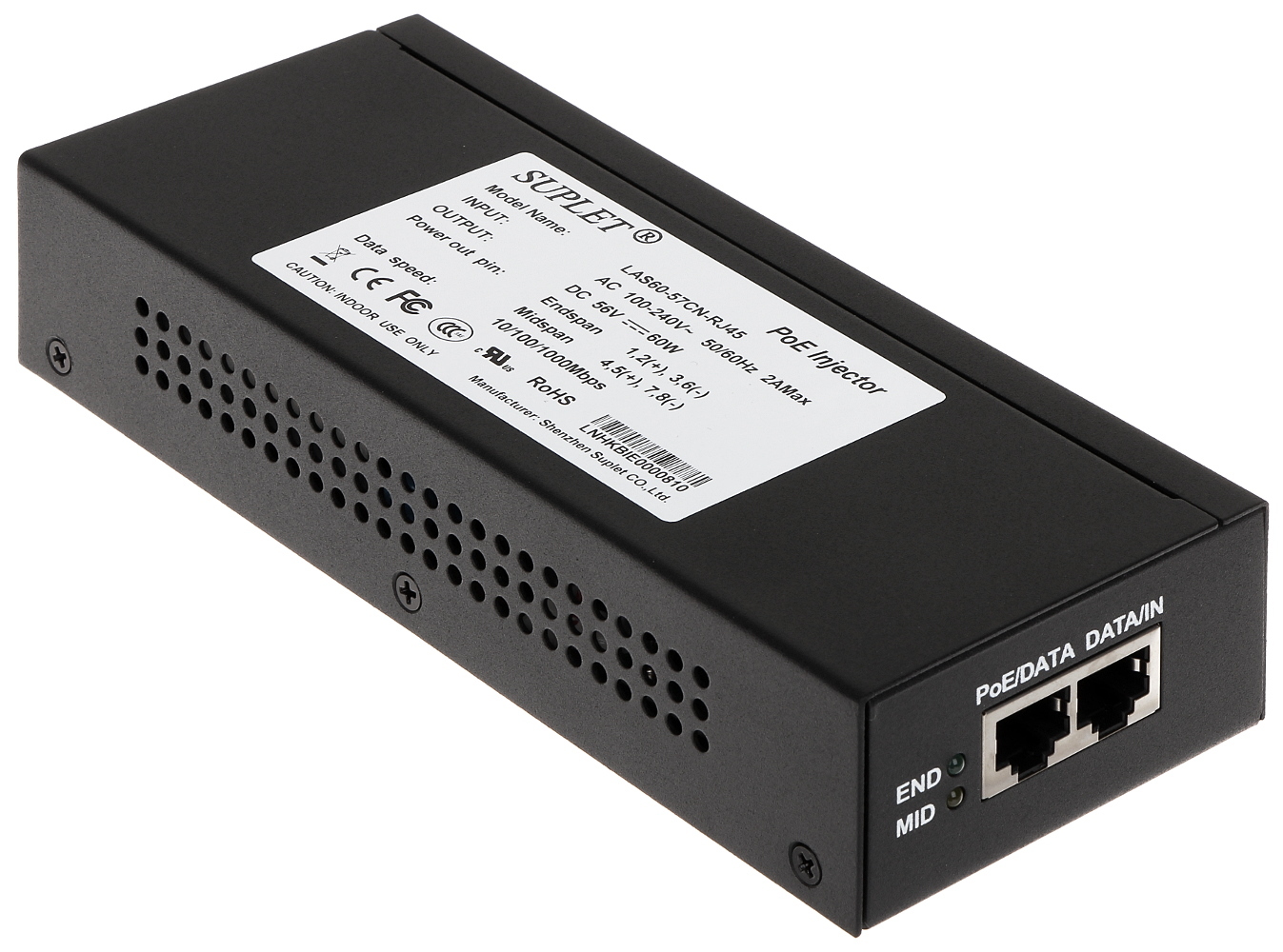

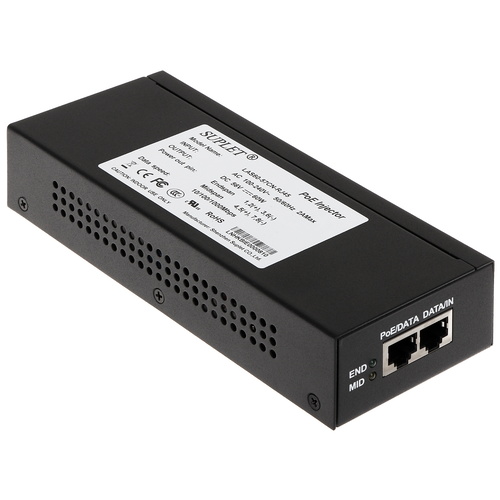

Add reliable Power over Ethernet to any non-PoE network device with the LTS 30W PoE Injector (LAS30-57CN-RJ4530WPOE). This single-port Gigabit midspan takes a standard data connection and injects up to 30 watts of DC power directly onto the Ethernet cable, letting you power IP cameras, PTZ domes, wireless access points, and VoIP phones without running separate electrical wiring. Built for professional CCTV and networking installs, it supports full Gigabit throughput so there is no compromise on data speed while power is being delivered.

Key Features

• Up to 30W of PoE output at 56V DC, sufficient for high-draw devices such as PTZ cameras and heated housings
• Gigabit pass-through data on 10/100/1000M ports so network performance is unaffected
• Two RJ45 ports - one Data IN from your switch/router, one combined PoE + Data OUT to the powered device
• IEEE 802.3af/at compliant and backward compatible with legacy powered devices
• Wide AC input range (100-240V) for use across international mains voltages
• Built-in protection including output over-current and short-circuit protection for safer long-term operation
• Wide operating temperature range (-40°C to 70°C) suited to external plant rooms or unconditioned spaces
• Compact, lightweight enclosure (185 x 70.8 x 37mm) that mounts easily in a cabinet or on a wall
• Status LED indicators for power and PoE link state, simplifying installation checks

Typical Applications

This injector is ideal when you need to add a single Power over Ethernet camera, access point, or VoIP handset to an existing non-PoE switch, or when a PoE switch port cannot supply enough wattage for a demanding device like a PTZ dome. It is commonly deployed in retrofit CCTV upgrades, small business networks, and anywhere a dedicated 30W PoE+ power source is required at the point of installation rather than at the core switch.

What's in the Box

• 1 x LTS 30W PoE Injector (LAS30-57CN-RJ4530WPOE)
• Mounting/installation hardware (where applicable)
• Quick installation guide

Note: an IEC power cable is sold separately and is required to connect the unit to mains power.

Frequently Asked Questions

Q: What is the maximum power output of this injector?
A: It supplies up to 30 watts at 56V DC, meeting IEEE 802.3at (PoE+) requirements while remaining backward compatible with 802.3af devices.

Q: Will this injector slow down my network connection?
A: No. Both RJ45 ports support full 10/100/1000 Mbps Gigabit data rates, so PoE power injection does not reduce throughput.

Q: Can I use this with cameras that only need standard PoE (15.4W)?
A: Yes, the unit is compatible with legacy 802.3af powered devices as well as higher-draw 802.3at equipment, making it a flexible choice for mixed camera fleets.
