LTS 4-Port Industrial PoE+ DIN-Rail Switch with SFP Uplinks

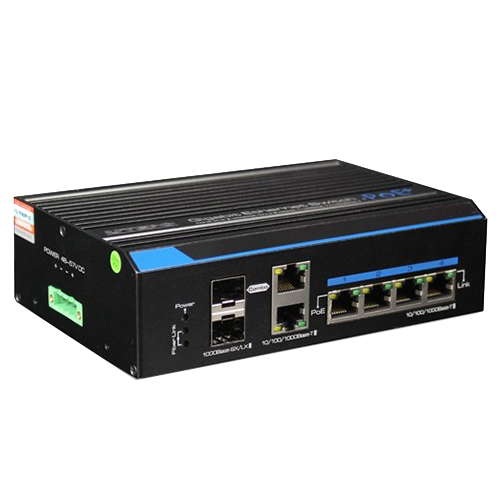

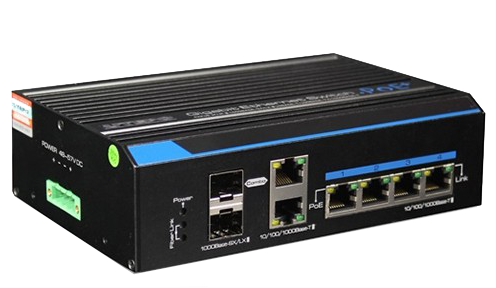

LTS LTPOE-IS120-4 4-Port Industrial PoE+ Switch with SFP Uplinks

The LTS LTPOE-IS120-4 is a compact, industrial-grade Power over Ethernet switch built for CCTV, access control, and network installations that demand reliable power delivery in tough environments. With a combined PoE budget of up to 120W and dedicated fibre uplink capability, this switch is designed to extend and power multiple network devices from a single, rugged enclosure that can be DIN-rail or wall mounted inside cabinets, risers, or plant rooms.

Key Features

• 4x 10/100M Base-T PoE ports each capable of delivering up to 30W, ideal for PTZ cameras, access control readers, and wireless access points
• Combined PoE power budget of 120W across the four powered ports for flexible load balancing
• 2x 10/100/1000M Base-T uplink ports for connecting back to core network switches or NVR equipment
• 2x Gigabit SFP fibre uplink slots allowing long-distance fibre backhaul between switches or to a head-end
• Compact metal housing suitable for DIN rail or wall mounting, saving space in electrical enclosures
• Wide input power range (DC 48-57V) via an external plug-pack power supply for stable operation
• Space-saving footprint at only 163(W) x 110(D) x 46mm(H), suited to tight cabinet installs
• Industrial build quality intended for demanding installation environments beyond typical office switches

Ideal Applications

This switch suits installers deploying small clusters of IP cameras, intercoms, or wireless access points where a full-size rack switch is impractical. Typical use cases include retail fit-outs, small commercial sites, remote equipment cabinets, boom gates, and perimeter camera runs where a compact, DIN-rail mountable PoE source with fibre backhaul options is required. The dual SFP ports make it a practical choice for linking a remote building or car park back to a main switch room over fibre, while still powering local PoE devices directly.

What's in the Box

• 1x LTPOE-IS120-4 Industrial PoE Switch
• DIN rail mounting bracket / wall mount bracket
• External DC power adapter (plug-pack)
• Quick installation guide

Frequently Asked Questions

Q: Can this switch power four cameras at full 30W each simultaneously?
A: The unit has a combined PoE budget of 120W across the four ports, so four devices drawing close to 30W each can generally be supported, but total combined draw should be monitored against the 120W ceiling.

Q: Does it support fibre connections?
A: Yes, it includes two Gigabit SFP uplink slots for fibre modules, allowing longer-distance backhaul in addition to the two copper Gigabit uplink ports.

Q: Is it suitable for outdoor cabinet installation?
A: The industrial DIN-rail design is intended for enclosure or cabinet mounting rather than direct outdoor exposure, so installation inside a weatherproof enclosure is recommended for outdoor deployments.
