LTS 8-Port Industrial PoE+ Layer-2 Switch with Dual SFP Uplinks

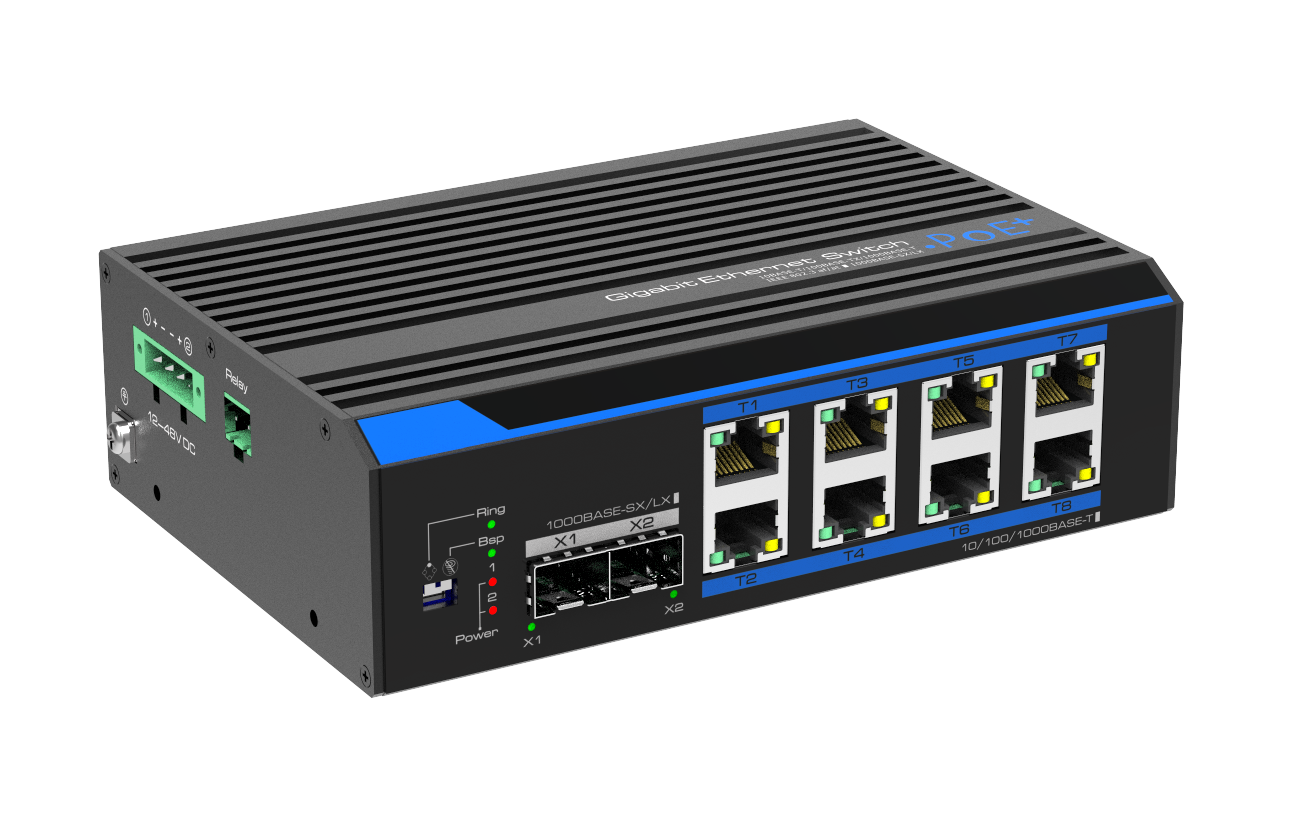

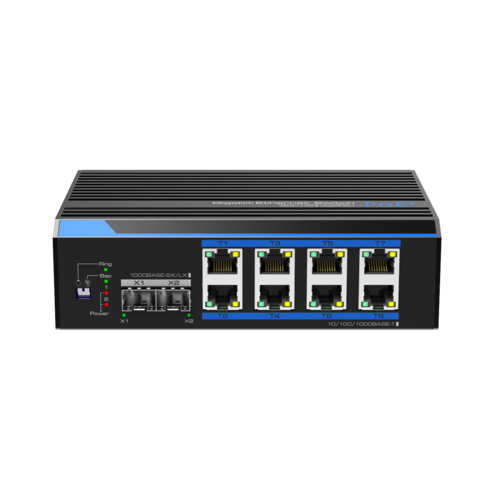

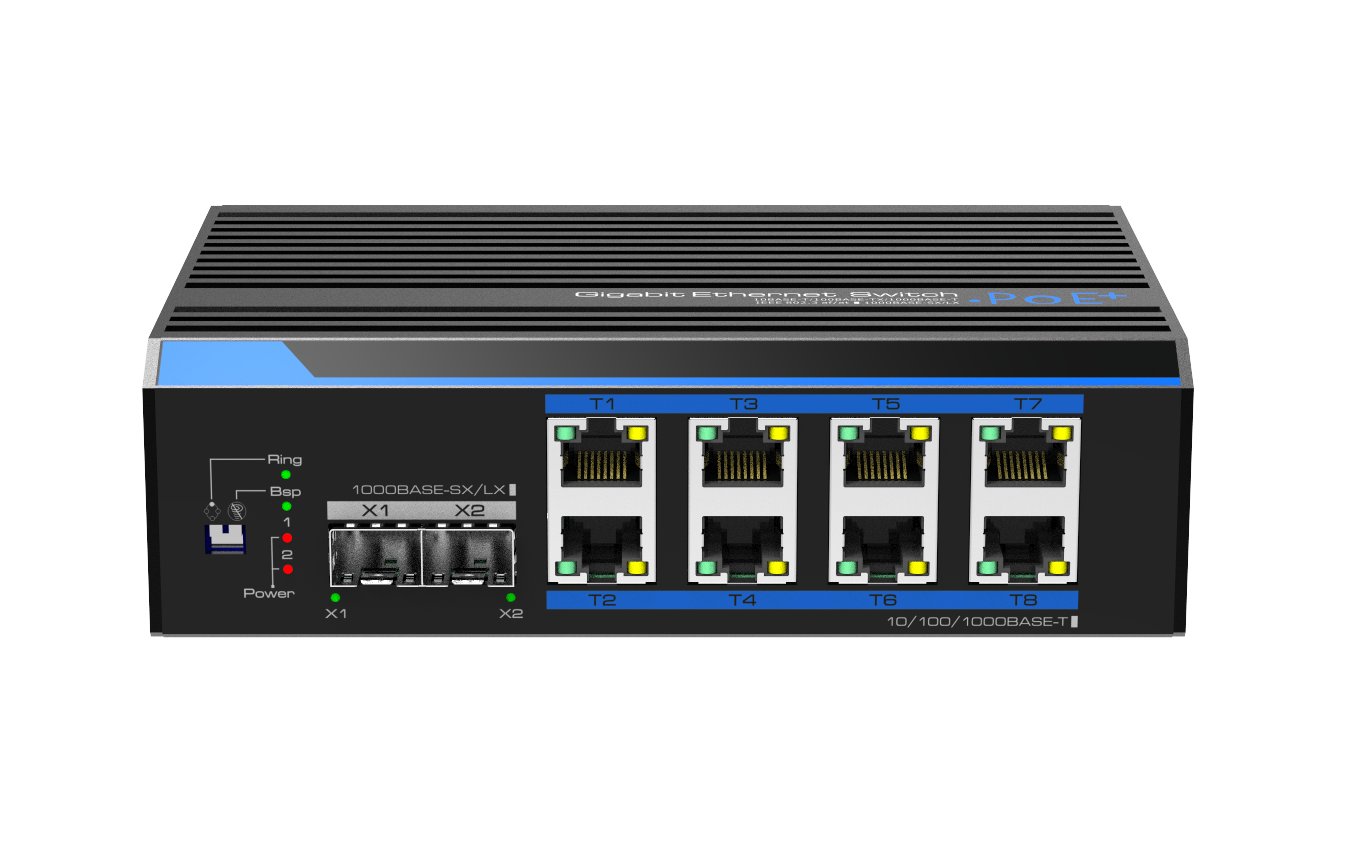

LTS 8-Port Industrial PoE+ Layer-2 Switch (LTPOE-IS90-8-12)

Built for demanding outdoor and industrial deployments, this 8-port PoE+ Layer-2 switch from the LTS Platinum networking range delivers reliable power and data to remote cameras, sensors and access points even in extreme temperatures. Its wide DC input range and DIN-rail or wall-mount form factor make it a practical choice for cabinets, plant rooms, roadside enclosures and solar-powered installations where standard desktop switches simply won't survive.

Key Features

• 8x 10/100M Base-T ports, each supporting PoE+ power delivery up to 30W per port for high-draw devices such as PTZ cameras and heated housings
• 2x Base-X SFP uplink slots for flexible fibre connectivity back to the core network, ideal for long-distance or lightning-prone runs
• Wide-range DC input from 12V to 48V, allowing direct connection to solar charge controllers, battery banks or standard DC power supplies
• Scalable total PoE budget depending on input voltage: up to 80W at 12V, 120W at 24V, or a full 240W when powered at 48V
• Rugged industrial operating temperature range of -40°C to 75°C, suited to rooftop, roadside and unconditioned enclosure installations
• Compact metal housing measuring approximately 159 x 110 x 46.5mm, designed for space-constrained cabinets
• Dual mounting options with both DIN-rail clips and wall-mount brackets included for fast, flexible installation
• Layer-2 switching intelligence for basic traffic management across connected PoE endpoints

Built for Harsh-Environment and Off-Grid Deployments

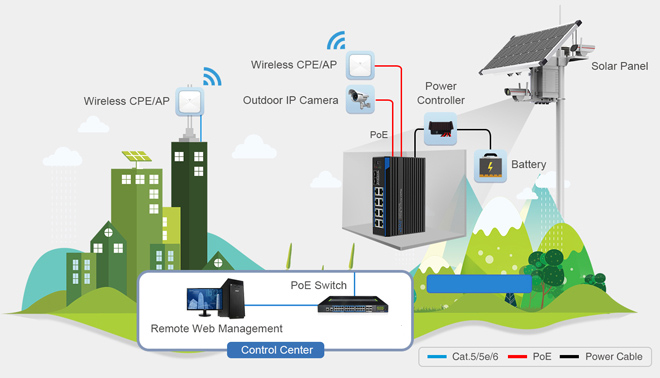

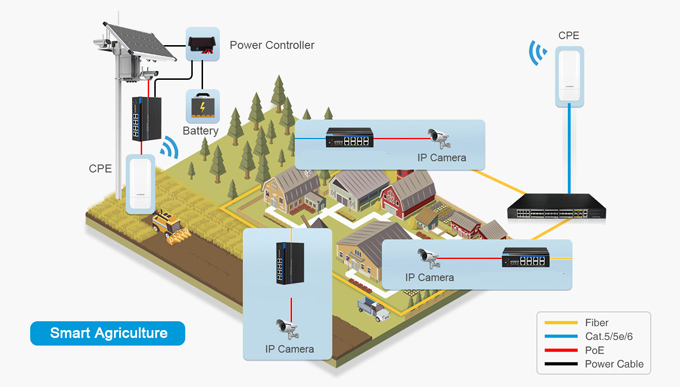

This switch is purpose-built for sites where power infrastructure is unreliable or unconventional, such as solar-powered remote monitoring stations, industrial process plants, transport infrastructure, and perimeter security installations far from mains power. By accepting a wide 12-48VDC input, it can be paired directly with a solar and battery setup or a dedicated DC power supply, while its extended temperature rating means it keeps working through summer heat spikes and winter cold snaps that would shut down consumer-grade switches. The 30W-per-port PoE+ budget is sufficient for demanding devices like heated dome cameras, PTZ units and wireless bridges, while the SFP uplinks let integrators run fibre back to the head end for distance or surge protection.

What's in the Box

• 1x LTPOE-IS90-8-12 8-port industrial PoE+ switch
• DIN-rail mounting bracket
• Wall-mount bracket and fixing screws
• Quick installation guide

Frequently Asked Questions

Can I power this switch from a 12V solar battery system?
Yes. The switch accepts a wide 12-48VDC input, so it can be connected directly to 12V, 24V or 48V DC sources including solar and battery setups, though total available PoE power will scale with the input voltage used.

Are the ports Gigabit or Fast Ethernet?
The 8 PoE+ ports are 10/100M Fast Ethernet, which suits most IP camera and sensor traffic, while the 2 SFP slots provide Gigabit-capable fibre uplinks for the network backbone.

Which power supply does LTS recommend for maximum PoE output?
For the full 240W PoE budget, LTS recommends pairing the switch with the PS-48V120WD 48V supply; the PS-24V120WD 24V supply is recommended if a 120W budget is sufficient.

Product Images & Diagrams
