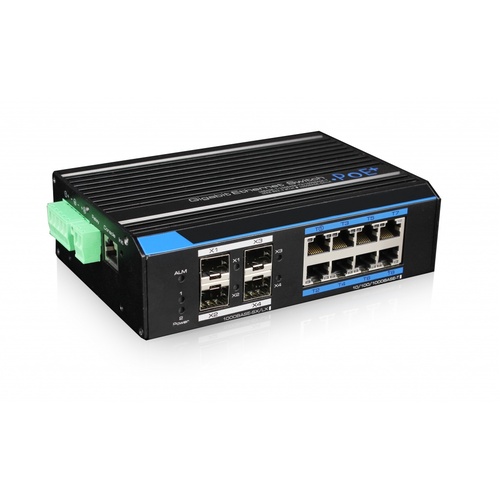

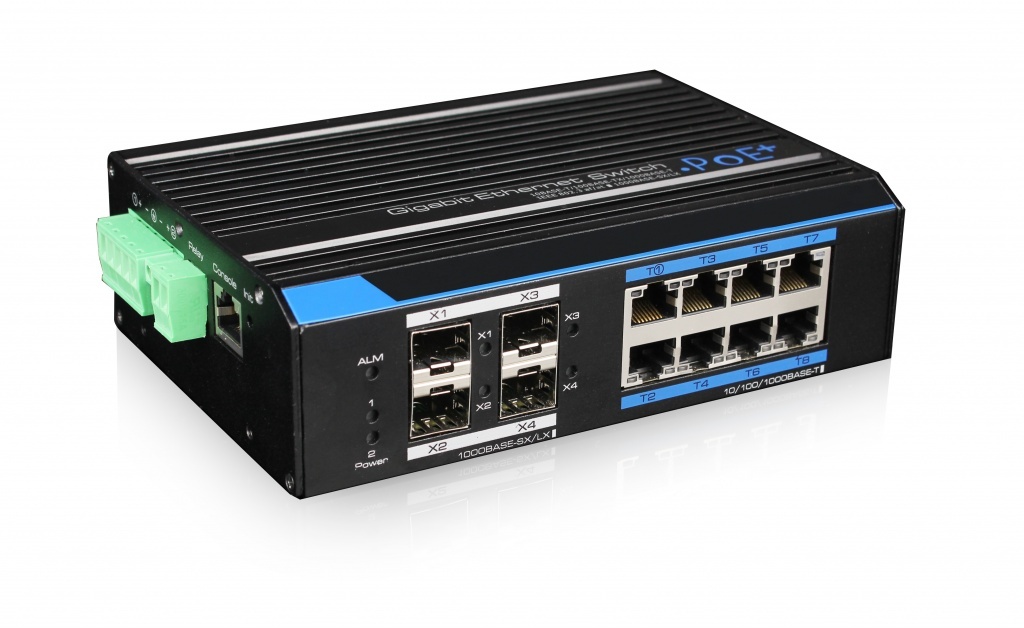

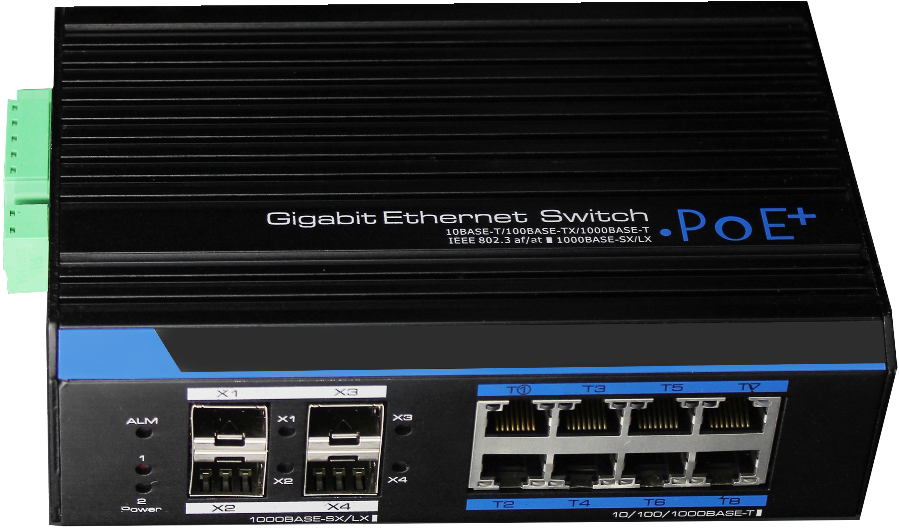

LTS LTPOE-IS240-8 8-Port Industrial PoE+ Layer-2 Switch with SFP Uplinks

LTS LTPOE-IS240-8 8-Port Industrial PoE+ Layer-2 Switch

The LTS LTPOE-IS240-8 is a ruggedised, DIN-rail and wall-mountable PoE+ Layer-2 switch built for demanding outdoor and industrial CCTV and networking deployments. It combines eight Fast Ethernet PoE ports with four fibre SFP uplinks and a wide operating temperature range, making it a reliable backbone for surveillance networks, remote sites, and infrastructure installed outside of a controlled indoor rack environment.

Key Features

• 8x 10/100M Base-T PoE ports for connecting IP cameras, access points, and other powered network devices
• Up to 240W combined PoE power budget across the switch, giving flexibility for multi-camera or high-power device deployments
• Port 1 delivers up to 60W, suitable for high-draw devices such as PTZ cameras or heated camera housings
• Ports 2-8 each supply up to 30W, covering the majority of standard PoE+ IP cameras and access points
• 4x 100Base-X SFP uplink ports for long-distance fibre connections back to a core switch or NVR room
• Layer-2 switching for efficient traffic management on medium to large camera networks
• Wide operating temperature range of -40°C to 75°C, suited to extreme hot or cold outdoor cabinets
• Compact DIN-rail or wall-mount housing (159 x 110 x 46.5mm) for easy fitment into electrical enclosures or utility cabinets
• Designed to pair with the recommended PS-48V120WD (120W, 48V DC) power supply

Built for Harsh-Environment Surveillance Networks

Because standard commercial switches are rarely rated for outdoor cabinets, roadside enclosures, or unconditioned plant rooms, the LTPOE-IS240-8 is designed specifically for those conditions. Integrators can install it inside an environmental enclosure alongside cameras and radios, powering an entire pole or building riser from a single compact unit while using the SFP ports to run fibre back to a head-end switch over long distances without signal degradation. This makes it a practical choice for perimeter security, transport infrastructure, warehousing, and remote or unmanned sites where reliability in fluctuating temperatures is critical.

What's in the Box

• 1x LTS LTPOE-IS240-8 Industrial PoE+ Layer-2 Switch
• DIN-rail mounting clip and wall-mount bracket hardware
• Quick installation guide

Note: The recommended PS-48V120WD 48V DC power supply is sold separately and is required for operation.

Frequently Asked Questions

Does this switch include a power supply?
No, the LTPOE-IS240-8 requires a separate 48V DC power source; LTS recommends the PS-48V120WD (120W) power supply for reliable operation.

Can I mount this switch outdoors in a cabinet?
Yes, it is designed for industrial conditions with an operating range of -40°C to 75°C and supports DIN-rail or wall mounting inside an enclosure.

What is the maximum power available per port?
Port 1 can supply up to 60W for high-power devices like PTZ cameras, while ports 2 through 8 each provide up to 30W, within a 240W total PoE budget.
