1ch POE Extender IPC

POE-C2W-IPC

Please login or register to view pricing.


Calculate Shipping



Free pick-up from store - $0.00
Free Pickup from Unit 25 / 17 Lorraine Street Peakhurst NSW 2210 (9am-5pm)

1ch PoE Extender Max 500m

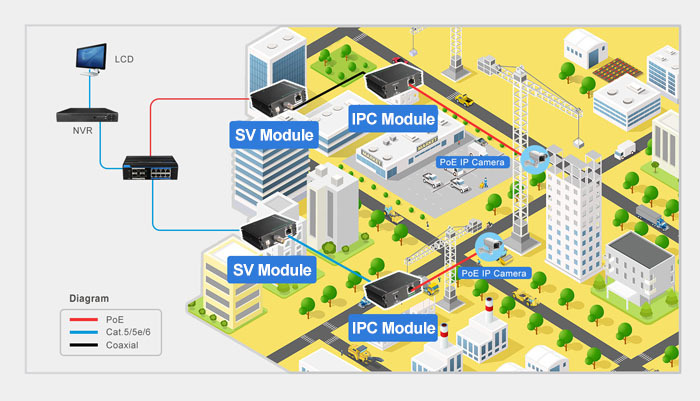

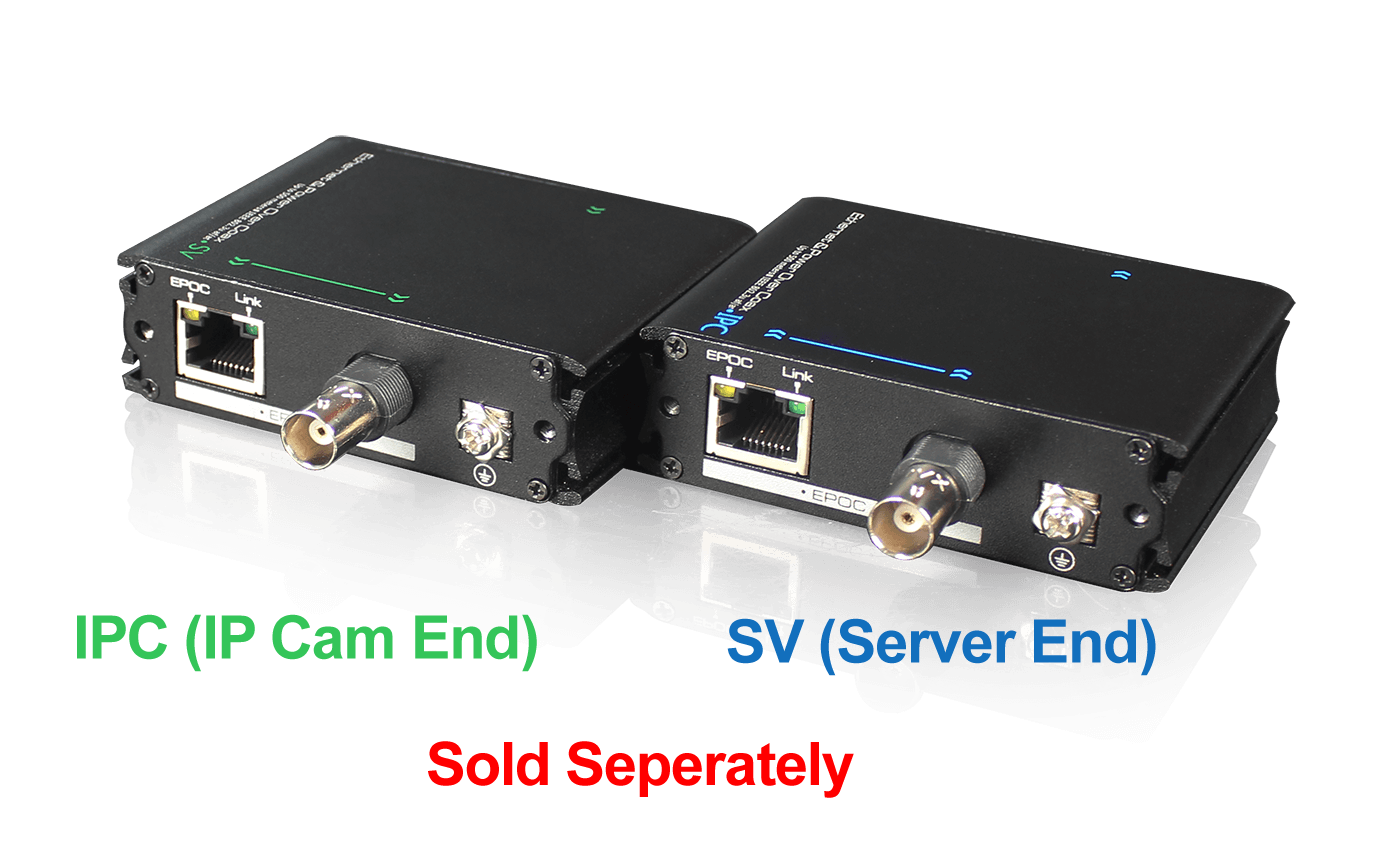

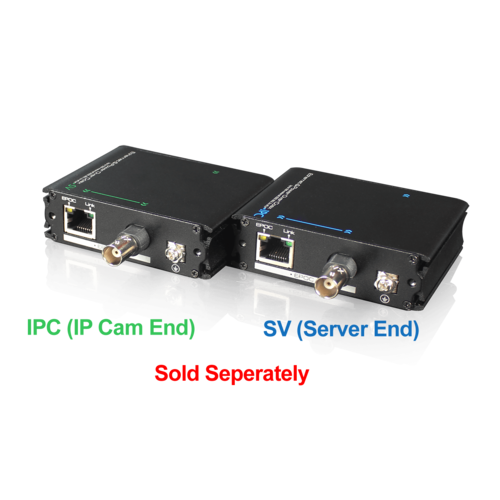

The POE-C2W consists of two parts: SV-Unit and IPC-Unit. (sold seperately)



You must buy this with POE-C2W-SV

 POE-C2W-SV

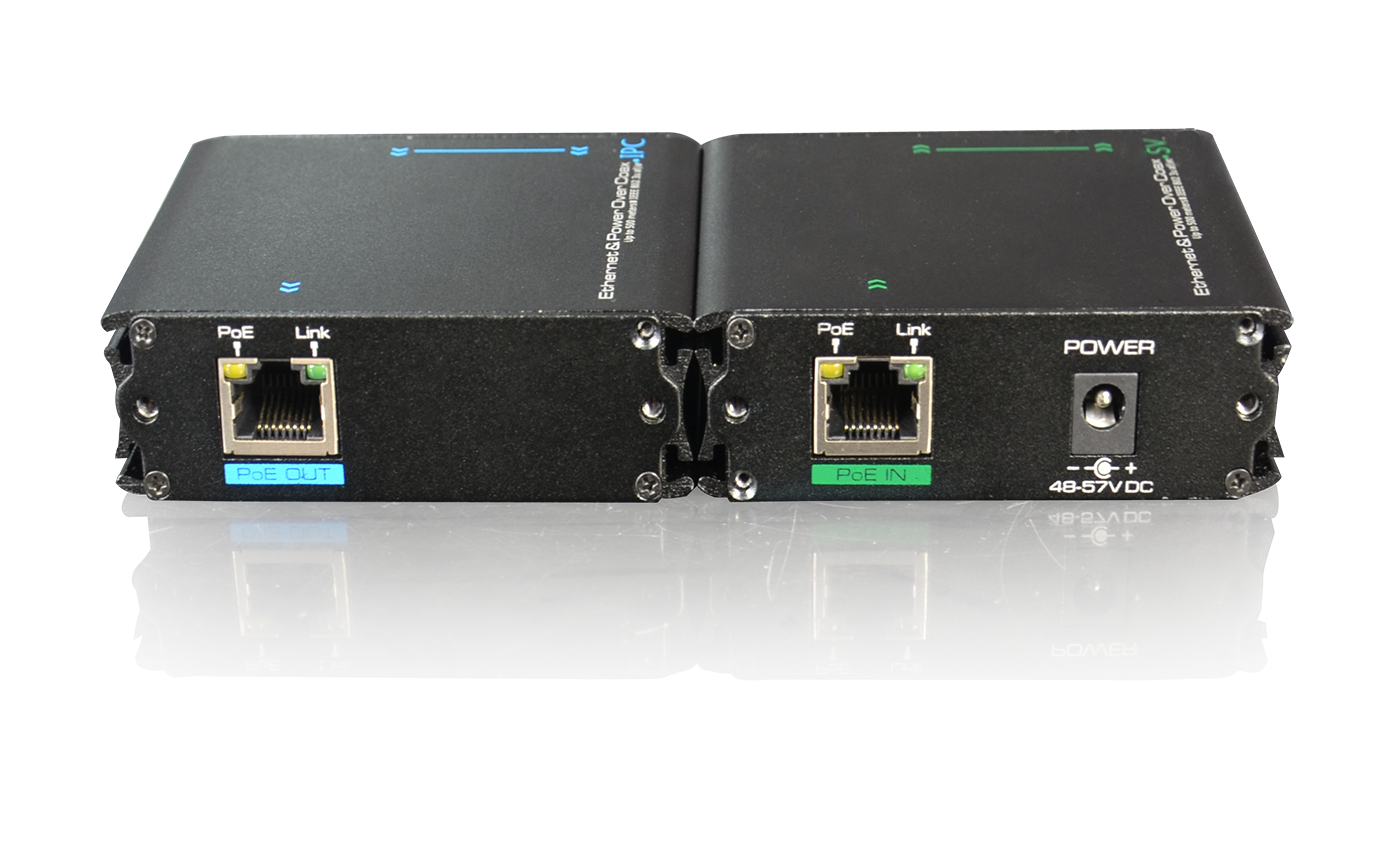

  • SVUnit has 48-57V DC port, one PoE input port and two output ports: BNC and RJ45;

  • IPC-Unit has two input ports: BNC and RJ45, one PoE output port;

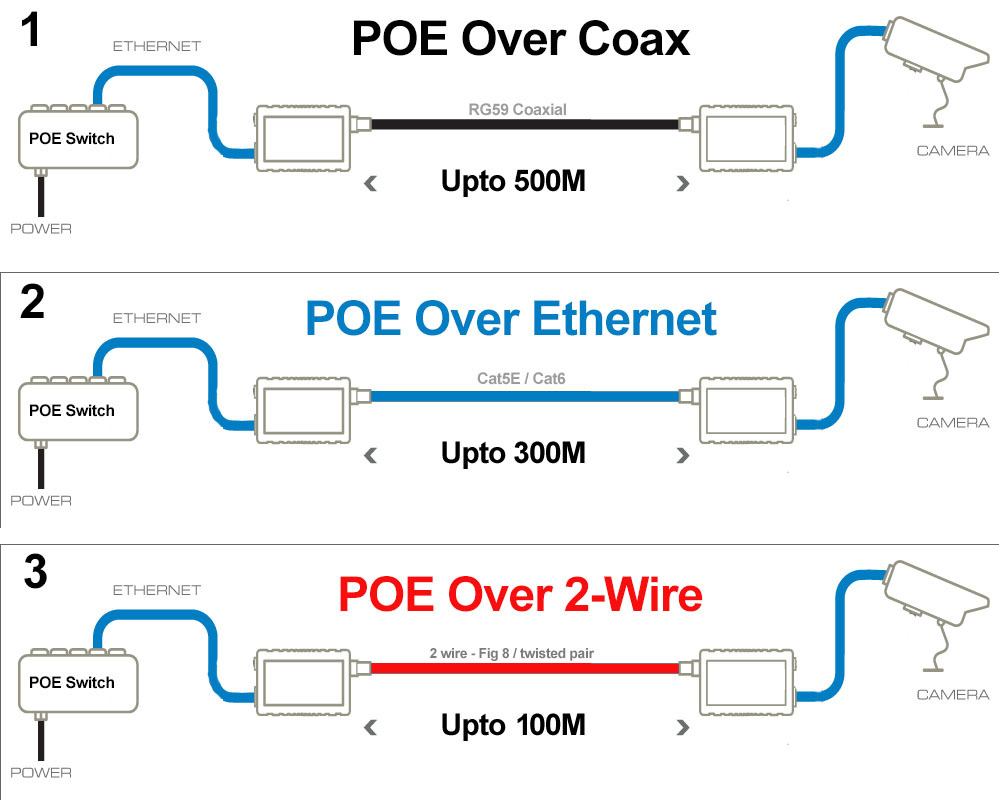

  • The POE-C2W Adopts advanced transmission and power supply technoloy, can transmit Ethernet signal and power signal up to 500m through

  • coaxial cable and transmit Ethernet signal and power signal up to 400m through network cable;

  • Ethernet delay less than 1ms; meet point to point application; Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASETX, IEEE802.3af/at;

  • Protection: excellent circuit isolation protection, superior product anti-thunder , anti-static and anti-interference;

  • Standard working temperature: -40℃~75℃;

  • Installation: Plug-and-play, no setting required.

Model

Description

Power

Power Supply

PoE power supply or power adapter supply

Input Voltage

DC 48V~57V

Consumption

<2W

Ethernet Port Parameter

Ethernet Port

EPOC: 0--100Mbps   Ethernet: 10/100Mbps

Transmission bandwidth changes with transmission distance,please refer to table 1

Transmission Distance

EPOC Coaxial Cable: 0-500m

EPOC Network Cable: 0-400m

Transmission Medium

75-5 Above Coaxial Cable and Cat5e/6

PoE Agreement

Support IEEE802.3af, IEEE802.3at

PoE Power Method

End-span and Mid-span

Ethernet Exchange

Standard and Protocols

IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX

Ethernet Delay

<1ms

Status

Indicator LED

PoE IN/OUT Port:

One indicates PoE power supply or DC power status(RJ45 yellow), one indicates Ethernet signal transmission(RJ45 green);

Protection Level

ESD Immunity

1a Contact Discharge level 3

1b Air Discharge level 3

Per: IEC61000-4-2

Surge Immunity

Per: IEC61000-4-5 level 3

Operation Envioronment

Operating Temperature

-40℃~+75℃

Storage Temperature

-40℃~+85℃

Humidity(No-Condensing)

0~95%

Mechanical

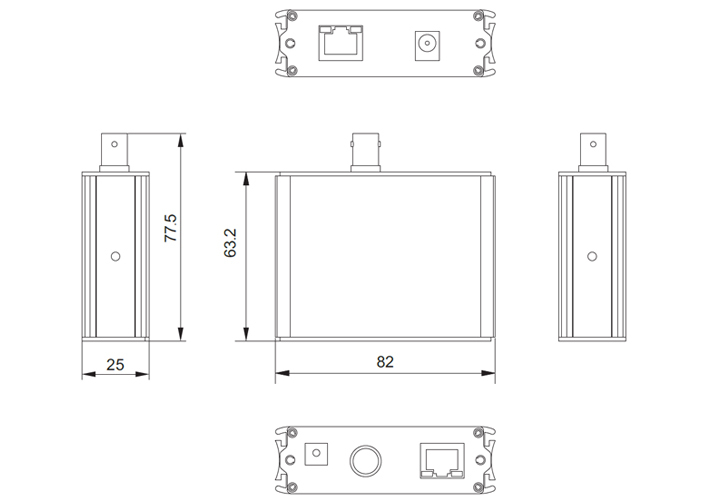

Dimension(L×W×H)

63.2mm×82mm×25mm

Material

Aluminum

Color

Black

Weight

IPC:153g; SV:154g

  •

(POE-C2W-IPC)

SKU POE-C2W-IPC
Brand LTS
Shipping Weight 0.1910kg
Shipping Width 0.094m
Shipping Height 0.032m
Shipping Length 0.125m
Shipping Cubic 0.000376000m3
