LTS Platinum HDMI KVM Extender over Cat5e/6 Cable - 120m Range

LTS Platinum HDMI KVM Extender Over Cat5e/6 - 120 Metre Range

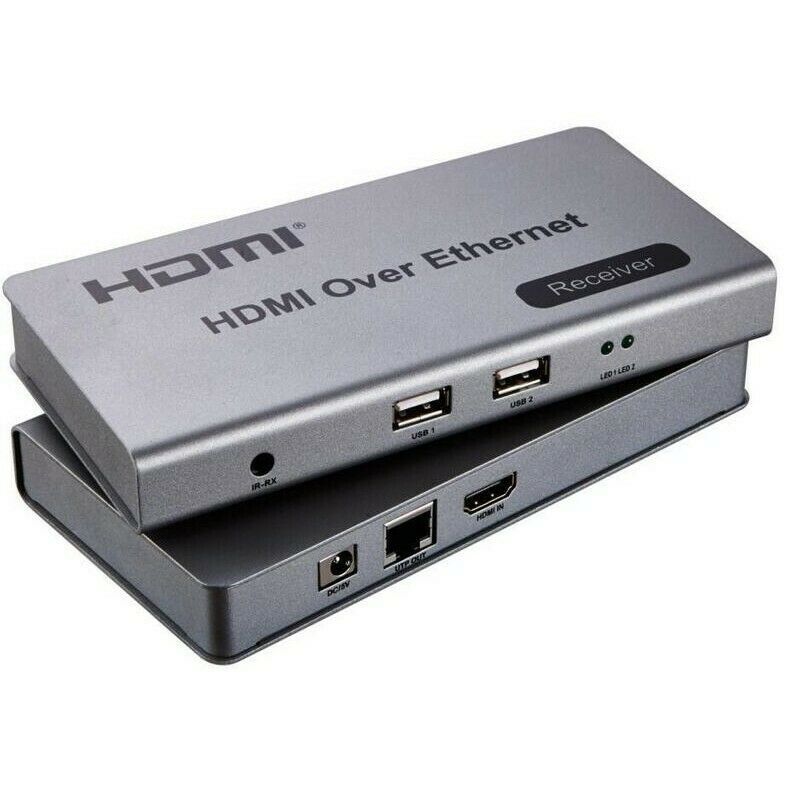

The LTS Platinum HDMI-KVM120M lets you send HDMI video plus USB keyboard and mouse control over a single run of standard Cat5e or Cat6 network cable, eliminating the cost and hassle of running expensive long-distance HDMI cable. Supplied as a matched transmitter and receiver pair, this extender is built for control rooms, NVR/DVR monitoring stations, digital signage, and any installation where the display needs to sit well away from the source device.

Key Features

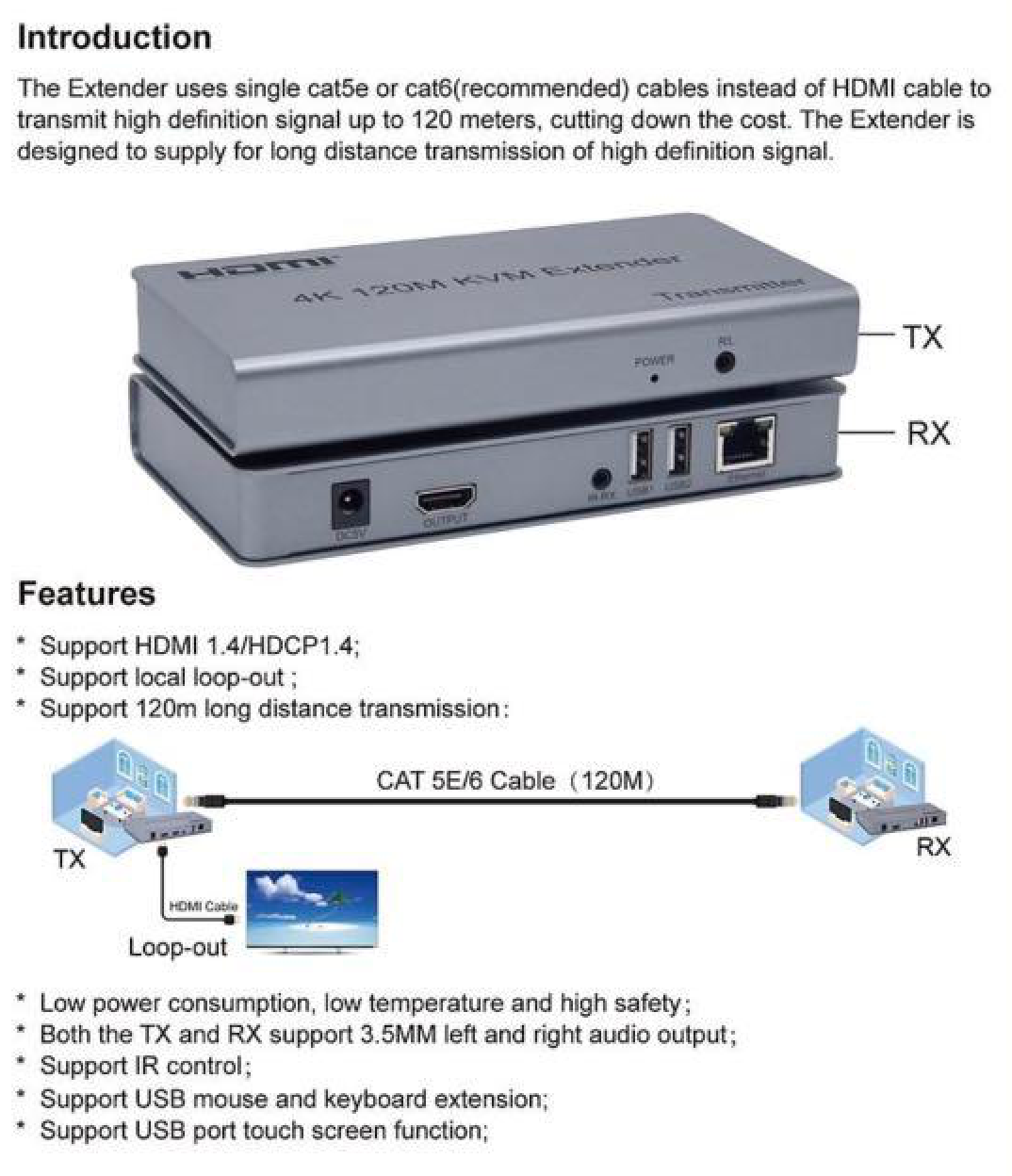

• Long-distance HDMI extension up to 120 metres using a single Cat5e or Cat6 cable instead of a dedicated HDMI run
• Integrated KVM support - extends USB keyboard and mouse signals alongside video so you can control the source remotely
• HDMI loop-out on the transmitter for local monitoring while simultaneously feeding the extended signal to the remote display
• Supports common video resolutions from 480i up to 4K/1080p depending on source and cable quality
• IR extender support for remote-control pass-through between the two ends of the link
• Expandable network topology - can be run through an Ethernet switch for added flexibility in cable routing
• Supplied with DC 5V power packs for both the transmitter and receiver units
• Plug-and-play operation with no drivers or software configuration required
• Low power consumption and low operating temperature for reliable 24/7 use in racks and cabinets

Typical Applications

This KVM extender is ideal for security control rooms and monitoring centres where an NVR, DVR, or PC needs to be operated from a separate console some distance away - for example, keeping recording equipment locked in a server rack while the operator workstation, keyboard, and mouse sit at a front desk or guard station. It also suits digital signage, classrooms, boardrooms, and any environment where running a long HDMI cable is impractical or costly, but a Cat5e/6 network run is already available or easy to install.

What's in the Box

• 1x Transmitter (TX) unit
• 1x Receiver (RX) unit
• 2x DC 5V power adapters
• Quick-start instructions

Frequently Asked Questions

Q: What type of cable do I need between the transmitter and receiver?
A: A single run of standard Cat5e or Cat6 network cable is all that's required to link the TX and RX units up to 120 metres apart.

Q: Can I still control the source PC, NVR, or DVR from the remote end?
A: Yes. The KVM function passes USB keyboard and mouse signals through the same cable run, so you can operate the connected device as if you were sitting right in front of it.

Q: Does it support monitoring at both ends at once?
A: Yes, the transmitter includes an HDMI loop-out port so you can view the source locally at the same time it is being extended to the remote display.
