LTS HDMI KVM Extender over Cat5e/6 Cable - Up to 150 Metres

LTS HDMI KVM Extender over Cat5e/6 Cable (HDMI-KVM150M)

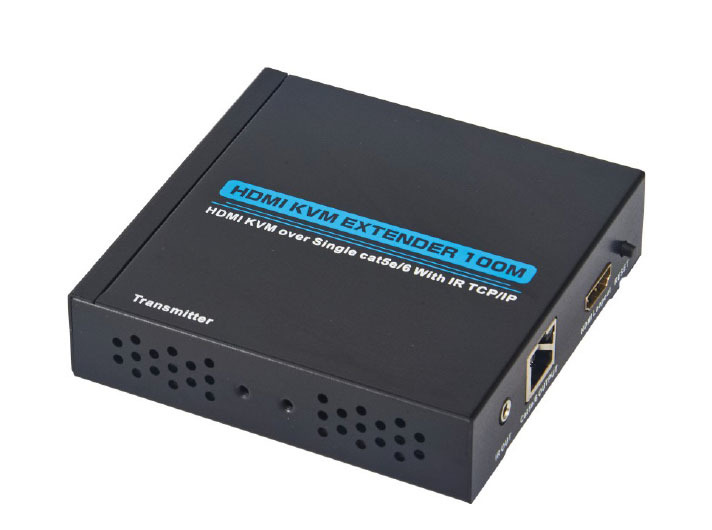

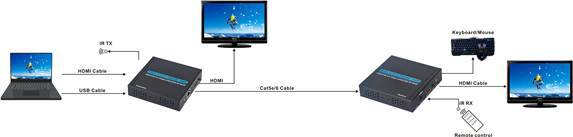

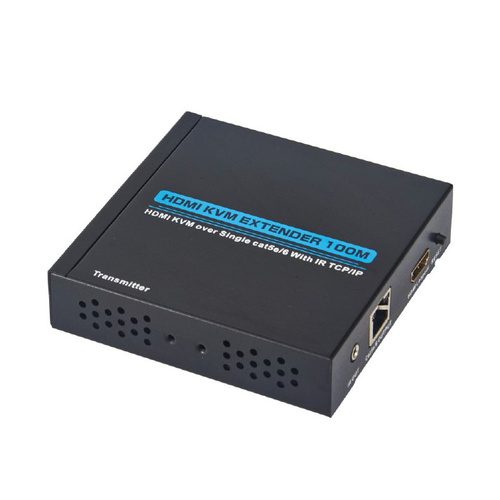

The LTS HDMI-KVM150M is a point-to-point HDMI and USB KVM extender designed to push high-definition video, plus keyboard and mouse control, over a single run of standard Cat5e or Cat6 network cable. Rather than running expensive, distance-limited HDMI cable across a building, installers can use structured cabling already in place to reach a monitor, control room console or public display up to 150 metres away. Supplied as a matched transmitter and receiver pair, it is built for CCTV control rooms, reception desks, digital signage and any installation where the source PC, NVR or workstation needs to sit well away from the display.

Key Features

• Long-distance HDMI extension - transmits HDMI video signals up to 150 metres over a single Cat5e/6 cable.
• Integrated KVM support - extends USB keyboard and mouse signals alongside video for full remote control of a connected computer or NVR.
• HDMI loop-out on the transmitter - allows a local monitor at the source end to display the same feed simultaneously.
• IR extender support - lets users pass infrared remote control signals from the display end back to the source device.
• Simple two-piece kit - supplied as one Transmitter (TX) and one Receiver (RX), ready to deploy as a pair.
• Plug & Play operation - no software configuration or drivers required; connect the cabling and power up.
• Scalable design - expandable to up to 200 receivers when deployed through a compatible Ethernet switch, suiting larger distribution setups.
• Included DC 5V power packs - power supplies are bundled for both the transmitter and receiver units.

Typical Applications

This extender is well suited to security and AV installations where the display needs to be located a long way from the source hardware, such as extending an NVR or PC output to a monitoring wall, guard station, reception area, or a secondary room in a warehouse or retail site. Because it rides on ordinary Cat5e/6 cabling, it is a practical fit for retrofits and new builds where structured cabling is already run, saving on costly long-length HDMI cable and simplifying cable management between equipment racks and display locations.

What's in the Box

• 1x HDMI KVM Transmitter (TX)
• 1x HDMI KVM Receiver (RX)
• 2x DC 5V power adapters

Frequently Asked Questions

Does this unit support keyboard and mouse control at the remote end?
Yes. The receiver includes USB input for a mouse and keyboard, letting you control the source computer or NVR remotely as though you were sitting in front of it.

Can I still view the source locally while extending the signal?
Yes. The transmitter has an HDMI loop-out port, so a local monitor can display the same signal being sent to the remote receiver.

What cable do I need, and can I extend beyond 150 metres?
Use a single run of Cat5e or Cat6 cable between the transmitter and receiver. For larger deployments beyond a single point-to-point link, the system can scale up to 200 receivers when connected through a compatible Ethernet switch.
