LTS HDMI-E60 HDMI Extender over Cat5e/6 Cable - 60m Range with IR Support

LTS HDMI-E60 HDMI Extender over Cat5e/6 Cable (60 Metres)

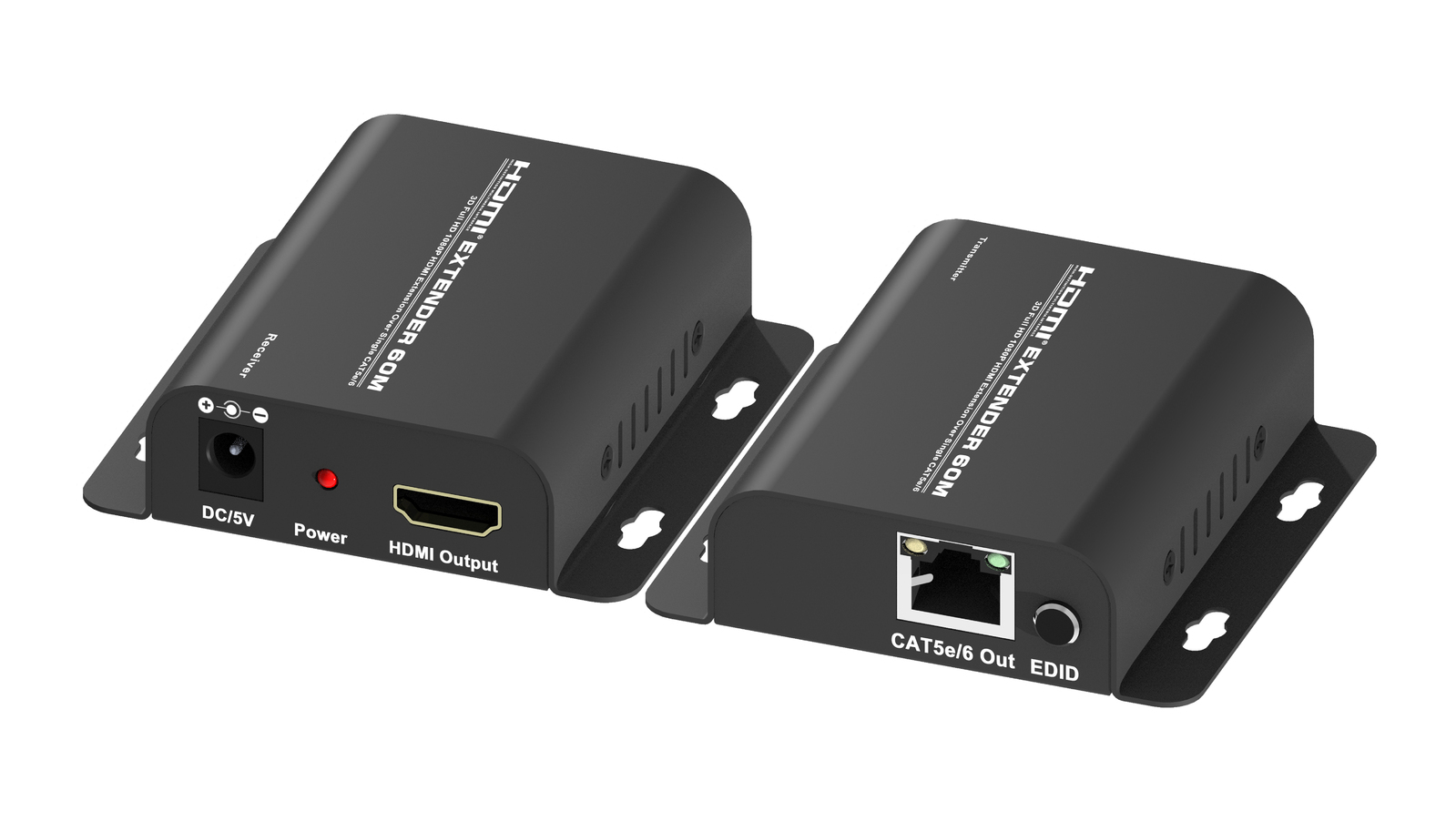

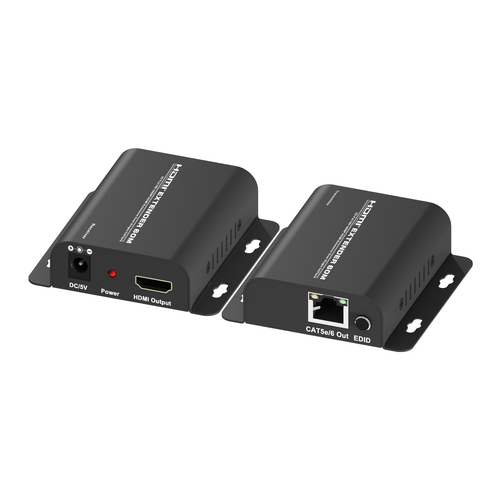

The LTS HDMI-E60 is a transmitter/receiver pair that lets installers push a full HDMI signal over a single run of standard Cat5e or Cat6 network cable, reaching distances of up to 60 metres. Instead of running expensive, bulky HDMI cable through walls, ceilings or conduit, technicians can use readily available structured cabling to relocate monitors, displays or control room screens far from the source device. This makes the HDMI-E60 a practical accessory for security control rooms, NVR/DVR monitor walls, digital signage and general AV installations where the display needs to sit well beyond the reach of a standard HDMI lead.

Key Features

• Long-distance HDMI extension over a single Cat5e/6 cable, rated to a maximum of 60 metres.
• Supplied as a matched pair: one Transmitter (TX) and one Receiver (RX) unit.
• Wired to the IEEE-568B cabling standard for straightforward compatibility with existing network infrastructure.
• IR Extender support, allowing remote-control signals to be passed between locations alongside the video feed.
• Plug & Play operation with no drivers, configuration or software setup required.
• Includes a DC 5V power pack for reliable, stable operation.
• Compact transmitter and receiver housings suited to discreet mounting behind screens or inside equipment racks.
• Ideal companion accessory for LTS Platinum and PRO-X NVRs, DVRs and monitors in surveillance installations.

Typical Use Cases

The HDMI-E60 is commonly deployed in security and surveillance environments where an NVR or DVR is installed in a rack room but the live monitoring display is located in a separate office, reception area or control room. It is equally useful in commercial AV setups such as boardrooms, retail signage, classrooms and reception displays, where running long or multiple HDMI cables is impractical. Because it uses common Cat5e/6 cabling, it also suits new-build or renovation projects where network cable is already being installed, reducing the need for separate dedicated video cabling runs.

What's in the Box

• 1 x Transmitter (TX) unit
• 1 x Receiver (RX) unit
• 1 x DC 5V power pack

Frequently Asked Questions

Does the HDMI-E60 require a special cable?
No. It works over standard Cat5e or Cat6 network cable wired to the IEEE-568B standard, the same type commonly used for networking and PoE runs.

Can I control a source device at the far end?
Yes. The HDMI-E60 supports an IR extender function, letting remote-control signals pass between the transmitter and receiver locations.

Is external power required at both ends?
The kit includes a DC 5V power pack to ensure stable, consistent signal transmission across the full 60 metre distance.
