LTS HDMI-E30 Single Cat5e/6 HDMI Extender Kit - 30 Metre Range

LTS HDMI-E30 HDMI over Cat5e/6 Extender (30 Metres)

The LTS HDMI-E30 is a compact HDMI extender kit designed to push a high-definition HDMI signal well beyond the usual cable limits by running it over a single, easy-to-source Cat5e or Cat6 network cable. Supplied as a matched transmitter and receiver pair, this extender is ideal for security control rooms, retail displays, offices and any installation where the HDMI source and the monitor need to be separated by up to 30 metres without the expense or bulk of a long HDMI lead.

Key Features

• Single-cable design - extends HDMI video and audio using just one length of Cat5e or Cat6 cable instead of a dedicated HDMI run.
• Up to 30 metre reach - ideal for connecting sources and displays across separate rooms or long corridors.

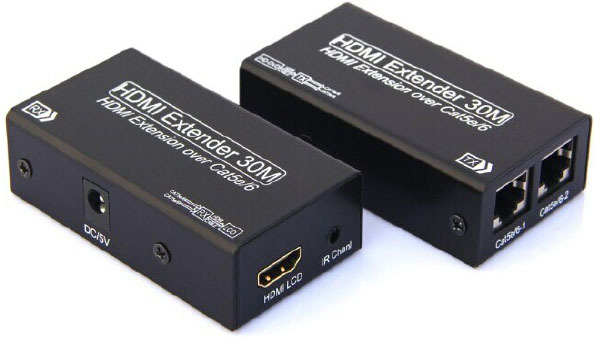

• Transmitter and receiver pair - one TX unit connects to the source, one RX unit connects to the display, sold as a matched kit.
• IEEE-568B wiring standard - compatible with standard structured cabling practices used in commercial and residential installs.
• Plug and Play operation - no software, drivers or configuration required for setup.
• DC 5V power supplies included - both the transmitter and receiver ship with their own power pack.
• Supports common HD resolutions - designed for clean, low-latency transmission of standard HD video signals.
• Compact housings - small footprint units that mount discreetly behind a display or inside an equipment rack.

Typical Applications

The HDMI-E30 suits any scenario where an HDMI source, such as a DVR, NVR, media player or PC, needs to be located a distance away from its monitor or TV. It's commonly used in security and surveillance rooms to relay footage from an NVR to a remote monitoring screen, in retail and hospitality settings for digital signage, and in offices or meeting rooms where the source equipment is kept out of sight in a rack or cupboard. Because it uses readily available Cat5e/6 cable rather than specialty long-run HDMI leads, it's a cost-effective way to wire up permanent installations.

What's in the Box

• 1 x HDMI Transmitter (TX) unit
• 1 x HDMI Receiver (RX) unit
• 2 x DC 5V power adapters
• Quick installation guide

Frequently Asked Questions

Q: What type of cable do I need to run between the transmitter and receiver?
A: A single length of Cat5e or Cat6 network cable wired to the IEEE-568B standard, run as a continuous point-to-point connection rather than through patch panels for best reliability.

Q: Do I need any special software to set this up?
A: No. The HDMI-E30 is a plug-and-play device - simply connect the HDMI source to the transmitter, run the Cat5e/6 cable to the receiver, connect the receiver to your display, and power both units.

Q: Can I use this with my LTS NVR or security monitor?
A: Yes, it's well suited to relaying HDMI output from an NVR or DVR to a remote monitor in a control room or reception area, up to 30 metres away.
