LTS HDMI Extender over Cat5e/6 with IR - 120M Transmitter/Receiver Kit

LTS HDMI-E120IR Extender over Cat5e/6 Cable (120M) with IR Support

The LTS HDMI-E120IR is a professional HDMI extender kit designed to push HDMI audio and video signals well beyond the standard limitations of an HDMI cable. Using a single Cat5e or Cat6 network cable, this transmitter and receiver pair lets installers relocate a source device (DVR, NVR, media player or PC) up to 120 metres away from a display, making it a practical accessory for security control rooms, integrated home theatres, classrooms and commercial AV installations where long cable runs are required.

Key Features

• Long-distance HDMI transmission: Extends HDMI signal up to 120 metres over a single run of Cat5e or Cat6 cable, removing the need for expensive long HDMI cable runs.
• TCP/IP based transmission: Signal is carried using an Ethernet-style TCP/IP transport method, allowing straightforward integration into standard structured cabling.
• Built-in IR extender: Supports infrared remote pass-through, so a source device can still be controlled remotely from the display end of the link.

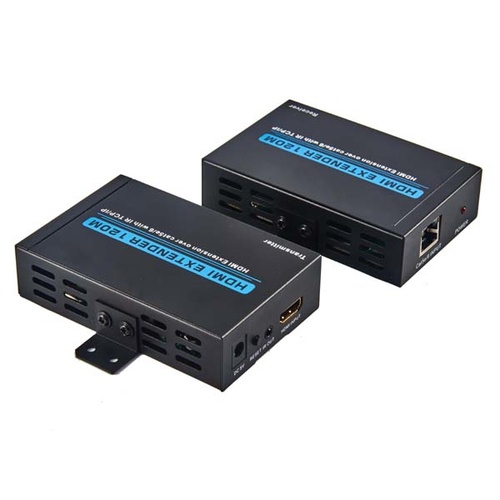

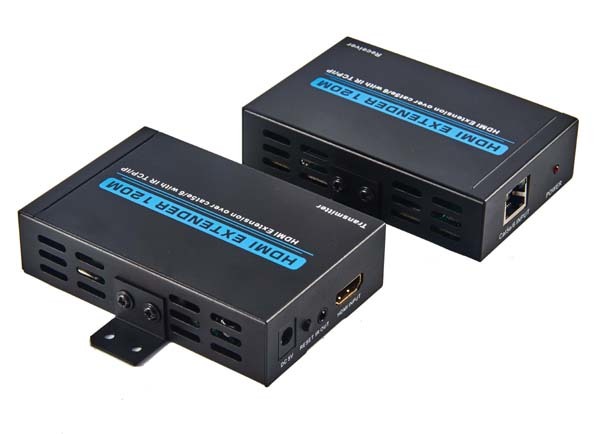

• Simple TX/RX pair design: Includes one Transmitter (TX) and one Receiver (RX) unit, supplied as a matched pair ready to deploy.
• Plug & Play operation: No software, drivers or complex configuration required - simply connect the HDMI source and display and power up.
• Standard cabling compliance: Cable termination follows the IEEE/TIA-568B wiring standard, so installers can use common networking tools and connectors.
• Compact, low-power design: Each unit is powered via an included DC 5V power pack, keeping installation tidy at both ends of the link.
• Reliable point-to-point link: Ideal for extending a single HDMI source to a single remote display without signal loss over the rated distance.

Typical Applications

This extender is commonly used by security integrators and AV installers who need to place an NVR, DVR or media player in a rack room or cabinet while keeping the monitor or display in a separate location, such as a reception desk, control room or meeting space. It also suits retail digital signage, classroom AV setups, and any installation where running a long HDMI cable directly is impractical or where signal degradation over distance is a concern.

What's in the Box

• 1x HDMI Transmitter (TX) unit
• 1x HDMI Receiver (RX) unit
• DC 5V power adapters for TX and RX
• IR extender cables/sensors for remote pass-through

Frequently Asked Questions

Q: What type of cable do I need to run between the transmitter and receiver?
A: A single, straight-through Cat5e or Cat6 network cable terminated to the IEEE-568B standard is required between the TX and RX units.

Q: Can I still use my remote control on the source device once it is relocated?
A: Yes, the kit includes IR extender support, allowing infrared remote commands to be passed back to the source device from the display location.

Q: Does this extender require any special software or network switches to operate?
A: No, the HDMI-E120IR works as a simple Plug & Play point-to-point link between the transmitter and receiver with no additional configuration needed.
