LTS HDMI 1x2 Video Distributor with 4K, 1080p & 3D Support

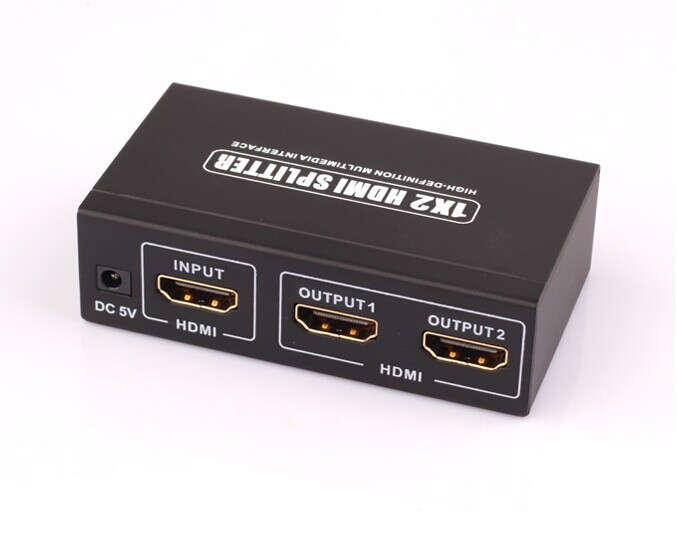

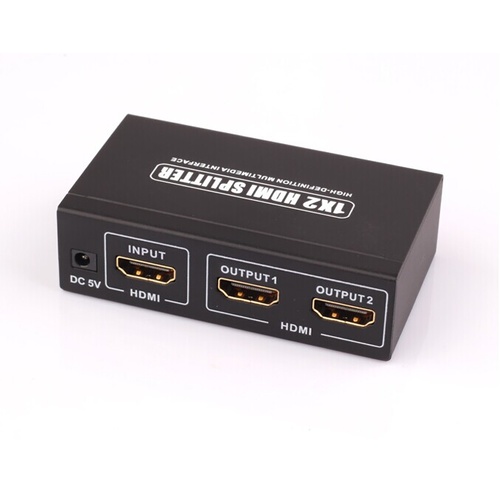

LTS HDMI 1x2 Video Distributor (HDMI-S002)

The LTS HDMI-S002 is a compact 1-in, 2-out HDMI video distributor designed to take a single HDMI source and mirror it across two separate displays without any loss in picture quality. Built to the HDMI 1.4 specification, it is a practical accessory for CCTV monitoring rooms, security offices, retail displays, and home theatre setups where the same feed needs to appear on more than one screen at once. Its simple plug-and-play design means no configuration, software, or driver installation is required.

Key Features

• 1x In / 2x Out HDMI signal distribution from a single source to two independent displays simultaneously
• Fully compliant with the HDMI 1.4 specification for reliable compatibility with modern HDMI source and display devices
• Supports 1080p, 4K, and 3D video resolutions for crisp, detailed image reproduction
• HDCP compliant, allowing seamless pass-through of protected high-definition content
• High signal bandwidth of up to 340MHz with a maximum data rate of roughly 10.2Gbps for stable, high-resolution transmission
• Deep colour support up to 48-bit for richer, more accurate colour reproduction
• Powered by an included DC 5V power adapter, ensuring a clean, boosted signal to both outputs
• Compact, lightweight enclosure suited to rack, desk, or discreet mounting near monitors or NVR stations
• No configuration or driver installation required — simply connect and power on

Typical Applications

The HDMI-S002 is ideal wherever a single HDMI feed — such as an NVR, DVR, media player, or set-top box — needs to be viewed on two screens at the same time. Security integrators commonly use it to duplicate a monitoring station feed to a secondary supervisor display, while it also suits retail signage, boardrooms, classrooms, and home theatre installations that require the same source on two televisions or monitors without a costly matrix switcher.

What's in the Box

• 1x HDMI-S002 Video Distributor unit
• 1x DC 5V Power Adapter
• Quick installation guide

Frequently Asked Questions

Does the HDMI-S002 reduce video quality when splitting the signal?
No. The unit amplifies and duplicates the incoming HDMI signal, so both outputs receive the same high-definition image without visible degradation.

Can I use this distributor with a 4K source?
Yes, the HDMI-S002 supports 4K resolution in addition to 1080p and 3D formats, making it suitable for most modern HDMI sources.

Do I need external software to set this up?
No setup is required. Simply connect the HDMI source to the input, connect displays to the two outputs, and plug in the included 5V power adapter.
