LTS 1x4 HDMI Video Distributor - 1 In / 4 Out Splitter Amplifier

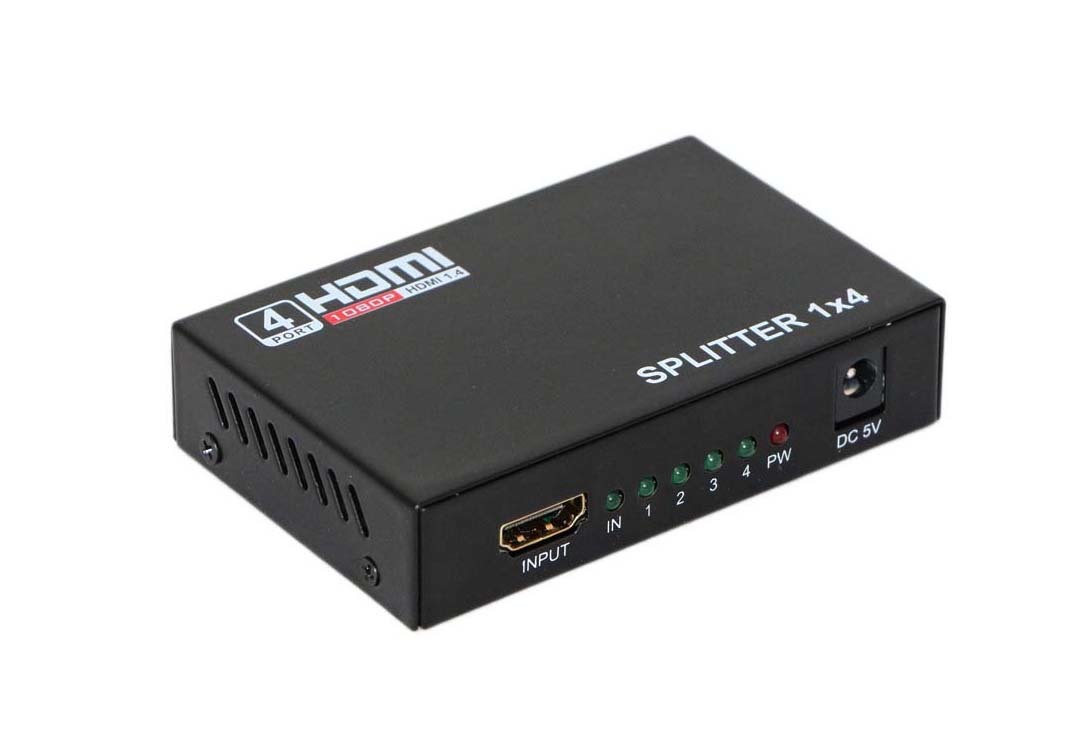

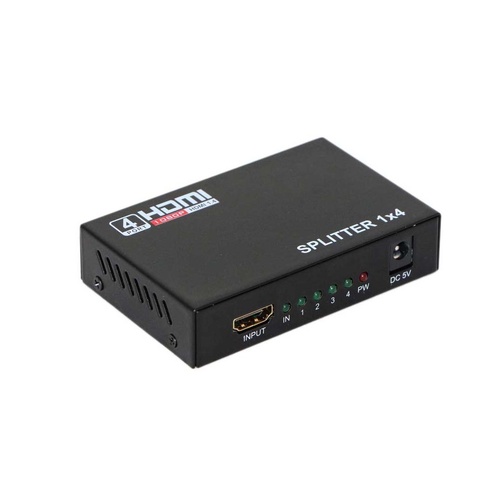

LTS HDMI Video Distributor - 1 In / 4 Out (HDMI-S004)

The LTS HDMI-S004 Video Distributor takes a single HDMI source and mirrors it across four separate displays simultaneously, making it a practical accessory for CCTV control rooms, monitor walls, and any installation that needs the same video and audio feed shown in multiple locations at once. Built to the HDMI 1.4 standard, it supports Full HD 1080p and 3D content while buffering and amplifying the signal so picture quality stays sharp across every connected screen.

Key Features

• 1 In, 4 Out Design: Duplicates one HDMI input across four HDMI outputs at the same time, with no loss of quality between displays.
• HDMI 1.4 Compliant: Compatible with a wide range of DVRs, NVRs, media players, and set-top boxes that use HDMI 1.4-standard output.
• 1080p & 3D Support: Delivers crisp Full HD video and is capable of passing through 3D-encoded content to compatible displays.
• Signal Amplification & Buffering: Regenerates the HDMI signal internally, which helps maintain clarity over longer cable runs and when driving several monitors.
• HDCP-Aware Operation: Designed to work smoothly with copy-protected sources without interrupting playback on connected displays.
• Simple Plug-and-Play Setup: No configuration software or menus required; just connect the source and the four output displays and power it on.
• Compact, Durable Housing: A small-footprint enclosure suited to equipment racks, AV cabinets, or discreet mounting near a monitor bank.
• External 5V Power Supply Included: Powered via an included DC 5V adapter for reliable, consistent operation.

Ideal for Multi-Monitor Security & AV Setups

This distributor is best suited to environments where the exact same HDMI feed needs to reach several screens without the cost or complexity of a full video wall processor. Typical applications include security operations centres viewing a single NVR/DVR HDMI output on multiple monitors, retail or reception areas mirroring a single media source, and training rooms or showrooms that need identical content on several displays at once. Because it only duplicates a signal rather than switching between sources, it pairs well with a single HDMI-output recorder or player feeding a small bank of monitors.

What's in the Box

• 1x LTS HDMI-S004 Video Distributor (1 In / 4 Out)
• 1x DC 5V Power Adapter

Frequently Asked Questions

Can this unit combine four sources into one screen?
No. The HDMI-S004 is a one-way distributor/splitter - it takes a single HDMI input and duplicates it to four outputs; it cannot merge multiple sources or act as a switcher.

Do all four output displays need to use the same resolution?
For best results, connected displays should support the same resolution and refresh rate, since all four outputs carry an identical mirrored signal from the single source.

Will it work with an NVR or DVR HDMI output?
Yes, it is designed to work with standard HDMI 1.4 sources such as security NVRs, DVRs, and media players, making it well suited to multi-monitor surveillance viewing setups.
