Ajax KeyPad Fibra Black Wired Touch Keypad for Security System

Ajax KeyPad Fibra Black Wired Touch Keypad

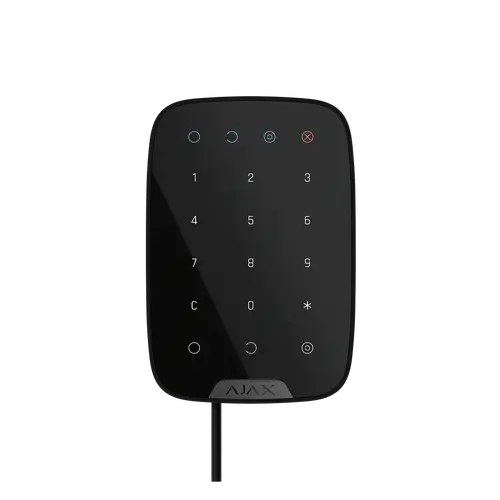

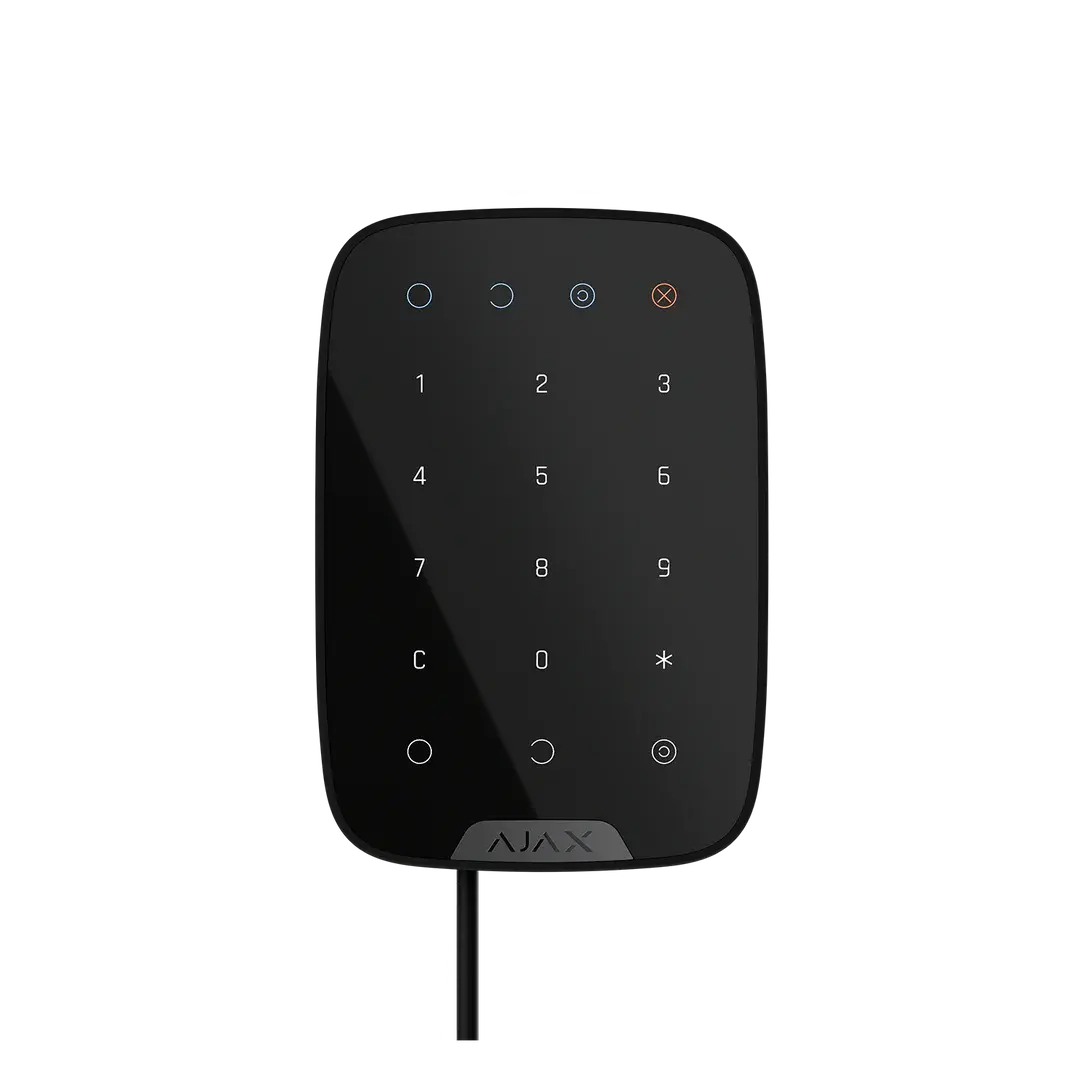

The Ajax KeyPad Fibra in black is a wired touch keypad built for the Ajax Fibra product line, giving installers a robust, cable-based way to arm, disarm, and manage an Ajax security system. Designed for entryways and control points, it combines a sleek touch interface with the reliability of a hardwired connection to the hub, making it ideal for commercial and residential installations where wired infrastructure is preferred over radio.

Key Features

• Wired Fibra communication with the hub, supporting a connection range of up to 2,000 metres over U/UTP cat.5 twisted pair cable.
• Two-way data exchange between the keypad and hub for reliable event and status reporting.
• Multiple access code types, including a shared keypad code, personal user codes, and codes for unregistered users, each logged individually in the Ajax app.
• Duress code support, allowing a user to disarm under coercion while silently alerting the monitoring station.
• Anti-tamper protection that triggers an alert if the keypad is removed from its SmartBracket mounting panel or pried off the wall.
• Brute-force lockout, temporarily locking the keypad for 3 to 180 minutes after three incorrect code entries within one minute.
• LED status indication for armed, disarmed, night mode, and malfunction states, giving users an instant visual read of system status.
• 4 to 6 digit code flexibility, configurable per user or per keypad through the Ajax app.
• Sleek, minimalist black enclosure designed to blend into modern interiors near entrances.

Where It Fits

This keypad suits homes, offices, warehouses, and multi-tenant buildings already using or planning a wired Ajax Fibra installation. It's typically mounted near a main entrance so residents or staff can quickly arm or disarm the system, switch to Night Mode, or trigger a duress alert if needed. Because it draws power directly from the control panel over the Fibra line, there are no batteries to replace, which suits sites where long-term, low-maintenance operation is a priority.

What's in the Box

• Ajax KeyPad Fibra unit (black)
• SmartBracket mounting panel
• Mounting screws and fixings
• Terminals for Fibra line connection
• Quick start guide

Frequently Asked Questions

Does the KeyPad Fibra need its own power supply?
No, it is powered directly by the Ajax hub through the Fibra wired line, so no separate power adapter is required for basic operation.

How far can the keypad be from the hub?
Using U/UTP cat.5 twisted pair cable, the wired connection can extend up to 2,000 metres from the hub.

Can I use a duress code with this keypad?
Yes, a duress code can be set up so a user can disarm the system under threat while covertly alerting the monitoring company.
