Ajax Superior KeyPad TouchScreen Fibra White Wired Touch Keypad

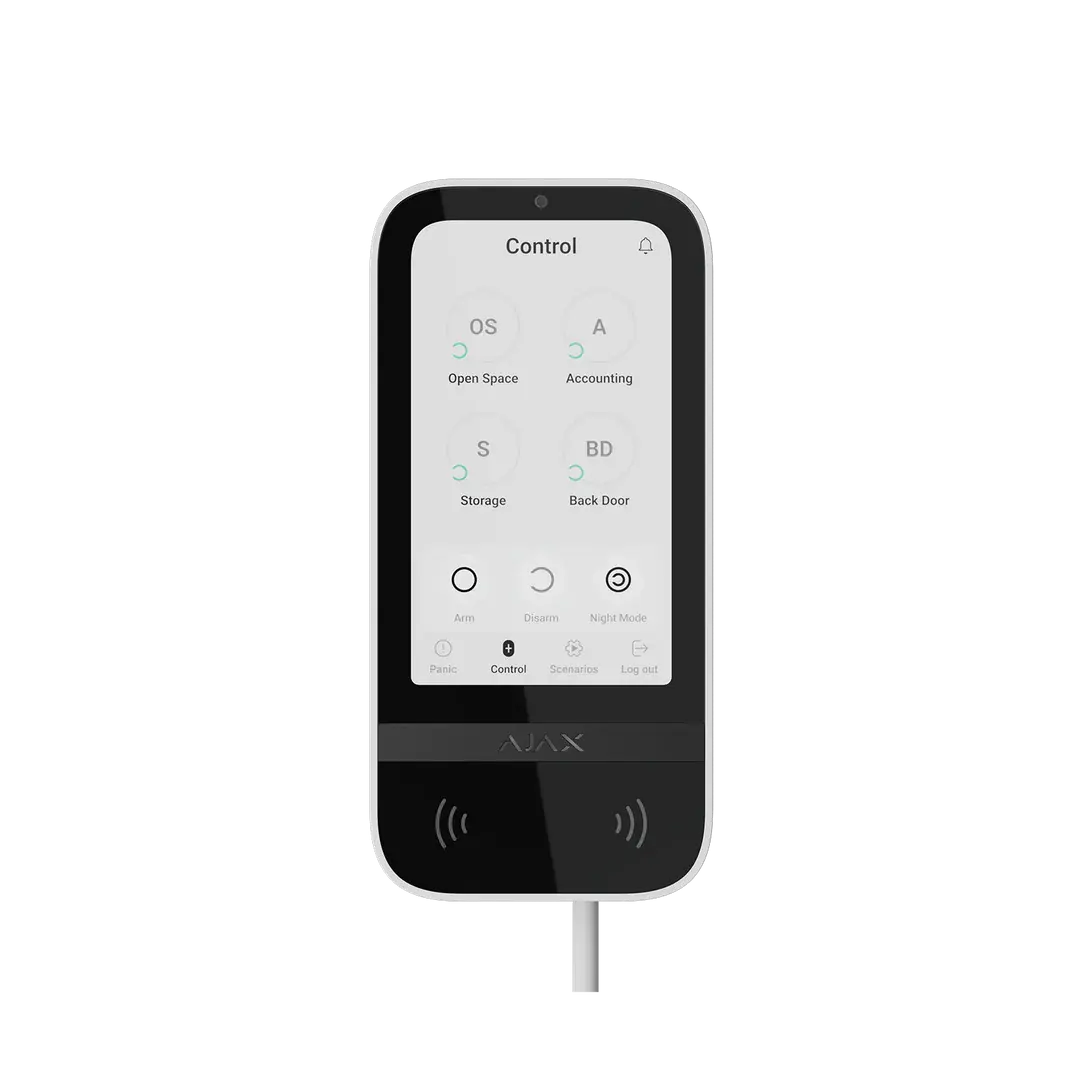

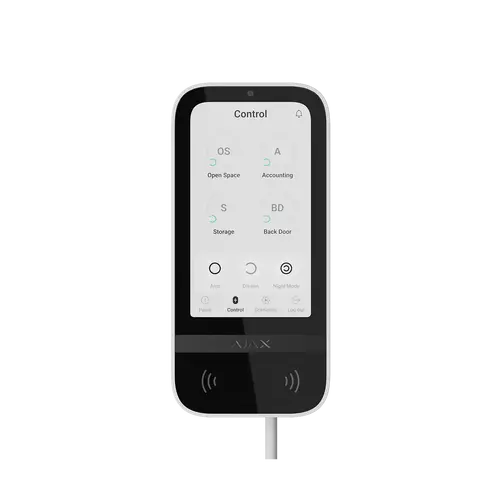

Ajax Superior KeyPad TouchScreen Fibra White

The Ajax Superior KeyPad TouchScreen Fibra is a wired touchscreen control keypad built for professional Ajax security installations. Finished in white, it pairs a crisp 5-inch touch display with the encrypted Fibra wired protocol, giving installers a Grade 3 certified device suited to residential, commercial, and high-risk sites where a hardwired control point is preferred over a wireless keypad.

Key Features

• 5-inch IPS touchscreen with selectable light or dark interface themes for clear visibility in any environment
• Ambient light sensor that automatically adjusts backlight brightness and wakes the display as a user approaches
• Multiple authentication methods including personal PIN codes, encrypted Pass cards, Tag key fobs, and smartphone authentication via Bluetooth
• Secure two-way Fibra wired communication with the hub, featuring encryption and device authentication to resist sabotage and spoofing
• Group mode support, letting users view and change the security status of individual zones or the entire object from one screen
• Built-in panic button and duress code functionality for discreet alarm notification during forced disarm situations
• Tamper protection that alerts if the keypad is detached from its mounting bracket or removed from the wall
• On-screen event feed showing recent alarms, user activity, and authentication history
• Backup power via pre-installed rechargeable batteries, with the option to connect an external power supply for an always-active display

Suited to Professional Security Installations

Because it belongs to Ajax's Superior product line, this keypad is intended for accredited partners installing wired systems in offices, retail premises, warehouses, and other facilities that require Grade 3 and PD 6662:2017 compliant equipment. It typically sits near an entrance or reception point, giving staff a fast, reliable way to arm, disarm, and monitor the system, as well as trigger connected automation scenarios such as lighting or shutter control.

What's in the Box

• Superior KeyPad TouchScreen Fibra unit (white)
• SmartBracket mounting panel
• Mounting screws and fixings
• Pre-installed rechargeable backup batteries
• Quick start guide

Frequently Asked Questions

Does this keypad need its own power supply?
It is powered directly through the Fibra wired line from the hub, with rechargeable batteries providing backup power. An external 12V power supply can be added if you want the screen permanently active.

Can it be installed outdoors?
No, this keypad is designed for indoor use only. Ajax offers a separate outdoor-rated keypad for exterior locations.

Is it compatible with any Ajax hub?
It requires a hub or module that supports the Fibra wired protocol, and installation is limited to accredited Ajax Systems partners as part of the Superior product range.
