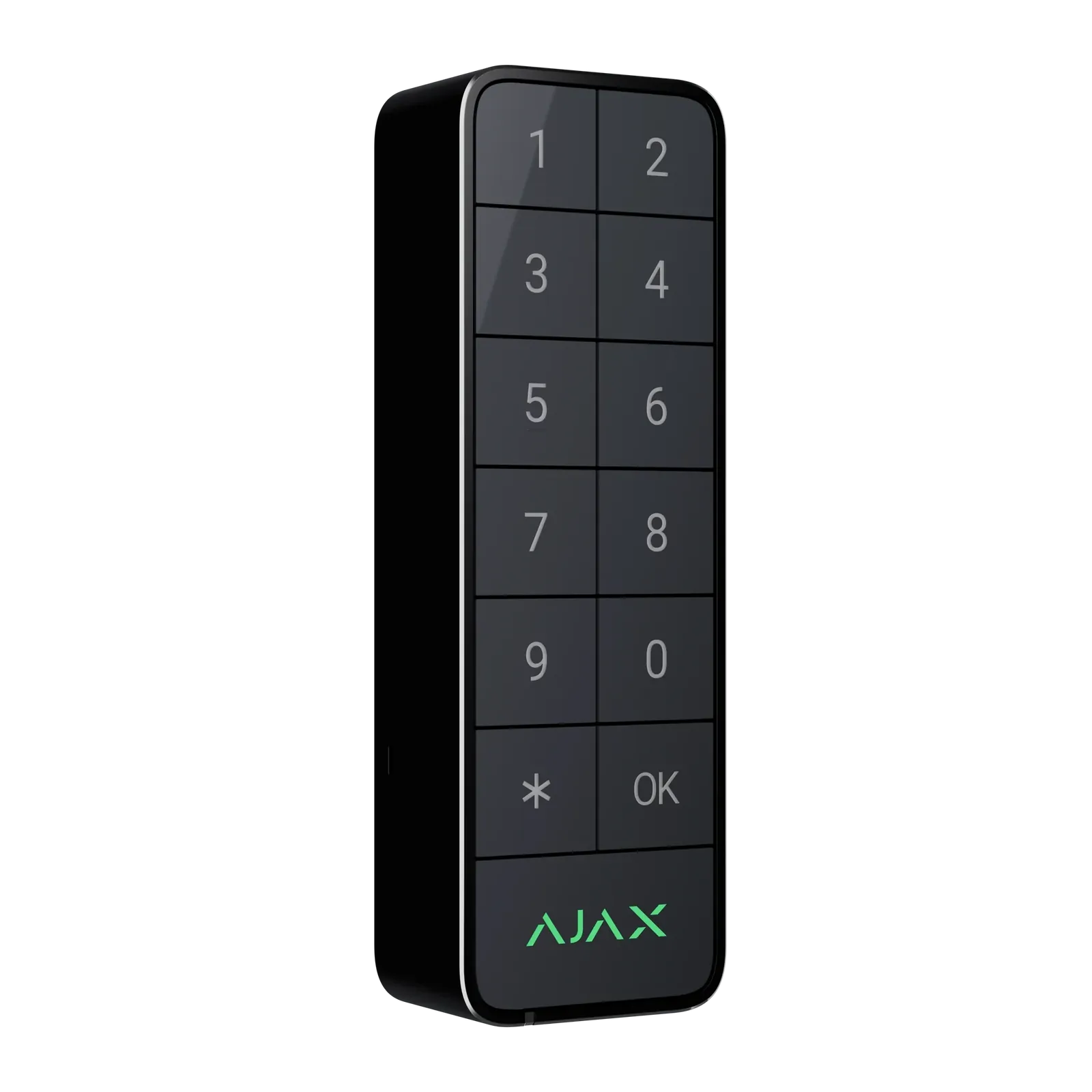

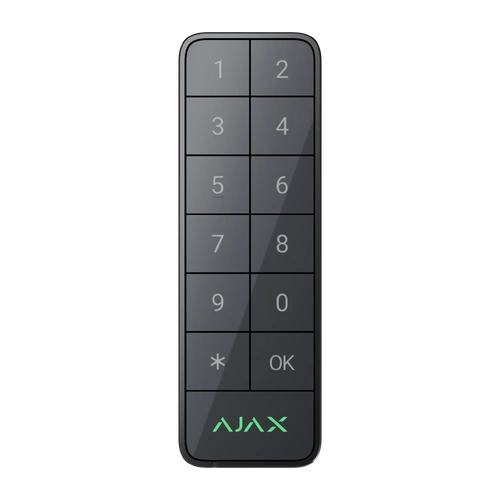

Ajax Superior KeyPad Outdoor Fibra Black Wired Access Keypad

Ajax Superior KeyPad Outdoor Fibra (Black)

The Ajax Superior KeyPad Outdoor Fibra is a rugged, wired control keypad built for demanding commercial and residential installations that need reliable arming, disarming, and automation control in any weather. Connected to the hub over the encrypted Fibra wired protocol, it lets users authenticate with a contactless Pass card, a Tag key fob, a smartphone via Bluetooth, or a numeric code, making it a flexible front-line access point for outdoor entrances, gates, and exposed walls.

Key Features

• Multiple authentication methods: unlock or arm the system using an encrypted DESFire Pass card, Tag key fob, a paired smartphone over Bluetooth Low Energy, or a personal code.
• Fibra wired communication: two-way encrypted data exchange with the hub over a standard U/UTP Cat.5 cable, supporting long cable runs across a site.
• Weatherproof and impact-resistant build: rated IP66 for dust and water ingress and IK08 for impact resistance, so it keeps working through rain, snow, heat, and rough handling.
• Wide operating range: functions reliably from -25°C to +60°C with humidity up to 80%, suitable for genuinely outdoor mounting.
• Large mechanical buttons: tactile keys that remain easy to press even while wearing gloves, with no worn or shiny keys to give away commonly used digits.
• Dual operating modes and automation control: configure primary and secondary functions to switch security modes, control automation scenarios, or set up entry/exit delay bypass, switching between modes with a long press of the OK button.
• Built-in tamper protection: two hardwired tamper buttons plus a holding screw detect any attempt to remove the keypad from its SmartBracket mounting panel.
• Dedicated function button: can be configured as a panic button or to silence connected fire alarms.
• Two-factor authentication support: optionally require both an access device and a code for higher-security entry points.

Built for Outdoor Access Control

This keypad suits gated entries, loading docks, warehouse exteriors, and any outdoor location where a business or homeowner needs a durable, professionally installed control point. Because it is part of Ajax's Superior product line, it is designed for supply and installation through accredited Ajax Systems partners, integrating into larger Fibra-wired security ecosystems alongside detectors, sirens, and hubs for centralized monitoring in the Ajax app.

What's in the Box

• Superior KeyPad Outdoor Fibra (Black)
• SmartBracket mounting panel
• Installation template
• Installation kit (screws and fixings)
• Quick start guide

Frequently Asked Questions

Can this keypad be mounted outdoors?
Yes. It is IP66 and IK08 rated, and it is designed to operate reliably in outdoor conditions including rain, snow, and temperature extremes.

How does it connect to the hub?
It communicates over the wired Fibra protocol using a standard four-wire U/UTP Cat.5 cable, which also supplies power from the hub.

Does it support smartphone unlocking?
Yes. Users with the Ajax app and a Bluetooth-enabled smartphone can authenticate without needing a Pass or Tag.
