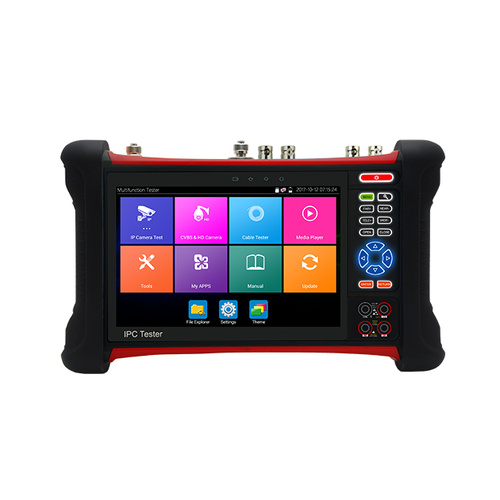

LTS 7-Inch All-in-One CCTV Tester with Digital Multimeter (LMX7-ITCAA-MP)

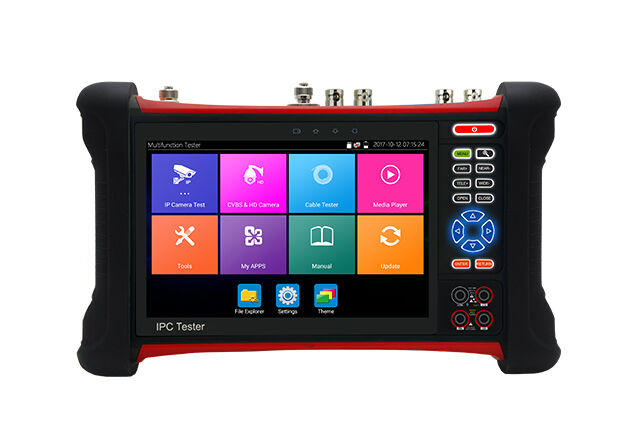

The LTS LMX7-ITCAA-MP is a professional-grade field tester built for installers and technicians who need to commission, troubleshoot and validate IP, analog and coaxial HD camera systems on site. Featuring a 7-inch Retina touch screen and a built-in digital multimeter, this all-in-one tool combines camera testing, network diagnostics, cable analysis and electrical measurement in a single rugged handheld unit, helping reduce the number of separate tools a technician needs to carry on every job.

Key Features

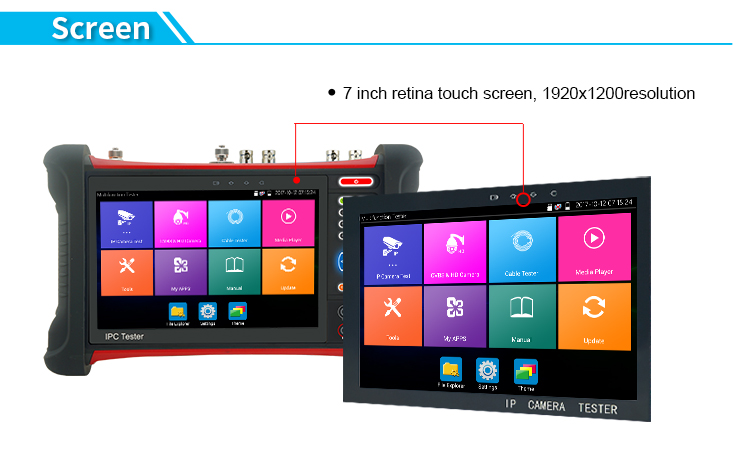

• High-resolution 7-inch touch screen with 1920x1200 Retina display for clear, accurate image and menu review in the field

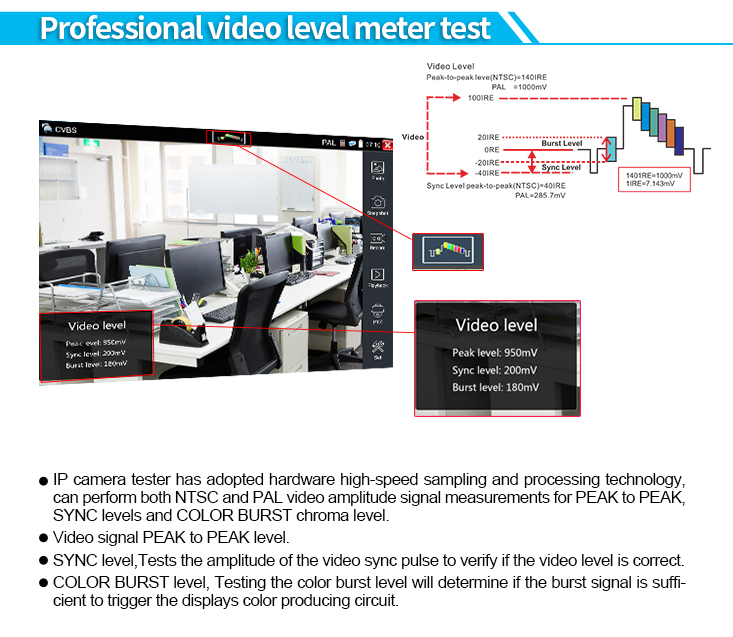

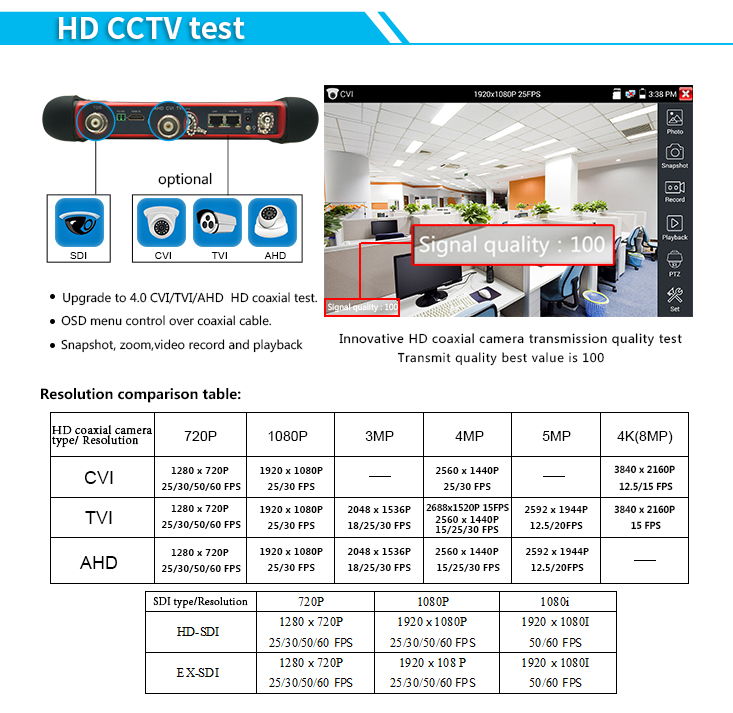

• Multi-format camera support including 8MP IP, TVI, CVI and AHD, plus EX-SDI, HD-SDI and 3G-SDI coaxial signals

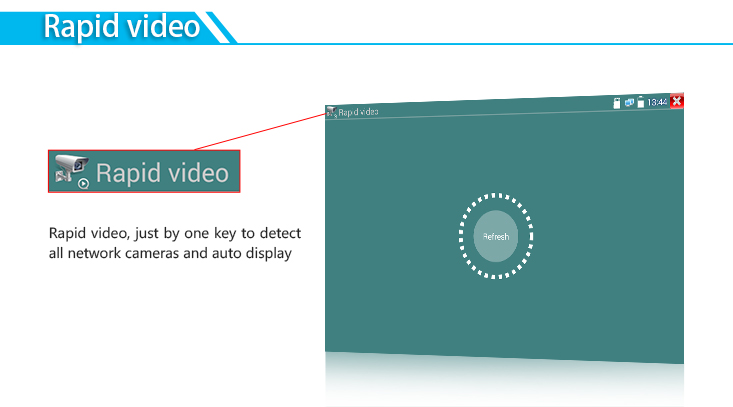

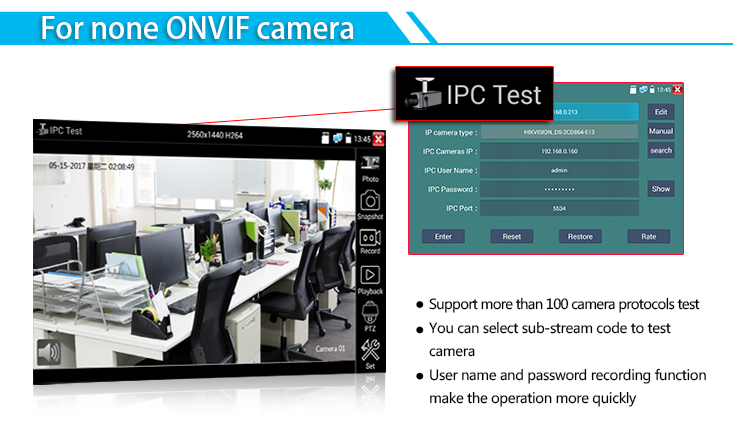

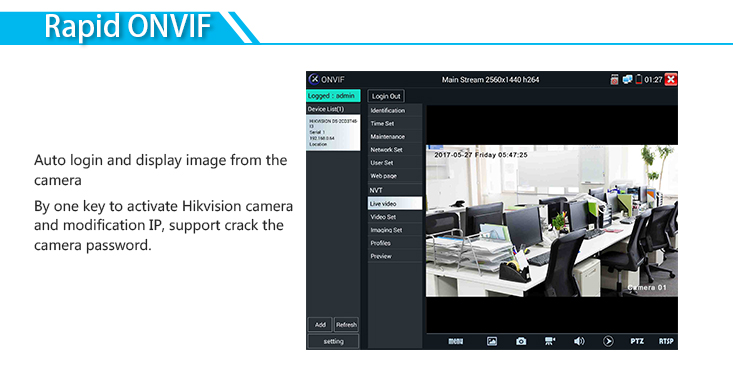

• Broad brand compatibility with LTS, Hikvision, Dahua and Axis cameras, plus generic ONVIF device discovery and rapid ONVIF search
• Built-in digital multimeter for on-site voltage, continuity and electrical fault checks without needing a separate meter

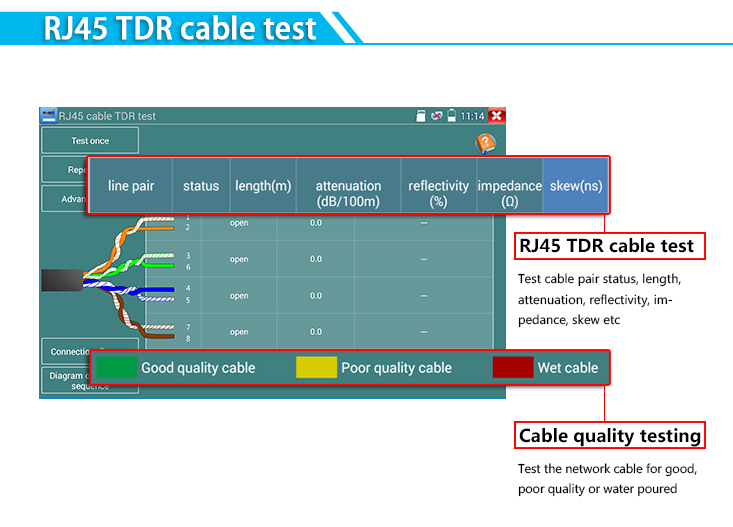

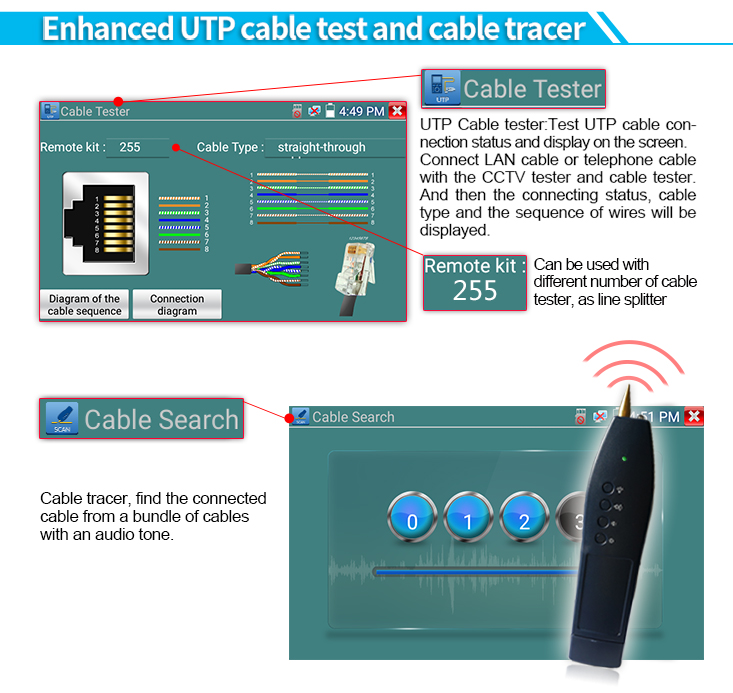

• Integrated network tools including UTP cable testing, RJ45 cable TDR testing and cable quality analysis to quickly locate wiring faults

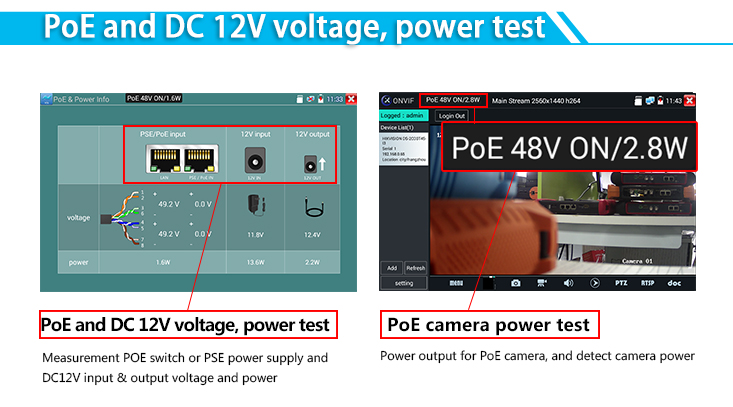

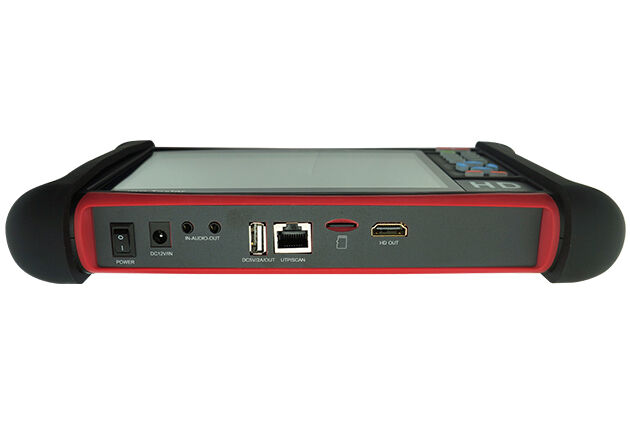

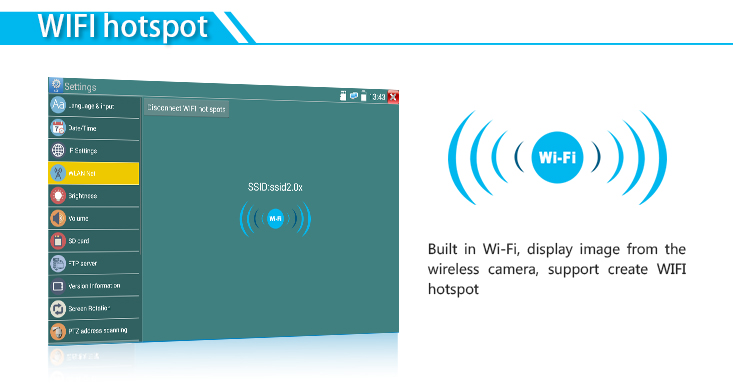

• Flexible connectivity with built-in WiFi hotspot creation, HDMI input/output, VGA input and PoE power output for powering test cameras directly

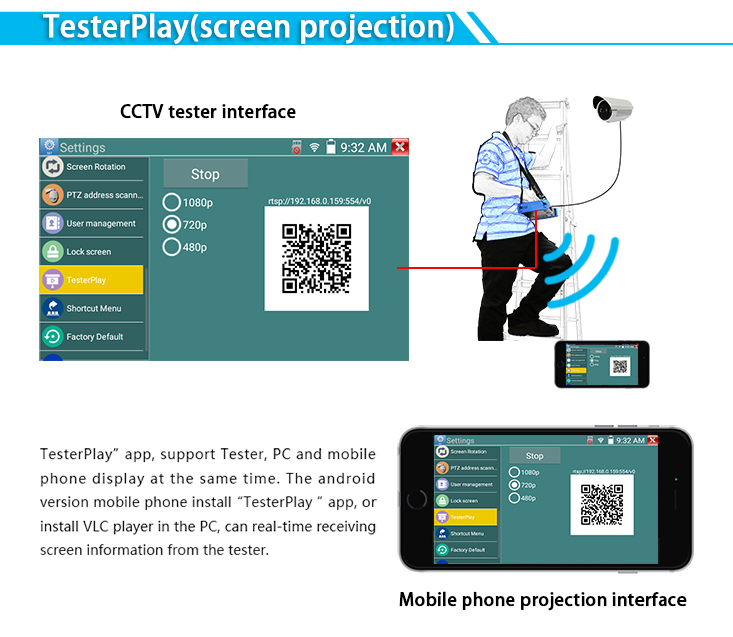

• TesterPlay screen mirroring allowing simultaneous viewing on the tester, a connected mobile phone and a PC
• Long-life battery with a 7.6V/7800mAh lithium-ion pack rated for up to 16 hours of continuous use after a 3.5-hour fast charge
• Extra productivity tools including a media player, office document viewer, audio recording and an 8GB SD card included for saving test reports and footage

Built for Everyday Installation and Service Work

This tester is designed for security installers, network cabling contractors and CCTV service technicians who regularly install or maintain mixed camera systems. Whether verifying image quality on a newly mounted IP camera, checking PoE output to a switch, tracing a faulty Cat6 run with TDR, or confirming DC voltage on a power supply with the built-in multimeter, the LMX7-ITCAA-MP consolidates the core diagnostic tasks of a CCTV job into one portable device, helping reduce callbacks and speed up commissioning.

What's in the Box

• LMX7-ITCAA-MP 7-inch CCTV tester unit
• Rechargeable lithium-ion battery (installed)
• 8GB SD card
• Power adapter and charging cable
• Test leads and connector accessories
• Carry case

Frequently Asked Questions

Does this tester support both IP and analog cameras?
Yes, it supports 8MP IP cameras alongside TVI, CVI, AHD and SDI analog HD formats, making it suitable for mixed-format installations.

Can it test network cabling as well as cameras?
Yes, it includes UTP cable testing and RJ45 TDR testing to help identify wiring faults and cable quality issues in addition to camera diagnostics.

Does it include PoE power output for powering cameras during testing?
Yes, the unit provides PoE power output along with DC24V and DC12V outputs, allowing technicians to power cameras directly from the tester in the field.
