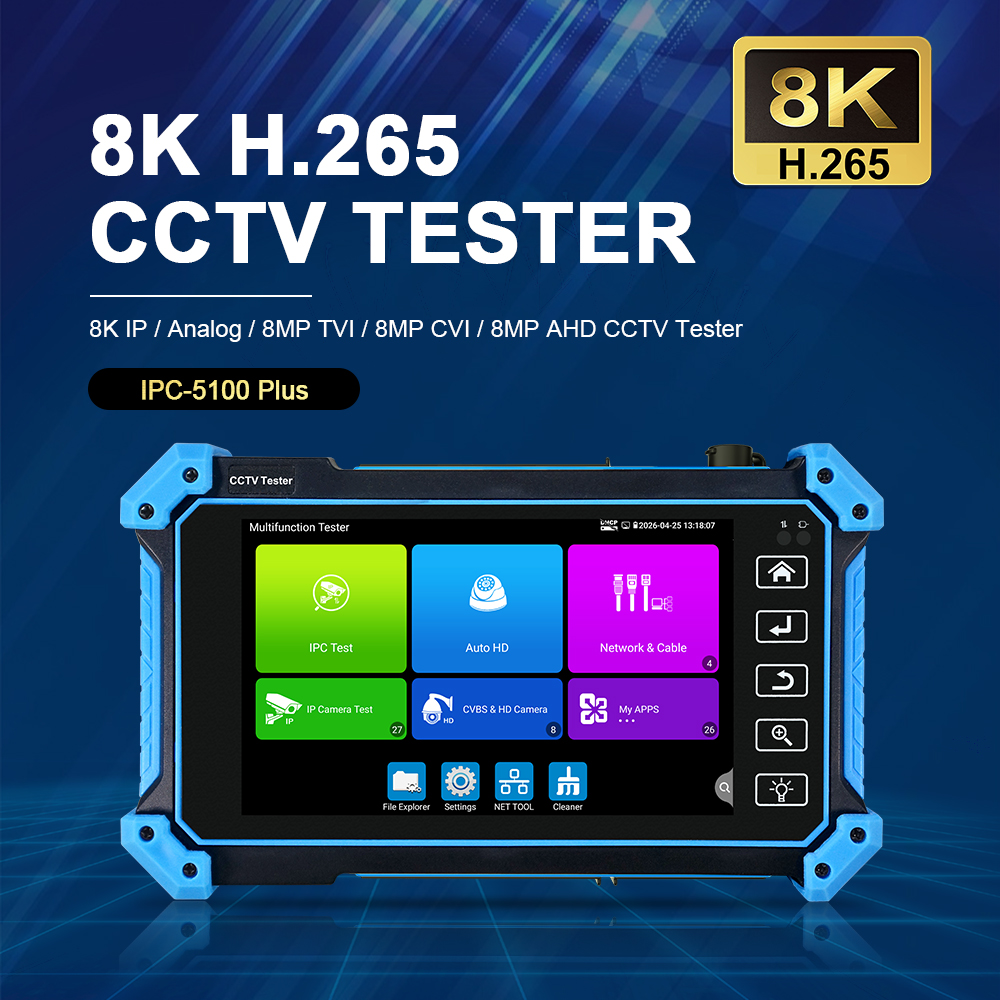

LTS 5.4" IPS Touch Screen CCTV Tester with 8MP TVI/CVI/AHD Support

LTS 5.4" All-in-One CCTV Tester (LM5-ITCAA)

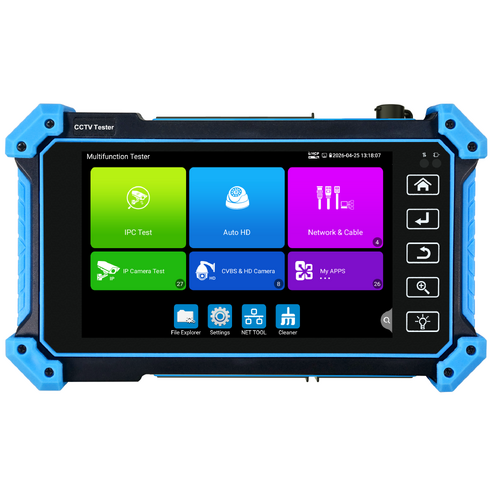

The LTS LM5-ITCAA is a professional handheld field tester built for installers and technicians who need to commission, diagnose and troubleshoot modern security camera systems on site. Its bright 5.4-inch IPS touch screen doubles as both a camera monitor and a full network and cable diagnostic tool, letting you verify image quality, IP connectivity and cabling integrity without carrying multiple separate devices. It is designed to work across analog, HD coaxial and IP camera technologies, making it a practical all-in-one solution for mixed-technology CCTV installations.

Key Features

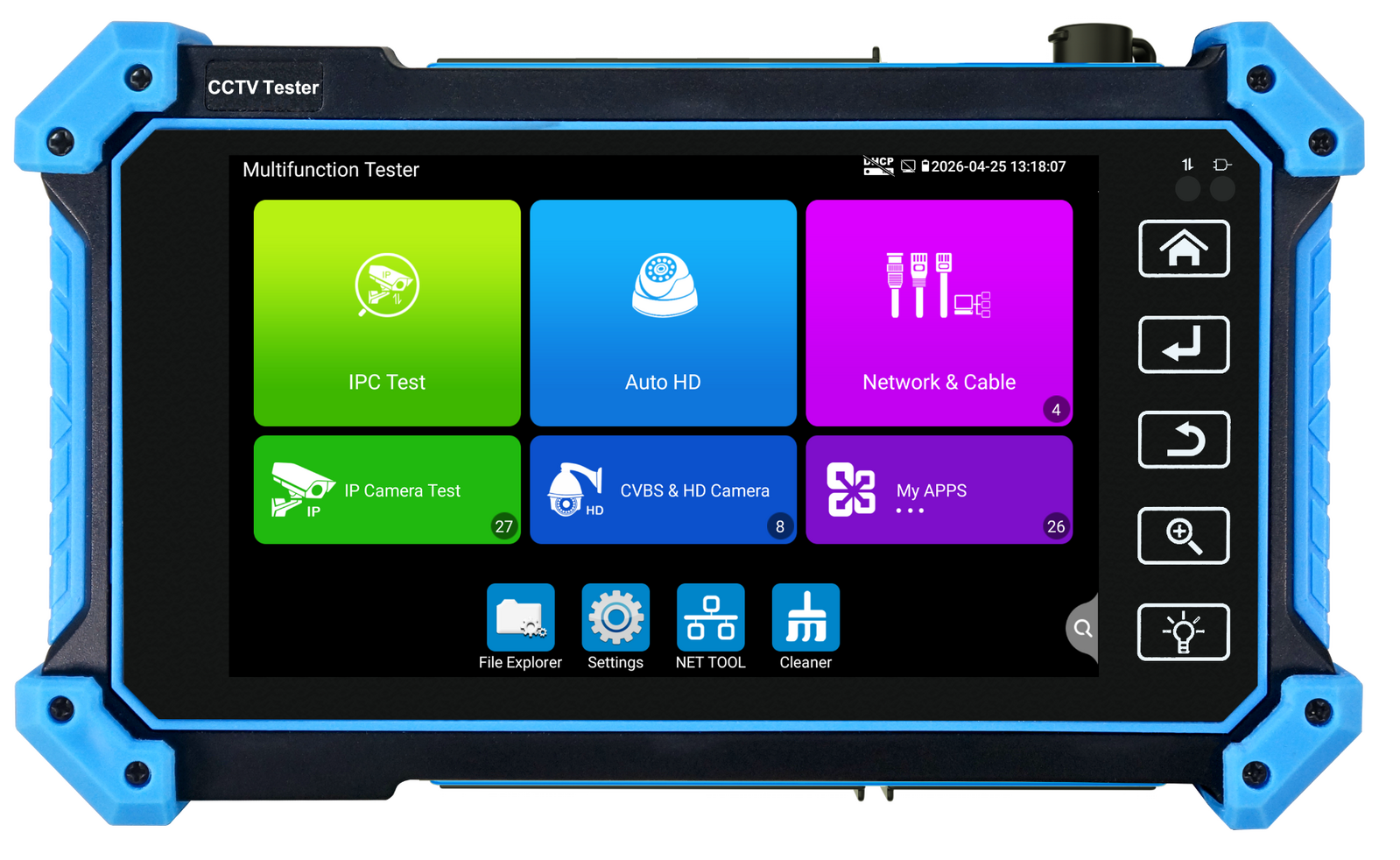

• High-resolution touch display: 5.4" IPS touchscreen with 1920x1152 resolution for crisp, easy-to-read live video and menus.

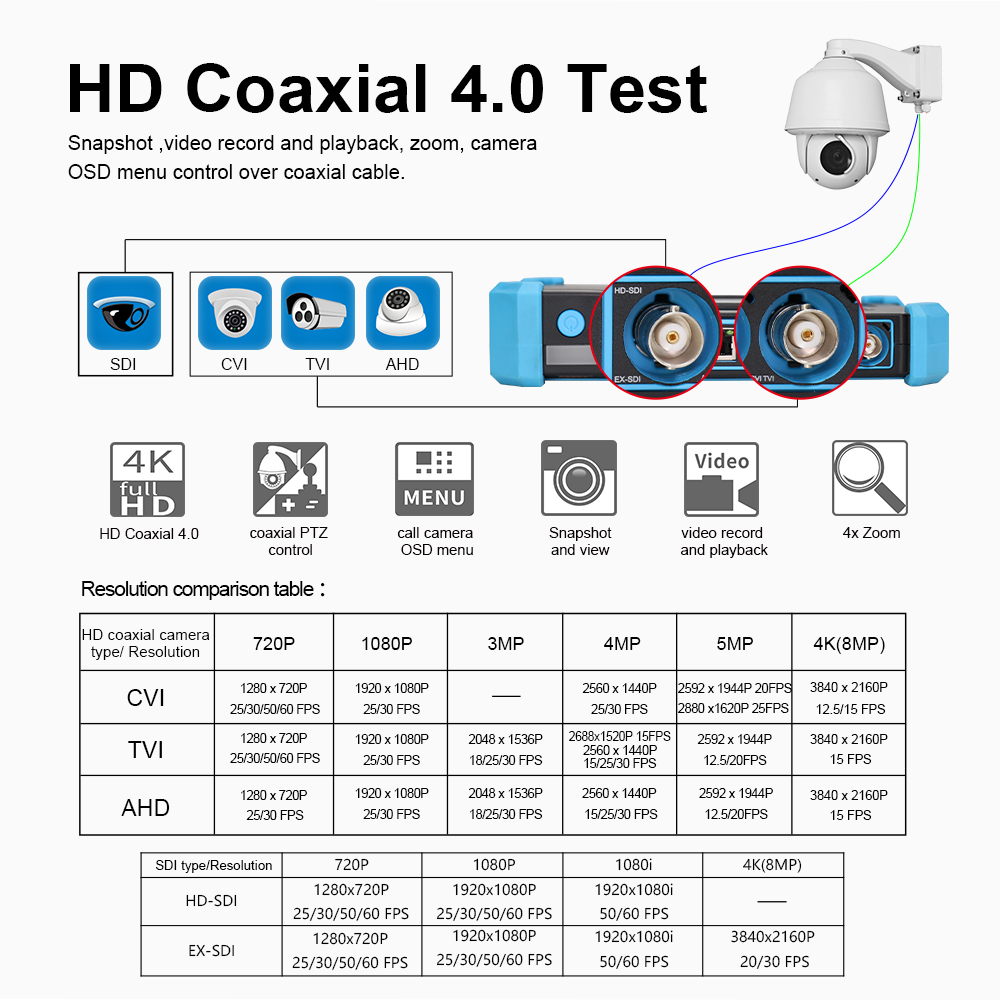

• Multi-format camera testing: Supports 8MP TVI, CVI and AHD coaxial cameras, giving technicians one tool for most HD analog camera types in the field.
• 4K video playback: H.265/H.264 decoding allows mainstream 4K video display when connected to compatible IP or HD sources.

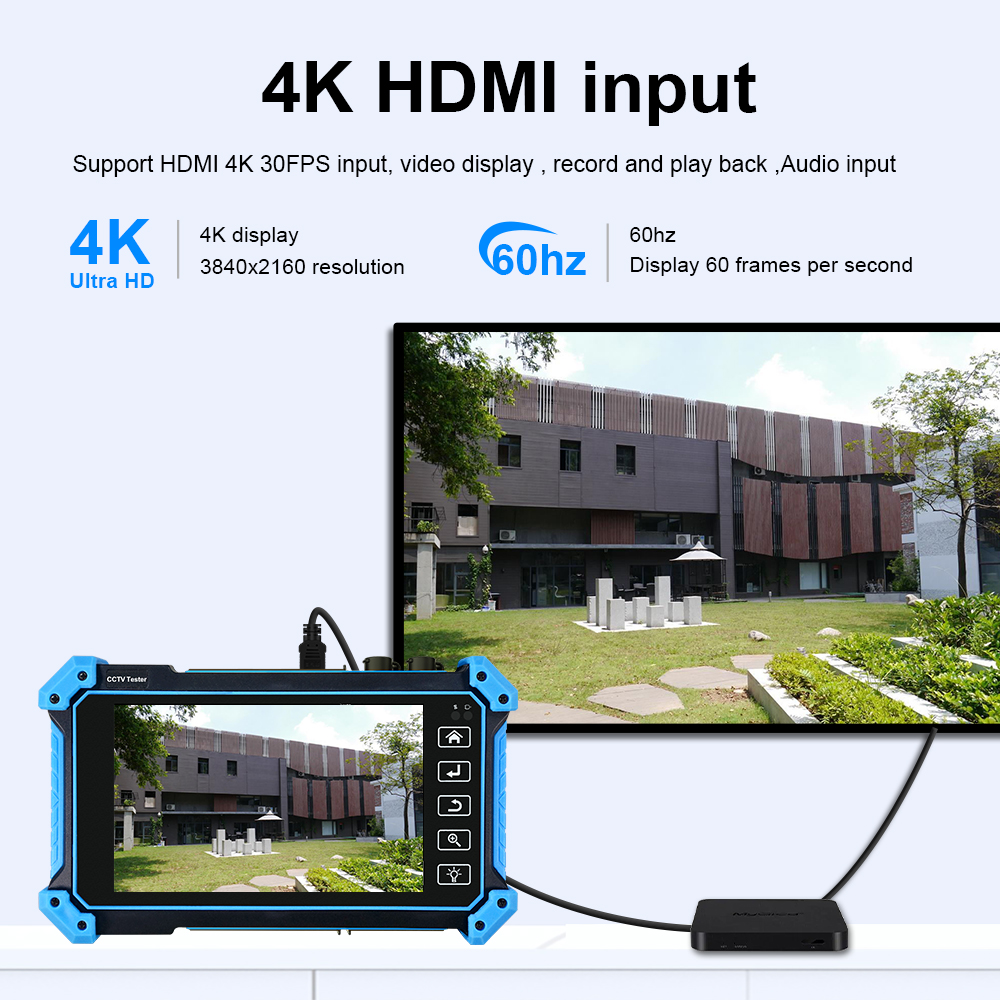

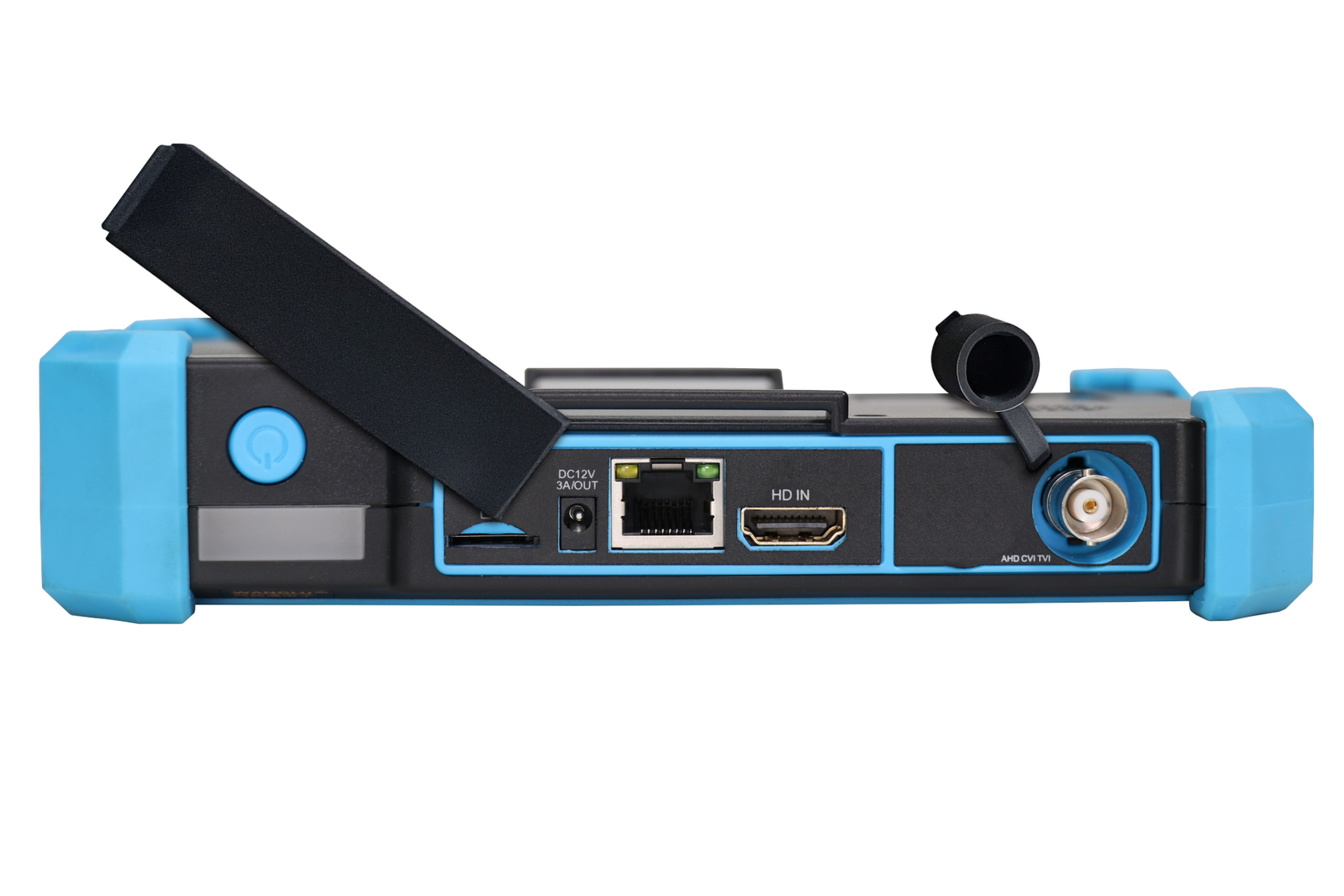

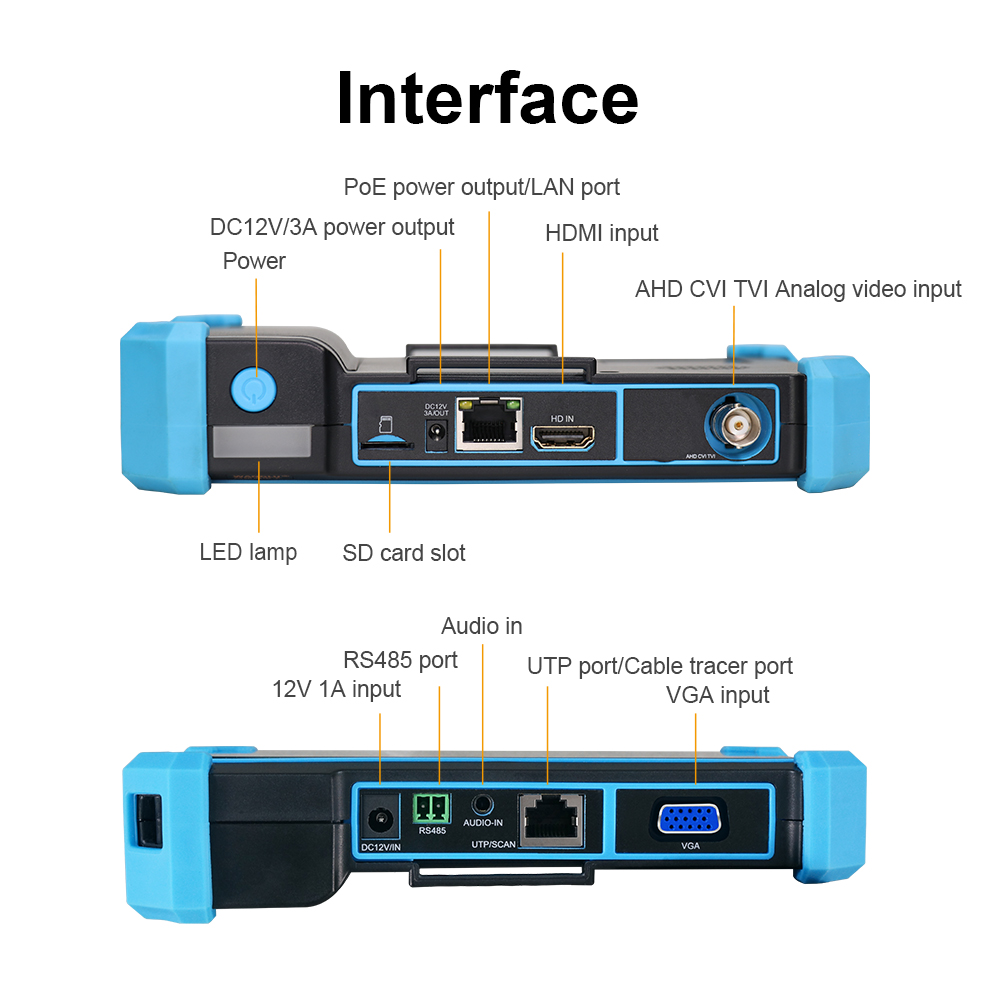

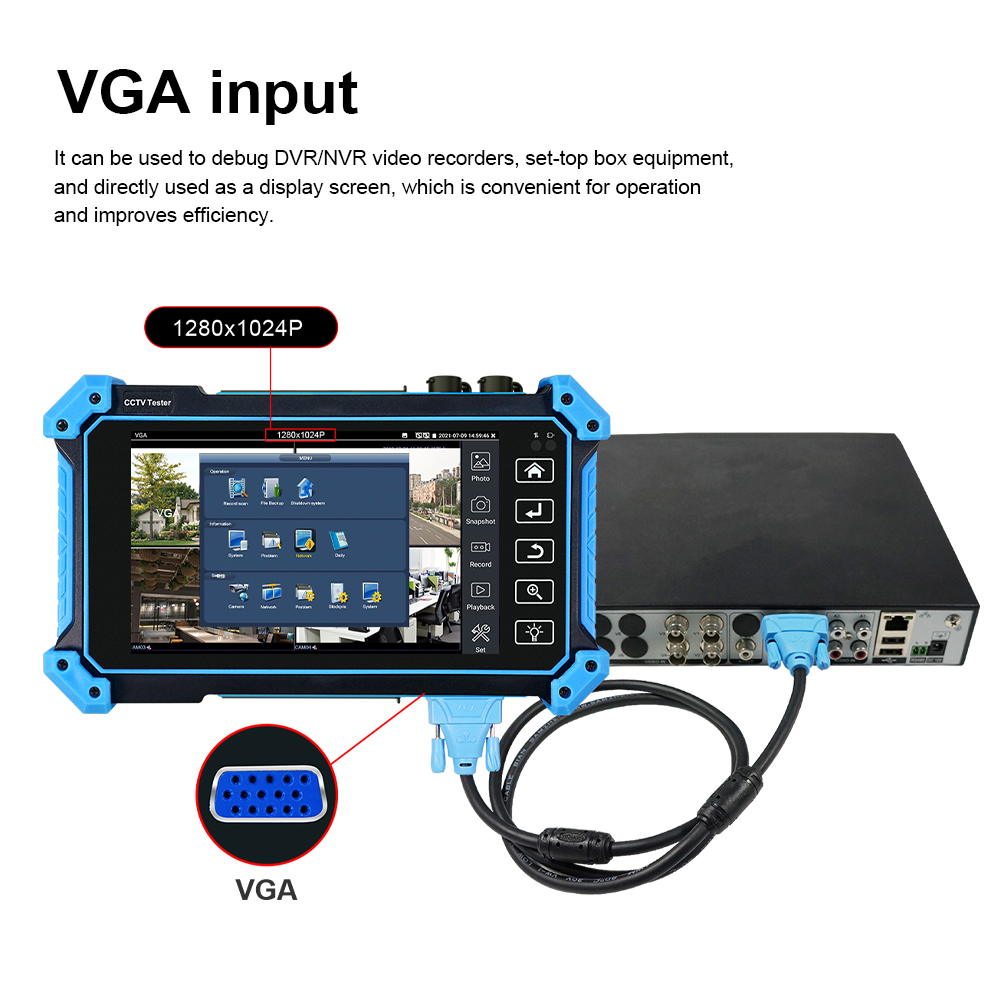

• Flexible video inputs: Built-in HDMI input and VGA input let you check output from NVRs, DVRs and other display sources directly on the tester screen.

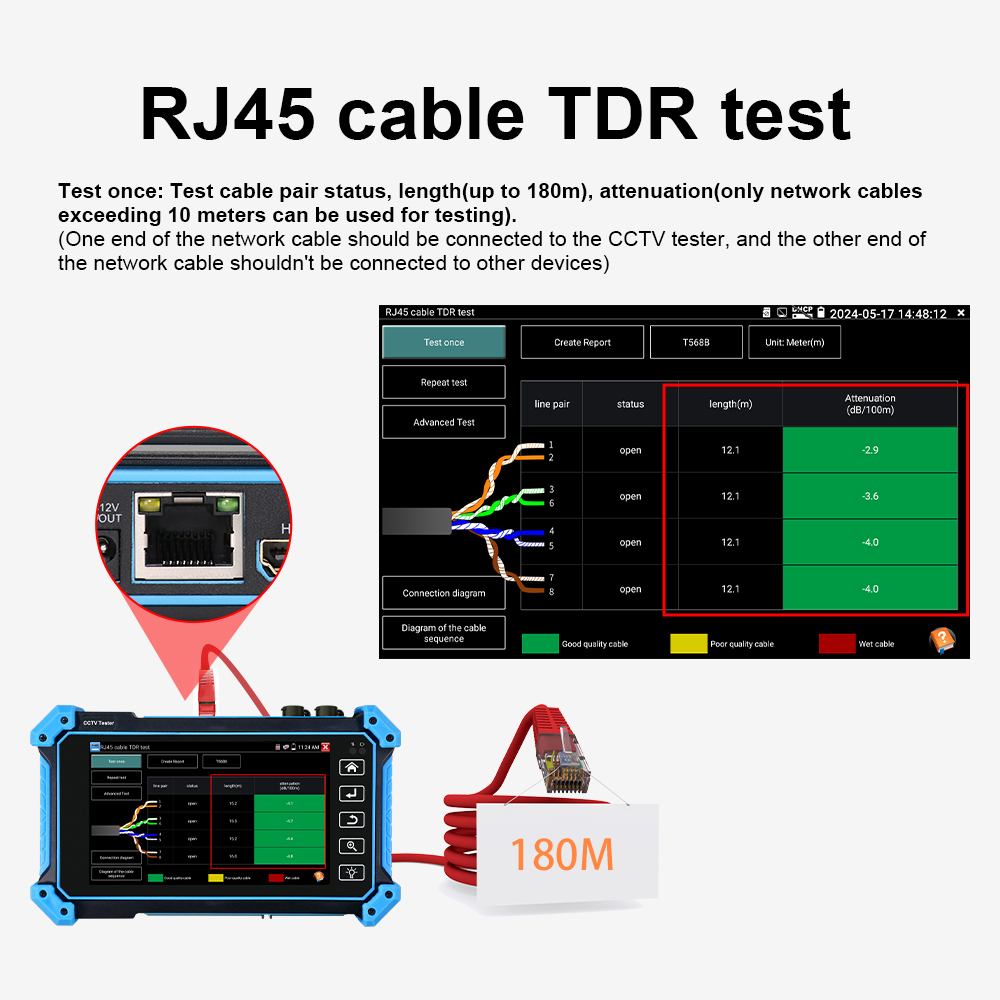

• RJ45 TDR cable testing: Time-domain reflectometry testing quickly identifies cable quality issues and helps pinpoint faults along a network run.

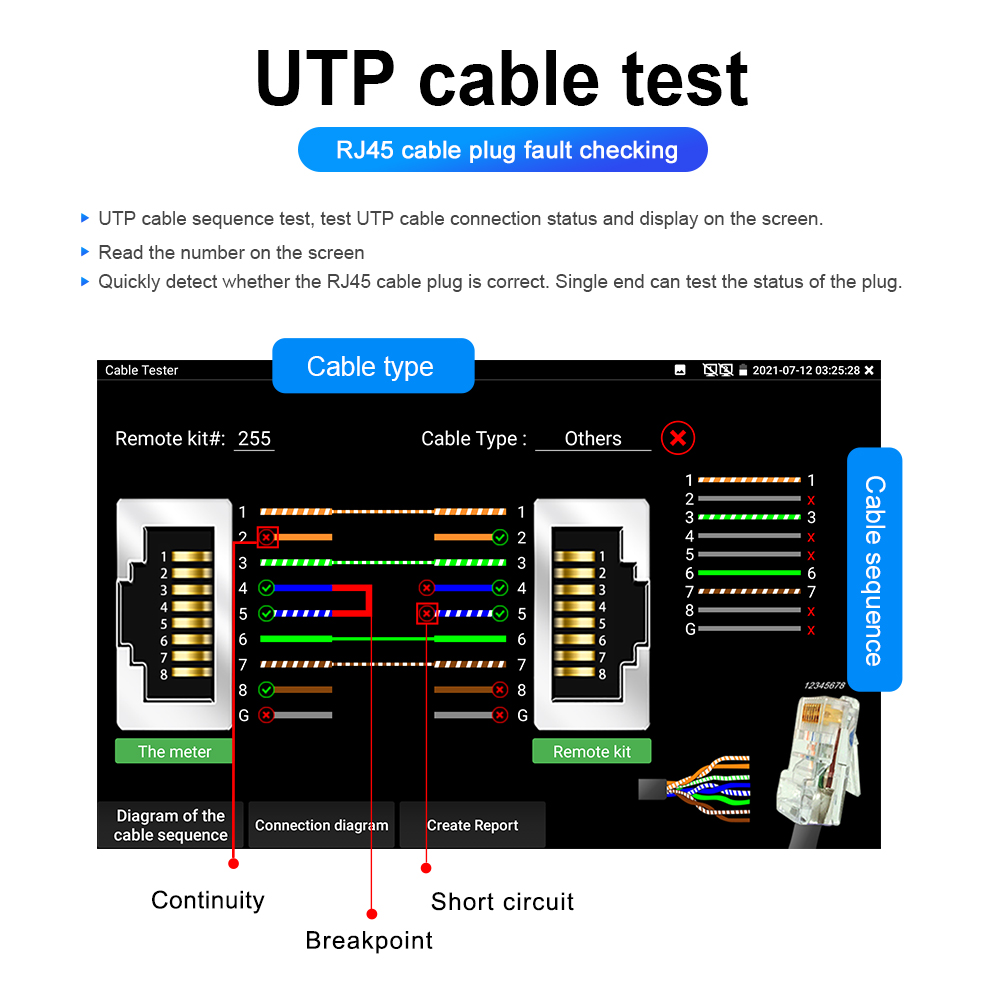

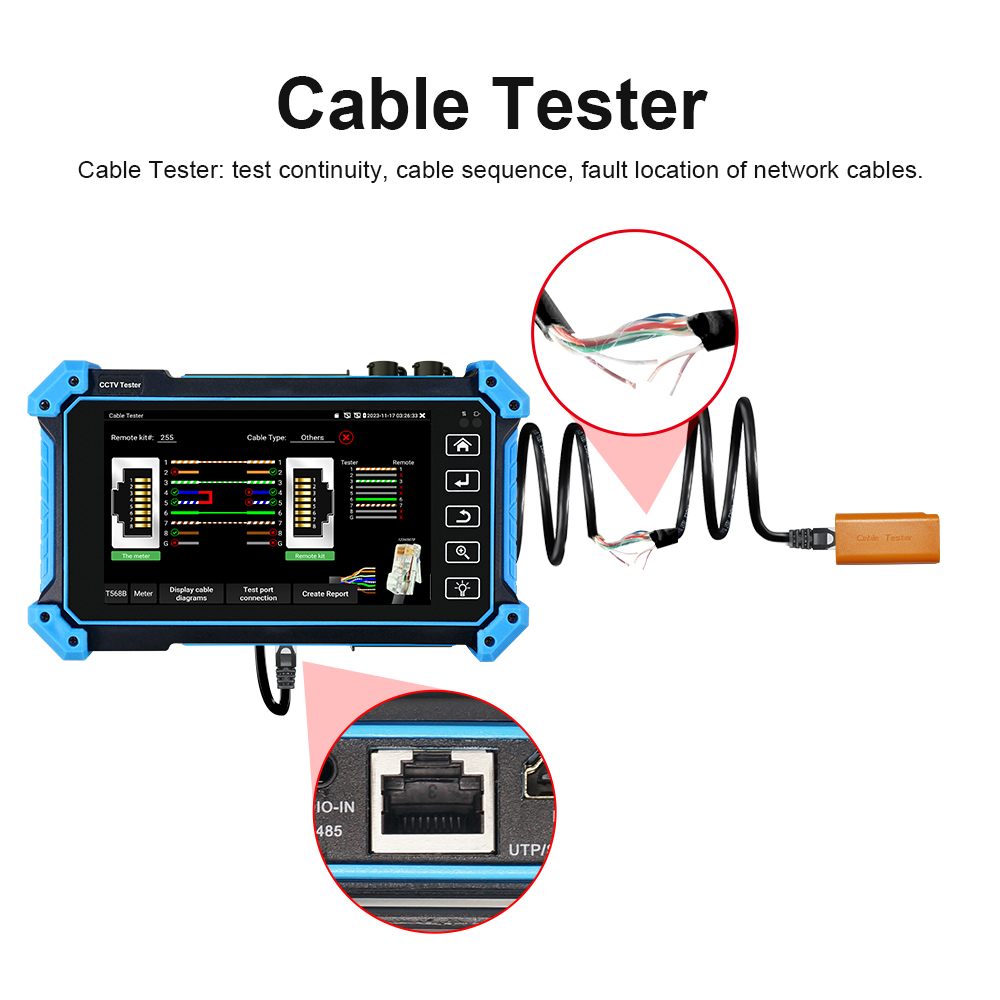

• UTP fault location: Detects near-end, mid-end and far-end fault points on RJ45 cable plugs, saving time when troubleshooting structured cabling.
• Auto HD recognition: Automatically detects the HD coax camera type and resolution being tested, speeding up on-site diagnostics.
• Power output for cameras: Supplies DC12V/3A and 48V PoE output so cameras can be powered directly from the tester during testing.

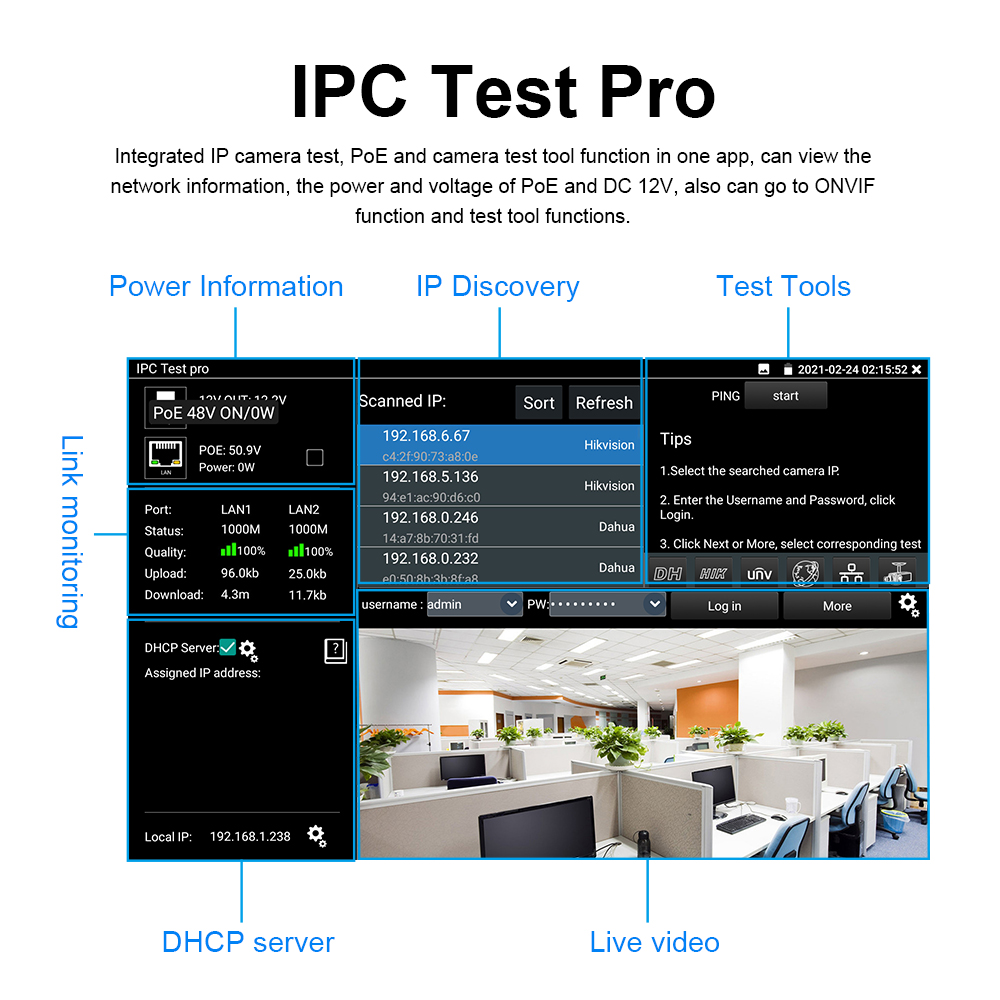

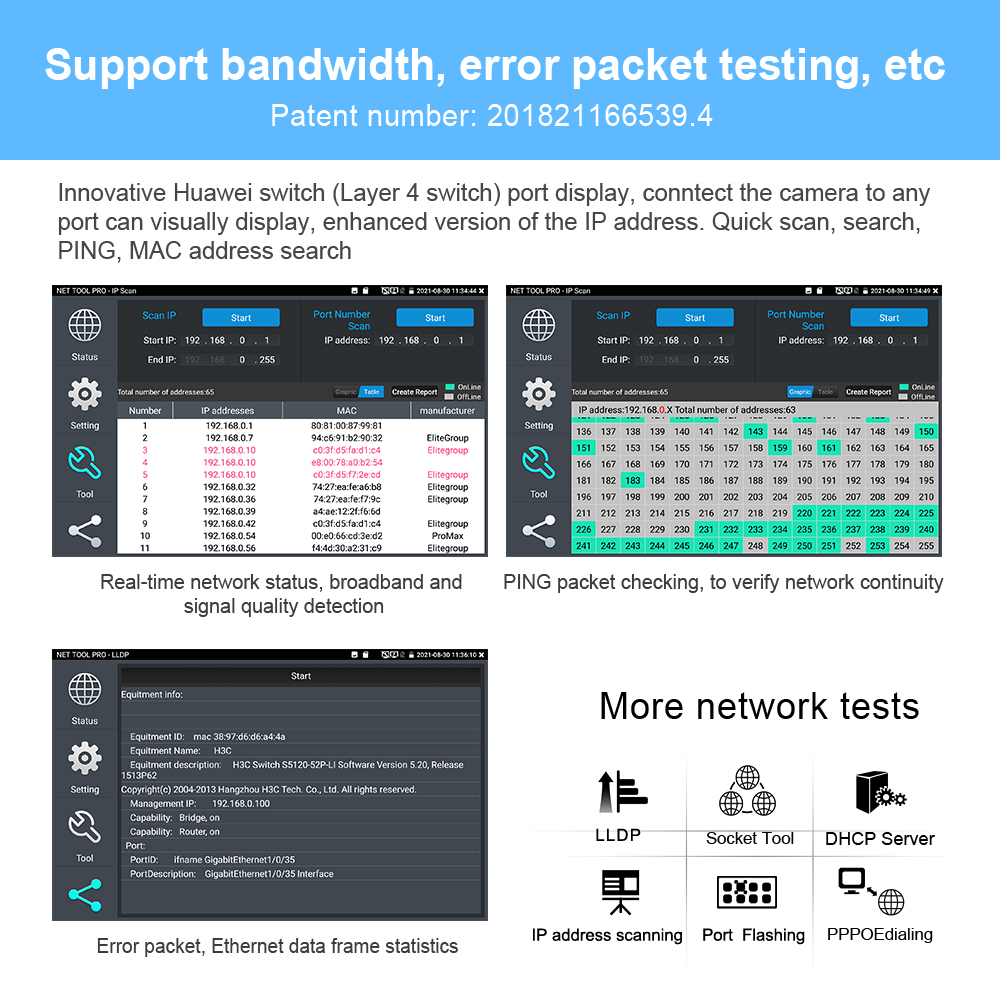

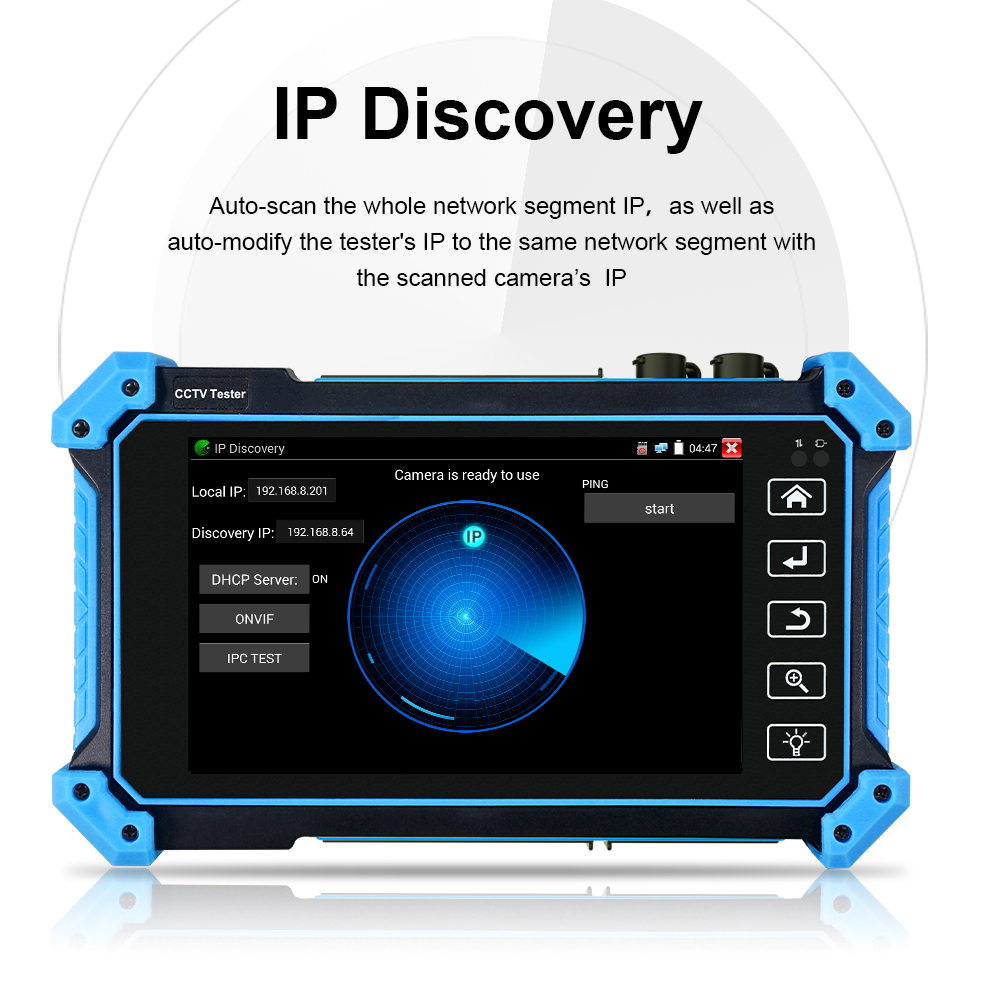

• Report and IP tools: Rapid ONVIF discovery lets you generate test reports and modify camera IP addresses on the spot.

Built for Real-World Installation and Service Work

This tester is aimed squarely at CCTV installers, integrators and maintenance technicians who need a single rugged device for pre-installation checks, camera commissioning and fault-finding on existing systems. Whether verifying a new HD coax camera run, confirming IP camera connectivity before mounting, or chasing down an intermittent cable fault, the LM5-ITCAA reduces the need to carry a laptop, spare monitor and separate cable tester on every job. Its combination of camera testing, cable diagnostics and network tools makes it well suited to both new installs and service calls on legacy or hybrid systems.

What's in the Box

• LTS LM5-ITCAA CCTV Tester unit
• Rechargeable Lithium-ion battery
• Power adapter/charger
• Test leads and cable adapters
• Carry case or pouch
• Quick start guide

Frequently Asked Questions

Does this tester support IP cameras as well as analog/HD coax cameras?
Yes, in addition to 8MP TVI/CVI/AHD coaxial testing, the tester includes ONVIF-based tools for discovering and testing IP cameras on the network.

Can the tester power a camera during testing?
Yes, it provides DC12V/3A output as well as 48V PoE output, allowing many cameras to be powered directly from the tester while testing.

What kind of cable testing does the LM5-ITCAA support?
It includes RJ45 TDR testing and UTP cable diagnostics that can help locate near-end, mid-end and far-end faults along a cable run.
