LTS 6-in-1 OTDR CCTV Tester with 5.4" Touchscreen & Fiber Optic Testing

LTS 6-in-1 OTDR CCTV Tester with 5.4" Touchscreen

The LTS 6-in-1 OTDR CCTV Tester is a rugged, all-in-one field instrument built for installers who need to commission and troubleshoot both fibre optic links and modern security camera systems without carrying multiple devices. It combines a full-featured 8MP-capable multi-format camera monitor with a genuine OTDR fibre analyser, cable tracer and video input tools in a single handheld unit, making it a practical addition to any CCTV installation or maintenance toolkit.

Key Features

• Multi-format camera testing: Displays live video from 8MP IP, TVI, CVI, AHD and legacy Analog (CVBS) cameras for fast on-site verification.
• Bright 5.4-inch IPS touchscreen: High-resolution 1920 x 1152 display makes it easy to check focus, framing and image quality in the field.
• 4K H.265/H.264 support: Handles the latest compressed video streams from high-resolution IP cameras and NVR outputs.
• Built-in OTDR fibre tester: Operates on dual 1310/1550nm wavelengths with 28/26dB dynamic range for locating breaks, splices and high-loss points on fibre runs.
• Optical power meter and visual fault locator: Confirms signal strength and helps pinpoint physical faults along a fibre link.
• HDMI and VGA video input: Lets technicians tap directly into an NVR, DVR or monitor output for signal verification.
• Digital cable tracer: Quickly locates and identifies individual cables in a bundle or patch panel, reducing guesswork during installs.
• Compact, portable design: Handheld form factor suited to rooftop, ceiling void and remote site work.

Built for Real-World Installation Work

This tester is designed for technicians who regularly install or service hybrid CCTV systems that mix fibre backbones with IP and analog camera runs. On a typical job, it can confirm a camera is transmitting a clean image immediately after mounting, trace a specific cable back to its termination point, and then switch to OTDR mode to certify a fibre link before handover. Having camera testing, fibre diagnostics and cable tracing in one device cuts down on the number of separate tools a crew needs to carry, speeding up commissioning and troubleshooting on site.

What's in the Box

• 6-in-1 OTDR CCTV Tester unit
• Rechargeable battery and charger
• Test leads and connector adaptors
• Carry case
• User manual

Frequently Asked Questions

Does this tester work with both IP and analog cameras?
Yes. It supports 8MP IP cameras as well as TVI, CVI, AHD and standard Analog (CVBS) formats, covering most cameras used in hybrid CCTV installations.

Can it test fibre optic cable runs as well as copper cabling?
Yes. The built-in OTDR module tests fibre at 1310/1550nm wavelengths, while the digital cable tracer and cable test functions handle copper and coax runs.

Is the screen touch-sensitive?
Yes, the 5.4-inch display is a touchscreen, allowing quick navigation through camera, OTDR and cable testing menus.

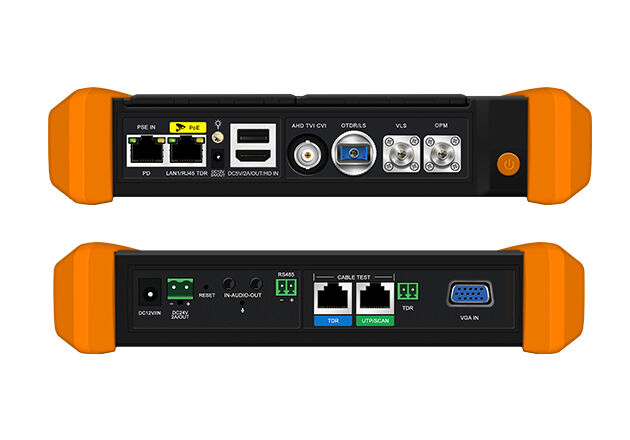

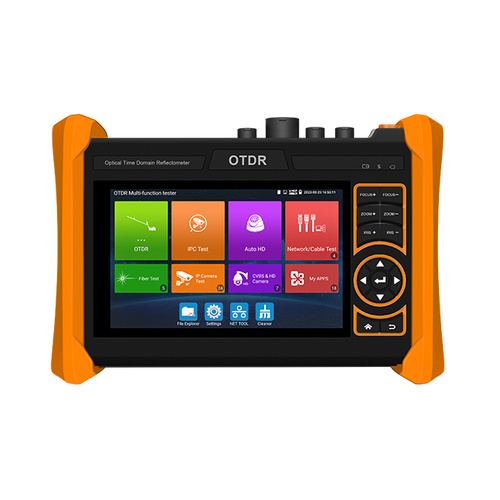

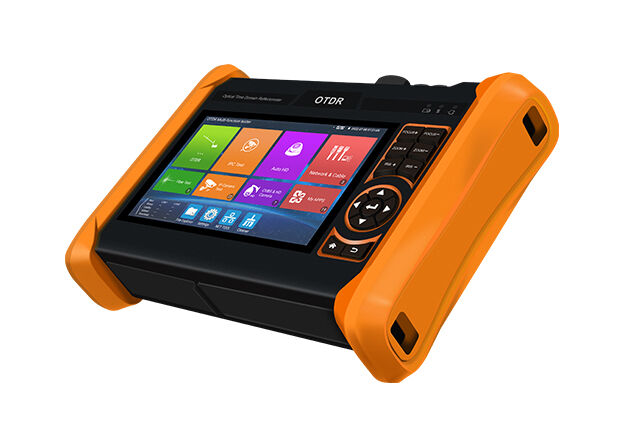

Product Images & Diagrams
